A visible condensate leak on the ceiling: a precise HVAC service call on a Haxxair wall-mounted heat pump in Rosemère
In Rosemère, our AirGreen team was called for a Haxxair wall-mounted heat pump repair installed in a residential room where the customer had noticed a sign that almost never lies: an apparent moisture stain on the ceiling, directly above the indoor unit. The machine continued to operate, but the appearance of a stain above the wall, combined with concerns about condensate drainage, required a quick and thorough inspection.

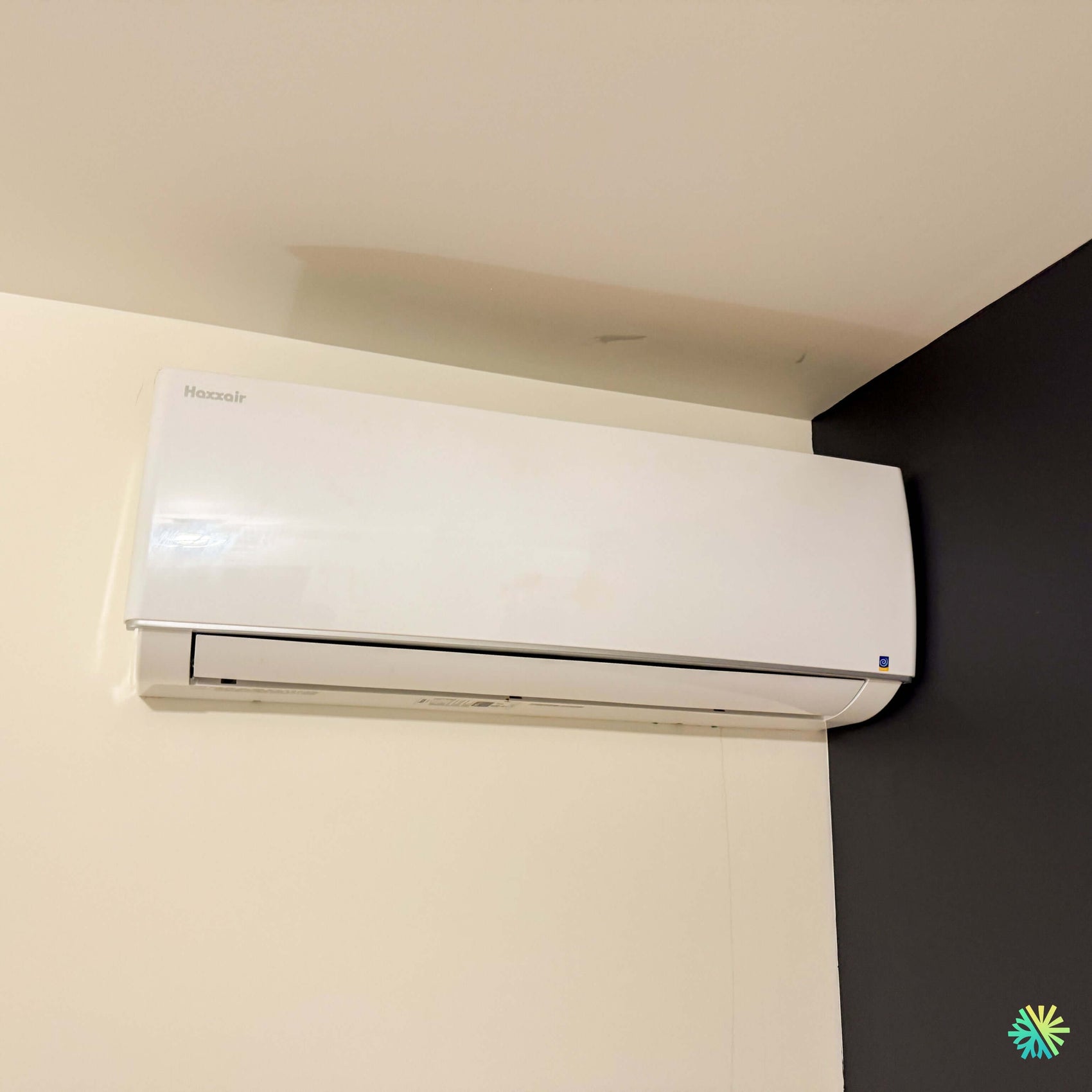

In the photo, you can clearly see a Haxxair wall unit of the mini-split type, installed near the ceiling in a corner of the room. The device is compact, white, with a front air diffusion flap. The exact model and BTU capacity are not readable from the image, but the setup corresponds to a wall-mounted heat pump or a residential wall air conditioner connected to an outdoor unit. In this type of system, most service calls related to water come from three main causes: a clogged condensate drain, insufficient drainage slope, or dust accumulation on the evaporator and in the drain pan.
At AirGreen, we know that a leak on a wall-mounted heat pump should never be treated as a mere cosmetic issue. A small infiltration can quickly damage drywall, create odors, affect air quality, and in some cases, reach internal electrical components. Our intervention in Rosemère aimed to identify the real cause of the leak, fix the problem at its source, and restore the device to reliable operation.
Symptoms reported by the customer
The customer had noticed that the device was still cooling, but signs of moisture were appearing around the installation. The ceiling showed a darkened area, indicating that the water was no longer following its normal path outside or to the designated drainage system.
The observed and reported symptoms were as follows:
- water or moisture marks above the indoor unit;
- concern about a possible internal leak;
- operation still present, but less reassuring;
- risk of dripping behind the unit;
- possible water accumulation in the condensate pan;
- need for a diagnosis before the damage worsens.
This kind of situation is common during cooling periods, especially when the unit runs several hours a day. In cooling mode, the indoor unit removes moisture from the air. This moisture turns into water on the evaporator, falls into a condensate pan, then must be drained away. If this path is blocked, poorly sloped, or partially clogged, water can back up inside.
A Haxxair wall heat pump installed near the ceiling
The visible installation in Rosemère has an important feature: the unit is positioned near the ceiling and quite close to a dark side wall. This configuration is common in houses and condos because it allows good air distribution in the room. However, it requires special attention to clearance, filter access, front panel opening, and drain slope.
A Haxxair wall heat pump of this type generally includes:
- an indoor unit with evaporator heat exchanger;
- a tangential fan;
- a condensate pan;
- a drain pipe;
- washable filters;
- an electronic control board;
- a motorized damper;
- a refrigerant line connecting the indoor unit to the outdoor unit;
- a communication and power wiring.
During a service call, it is not enough to just clean the filter and restart the unit. A leak requires checking the entire water path, from the evaporator to the drain outlet. A drain that seems to be working empty can still back up when the unit produces a lot of condensate.
Our diagnosis: follow the exact path of the water
The first step of our intervention was to secure the area, then inspect the wall unit without assuming the cause. In an HVAC repair, visible symptoms rarely tell the whole story. A mark on the ceiling can come from a clogged drain, but also from defective insulation around the refrigerant lines, abnormal condensation, independent infiltration, or poor sealing around the wall penetration.
Visual inspection of the indoor unit
We started by opening the front panel of the Haxxair device to check the condition of the filters, evaporator, and condensate tray. A clogged filter can reduce airflow, abnormally lower the evaporator temperature, and promote ice formation. When this ice melts, the water can exceed the normal capacity of the tray and cause overflow.
The checked elements included:
- cleanliness of the filters;
- condition of the evaporator;
- presence of dust or biofilm in the tray;
- alignment of the condensate tray;
- water traces at the back of the device;
- visible blockage at the drain inlet;
- operation of the flap and ventilation.
In this case, the signs pointed to a condensate drainage problem rather than a compressor failure or a major unit malfunction.
Condensate drain test
We then tested the drain. This step is essential because a partially blocked drain can allow a small amount of water to pass but back up when the unit runs continuously. We introduced water into the condensate tray to observe the evacuation speed and confirm if the path was clear.
The diagnosis revealed insufficient flow. The drain had a restriction, probably caused by the accumulation of dust, organic deposits, and particles sucked in over time. This type of blockage is very common on wall air conditioners and wall heat pumps that regularly operate in cooling mode.
Checking the slope and wall passage
A good drain must have a constant slope. Even a slight back angle can create a water pocket, encourage deposits, and cause intermittent backup. We therefore checked the positioning of the unit, the drain outlet, and the passage to the outside or to the intended drainage.
In installations where the unit is very close to the ceiling, the space available behind the device can be limited. A duct, an elbow, or a slightly compressed drain can be enough to cause a problem after several seasons of use.
The solution applied: cleaning, clearing the drain, and full validation
Once the restriction was confirmed, we proceeded to clean the drainage system. The goal was not only to clear the drain but also to reduce the risk of recurrence.
Cleaning of the tray and drain
We cleaned the condensate pan and cleared the drain inlet. Deposits accumulated in this area are often invisible when the unit is closed, but they can block water when condensate production increases.
The intervention included:
- filter cleaning;
- inspection and cleaning of the condensate pan;
- mechanical clearing of the drain;
- controlled rinsing of the drainage path;
- flow verification;
- inspection of areas where water could have accumulated.
No major components like the compressor, electronic board, or ventilation motor needed replacement. The repair focused on condensate drainage and restoring proper drainage.
Correction of risk points
We also paid attention to risk points around the installation: clearance near the side wall, access for future maintenance, unit alignment, and signs of residual moisture. When necessary, we recommend the customer dry and monitor the affected area, especially if drywall or paint has absorbed moisture.
A condensate leak repaired quickly limits damage, but a visible trace should always be monitored. If moisture remains trapped, it can reappear even after mechanical repair.
Operation test in cooling mode
After cleaning, we restarted the unit in cooling mode to check the normal production of condensate and the quality of the drainage. The test should not be too short: the unit must run long enough for the evaporator to start condensing moisture from the air.
We validated:
- ventilation stability;
- no internal leakage;
- continuous drainage;
- consistent blowing temperature;
- no abnormal noise;
- damper operation;
- normal unit response to the command.
The result was conclusive: the water followed the correct path again, the unit operated normally, and the customer was reassured about the overall condition of their Haxxair wall heat pump.
Practical lessons from this AirGreen repair in Rosemère
A water leak does not always mean a serious breakdown
Many owners immediately fear a complete replacement when they see water around a wall air conditioner or a wall heat pump. In many cases, the cause is simpler: clogged drain, dirty pan, neglected filter, or poor drainage slope. However, even if the repair can be relatively simple, the diagnosis must be thorough.
Ignoring a small leak can cost more than the service call itself. Damage to the wall, ceiling, or floor can far exceed the cost of specialized maintenance. That’s why we recommend acting as soon as the first signs appear.
Mistakes to avoid with a wall-mounted heat pump
To avoid condensate problems, several habits are important:
- do not wait for water to flow abundantly before calling;
- do not insert objects into the drain without knowing where they will go;
- do not completely close the diffusion vents;
- do not use the device with dirty filters;
- do not ignore a drop in airflow;
- do not block the air intake above the unit;
- do not attempt to disassemble the device without cutting the power;
- do not assume the leak always comes from the drain without checking the insulation of the refrigerant lines.
A professional HVAC repair quickly distinguishes a condensate leak from a frosting problem, an installation defect, or external condensation.
Preventive maintenance remains the best protection
In Rosemère, as in Montreal, Laval, Longueuil, on the North Shore and the South Shore, wall-mounted heat pumps are increasingly used for long periods. In summer, they air condition; in spring and fall, they heat; in winter, some models also continue to provide heating depending on their capacity.
This prolonged use increases the importance of maintenance. A device that runs often accumulates dust faster in the filters, on the evaporator, and in the condensate tray. Periodic cleaning reduces the risk of leaks, improves airflow, protects the fan motor, and promotes better energy efficiency.
At AirGreen, we generally recommend:
- regular filter cleaning by the owner;
- annual professional inspection or based on usage;
- thorough cleaning of the indoor unit when necessary;
- checking the drain before the air conditioning season;
- monitoring noise, odors, and performance variations;
- inspection of the outdoor unit to ensure good air circulation.
A local intervention with a structured method
This repair in Rosemère clearly illustrates our way of working. We do not just eliminate the symptom. We seek to understand why the problem appeared, how to prevent its return, and which elements should be monitored in the coming weeks.
Our approach is based on clear steps:
- observation of visible symptoms;
- discussion with the client about the problem history;
- inspection of the indoor unit;
- drain and condensate pan test;
- airflow verification;
- targeted cleaning;
- real operation test;
- practical explanations to the client.
This method provides reliable service, especially for wall-mounted systems installed in finished spaces where a leak can quickly cause visible damage.
Why choose AirGreen for a Haxxair wall-mounted heat pump
AirGreen regularly services wall-mounted heat pumps, wall-mounted air conditioners, multi-zone systems, central heat pumps, electric furnaces, and HVAC accessories in Greater Montreal. Our field experience allows us to work on various brands, including Haxxair, and to address electrical failures as well as issues with condensate, noise, performance, ventilation, or control.
For this Haxxair wall-mounted heat pump repair in Rosemère, the client regained a functional device, proper drainage, and greater peace of mind. The intervention helped prevent the worsening of the moisture trace, avoid unnecessary replacement, and extend the equipment's lifespan.
Whether it's a leak, a device that no longer cools, a unit that frosts, a noisy fan, an electronic board failure, or complete maintenance, AirGreen offers professional HVAC service in Rosemère, Montreal, Laval, Longueuil, on the North Shore and the South Shore.
