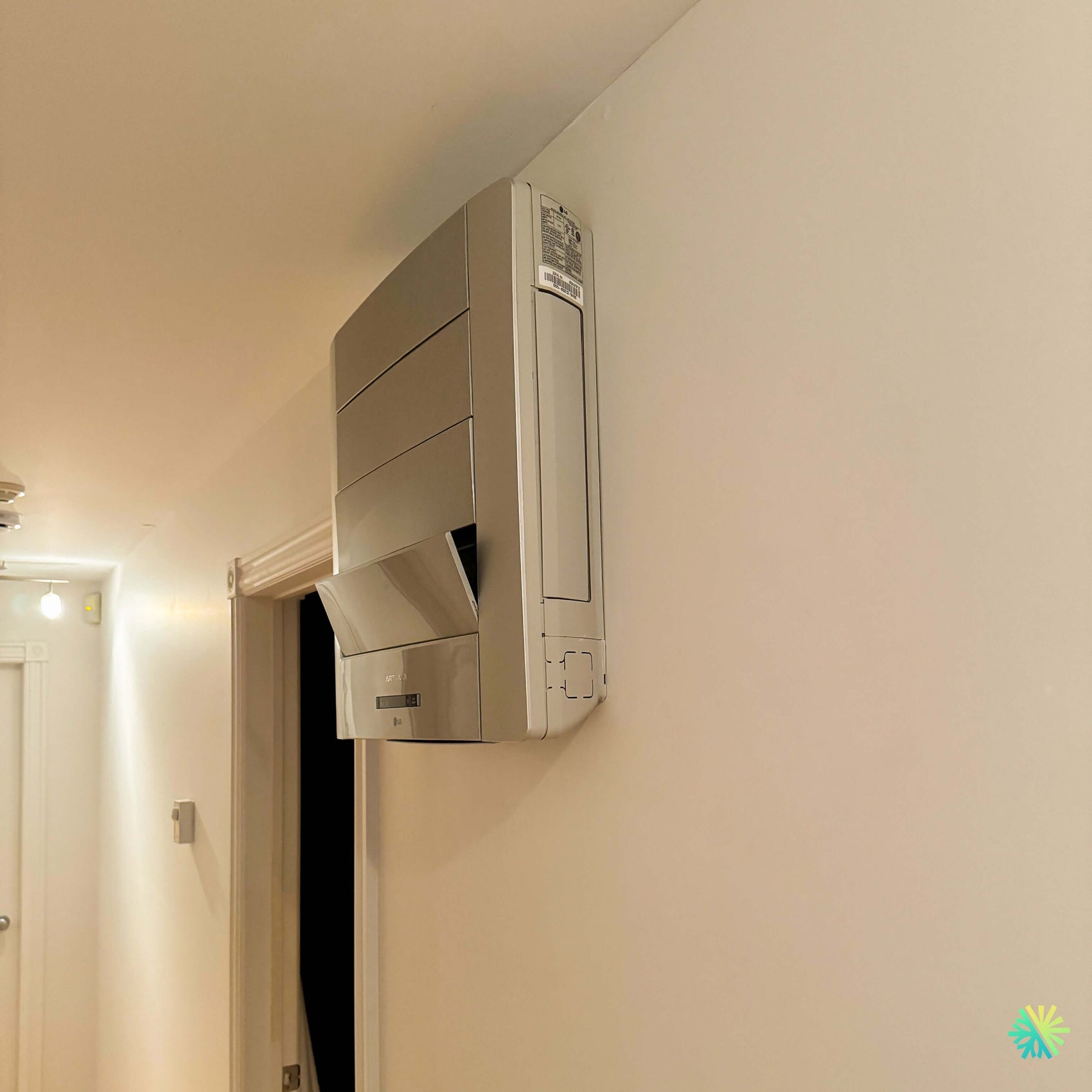

An LG Art Cool wall-mounted heat pump installed in a narrow hallway: a service call where airflow, the motorized flap, and internal maintenance were at the heart of the diagnosis
In Saint-Constant, on the South Shore of Montreal, our AirGreen team was called for a LG Art Cool wall-mounted heat pump repair installed in a residential hallway, very close to a door frame and near the ceiling. The client contacted us after noticing that the indoor unit was no longer distributing air as effectively as before. The system was still working, but comfort was no longer uniform: some rooms remained too warm in summer, the airflow seemed weaker, and the unit’s front flap did not always position correctly during start and stop cycles.
This type of problem is common with older wall-mounted heat pumps or those installed in restricted traffic areas. The device may still respond to the remote control, produce cold or heat, yet lose a significant part of its efficiency due to a mechanical element, internal clogging, or inaccurate temperature reading. In this case, the visible indoor unit was a LG Art Cool, a wall model known for its distinctive design, with a stylized front panel and a motorized air flap. Its design requires careful inspection, as access to internal components is not always as straightforward as on a standard wall-mounted heat pump.
At AirGreen, we approach every HVAC service call based on the customer's actual symptoms. A heat pump that blows less effectively does not necessarily have a refrigerant shortage. A unit making a different noise does not automatically have a defective motor. A front panel that remains slightly open does not always mean the electronic board needs replacing. The diagnosis must be structured, precise, and adapted to the equipment.
Symptoms observed on this LG wall-mounted heat pump
The customer described a progressive situation. At first, the heat pump simply seemed to take longer to reach the requested temperature. Then, the airflow became less consistent, especially when the unit was operating in cooling mode. The customer also noticed that the front flap did not always follow its usual movement: sometimes it remained partially open, sometimes it seemed hesitant, and sometimes the air came out with less effective orientation.
The main symptoms were therefore:
- lower airflow than before;
- less uniform temperature in the home;
- irregular motorized flap;
- slight noise at startup;
- longer cycles;
- reduced cooling performance;
- feeling that the indoor unit "works" but does not blow enough air.
These clues led us to inspect the indoor unit before making any assumptions about the outdoor unit. In many interventions in Montreal, Laval, Longueuil, on the North Shore and the South Shore, we find that the problems experienced by the customer often come from a dirty turbine, filters, evaporator, or a worn flap mechanism.
An indoor installation with clearance constraints
The LG Art Cool unit was installed near the ceiling and very close to a door opening. This positioning can be perfectly functional when well planned, but it influences air distribution. A wall-mounted heat pump must draw ambient air from the top or back of the unit, pass it through the evaporator, then blow it into the room. When the unit is very close to the ceiling or an architectural obstacle, suction and projection can be less optimal.
In this case, the narrow hallway and the proximity of the door made the direction of the airflow particularly important. If the flap does not open properly or if the indoor turbine is dirty, the air can remain concentrated near the unit instead of circulating to the areas to be cooled or heated. The customer then feels a drop in comfort even if the machine is still producing conditioned air.
Inspection of the filters and the indoor evaporator
The first step was to check the condition of the filters. On a wall-mounted heat pump, dusty filters can reduce airflow and force the fan to work harder. Even when they seem only slightly dirty, the filters can limit performance, especially on a unit installed in a hallway where dust circulates easily.
After removing and inspecting the filters, we examined the evaporator. The evaporator is the internal coil that allows heat exchange. In air conditioning, it absorbs heat from indoor air. In heating, it participates in energy transfer in the reverse cycle. If it is dirty, the system can lose capacity, partially freeze, produce an unpleasant odor, or reduce airflow.
In this service, the evaporator showed a buildup of fine dust in certain areas. The problem was not just aesthetic: this dust layer can act as an insulating barrier and reduce heat exchange. We therefore performed appropriate cleaning without damaging the fins or nearby electronic components.
Indoor turbine check
The turbine, also called the fan wheel, is one of the most often neglected components. It can accumulate dust, moisture, organic residues, and fine particles. When it gets dirty, it still spins but moves less air. The customer hears the fan running, but the airflow at the outlet is weak.
On this LG Art Cool wall-mounted heat pump, accessing the turbine required careful handling of the front panel and shutter. We inspected the turbine blades and found enough buildup to affect the flow rate. Cleaning was done methodically to restore blowing capacity without unbalancing the wheel.
A dirty turbine can also cause irregular noise. This noise is often described by customers as a slight rubbing, unstable blowing, or vibration. In many cases, the motor is not the cause: it is the buildup on the turbine that disrupts the rotation and balance of the airflow.
Motorized shutter diagnosis
The front shutter was one of the key points of this repair. On an LG Art Cool, the shutter mechanism contributes not only to comfort but also to proper air distribution. If it gets stuck, forces, or is misaligned, the air can be directed toward the ceiling, the wall, or an unhelpful area.
We tested opening and closing the shutter using the remote control, then observed the mechanical response. The movement was present but slightly irregular. The mechanism did not show any complete breakage, but it needed cleaning and realignment. The small dust particles accumulated around the pivots and the shutter housing can be enough to create resistance.
After cleaning and inspection, the damper regained smoother movement. We also confirmed that the control responded correctly and that the blowing position was consistent with the selected modes.
Checking condensate drainage
When an indoor unit is dirty, the drainage must always be checked. In cooling mode, air humidity condenses on the evaporator, then flows to the drain. If the drain is partially blocked, water can accumulate in the pan, cause odors, create droplets, or even cause a leak in the wall.
In this case, no significant active leak was visible, but we still inspected the drainage pan and flow. The drain showed signs of light dirt, typical of a system used for several seasons. Preventive cleaning was done to reduce the risk of future overflow.
Checking the temperature sensor and cycle behavior
The customer felt that the device was running longer than before. After mechanical cleaning, we checked the temperature reading and cycle behavior. An indoor sensor that is poorly positioned or affected by dust can give an inaccurate reading, leading to cycles that are too long or too short.
We observed the heat pump’s reaction in cooling mode, then in ventilation mode. The system responded correctly, and the improved airflow allowed a better reading of the ambient temperature. In this case, it was not necessary to replace the sensor or the electronic board. The main problem was rather internal dirt and the damper mechanism.
Inspection of the outdoor unit and refrigeration circuit
Even if the symptoms mainly pointed to the indoor unit, a complete repair requires validating that the refrigeration circuit is working properly. We therefore checked the overall system behavior: operational stability, blowing temperature, air return, outdoor unit response, and absence of obvious signs of refrigerant leaks.
No indication justified a refrigerant recharge. This conclusion is important. A common mistake is to assume that a system that cools less automatically needs refrigerant. In reality, poor indoor airflow can create exactly this impression. Adding refrigerant without a complete diagnosis can harm the compressor and unnecessarily cost the customer.
Result of the intervention and practical advice to avoid another loss of performance
After internal cleaning, shutter realignment, drain verification, and functional tests, the LG Art Cool wall-mounted heat pump regained a noticeably more stable airflow. The client quickly noticed that the air was better distributed in the corridor and to adjacent rooms. The start-up noise was less noticeable, the shutter responded more accurately, and the cycles seemed more consistent.
What was corrected during the service call
The intervention allowed several elements to be addressed at the same time:
- cleaning the filters;
- targeted cleaning of the evaporator;
- inspection and cleaning of the indoor fan;
- checking the motorized shutter mechanism;
- correcting the shutter movement;
- inspection of the drainage tray;
- preventive cleaning of the drain;
- controlling the blowing temperature;
- checking the overall system behavior;
- confirmation that no major replacement was necessary.
This approach helped avoid an unnecessarily costly repair. The system did not need to be replaced. It needed thorough technical maintenance and precise diagnostics.
Why a wall-mounted heat pump installed in a corridor requires special attention
A unit installed in a corridor can effectively cool or heat an area when well positioned, but it heavily depends on air circulation. If the shutter is poorly oriented, if the fan is dirty, or if the airflow is reduced, comfort quickly decreases.
In homes and condos in Saint-Constant, we often see installations where the wall unit serves an open living area, a central hallway, or a zone leading to several rooms. This setup requires the air to be properly directed. Internal cleaning thus becomes essential, as even a slight loss of airflow can have a significant effect on the entire residence.
Mistakes to avoid with an LG Art Cool wall-mounted heat pump
Limiting yourself to cleaning the filters
Filters are important, but they are only part of the maintenance. The fan, evaporator, shutter, and drain must also be checked.
Forcing the shutter by hand
A motorized shutter should not be forced. This can damage the gears or cause misalignment.
Ignoring a gradual drop in airflow
A slow decrease is often a sign of internal dirt buildup. The longer you wait, the harder the system works.
Automatically assuming a refrigerant leak
Poor airflow can mimic the symptoms of a refrigerant shortage. The diagnosis must confirm the real cause.
Neglecting drainage
Even without a visible leak, a partially dirty drain can become problematic during humid periods.
Precise HVAC service in Saint-Constant and Greater Montreal
This service in Saint-Constant clearly illustrates our way of working. A wall-mounted heat pump repair requires more than just a remote control test. You need to understand the machine, its location, its age, its use, and its symptoms. In this case, the combination of a narrow corridor, an irregular flap, and internal dirt buildup explained the loss of performance.
AirGreen services wall systems, MultiZone heat pumps, wall air conditioners, central systems, and residential HVAC equipment in Montreal, Laval, Longueuil, on the North Shore and the South Shore. Our team handles every service call with the same rigor: clear diagnosis, targeted intervention, practical explanations, and operational tests before leaving the site.
Comfort restored and client reassured
At the end of the service, the client had a quieter, more stable, and more efficient system. The LG Art Cool wall-mounted heat pump distributed air better, the flap worked properly, and the indoor temperature responded more quickly to adjustments. The result was clear: better comfort, better performance, and reduced risk of future breakdowns.
For HVAC repair in Saint-Constant, a wall-mounted heat pump problem, an indoor unit blowing less air, a stuck flap, a smell, a water leak, or a system that seems to be losing power, AirGreen offers precise technical service tailored to the realities of residences in Greater Montreal.
