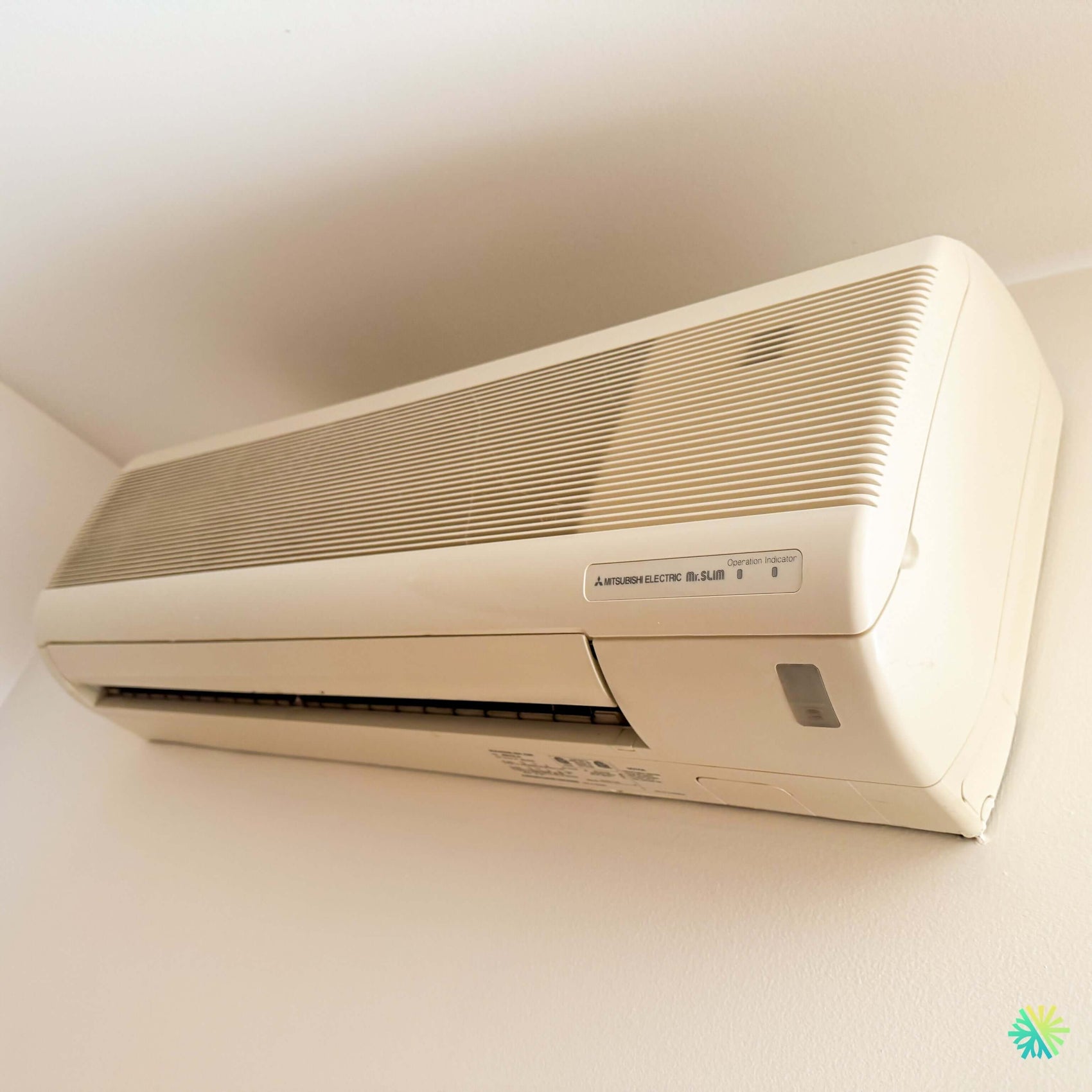

A Mitsubishi Mr. Slim wall unit that was still blowing air but whose performance had clearly decreased
In Baie-D’Urfé, our AirGreen team was called for a Mitsubishi Electric Mr. Slim wall heat pump installed high up in a residence on the west side of the island. The device, clearly from an older generation, was still working: the indicators responded, the flap partially opened, the ventilation started, and the client could hear the indoor unit running. Yet, the comfort was no longer the same. The blown air lacked power, the room took longer to reach the desired temperature, and a drier ventilation noise was heard during prolonged cycles.
This kind of service call is common with robust wall units like the Mitsubishi Mr. Slim. These machines are known for their durability, but after several years of use, their performance heavily depends on the condition of the indoor coil, the fan, the condensate drain, the filters, and communication with the outdoor unit. A wall heat pump may seem functional while having lost a significant part of its efficiency.
In this case, the unit was installed very close to the ceiling, in a corner where access above the device was limited. The casing showed slight discoloration typical for an older device, and the upper grille displayed a visible accumulation of dust. These clues immediately directed us toward a complete diagnosis of airflow and heat exchange before concluding too quickly that there was a refrigerant or compressor problem.
An old Mitsubishi wall heat pump, but still repairable
The device was a Mitsubishi Electric Mr. Slim wall unit, a mini-split type, likely with a common residential capacity between 9,000 and 12,000 BTU, depending on the configuration of the served area. The exact model was not the most important factor in this case: the machine’s behavior, its apparent age, and the observed symptoms already allowed us to target several diagnostic paths.
A wall-mounted machine of this type includes several components that must work together:
- an air intake at the top;
- washable filters;
- an indoor coil;
- a ventilation fan;
- a motorized flap;
- an electronic control board;
- an ambient temperature sensor;
- a condensate pan and drain;
- an outdoor unit connected by refrigerant lines and communication wiring.
When any one of these elements is neglected or starts to weaken, the client may feel a drop in comfort without seeing a clear error code. This is exactly what was happening here.
Symptoms observed in the client’s unit
The client mainly described a gradual loss of performance. The heat pump had not completely stopped, but it no longer responded as before.
Low airflow
The airflow seemed weaker. Even at higher speed, the air did not come out with the same pressure as before. On a wall unit, this often points to a dirty fan, restrictive filters, or a clogged indoor coil.
Less effective cooling
In cooling mode, the air was cool but not stable enough. The room took longer to reach the requested temperature, which increased the cycle duration.
Irregular ventilation noise
The client had noticed a more pronounced sound during operation. It wasn’t a metallic noise or a loud squeak, but rather an impression of heavy ventilation, as if the air was struggling to pass through the device.
Slight risk of condensation
Since the unit was installed high and near the ceiling, we also checked the condensate drainage. A slow drain can cause subtle humidity, odors, or a sudden leak after several air conditioning cycles.
AirGreen Diagnosis: check the air before blaming the refrigeration circuit
For a wall-mounted heat pump repair in Baie-D’Urfé, it is essential to proceed in the correct order. Many clients immediately think of a refrigerant shortage when the air is less cold. However, in many service calls in Montreal, Laval, Longueuil, on the North Shore and the South Shore, the real cause is first related to airflow.
We started with the indoor unit.
Filter Inspection
The filters were loaded with fine dust. They were not completely clogged, but their condition reduced air circulation. On a Mitsubishi Mr. Slim, the filters are easy to clean, but when neglected too long, dust eventually reaches the coil and turbine as well.
Indoor coil inspection
The coil showed accumulation between the fins. This layer of dirt limits heat exchange: air passes less effectively, the machine works longer, and the blowing temperature becomes less consistent.
We checked that the fins were not heavily crushed and that no ice was present at the time of inspection. The absence of severe icing was reassuring, but the lack of cleanliness already explained a large part of the problem.
Turbine inspection
The ventilation turbine was the most revealing element. Dust had accumulated on the blades. When this happens, the turbine loses its original profile and moves less air, even if the motor runs normally. The client hears the unit running, but the actual air volume decreases.
This situation often gives the impression that the heat pump lacks power, while the problem is mechanical and related to internal clogging.
Motorized flap inspection
The lower flap seemed to move, but not with ideal smoothness. We checked the shaft, movement, and airflow direction. A misaligned flap can direct air too close to the unit, causing quick return to the intake and a false temperature reading.
Condensate drain inspection
We tested the drain flow. The passage was not completely blocked, but the drainage was slowed. In an older wall unit, a partially clogged drain can cause water leakage at the most inconvenient time, especially during continuous air conditioning periods.
Service performed on the Mitsubishi heat pump
After the diagnosis, our team carried out a complete performance restoration of the indoor unit.
Cleaning of filters and coil
The filters were removed, cleaned, and properly reinstalled. The indoor coil was then carefully cleaned to remove the dust accumulated between the fins. We protected the wall and the area under the unit to prevent any dirt during the intervention.
This cleaning allowed the air to pass through the coil more freely and improved heat exchange.
Turbine cleaning
The turbine was thoroughly cleaned. This step requires patience, as the blades are numerous and access can be limited on units installed near the ceiling. A partially cleaned turbine rarely produces lasting results. The buildup must be removed evenly to reduce noise, improve airflow, and avoid vibrations.
After cleaning, the airflow was stronger and more consistent.
Clearing and testing the drain
We cleaned the condensate drain and confirmed the flow with a controlled water test. The goal was to ensure that water was properly leaving the unit without stagnating in the tray. This step is important to prevent leaks and musty odors.
Flap adjustment and sensor check
The flap was repositioned to a more effective airflow setting for the room. We also checked that the temperature sensor was not displaced or directly influenced by a treated air zone. A poorly positioned sensor can cause short cycles or incorrect temperature readings.
A quieter unit, restored airflow, and a reassured customer
After the intervention, we restarted the Mitsubishi wall-mounted heat pump and performed several tests. The airflow was significantly improved, the ventilation noise was more consistent, and the airflow temperature was more stable. The machine behaved much more consistently with its normal operation.
Final checks
Before leaving, we verified:
- the startup of the indoor unit;
- the response to commands;
- the movement of the flap;
- the stability of the ventilation;
- the intake and airflow temperature;
- the drain flow;
- the absence of visible leaks;
- the absence of abnormal vibration;
- the overall operation of the outdoor unit.
No major parts needed to be replaced. The intervention instead corrected a loss of performance caused by internal dirt buildup, a slowed drain, and poorly optimized airflow.
Why this repair was preferable to an immediate replacement
The Mitsubishi unit was old, but it was not necessarily at the end of its life. A quality wall-mounted unit can still operate efficiently if the main components are healthy. In this case, the compressor showed no obvious signs of failure, the unit responded to commands, and the drop in performance was mainly due to fixable causes.
Replacing an entire machine without performing this diagnosis would have been premature. The right approach was to restore the device to normal conditions, then evaluate its actual performance.
Mistakes to avoid with an older wall-mounted heat pump
Waiting for the device to leak
A water leak is often the last sign of a neglected drain. It’s better to intervene as soon as a smell, humidity, or irregular operation appears.
Cleaning only the front panel
A unit may look clean on the outside but be heavily soiled inside. The coil and fan are the most important parts for performance.
Ignoring a gradual drop in airflow
A slowly decreasing airflow often goes unnoticed. The client adapts, lowers the setpoint further, and lets the device work longer.
Condemning the refrigerant too quickly
A refrigerant shortage is possible, but it should not be the first conclusion. A dirty fan or a clogged coil can mimic a loss of cooling capacity.
Neglecting clearance around the unit
An installation near the ceiling requires more attention. The air return must remain clear to avoid false temperature readings and inefficient cycles.
AirGreen expertise for Mitsubishi Mr. Slim units
AirGreen regularly services Mitsubishi wall-mounted heat pumps, Carrier, Midea, Gree, Sharp, Fujitsu, and many other brands in Greater Montreal. Whether in Baie-D’Urfé, Montreal, Laval, Longueuil, on the North Shore or the South Shore, our approach remains the same: perform a complete diagnosis, correct the root cause, and validate the result with concrete tests.
This intervention demonstrates that an older wall-mounted heat pump can often regain satisfactory performance through well-executed service. The client got back a more efficient, quieter device better suited to their daily needs. The repair extended the machine's useful life while immediately improving comfort in the room.
