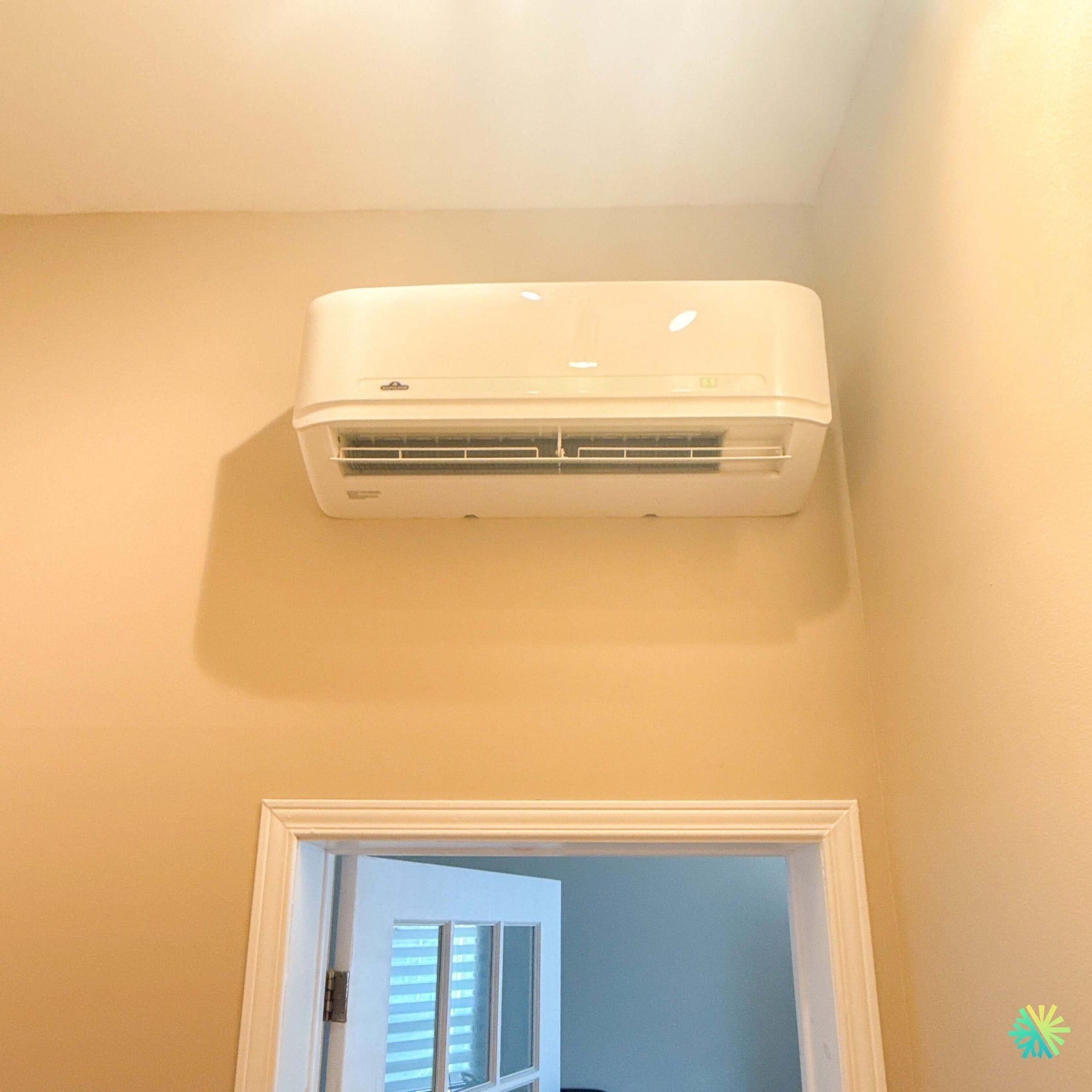

A wall-mounted heat pump installed above a door that was no longer distributing air properly
In Laval, our AirGreen team responded to a service call for a Napoleon wall-mounted heat pump installed high up, directly above a door opening. The customer contacted us because the unit could no longer stabilize the room temperature. The machine started, the display lit up, the louvers opened, but the expected comfort was no longer there: low airflow, uneven temperature between rooms, prolonged operation, and more noticeable noise than before.
Visually, the indoor unit looked clean at first glance. The white casing, with a modern design, showed no significant yellowing or visible cracks. However, looking more closely at the air outlet area, it was clear the unit had started to accumulate dust behind the louvers and on the internal fins. Its position above a door also added a particular challenge: the blown air had to pass through a traffic area with frequent air movements, which could affect the sensor reading and the perceived comfort in the room.
A wall-mounted heat pump installed in this location can work very well when the unit is properly calibrated, well maintained, and the airflow is clear. But if the fan wheel gets dirty, the drain slows down, or the indoor sensor reads a temperature distorted by warm air accumulated near the ceiling, performance can quickly become inconsistent. This is exactly the kind of situation where an accurate HVAC diagnosis becomes essential.
A Napoleon wall unit used for both cooling and heating
The observed indoor unit was a Napoleon wall-mounted heat pump, likely with a common residential capacity, around 12,000 to 18,000 BTU, according to the typical setup for this type of installation. The customer mainly used it to cool the upstairs in summer, but also to provide supplemental heating during colder periods.
The problem was not a complete breakdown. The unit responded to commands, the louvers opened, and the digital display worked. This type of partial failure is often more delicate than a total shutdown because the machine gives the impression of working while no longer delivering its full capacity. The client had noticed that the unit was blowing air, but the air seemed less powerful, less cold in cooling mode, and less warm in heating mode.
In several homes in Laval, Montreal, Longueuil, the North Shore, and the South Shore, wall units are placed in corridors, stairwells, or transition areas to cover more than one room. This choice can be effective, but it requires even more rigorous maintenance because dust circulates a lot in these passage areas.
Symptoms reported by the client
Before opening the unit, we validated the symptoms one by one. The client described a gradual behavior that appeared over several weeks:
- weaker airflow than before;
- longer operating cycles;
- unstable temperature in adjacent rooms;
- slight rubbing noise when ventilation increased;
- damp smell at startup in cooling mode;
- louvers sometimes slow to reposition;
- feeling that the unit kept running without quickly reaching the setpoint;
- occasional condensation near the air outlet on very humid days.
These signs pointed to a possible combination of causes: clogging of the tangential fan, saturated filter, partially blocked evaporator, slowed condensate drain, indoor sensor poorly influenced by ceiling heat, or weakness in a control component. A refrigerant leak could also be considered, but there was no reason to start with this hypothesis without first checking the air circulation.
The impact of positioning above a door
The unit’s location played an important role in this diagnosis. Installed above a door, the heat pump was supposed to blow air toward an open area, but the room had a layout where air could easily be disturbed by foot traffic, door openings, and heat buildup near the ceiling.
This type of installation can cause three effects:
A less representative temperature reading
The indoor unit’s sensor measures the temperature of the air taken near the unit. If the unit is very high and close to the ceiling, it can read air warmer than what is actually felt in the room, especially in heating mode.
Air distribution more sensitive to clogging
When the fan is clean, air can be projected far enough to cover the area. But as soon as the wheel gets dirty, the reach decreases and comfort quickly drops.
A more visible condensation risk
Above a door, any condensation or water droplet becomes immediately concerning because it can fall on the frame, floor, or passageway.
Complete diagnosis: airflow, drain, sensor, and actual performance
For this wall-mounted heat pump repair in Laval, we followed a structured method. The goal was to identify the real cause of the performance loss, restore airflow, and ensure the unit could operate without risk of water leakage or intermittent shutdown.
Inspection of filters and evaporator
After cutting the power and opening the unit, we removed the filters. They were dirty, but not enough to explain the entire loss of performance on their own. The real buildup was deeper, at the evaporator and the fan wheel.
The evaporator had a thin layer of dust stuck to the fins. This deposit reduces heat exchange: air flows less efficiently, the blowing temperature becomes less stable, and the unit has to run longer to achieve the same result. On a wall-mounted heat pump, even moderate clogging can be enough to cause a noticeable drop in comfort.
Tangential fan cleaning
The tangential fan, often called the blower wheel, was one of the most important parts of this intervention. This wheel must be clean to move a sufficient volume of air. When it accumulates dust, each small blade loses efficiency. The motor runs, but the air comes out with less pressure.
We carefully cleaned the wheel, protecting the wall, door frame, and work area. This step requires patience, especially when the unit is installed high up. Cleaning too quickly can leave deposits on the wheel’s edges, maintaining imbalance and causing noise.
After cleaning, the airflow improved significantly. The unit blew farther, more consistently, and the ventilation noise was more even.
Condensate drain inspection
The smell of moisture at startup and occasional condensation led us to inspect the condensate tray and drain. The drain was not completely blocked, but its flow was slow. A buildup of wet dust and biofilm was starting to form in the passage.
We cleaned the tray, cleared the drain, and tested the flow with water. The drainage became stable again. This fix was essential because a partially clogged drain can eventually cause an indoor leak, especially on very humid days when the air conditioning runs for a long time.
Indoor sensor check
The indoor temperature sensor was also checked. It was not defective, but its reading could be influenced by stagnant air near the unit and dust around the air return area. We cleaned its surroundings, validated its positioning, and compared the unit’s response to the actual room temperature.
This point is often overlooked. A wall-mounted heat pump may have a compressor in good condition, the correct refrigerant charge, and functional ventilation, but if the temperature reading is inaccurate, comfort will remain inconsistent.
Inspection of the motorized shutters
The client had noticed that the shutters sometimes seemed slow. We inspected their movement, friction points, and the small sweep motor. No replacement was necessary, but cleaning the moving parts and a slight realignment improved their operation.
Louvers that don’t open properly can reduce the reach of the air jet, create a sensation of direct draft, or, on the contrary, prevent air from circulating to the right area.
Refrigeration check without unnecessary intervention
After cleaning and restoring the drainage, we checked the heat pump’s performance in operation. The blowing temperature improved, and the cycles became more consistent. No clear signs justified adding refrigerant: no abnormal frost on the evaporator, no unstable compressor behavior observed, and direct improvement after correcting the airflow.
This step is important. Many clients think a unit that cools less automatically lacks refrigerant. In reality, a dirty wall air conditioner or wall-mounted heat pump can produce exactly the same impression. Adding refrigerant without diagnosis can worsen the situation and lead to unnecessary costs.
Work performed during the service call
The AirGreen service included:
- complete cleaning of the filters;
- cleaning the evaporator;
- thorough cleaning of the tangential fan;
- inspection and clearing of the condensate drain;
- cleaning the condensate tray;
- checking the indoor sensor;
- inspection of motorized louvers;
- operation test in cooling mode;
- airflow validation after reassembly;
- usage tips depending on the location above the door.
The result was immediate: better airflow, greatly reduced musty smell, more stable distribution, and shorter cycles. The client noticed the unit no longer seemed to struggle and that the air better reached the targeted area.
Mistakes to avoid with a wall-mounted heat pump installed high up
This service in Laval illustrates several common mistakes.
Wait for the unit to leak before calling
A musty smell or slight condensation are often the first signs of a slow drain. It's better to act before water overflows.
Clean only the filters
The visible filters represent only part of the maintenance. The ventilation wheel, evaporator, and condensate tray can be much dirtier than the outer casing suggests.
Blocking airflow with a door or furniture
Even if the unit is installed above an opening, it’s important to ensure air can circulate freely in the area. A frequently closed door can completely change the distribution.
Setting the temperature too low to compensate
Lowering the setpoint excessively does not solve an airflow problem. It prolongs cycles, increases consumption, and can worsen condensation.
A cost-effective repair before considering replacement
In this project, the client wanted to know if the unit needed to be replaced. After diagnosis, the answer was clear: the Napoleon wall-mounted heat pump needed technical maintenance and restoration, not immediate replacement. The main components were functioning well, and performance improved as soon as airflow and condensate drainage were corrected.
At AirGreen, we always favor a logical approach: repair when it makes sense, explain the unit’s limitations, and recommend replacement only when the cost or overall condition justifies it.
AirGreen for wall-mounted heat pump repair in Laval and Greater Montreal
Our team regularly works on wall-mounted heat pumps, wall air conditioners, multi-zone systems, and central equipment in Laval, Montreal, Longueuil, on the North Shore and the South Shore. Every service call is handled with a comprehensive method: symptom analysis, technical inspection, diagnosis of the real causes, and targeted repair.
This repair of a Napoleon wall-mounted heat pump in Laval shows that a drop in performance is not always a sign of a major breakdown. In this case, a thorough cleaning, a corrected drain, and a control check were enough to restore comfort, reduce odors, and improve the unit's efficiency.
