An old wall-mounted heat pump that was blowing weakly and creating discomfort in the room
In Montréal-Nord, our AirGreen team was called for a performance issue on a North Cool wall-mounted heat pump installed high near the ceiling. The client reported a progressive situation: the unit still started, the remote control responded, the vent opened, but the blown air was less powerful than before and the room took far too long to reach the requested temperature.

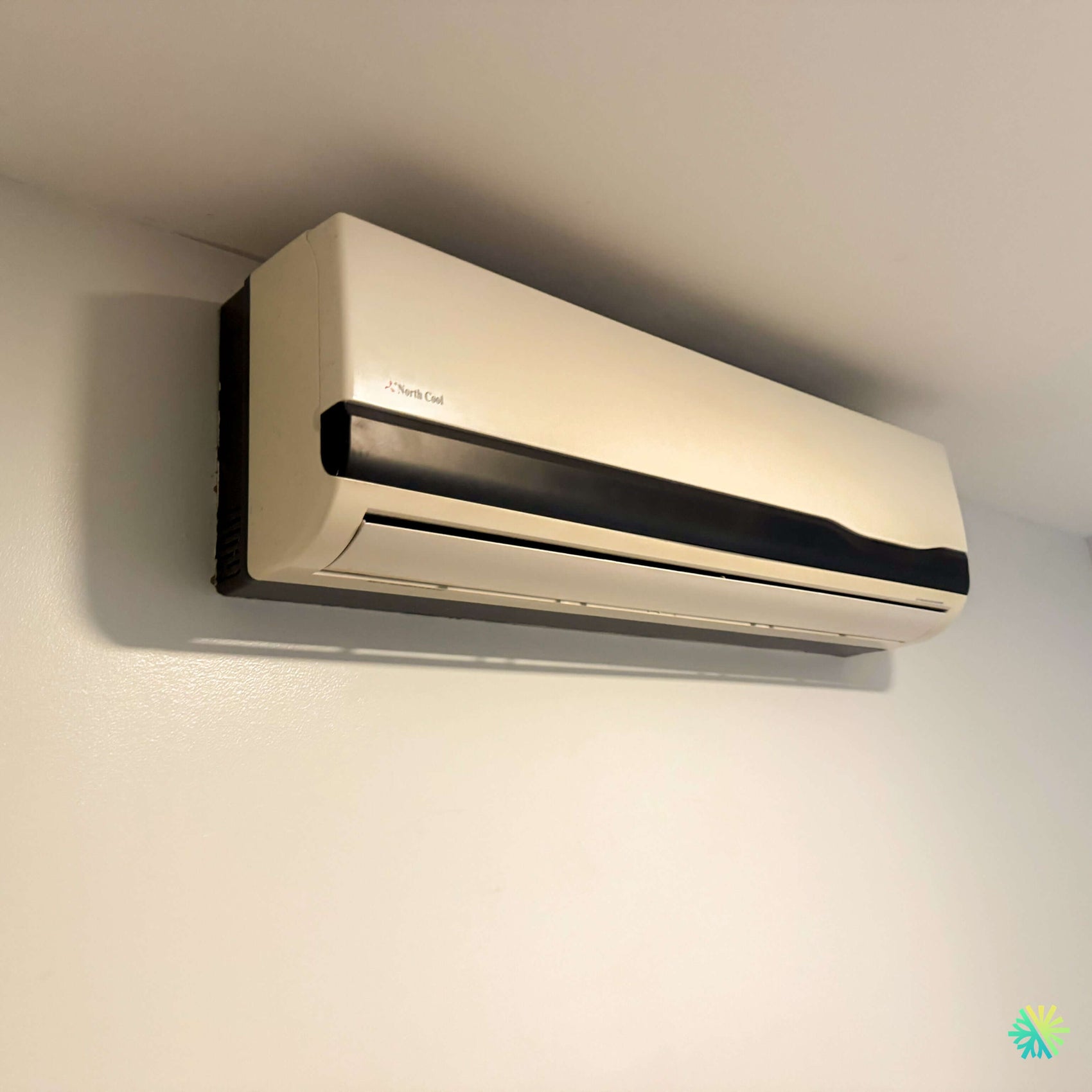

The indoor unit, a residential wall-mounted heat pump, was an older model with a beige front and dark strip, installed very close to the ceiling. This detail is important in the diagnosis. A wall unit needs good air intake space above the unit to draw in ambient air, pass it through the indoor coil, and then redistribute it effectively in the room. When space is limited or the unit is dirty, airflow quickly decreases, even if the compressor and controls still work.
The client initially suspected a major breakdown, possibly a refrigerant leak or a weakened compressor. After inspection, the problem was mainly related to the internal condition of the unit: clogged filters, dirty ventilation turbine, indoor coil obstructed by fine deposits, and slowed condensate drainage. The intervention restored much more stable operation without a full unit replacement.
Symptoms observed before our intervention
Before our arrival, several signs indicated that the unit needed a complete HVAC diagnosis:
- Low airflow, even at high speed.
- Slow cooling of the room.
- Irregular ventilation noise.
- Slightly damp smell at startup.
- Less smooth air vent flap.
- Prolonged operation without quickly reaching the setpoint.
- Warm air sensation at times, especially after several minutes of use.
These symptoms are common on an aging wall heat pump when internal maintenance has not been done for a long time. The visible filters are often cleaned by the customer, but the blower wheel, coil, condensate pan, and drain line require more thorough intervention.
Inspection of the North Cool indoor unit
Upon arriving in Montreal-North, we started with a full visual inspection. The unit was installed very high on the wall, almost touching the ceiling, in a setup that slightly limits air intake. The casing showed signs of age, but no major cracks or visible damage preventing operation.
A still functional unit, but heavily soiled
When opening the front panel, we noticed the filters were dirty, but the problem didn’t stop there. The indoor coil had a buildup of fine dust, and the blower wheel was covered with deposits. It is often the blower wheel that causes the greatest loss of airflow. Even if it spins, its fins no longer move air properly when coated with dust stuck by moisture.
The result is simple: the unit is working, but the air is not coming out with enough force. The room remains uncomfortable, the system runs longer, and the customer feels that the heat pump is no longer producing enough cooling or heating.
Blower flap inspection
The lower flap was opening, but its movement was not as smooth as it should have been. On older wall units, dust buildup in the mechanisms can slow the movement of the fins. We checked that the flap motor responded properly and that no parts were broken. The mechanism mainly needed cleaning and a slight adjustment.
HVAC diagnosis: avoiding a false conclusion of refrigerant shortage
Less cold air or low performance does not automatically mean there is a refrigerant leak. On many service calls in Montreal, Laval, Longueuil, on the North Shore and the South Shore, we find that the problem usually comes from poor air exchange.
Airflow test
We tested the different ventilation speeds. The motor responded to commands, but the actual airflow remained low. This observation confirmed that the electronic control and motor were not the main cause. The blockage was mainly mechanical: accumulation in the turbine and partial obstruction of the coil.
Checking the blowing temperature
We measured the temperature of the return air and the blown air. The heat pump was still producing a temperature difference, but the air circulation was too poor to effectively distribute comfort in the room. A unit can technically cool, but deliver poor results to the client if the distributed air volume is insufficient.
Inspection of the condensate pan and drain
Since the client mentioned a slight musty smell, we checked the condensate pan and the drain outlet. The drain was not completely blocked, but the flow was slowed. Deposits had formed in the pan, which could promote odors and increase the risk of water leaks on very humid days.
A partially clogged drain is a problem to take seriously. It can cause dripping inside, marks on the wall, an unpleasant odor, and sometimes safety shutdowns if the unit is equipped with a safety device.
Intervention carried out by AirGreen
After identifying the causes of the problem, we carried out a targeted intervention to restore cleaner and more efficient operation to the North Cool wall-mounted heat pump.
Cleaning of filters and the faceplate
The filters were removed, cleaned, and inspected. The interior face was also cleaned, especially around the air outlet and areas where dust accumulated. This step improves the quality of the blown air and limits the return of particles into the room.
Thorough cleaning of the indoor coil
We then cleaned the evaporator coil. This operation must be done carefully to avoid damaging the fins. A clean coil allows better heat exchange and reduces the load on the unit. In this case, cleaning immediately improved the stability of the blowing temperature.
Cleaning of the ventilation turbine
The turbine received special attention. Its fins were clogged, which directly explained the low airflow. After cleaning, the blower wheel moved air more efficiently and the ventilation noise was more consistent.
This is one of the most important repairs on older wall units. Many clients think their unit is too old, when in fact the fan simply can no longer push air properly.
Cleaning and rinsing the drain
The condensate pan was cleaned, then the drain line was rinsed to restore smoother flow. We then tested the water evacuation to confirm that condensate was draining properly. This step also helped reduce the musty smell reported at startup.
Checking controls and flap
We tested the remote control, fan speeds, operating modes, and the movement of the flap. The flap was cleaned and adjusted to improve air distribution in the room. No flap motor replacement was necessary.
Result after the repair
After the intervention, the difference was visible and noticeable. The airflow was stronger, the room began to cool faster, the fan noise was more stable, and the musty smell had decreased. The North Cool wall-mounted heat pump wasn’t new, but it had regained a much more acceptable level of performance.
The client was also reassured on an important point: no refrigerant recharge was needed at that time. The system was still producing properly but was limited by internal dirt buildup and slow drainage.
What this repair in Montréal-Nord reveals about older wall units
This intervention shows that a wall-mounted heat pump repair doesn’t always mean replacing an electronic board, motor, or compressor. Very often, the right solution starts with a methodical diagnosis and a thorough technical cleaning.
Mistakes to avoid with a wall-mounted heat pump
Thinking that filters are enough
Cleaning the filters is essential, but it’s not enough. The fan, indoor coil, condensate pan, and drain must also be inspected. A unit can have relatively clean filters and still be ineffective if its fan is dirty.
Ignoring a gradual drop in airflow
Low airflow is often the first sign of an internal problem. The longer you wait, the more dust accumulates, the more moisture stays inside the unit, and the harder the system has to work.
Adding refrigerant without diagnosis
A bad practice is to assume that a unit that cools less automatically lacks refrigerant. Without a full check, this intervention can be unnecessary and even harmful. At AirGreen, we first confirm the condition of airflow, coil, fan, and drainage.
Waiting for a visible water leak
A musty smell or slow drain should be addressed before a leak appears. An indoor water leak can damage the wall, paint, floor, or furniture beneath the unit.
Recommendations given to the client
At the end of the service call, we recommended regular maintenance, especially if the unit is used for both cooling and heating. For an older wall unit, full maintenance often extends useful life and reduces the risk of breakdown during peak demand periods.
We also advised the client to watch for certain signs:
- Reduced airflow.
- Return of a musty smell.
- Rubbing noise or vibration.
- Water drops under the unit.
- Damper that sticks or moves with difficulty.
- Cooling slower than before.
A quick intervention can fix these problems before they become more costly.
AirGreen, HVAC repair specialist in Greater Montreal
At AirGreen, we work on wall-mounted heat pumps, wall air conditioners, central heat pumps, MultiZone systems, electric furnaces, and other HVAC equipment in Montreal, Laval, Longueuil, on the North Shore and the South Shore. Our approach is based on a thorough inspection, clear diagnosis, targeted repair, and practical recommendations.
This repair of a North Cool wall-mounted heat pump in Montréal-Nord restored the client's comfort without unnecessary replacement. The unit regained better airflow, more reliable condensate drainage, and quieter operation. For an older wall system, this type of intervention can make a major difference in daily comfort and equipment lifespan.
