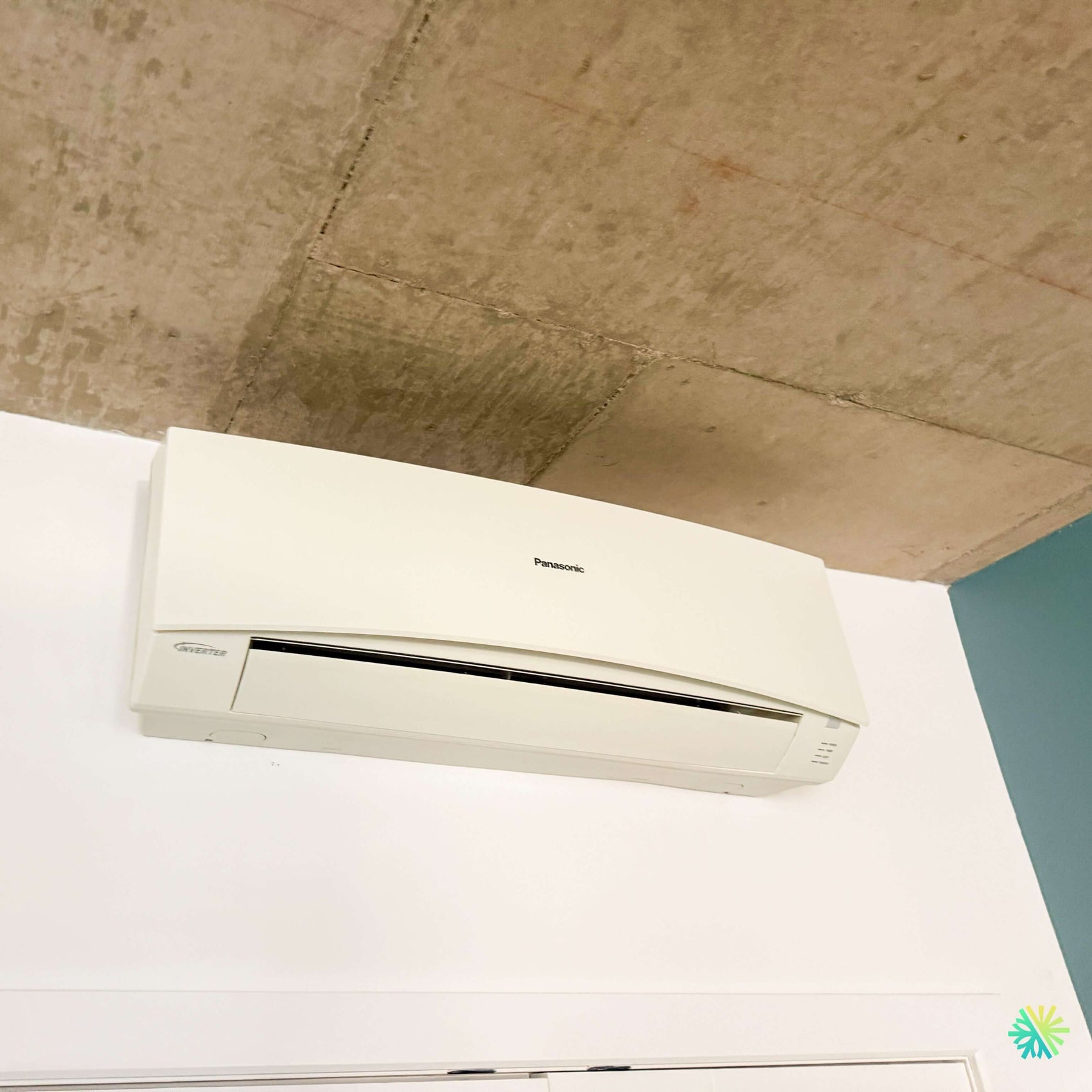

A Panasonic wall-mounted heat pump installed near a concrete ceiling that was leaking and cooling less efficiently
At AirGreen, we responded in Sainte-Anne-de-Bellevue to a service call for a Panasonic wall-mounted heat pump installed high above an interior door, in a room with an exposed concrete ceiling. The unit, a Panasonic Inverter residential wall type, presented a very concrete problem for the client: the device was still cooling but less quickly than before, and moisture stains were beginning to appear near the indoor unit.
This kind of situation is common on wall systems installed in spaces with restricted access. Here, the unit was positioned very close to the ceiling, in an upper corner of the wall. This setup can work properly for several years, but it makes maintenance more delicate and worsens the consequences of a partially clogged drain, a dirty fan, or a dust-laden evaporator.
The client contacted us before the situation became a major leak. This is often the best time to intervene: when the device still shows signs of operation but its performance begins to decline.
Symptoms observed before our arrival
The client had noticed several anomalies:
- slower cooling of the room;
- weaker blown air;
- persistent humidity despite air conditioning operation;
- slightly louder ventilation noise;
- water stains near the bottom of the indoor unit;
- prolonged operation without quickly reaching the requested temperature.
These symptoms can come from several causes. On a wall-mounted heat pump, it is always necessary to check the refrigeration part, ventilation, condensate drainage, and electronic control.
Visual inspection of the Panasonic unit
From our inspection, several factors guided the diagnosis. The Panasonic indoor unit was installed very high, with little space available above the casing. The concrete ceiling, very close to the device, limited access and complicated the removal of the panels.
We also observed that the unit was located above a door opening. This position can cause irregular air circulation if the fan is dirty or if the louvers no longer distribute air properly in the room.
Our technicians checked:
- the condition of the filters;
- the cleanliness of the evaporator;
- the ventilation fan;
- the condensate pan;
- the slope and flow of the drain;
- the motorized louvers;
- the accessible electrical connections;
- the unit’s response to the remote control;
- the return and supply air temperature.
The diagnosis had to be precise, as replacing parts without confirming the real cause would have been useless.
Diagnosis: slow drain, dirty fan, and weakened heat exchange
After partial disassembly and operational tests, we identified a combination of problems.
A partially clogged condensate drain
The drain was not completely blocked, but the flow was too slow. In cooling mode, a wall heat pump naturally produces condensation water. This water must quickly leave the indoor pan to avoid overflow.
In this case, slow drainage caused water to accumulate in the pan. When the unit ran for a long time, especially during humid periods, water could accumulate enough to leave visible marks near the unit.
An indoor fan loaded with dust
The ventilation fan had a buildup of dust stuck by moisture. This reduces airflow and directly harms cooling performance.
Even when filters are occasionally cleaned, some fine particles eventually reach the fan. Over time, air circulation decreases, the room cools more slowly, and the system has to run longer.
A less efficient evaporator
The evaporator also needed a thorough cleaning. The fins were not completely clogged, but they were sufficiently dirty to reduce heat exchange.
Such a condition can give the impression that the system is low on refrigerant, while the real problem lies inside the wall unit.
Technical cleaning, drain clearing, and restoring heat pump performance
Protection of the work area
Before starting the cleaning, we protected the area under the unit. Since the unit was installed above a door, it was necessary to avoid any water or residue splashes on the surrounding surfaces.
The tight access near the ceiling required a careful working method. The plastic panels of an older wall unit must be handled with care, as they sometimes become more fragile over time.
Cleaning of filters and evaporator
The filters were removed, washed, and inspected. We then treated the evaporator to clear the fins and improve heat transfer.
After this step, air could pass more easily through the exchanger. This allows the heat pump to produce colder air in summer and more stable heat in heating mode.
Turbine cleaning
Cleaning the turbine was a central part of the intervention. A dirty turbine alters air circulation, increases noise, and reduces blowing range.
We removed deposits accumulated on the blades to restore a more uniform airflow. This correction immediately improved blowing power.
Clearing the condensate tray and drain
The condensate tray was cleaned, then the drain was cleared and tested with controlled flow.
We confirmed that water was now leaving the unit normally, without backflow or accumulation. This step was essential to prevent another leak during upcoming hot and humid days.
Checking the louvers and air distribution
The motorized louvers were tested to ensure the air was properly directed into the room. In a space where the unit is installed above a door, poor airflow direction can affect comfort.
We adjusted the ventilation settings to improve circulation and reduce less-cooled areas.
Performance tests after intervention
Once the unit was reassembled, we performed several air conditioning tests.
The results were clearly better:
- stronger airflow;
- more stable blowing temperature;
- normal drainage;
- reduced ventilation noise;
- no visible leaks;
- adequate response to controls;
- more consistent operating cycles.
The customer experienced faster comfort in the room, without humidity buildup around the unit.
Why water leaks are common on wall-mounted heat pumps
In Sainte-Anne-de-Bellevue, as in Montreal, Laval, Longueuil, on the North Shore and the South Shore, wall-mounted heat pumps often run for long periods in summer. The more humid the air, the more condensate the unit produces.
A partially clogged drain can be enough to cause a leak, especially if the indoor unit is dirty or installed in a hard-to-reach place.
The most common causes are:
- dust in the tray;
- organic deposits in the drain;
- insufficient drainage slope;
- dirty turbine;
- clogged evaporator;
- lack of professional maintenance;
- prolonged use in cooling or dehumidification.
Mistakes to avoid with a Panasonic wall-mounted heat pump
Believing a small water trace is normal
A wall unit should not leak inside. Even a small trace of moisture deserves a check.
Cleaning only the front panel
The front panel may look clean while the turbine, tray, and evaporator are loaded with contaminants.
Using the unit despite low airflow
Reduced airflow increases operating cycles and can promote excessive moisture buildup.
Waiting for an error code
Many drainage or clogging issues don’t trigger any error codes. The unit keeps running, but less and less effectively.
Neglecting maintenance because the unit is hard to reach
A high or near-ceiling installation requires even more attention, precisely because routine inspections are more difficult.
AirGreen’s approach during an HVAC service call
At AirGreen, we don’t just check whether a unit works or not. We analyze the system’s complete behavior: airflow, drainage, internal cleanliness, electrical response, and thermal performance.
In this case in Sainte-Anne-de-Bellevue, the failure was not due to a defective compressor or a burnt electronic board. The problem mainly came from necessary maintenance, a slowed drain, and weakened ventilation. Targeted repair prevented an unnecessary replacement.
A Panasonic heat pump put back into service for reliable comfort
This service on a Panasonic wall-mounted heat pump in Sainte-Anne-de-Bellevue highlights the importance of a thorough diagnosis when a system cools less effectively and starts showing signs of moisture.
Thanks to evaporator cleaning, drain clearing, turbine restoration, and performance testing, the customer now benefits from a quieter, more efficient, and more reliable unit.
For owners in Montreal, Laval, Longueuil, the North Shore, and the South Shore, a quick HVAC service call can prevent water leaks, improve comfort, and extend the lifespan of a wall-mounted heat pump or a wall air conditioner.
