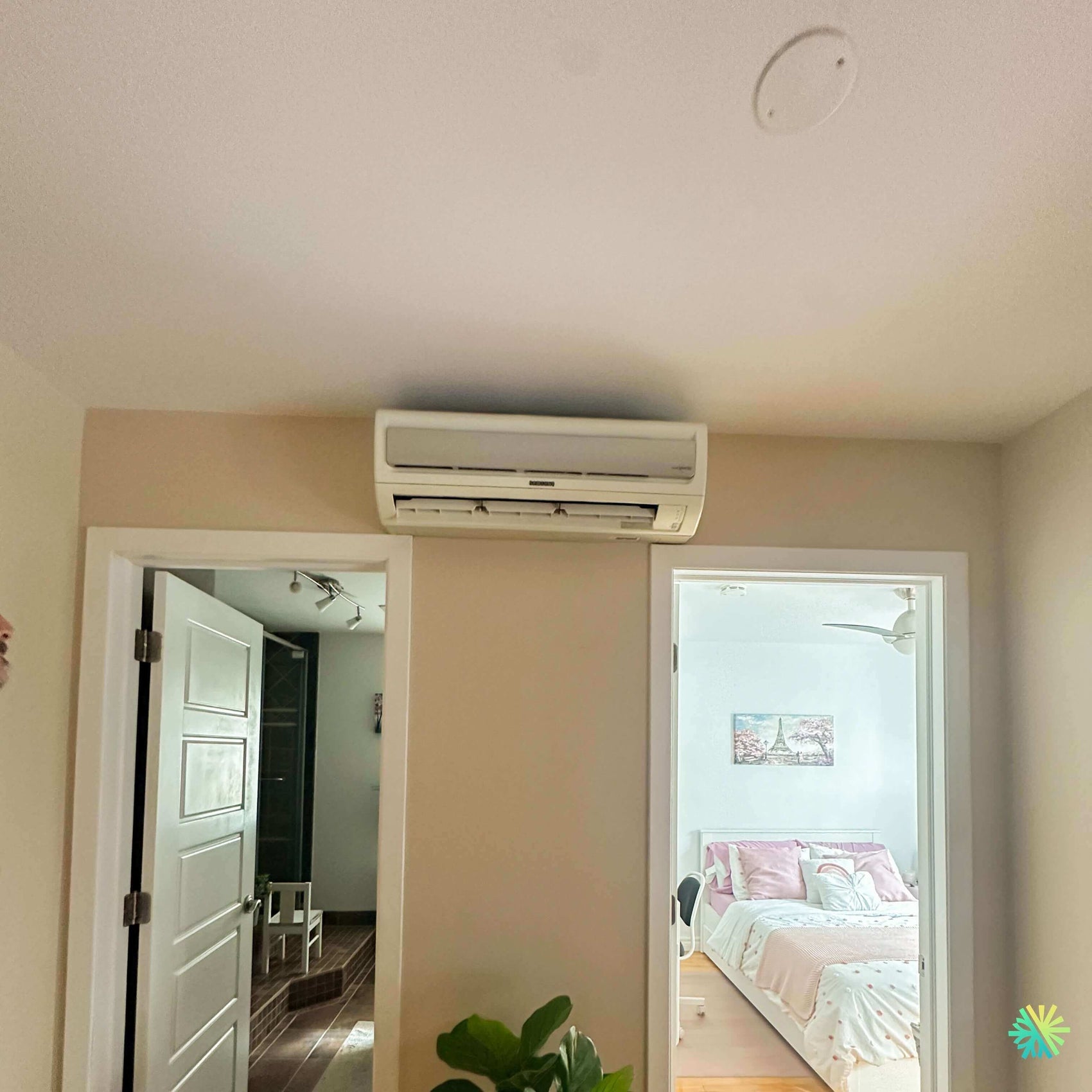

A wall-mounted heat pump installed above a corridor: a convenient location but demanding for maintenance
In a residential condo located in Auteuil, Laval area, our AirGreen team responded to a service call on a Samsung wall-mounted heat pump installed above an interior passageway, between two openings leading to different rooms of the home. This type of installation is common in apartments and condos in the greater Montreal, Laval, Longueuil, North Shore, and South Shore areas because it allows conditioned air to be distributed to multiple living zones without multiplying indoor units.
However, this location requires special attention. When a wall-mounted heat pump is installed very high, near the ceiling, above a corridor or between two rooms, the symptoms of a problem can become more subtle: gradual performance drop, condensation appearing only on humid days, louder fan noise, smell of dust or moisture, or the impression that the air no longer reaches the bedrooms as well.
In this specific case, the customer contacted us because the unit no longer provided the same comfort as before. The machine was still working, but it seemed less efficient, especially during hot and humid periods. Air was coming out of the unit, but the cooling was uneven, and slight moisture was noticeable around the air outlet. The customer wanted to avoid a complete breakdown in the middle of the season and have the system checked before the situation worsened.
An older generation Samsung wall unit
The observed machine is a Samsung wall-mounted heat pump, a residential mini-split type. It is a compact indoor wall unit, installed above an opening, with horizontal air vents and a standard front panel. Although the full model label was not readable from a distance, the configuration matches a residential wall-mounted heat pump with typical capacity for a home of this size, often between 9,000 and 12,000 BTU depending on the area, insulation, sun exposure, and room layout.
This type of unit can provide excellent comfort for several years, but its performance depends heavily on three elements:
- the cleanliness of the interior coil;
- the condition of the ventilation turbine;
- proper condensate drainage.
In a dwelling where the unit is placed near a bathroom or an area with variable humidity, dust deposits can stick more quickly to the coil and fan. Over time, this reduces airflow and increases the risk of excessive condensation.
Symptoms reported before our arrival
During information gathering, several clues pointed us toward an airflow and drainage problem rather than a complete compressor failure. The client notably observed:
- a drop in cooling performance;
- weaker airflow than before;
- a feeling of humidity near the unit;
- uneven distribution between rooms;
- a slight increase in ventilation noise;
- a stale air odor after certain cycles.
These symptoms are very common on a wall-mounted heat pump that has not received full maintenance for some time. Many owners clean the visible filters, which is a good practice, but it is not always enough. Behind the filters, the coil, turbine, and drainage pan can accumulate a layer of dust, biofilm, and residues that eventually impair operation.
HVAC diagnosis: airflow, drainage, heat exchange, and electronic controls
Our diagnosis began with a complete visual inspection of the indoor unit. Since the installation was positioned high above a corridor, it was necessary to work precisely to access the front panel, filters, coil, and drainage outlet without damaging the wall, moldings, or the unit.
We then checked the following points:
Inspection of the filters and the interior coil
The filters were loaded with fine dust. Even though the unit could still operate, this buildup was already limiting part of the airflow. The interior coil also showed visible deposits, especially in the sections where moisture condenses most quickly.
A dirty coil prevents air from properly passing through the exchanger. Result: the machine has to work longer to reach the same temperature, consumption may increase, and the unit becomes more vulnerable to excessive condensation or even ice formation.
Checking the ventilation turbine
The turbine, located inside the unit, was partially dirty. This is a point often overlooked. A dirty turbine no longer pushes air evenly. It can produce a slightly unbalanced noise, reduce the air jet reach, and create cold or damp spots inside the unit.
In this case, the noise heard by the client mainly came from this accumulation and not from a defective motor. The ventilation motor responded correctly to the different speeds, which was good news.
Condensate drainage test
Since the unit was installed near the ceiling and above a passageway, the condensate drainage had to be perfectly clear. We tested the drainage by injecting water into the condensate tray to verify if the flow was smooth.
The result confirmed a partial blockage. Water was draining, but too slowly. This condition can cause accumulation in the tray, especially on very humid days in Laval, where a wall-mounted heat pump can remove a lot of moisture from indoor air. Slow drainage can also give the impression that the unit is "sweating" or at risk of leaking, even if the fault is not yet visible.
Checking sensors and unit behavior
We also checked the remote control response, temperature reading, startup sequence, flap behavior, and ventilation speed variations. No active error codes were observed during the service call. The controls responded normally.
This allowed us to rule out several more costly causes, such as a defective electronic board, an out-of-range temperature sensor, or a failing ventilation motor.
Intervention performed: thorough cleaning, drainage correction, and performance restoration
After the diagnosis, we carried out a complete intervention on the indoor unit. The goal was to restore the airflow, secure the condensate drainage, and confirm that the heat pump could resume normal operation.
Cleaning of filters and coil
The filters were removed, cleaned, and inspected. We then cleaned the indoor coil using a method suited for residential wall units. This step removes deposits accumulated between the fins without damaging them.
A clean coil immediately improves heat exchange. Air flows better, the outlet temperature becomes more stable, and the machine works with less effort.
Cleaning of the ventilation fan wheel
The fan wheel was thoroughly cleaned to remove the buildup causing noise and airflow loss. This step takes time because dirt can accumulate between the blades. A poorly cleaned fan wheel can continue to vibrate or push air unevenly.
After cleaning, the difference was noticeable: the airflow was more uniform, and the ventilation noise returned to a much more normal level.
Drain clearing and replacement of a flexible section
The partial drain blockage was cleared. We also fixed a flexible section that had lost its rigidity and was slowing the flow. This type of correction is important because a poorly configured drain can cause recurring problems, even if the unit is clean.
The drainage was then tested again. The water drained properly, without backflow or abnormal accumulation in the pan. This step significantly reduced the risk of future leaks.
Final check in cooling mode
Once the unit was reassembled, we performed a functional test in cooling mode. We checked:
- the temperature of the blown air;
- the stability of the airflow;
- the reaction of the louvers;
- the operating noise;
- the condensate drainage;
- the absence of visible leaks;
- the response to setpoint changes.
The system returned to stable operation. The client quickly noticed better air distribution and a more consistent cooling sensation.
What this repair in Auteuil demonstrates about maintaining wall-mounted heat pumps
A wall-mounted heat pump repair does not always involve replacing an expensive part. In many cases, the problem comes from a combination of factors: dirt, slow drainage, reduced airflow, high humidity, and demanding location. That’s why a thorough diagnosis is essential before concluding that a machine is at the end of its life.
Why a wall-mounted heat pump can lose performance without breaking down
A machine can operate, blow air, and respond to the remote control while being less efficient. This is often what makes the problem hard for the owner to detect.
In this case in Auteuil, the Samsung unit was not completely stopped. It was simply limited by a lack of internal maintenance and a partially blocked drainage. If the situation had been ignored, it could have led to a water leak, ice formation, premature fan wear, or system overload.
Mistakes to avoid with a wall unit installed above a passageway
A heat pump placed above a door or in a corridor can be very effective, but some mistakes should be avoided:
Waiting for a leak to appear before taking action
A water leak is often the last sign of a drainage problem. Before that, there may be moisture, an odor, low airflow, or irregular performance. Acting before the leak helps avoid damage to the wall, moldings, floor, or furniture.
Cleaning only the visible filters
Filters are important, but they don’t protect everything. Fine dust eventually reaches the coil and turbine. Professional maintenance allows cleaning of areas inaccessible to the owner.
Ignoring ventilation noises
A slight noise, vibration, or irregular airflow can indicate that the turbine is dirty or unbalanced. The longer you wait, the harder the motor works.
Neglecting the drain
The drain is one of the most important parts of a wall-mounted HVAC installation. A partial blockage can cause intermittent problems that are hard to reproduce, especially if the leak only appears on very humid days.
The importance of diagnosis before replacement
At AirGreen, we pay special attention to the logic of diagnosis. Replacing a heat pump that is still functional is not always necessary. In this case, the machine still had satisfactory operating potential. The right choice was therefore to clean, fix the drainage, test the components, and restore the system to working condition.
This approach allows the customer to make an informed decision. When the repair is viable, it extends the equipment’s lifespan. When the machine is too old, noisy, inefficient, or irreparable, we can then recommend a replacement with options suited to the housing situation.
Final result: comfort restored and risk of leaks reduced
At the end of the intervention, the Samsung wall-mounted heat pump was operating much more stably. Airflow was improved, drainage was clear, noise had decreased, and the customer could use their system with greater peace of mind.
The most important aspect of this type of service call is prevention. A slight drop in performance may seem minor, but it sometimes hides a problem that slowly worsens. In a residential area like Auteuil, where many condos and apartments use wall units to cool several rooms from a single central point, regular maintenance is essential to maintain comfort.
