A Samsung wall unit yellowed by time, but still capable of regaining good efficiency
In Dollard-des-Ormeaux, our AirGreen team responded to a service call for a Samsung wall heat pump installed in a residential living room, near a large window and above a living space used daily. The device, clearly in service for several years, showed typical signs of an aging wall unit: yellowed casing, dirty front panel, reduced airflow, less responsive louvers, and uneven performance on hot days.
The customer contacted us because the heat pump was no longer cooling the room as before. The unit started, the controls responded, but the air came out weakly and the indoor temperature remained uncomfortable. In this type of situation, it is important not to jump to the conclusion of a major breakdown too quickly. A Samsung wall heat pump can lose a lot of efficiency simply due to internal dirt buildup, a partially blocked drain, a dust-loaded turbine, or a temperature sensor distorted by poor air circulation.
A typical wall configuration, but with several constraints

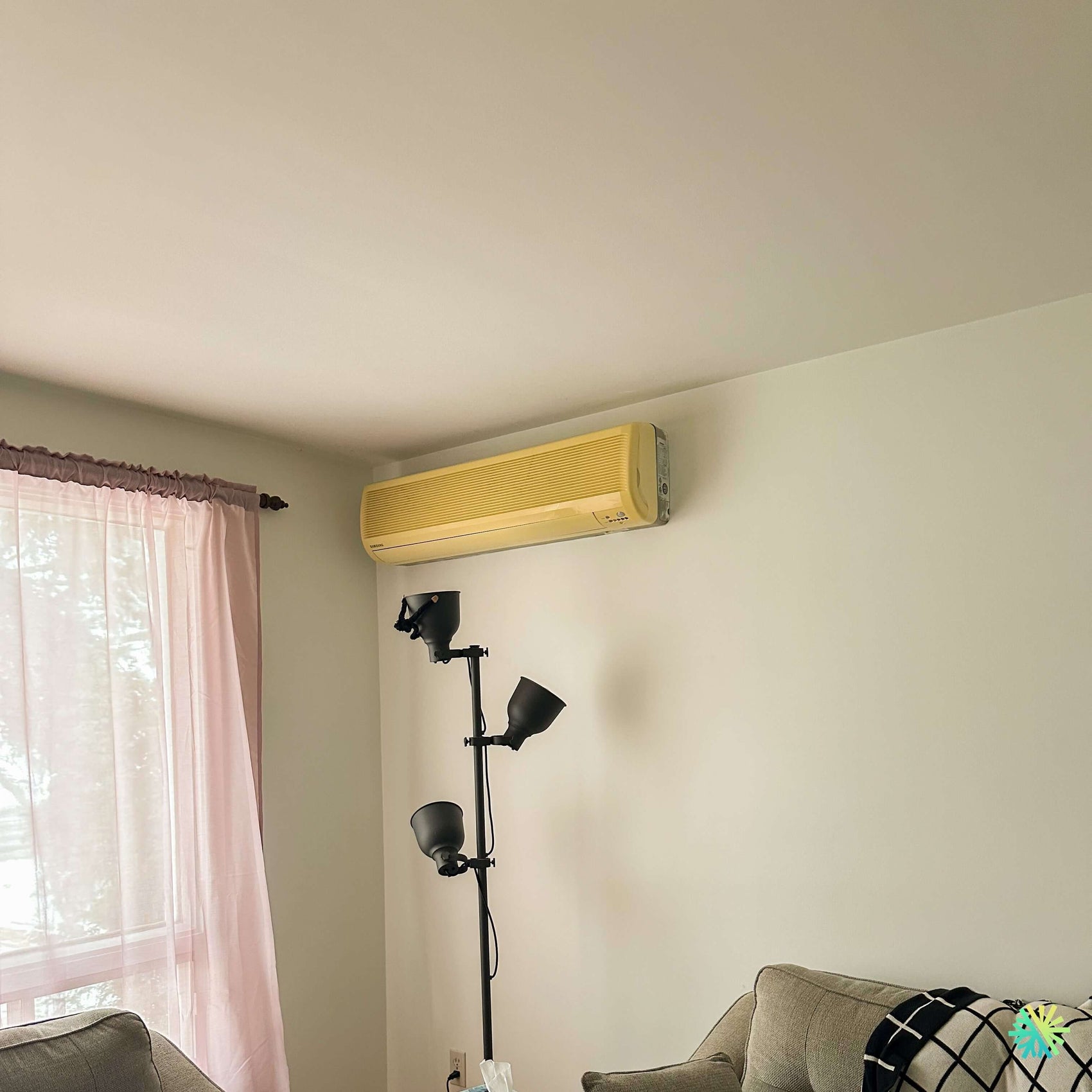

The indoor unit was installed quite high on the wall, near the ceiling, in a room with curtains, furniture, and variable air circulation. This setup is common in homes in Dollard-des-Ormeaux, especially when the original installation aimed to cover a living room or open area with a single wall unit.
Visually, the device was an old Samsung wall unit, of compact residential size, probably with a capacity generally associated with 9,000 to 12,000 BTU devices, subject to confirmation by the nameplate. This type of system can still be useful for several years if the compressor, electronic board, and fan motor remain in good condition. However, when internal maintenance is delayed too long, performance gradually decreases until it becomes obvious to the customer.
The location near a window also added an important element to the diagnosis. A wall unit located in a sunny room must work harder during hot periods. If the airflow decreases or if the indoor heat exchanger is dirty, the room quickly becomes difficult to cool, even if the device seems to be working.
Symptoms observed before our intervention
The client had noticed several revealing signs. The device did not stop completely, but it no longer delivered the expected comfort. The problem was therefore less dramatic than a total breakdown, but more subtle to diagnose.
The reported symptoms were as follows:
- Low airflow at the unit’s outlet.
- Slow and less effective air conditioning.
- Ventilation noise louder than before.
- Blower flap that seemed less smooth.
- Feeling that the device had been running for a long time without clear results.
- Slight musty odor at startup.
- Concern about the system’s age and the possibility of replacement.
These signs can stem from several causes. A lack of refrigerant can reduce cooling capacity, but clogging of the turbine or evaporator can create a very similar effect. That’s why our HVAC diagnosis began by checking the airflow path, the water path, and the electrical response of the device.
Inspection of the Samsung indoor unit
Our technician first inspected the front panel, the flaps, the filters, and the air outlets. On older wall units, the plastics can become fragile. Therefore, the device must be disassembled carefully to avoid breaking the clips, hinges, or motorized flap.
As soon as the panel was opened, the filters showed a significant accumulation of dust. This already explained part of the problem, but simply washing the filters would not have been enough. Looking deeper into the unit, we found that the ventilation turbine was also clogged. This blower wheel is essential: it draws air from the room, passes it through the indoor heat exchanger, then redistributes it through the lower flap.
When the turbine is dirty, the fins fill with dust and lose their ability to move air. The motor has to work harder, airflow decreases, noise increases, and the device becomes less efficient. Even if the compressor works well, air no longer passes properly through the coil, which reduces the perceived performance in the room.
Checking the drain and condensate tray
Since the client mentioned a slight musty odor, we checked the condensate tray and drain. In air conditioning mode, a wall-mounted heat pump extracts moisture from the air. This water collects on the indoor coil, flows into a tray, then drains away.
A partially clogged drain does not always cause an immediate leak. It can first cause water stagnation, odor, running water noise, or excessive humidity around the unit. In this case, the drain was not completely blocked, but the flow was not as smooth as it should have been. We therefore carried out preventive cleaning and a drainage test.
This step is particularly important in a living space like a living room. A water leak from a wall unit can damage paint, drywall, moldings, curtains, or furniture. A quick intervention often prevents more costly building repairs.
Diagnosis: a performance failure mainly caused by clogging
After inspection, the diagnosis was clear: the device was not completely broken. The main problem was due to advanced internal clogging, combined with drainage to monitor and significantly reduced airflow. The Samsung heat pump responded to commands, the fan worked, and no immediate signs pointed to a critical failure of the electronic board.
We still performed several tests to validate the overall behavior:
- Response to the remote control.
- Starting in air conditioning mode.
- Verification of ventilation speeds.
- Observation of the motorized flap.
- Temperature check at return and supply vents.
- Checking for the absence of active error codes.
- Condensate drainage test.
- Listening to the ventilation motor after cleaning.
This method allowed us to avoid an unnecessary replacement recommendation. For an older unit, it is always important to assess whether the repair brings a real improvement. In this case, the device’s basic structure allowed for a useful restoration.
Technical cleaning, restart, and restored comfort in the living room
The intervention was carried out with a progressive approach. We first cleaned the filters and accessible sections, then worked on the internal areas where dirt had the greatest impact on performance. The goal was to restore airflow without damaging aging components.
Repair steps performed by AirGreen
Our service on this Samsung wall-mounted heat pump in Dollard-des-Ormeaux included:
- Safe opening of the front panel.
- Removal and cleaning of filters.
- Inspection of the indoor heat exchanger.
- Cleaning accessible fins.
- Cleaning the ventilation fan.
- Clearing the air outlet.
- Checking the motorized flap.
- Cleaning of the condensate tray.
- Preventive drain unclogging.
- Complete test in cooling mode.
- Airflow validation after service.
After cleaning, the improvement was clear. The airflow was stronger, the fan noise more consistent, and the feeling of coolness faster in the occupied area. The unit no longer seemed to struggle the same way. The customer was able to see that the system, despite its age, could still provide acceptable comfort after a proper overhaul.
Why an older wall unit requires special attention
Older Samsung wall-mounted heat pumps can be robust, but they respond poorly to dust buildup. Over the years, the air drawn in carries fine particles, textile fibers, curtain dust, pet hair, and moisture. These deposits accumulate in areas the owner cannot see.
A clean filter does not guarantee that the unit is clean. The fan and the heat exchanger can be very dirty even when the front panel looks acceptable. That’s why professional maintenance is often necessary when the unit starts blowing weakly, smelling damp, or cooling less effectively.
In the greater Montreal, Laval, Longueuil area, on the North Shore and the South Shore, we regularly see this type of situation: a wall-mounted heat pump that is still functional but whose performance is greatly reduced due to insufficient maintenance. Replacement is not always the first solution. A thorough diagnosis allows for a smarter decision.
Mistakes to avoid with a Samsung wall-mounted heat pump
When a unit cools less effectively, many owners simply lower the temperature on the remote control. This reaction is understandable, but it does not solve the problem if airflow is low. The unit will run longer, consume more energy, and may produce more condensation.
Another common mistake is closing interior doors hoping to concentrate the cold in one area. If the heat pump is already dirty, this strategy can create poor air circulation and make comfort even more uneven.
It is also important not to ignore musty odors. A slight smell at startup can indicate stagnant water, a dirty pan, a partially clogged drain, or organic buildup on the exchanger. These problems usually do not resolve on their own.
When to plan a repair rather than a replacement
In this case in Dollard-des-Ormeaux, the unit was old but not condemned. Repair or technical cleaning is often relevant when:
- The unit starts normally.
- The fan is still working.
- No major error codes are present.
- The compressor seems responsive.
- The main problem is related to airflow.
- The drain can be cleaned.
- The customer wants to extend the system’s lifespan.
Conversely, replacement becomes more logical if the electronic board is unavailable, the compressor is defective, the refrigerant used is difficult to manage, leaks are repeated, or the energy efficiency is too low compared to current needs.
Final result: a cleaner, more efficient, and better-assessed heat pump
At the end of the service call, the Samsung wall-mounted heat pump was blowing better, the condensate drainage had been checked, and the customer knew exactly what to expect. The unit was not new, but it had regained much more consistent performance for everyday living room use.
This intervention clearly demonstrates the importance of a complete HVAC diagnosis. A yellowed or old unit is not necessarily unusable. It can sometimes be restored with technical cleaning, drain inspection, and precise testing. At AirGreen, we prioritize this approach: understanding the real problem, fixing what can be fixed, and recommending replacement only when the equipment’s condition justifies it.
