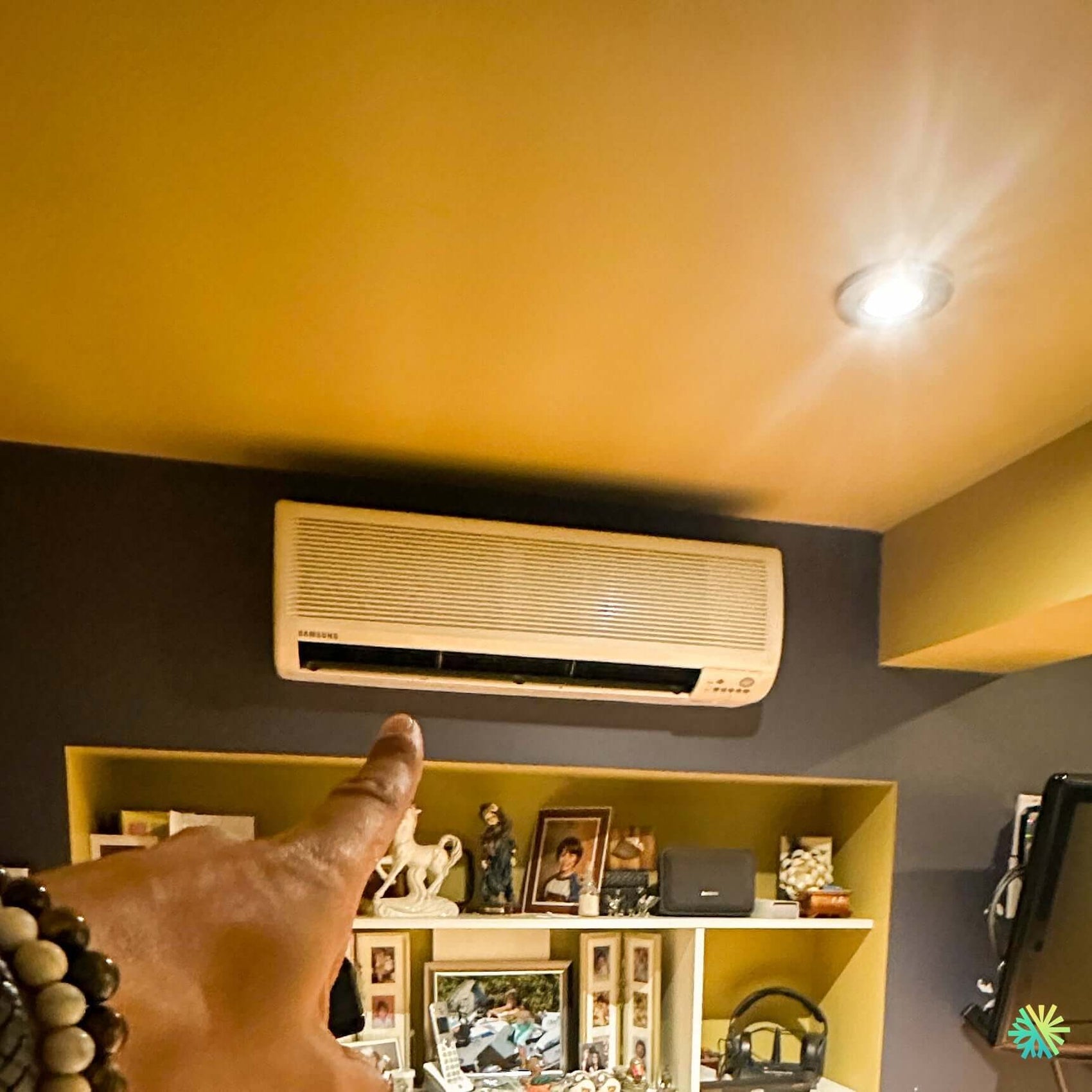

A Samsung wall-mounted heat pump showing clear signs of drainage issues and reduced performance
In Longueuil, our AirGreen team was called for a HVAC service call on a Samsung wall-mounted heat pump installed in a residential room, above a built-in cabinet and near a dark decorative wall. The client had noticed unusual behavior from the unit: the device was still working, but it no longer provided the same comfort as before. Most notably, an area under the unit drew attention, with suspicion of water droplets, condensation, or backflow coming from the wall unit.
This type of problem is common with older wall systems. A heat pump can continue to blow air while having a partially blocked drain, a dirty fan, a dirty indoor coil, or a weakened drainage slope. The danger is to downplay the symptom by thinking it is just a small temporary leak. In reality, a water leak under a wall unit can quickly damage the wall, furniture, shelves, paint, or even create persistent moisture inside.
In this service call in Longueuil, our priority was twofold: to find the exact cause of the leak and to check if the Samsung heat pump was still delivering its normal performance in cooling and heating. A simple filter cleaning would not have been enough. It was necessary to analyze the indoor unit, the condensate tray, the fan, the drain, the communication with the outdoor unit, and the installation conditions.
A Samsung wall unit installed in a sensitive area
The Samsung wall-mounted heat pump was installed high up, in a living space, above a decorative and storage area. This setup requires special attention during servicing because any water leak can quickly have visible consequences. Unlike a mechanical room where a leak can be detected on the floor, a leak under a wall unit can fall directly onto objects, frames, painted surfaces, or furniture.
The observed unit was a Samsung mini-split wall-mounted heat pump, probably of a common residential capacity between 9,000 BTU and 12,000 BTU, depending on the indoor unit format and room usage. The exact model was not the central element of the intervention: the system’s behavior, internal condition, and drainage were the most important points to verify.
Symptoms reported by the customer
The customer had noticed several typical signs of a drainage or internal clogging problem:
- possible presence of water or moisture under the unit;
- decreased cooling performance;
- air less cool than before;
- longer operation to reach the requested temperature;
- sound of water or feeling of condensation in the wall head;
- concern about possible damage to the wall or furniture located under the unit.
These symptoms can have several causes. A wall-mounted heat pump removes moisture from the air in cooling mode. This moisture turns into water, accumulates in the condensate tray, then drains out through the drain. If this drain slows, clogs, or deforms, water can back up and come out from the front or bottom of the unit. When the coil or fan is dirty, the situation can worsen because air circulates less effectively and condensation becomes less consistent.
Why a leak on a wall-mounted heat pump should never be ignored
A small drop under a wall unit may seem minor, but it rarely indicates normal operation. In several service calls in Montreal, Laval, Longueuil, on the North Shore and the South Shore, we have seen drainage problems cause avoidable damage simply because the symptom had been reported for several weeks.
A leak can come from:
A clogged drain
Dust, biofilm, organic deposits, and moisture gradually form a buildup in the drain pipe. Water no longer drains quickly enough and overflows.
A clogged fan
A dirty fan reduces airflow. The coil becomes colder locally, condensation becomes excessive, and the tray may receive more water than expected.
A dirty indoor coil
Dirt on the coil fins reduces heat exchange and disrupts the natural flow of water toward the tray.
Insufficient drainage slope
A wall drain must maintain an adequate slope. Sagging, wall modifications, or a displaced pipe can create an area where water stagnates.
A slightly misaligned unit
If the wall unit is no longer perfectly level or has shifted over time, water may flow forward instead of toward the drain.
Complete diagnosis and recommissioning of the Samsung heat pump
Our technician began by inspecting the Samsung indoor unit before starting a full cycle. In case of a leak, it is important not to simply run the device at full power without checking the tray and the drain. If the tray is already full or if the drain is blocked, an uncontrolled test can cause further leakage.
Visual inspection of the wall unit
We first observed the external condition of the unit, the air outlet flap, the lower area indicated by the customer, possible traces under the device, and the position of the unit relative to the wall. The device was installed near the ceiling, with a top air intake that needed to remain clear to ensure good airflow.
Even though the casing seemed intact, the apparent age of the unit and the style of the front grille suggested that thorough internal maintenance was necessary. On older Samsung wall-mounted heat pumps, the fan can accumulate a lot of dust inside, even when the filters are cleaned regularly.
Filter and coil inspection
After opening the front panel, we inspected the filters and accessible surfaces of the coil. Loaded filters immediately reduce air circulation. However, in cases of leaks, the filters are often only part of the problem. The coil can be dirty behind the filters, and condensation water may no longer flow properly to the tray.
We checked:
- the condition of the filters;
- the cleanliness of the indoor coil;
- the presence of damp dust;
- signs of accumulated water;
- the quality of the airflow at the outlet;
- the possible presence of odor related to humidity.
When air circulation is poor, the unit may seem to be working, but it becomes less efficient. The compressor runs, the unit blows air, but comfort is no longer achieved.
Condensate pan inspection
The condensate pan is often the most important area in this type of intervention. It collects water produced by dehumidification. If this pan is dirty, poorly drained, or partially blocked, water will seek another path. It may then appear under the front panel, near the flap, or on one side of the unit.
Our technician inspected the pan, looked for deposits, and checked if water could flow normally. A pan containing biofilm or dirt must be properly cleaned, as simply vacuuming the drain does not always fix the cause. If the source of dirt remains in the pan, the drain is likely to clog again quickly.
Unblocking and checking the drain
After confirming that drainage was a critical issue, we checked the condensate drain. Depending on the installation, the drain may exit directly outside, go down a wall, or be connected to a pump. In this case, the goal was to confirm that water was leaving the unit without backing up.
We performed a controlled flow test to validate water passage. This test helps distinguish a completely blocked drain from a partially slowed drain. A slowed drain may seem to work for a few minutes, then overflow when humidity increases or the device runs longer.
Indoor turbine inspection
We then inspected the turbine. A dirty turbine can significantly reduce airflow, especially on an older unit. Dirt sticks to the blades and changes their shape. The result: air flows less efficiently, the evaporator works unevenly, and the system may produce more condensation.
When the turbine is very dirty, surface cleaning is not enough. It needs to be cleaned thoroughly without projecting debris into the device or damaging the motor. In this case, we recommended a maintenance approach suited to the unit's condition to restore a more stable airflow.
Performance test after service
After the checks and corrections, we started a cooling cycle with a low enough setpoint to create a real demand. We observed:
- the unit startup;
- the flap opening;
- the ventilation speed;
- the blowing temperature;
- the drain flow;
- the absence of drops under the unit;
- the cycle stability;
- the system’s overall response.
This step is essential. A wall-mounted heat pump repair must always be validated under real operating conditions. If the water drains properly and the blown air becomes more consistent, the client can regain confidence in their device.
Result: leak fixed and comfort stabilized
At the end of the service, the Samsung wall-mounted heat pump was operating more stably. The drainage had been checked, critical internal components inspected, and the client received clear explanations about the probable cause of the leak. The device was not simply “turned back on”: it had been diagnosed as a complete system.
We also recommended several preventive measures:
- clean the filters regularly;
- monitor any water traces under the unit;
- have the turbine cleaned if the airflow decreases;
- avoid blocking the upper air intake;
- do not wait if you hear water noises;
- check the drain before periods of high humidity;
- schedule a complete maintenance if the device has not been cleaned for several seasons.
Common mistakes to avoid
The first mistake is to believe that a water leak will disappear on its own. If it is caused by a partially clogged drain, it will almost always return. The second mistake is to clean only the filters. Filters are important, but they do not clean the turbine, the tray, or the drain.
It is also important to avoid using strong chemicals in the drain without a diagnosis. Some products can damage components, push the clog further, or create a persistent odor. A wall-mounted heat pump must be cleaned using a method suitable for the materials and installation.
Why AirGreen is a reliable choice for this type of HVAC service
At AirGreen, we service Samsung wall-mounted heat pumps and many other brands throughout Greater Montreal, including Montreal, Laval, Longueuil, the North Shore, and the South Shore. Our approach is based on a precise logic: observe the symptom, identify the cause, fix the problem, and validate the result.
In this service call in Longueuil, the issue affected both comfort and the protection of the home's interior. A leak under a wall unit can quickly become more costly if neglected. By intervening at the right time, we were able to secure operation, improve performance, and help the customer avoid damage to the wall and furniture.
A useful repair to extend the device's lifespan
This repair of a Samsung wall-mounted heat pump in Longueuil shows that a wall system can often be restored with a thorough diagnosis and targeted fixes. Even when a unit is older, it can continue to provide good service if the drain, coil, fan, and controls are properly maintained.
For homeowners in Longueuil, Montreal, Laval, the North Shore, and the South Shore, a drop in performance or a water leak should never be ignored. A well-executed HVAC service call helps protect comfort, energy efficiency, and the home's integrity.
At AirGreen, we treat every repair as a complete service: diagnosis, targeted cleaning, drainage check, performance testing, and concrete recommendations. In this case, the Samsung wall-mounted heat pump regained more reliable operation, and the customer was able to use their system with greater peace of mind.
