When a wall-mounted heat pump leaves black marks, the problem is rarely just cosmetic

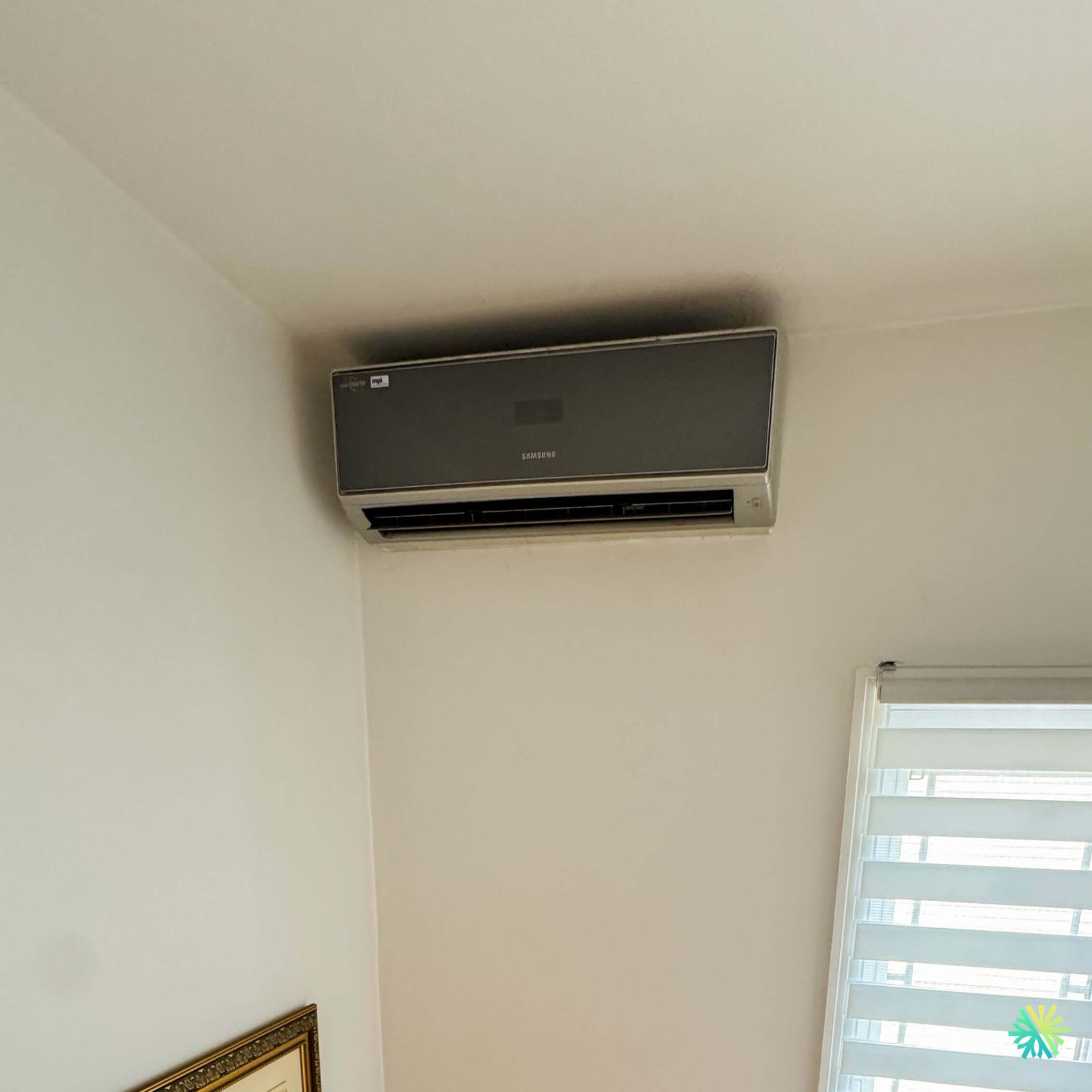

In Saint-Constant, our AirGreen team was called to inspect a Samsung wall-mounted heat pump installed high in a residential room, near a wall corner and close to the ceiling. At first glance, the most visible sign was impossible to ignore: a blackened area around the indoor unit, especially above and on the sides of the device. For the customer, the situation raised several concerns: was the machine overheating? Was there an electrical problem? Could the air blown by the unit harm indoor air quality?
This type of HVAC service call is common in Greater Montreal, especially when wall units run for long periods in cooling mode during summer and heating during colder seasons. At AirGreen, we regularly work on systems similar to those in Montreal, Laval, Longueuil, on the North Shore and the South Shore, and we know that a black mark around a wall unit can have several possible causes: dust accumulation, clogged filters, dirty fan, poor air circulation, condensation, residues sucked in by the device, or sometimes a more serious problem related to ventilation or internal components.
In this specific case, the device was a Samsung wall-mounted heat pump, a residential mini-split type, used for the daily comfort of a main room. The customer had noticed that the black marks had intensified over time. At the same time, the airflow seemed less uniform, the device became noisier at startup, and a slight dust smell appeared during operation.
Visual inspection of the Samsung indoor unit
Upon arrival, we started with a complete inspection of the indoor unit. The device was installed very close to the ceiling, which naturally limited the space available for air intake from above. On several wall models, ambient air is drawn in through the top of the unit, passes through the filters, crosses the evaporator, then is redistributed into the room through the lower front outlet.
When the space above the unit is limited or when filters are not cleaned regularly, the air can create a recirculation effect loaded with fine particles. Over time, these particles accumulate on the wall around the unit. In a home with frequent cooking, candles, fine dust, recent renovations, or insufficient ventilation, black marks can appear more quickly.
We checked several elements:
- The condition of the washable filters.
- The cleanliness of the ventilation turbine.
- The surface of the evaporator.
- The condensate tray.
- The condensation drain.
- The sturdiness of the wall installation.
- The response of the remote control and operating modes.
- The noise of the ventilation motor.
- Blowing temperature in cooling mode.
- No signs of electrical overheating.
The goal was not just to clean what was visible, but to identify why these marks appeared and how to prevent them from returning quickly.
Diagnosis: saturated filters, dirty turbine, and weakened air circulation
After partially removing the front cover, the diagnosis became clearer. The filters were loaded with fine dust, but the main problem was further inside the unit: the cylindrical turbine, located behind the air outlet, was heavily soiled. This component is essential for the proper functioning of a wall-mounted heat pump. When it accumulates dust, greasy deposits, or microparticles, it loses its ability to properly propel air.
A dirty turbine can cause several symptoms:
Reduced airflow
Even if the unit seems to be working, the air comes out with less force. The customer then raises the temperature, changes modes, or pushes the ventilation to maximum, without achieving the expected comfort.
Increased noise
An irregular buildup on the turbine fins can create an imbalance. Result: vibrations, humming, uneven airflow, or noise at startup.
Dust smell
When the unit restarts after a period of shutdown, internal deposits can release an unpleasant odor, especially in the presence of moisture.
Black stains around the unit
Dust is no longer effectively captured. It circulates, settles around the unit, and eventually stains the wall, especially near the ceiling and in corners where air moves less freely.
In this intervention in Saint-Constant, we found no obvious signs of electrical burning or overheating at accessible connections. The visible marks were more consistent with a gradual buildup of particles sucked in and redistributed by an indoor unit that had become due for maintenance.
Checking the drain and condensate tray
On a wall HVAC installation, drainage is often underestimated. Yet, a partially clogged drain can create internal moisture, promote deposits on the evaporator, and contribute to the appearance of odors.
We inspected the condensate tray and checked the flow. The drain was not completely blocked but showed signs of slowing. This type of situation can become problematic if the unit is heavily used for cooling during the summer. A buildup of dust mixed with moisture can create a dark paste that sticks to the tray, fins, and sometimes the air outlet.
We cleaned the accessible tray, checked the drainage slope, and performed a flow test. The goal was to confirm that the water produced by condensation could drain normally without stagnating inside the indoor unit.
An HVAC repair that restores comfort, performance, and customer confidence
The solution did not involve immediately replacing parts. In this case, the right approach was a complete technical overhaul of the Samsung indoor unit, accompanied by operational tests. A wall heat pump repair does not always mean replacing the electronic board, motor, or sensor. Very often, a well-executed professional intervention can restore performance lost due to advanced clogging.
Technical cleaning of the Samsung wall unit
We performed a thorough cleaning of accessible components, with special attention to the turbine, filters, air outlet, and condensate tray. This type of service requires precision, as a wall unit contains fragile fins, motorized louvers, sensors, electrical connections, and plastics that can crack if disassembled roughly.
Our service included:
- Removal and washing of filters.
- Cleaning of the cover and air intake areas.
- Mechanical decontamination of the turbine.
- Cleaning of the air outlet and louvers.
- Evaporator inspection.
- Condensate tray check.
- Drain test.
- Complete device restart.
- Blow temperature measurement.
- Ventilation mode validation.
After cleaning, the airflow was noticeably more stable. The startup noise had decreased, and the dust odor was no longer present during testing. The Samsung wall-mounted heat pump responded properly to controls and distributed air more evenly throughout the room.
Why black marks should not be ignored
A black mark around a wall air conditioner or a wall-mounted heat pump is not just a visual problem. It often indicates that the air is circulating with a high dust load or that the unit is no longer properly filtering the air it draws in. If the problem is ignored, the unit may lose efficiency, consume more energy, and provide less consistent comfort.
In some cases, customers try to clean only the wall around the unit. This is understandable, but it does not address the cause. If the turbine, filters, and evaporator remain dirty, the marks will return. The right approach is to have the system inspected, especially when the marks are accompanied by low airflow, unusual noise, odor, or reduced performance.
Mistakes to avoid with a dirty wall-mounted heat pump
During this service in Saint-Constant, we also explained to the client several common mistakes that can worsen the situation.
Clean only the filters
Filters are important, but they only represent part of the system. A dirty turbine can continue to project particles even after the filters are cleaned.
Using harsh household products
Some products can damage plastics, fins, or leave odorous residues in the device. An HVAC unit must be cleaned with appropriate methods.
Keeping the room doors completely closed for long periods
Poor air circulation in a room can increase dust buildup around the device, especially if the unit is installed near a corner or very high on the wall.
Waiting for the device to leak
A partially clogged drain can remain unnoticed for a long time. When water starts running down the wall, the problem is already advanced.
Confusing dirt with a major failure
A device that blows less forcefully is not always at the end of its life. A professional diagnosis can distinguish between a maintenance issue, an electrical failure, a refrigerant leak, or a mechanical breakdown.
Result of the intervention in Saint-Constant
At the end of the service call, the Samsung wall-mounted heat pump was running more quietly and efficiently. The client noticed an immediate improvement in airflow. We also provided simple recommendations to slow the return of deposits:
- Clean the filters regularly, especially during heavy use periods.
- Avoid frequent use of candles near the unit.
- Monitor odors at startup.
- Schedule periodic HVAC maintenance.
- Have the device checked if black marks reappear quickly.
- Maintain good air circulation in the room.
We also recommended repainting the blackened area only after the problem has stabilized, to prevent the marks from returning on a freshly cleaned surface.
Local expertise for Samsung wall systems and other brands
AirGreen works on a wide variety of brands and residential systems: Samsung, Gree, Sharp, Fujitsu, Midea, Goodman, Carrier, Trane, York, Tosot, Zephyr, and many others. Our service calls cover wall-mounted heat pumps, wall air conditioners, MultiZone systems, central units, electric furnaces, and ventilation accessories.
What sets a good HVAC intervention apart is not just the ability to fix a visible fault. It’s the ability to understand the unit’s full environment: location, air circulation, maintenance, symptoms, usage history, humidity, drainage, and the system’s actual behavior.
In this Saint-Constant home, the Samsung unit was still salvageable. By making the right diagnosis, we avoided an unnecessary replacement and restored the unit’s operation with a targeted intervention.
