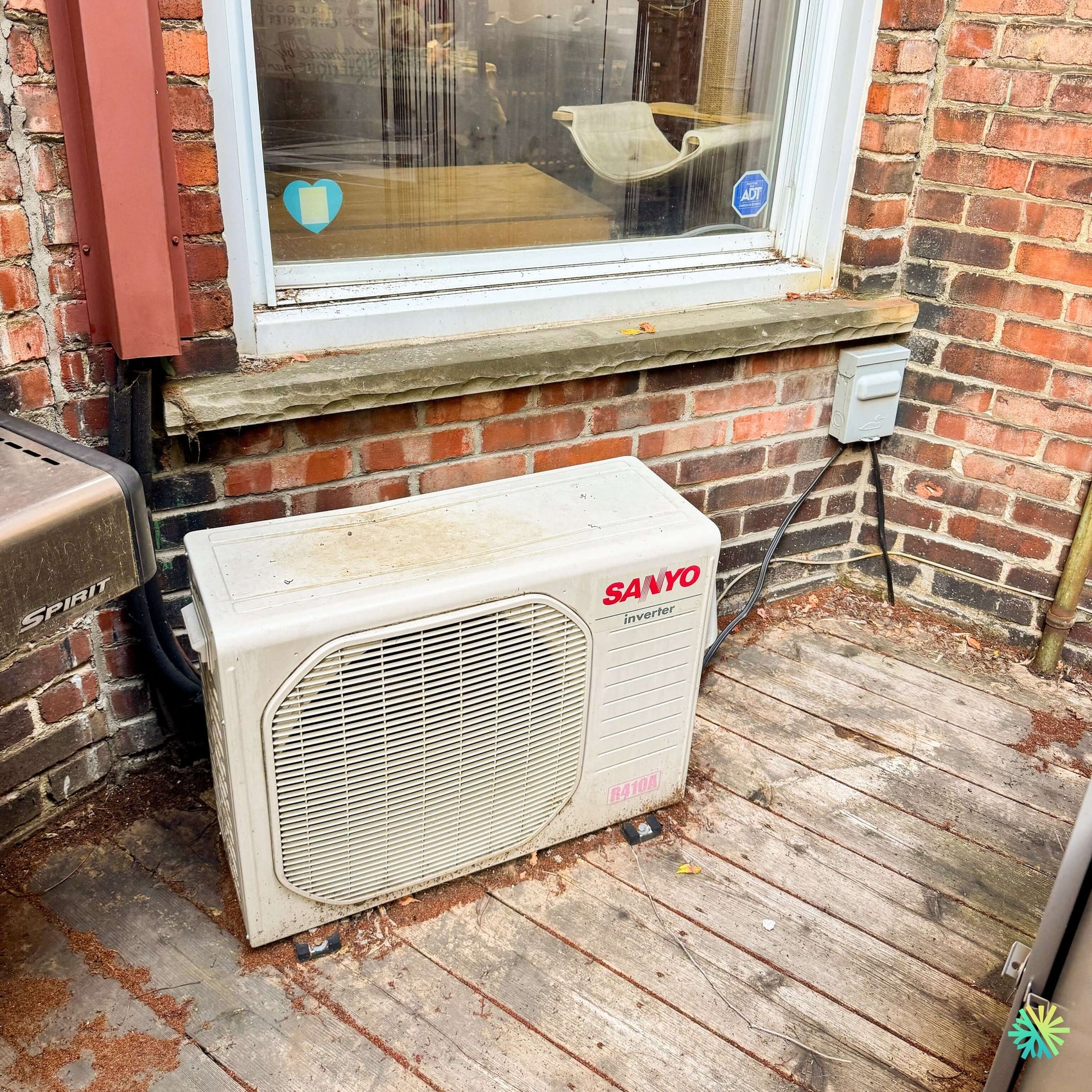

An aging Sanyo wall heat pump, installed on a balcony, requiring a precise diagnosis
In Saint-Léonard, we were called for a HVAC service call on a Sanyo Inverter wall heat pump running on refrigerant R410A. The outdoor unit, installed on a wooden balcony against a brick wall, clearly showed signs of a device that had gone through several seasons: dirt accumulation on the casing, dust in the condenser grille, narrow outdoor environment, proximity to a wall, visible electrical connection in a wall box, and limited clearance around the unit.
The client contacted us because the system was no longer performing as before. The indoor unit was still blowing air, but sometimes the air became lukewarm in cooling mode, and the outdoor unit seemed to start irregularly. At times, the outdoor fan started normally; at other times, the compressor was slow to respond or the machine made a drier noise than usual. In a home where a single wall heat pump provides most of the comfort, this kind of behavior quickly becomes frustrating, especially during hot days in Montreal.
The observed device was an outdoor unit Sanyo Inverter R410A, typical of older residential wall-mounted installations. The exact model and BTU capacity were not clearly visible in the service photo, but the configuration matched a standard format residential wall heat pump, generally used to cool and heat a main area of an apartment, condo, or house floor.
An outdoor installation exposed to balcony constraints
The location of the outdoor unit played an important role in the diagnosis. The condenser was installed low, directly on a wooden balcony, near a brick wall and a window. This type of installation is common in residential neighborhoods of Saint-Léonard, Montreal, Laval, Longueuil, on the North Shore and the South Shore, but it requires special attention.
On a balcony, several elements can affect the performance of a heat pump:
- accumulation of leaves, dust, pollen, and debris around the base;
- less effective ventilation when the hot air expelled remains trapped near the wall;
- vibrations transmitted to the wooden structure;
- exposure to weather;
- more limited access for maintenance;
- risk of poor drainage around the device;
- reduced clearance in front of or behind the condenser.
In this specific case, the outdoor unit was still accessible, but its environment explained part of the symptoms. A dirty or poorly ventilated condenser can cause increased pressure, decreased performance, and longer cycles. On an Inverter machine, the system constantly tries to adjust its speed to maintain comfort, but if the external heat exchange is limited, the device compensates more and eventually loses efficiency.
Symptoms reported by the client
The client had noticed several signs before requesting the intervention:
- air conditioning less cold than before;
- longer time to reach the requested temperature;
- outdoor unit that seemed to operate intermittently;
- unusual noise at startup;
- feeling that the device was working harder;
- variable performance depending on outdoor temperature;
- indoor ventilation present, but unstable cooling.
These symptoms can come from several causes: lack of refrigerant, dirty condenser, electronic board problem, defective sensor, poor electrical contact, air restriction, worn-out outdoor fan, or aging compressor. On an older Sanyo wall-mounted heat pump, it is important not to jump to conclusions too quickly. The right approach is to confirm each hypothesis, one by one.
Visual inspection and securing of the device
The first step was to secure the intervention. We checked the power supply at the outdoor panel, the condition of the visible wires, and the stability of the unit. A heat pump installed on a balcony must be inspected both for its operation and its mechanical environment.
We then observed the condition of the condenser grille. The accumulation of dust and dirt was visible. Even though the grille was not completely blocked, the exchange surface was no longer in optimal condition. On a device at R410A, pressure and temperature conditions must remain within a consistent range. Poor outdoor airflow can give the impression of a refrigerant shortage when the main problem is sometimes simply reduced exchange capacity.
We also inspected:
- the outdoor fan;
- the noise at startup;
- the fastenings;
- the vibration points;
- the power wiring;
- the control connections;
- the general condition of the casing;
- the presence of corrosion;
- the clearances around the unit;
- the system's reaction to a cooling demand.
Technical diagnosis of the Sanyo Inverter heat pump
After the visual check, we started the device in cooling mode to observe its actual behavior. The indoor unit responded to the command, but the outdoor unit showed an irregular response. The fan started, then the system struggled to stabilize its operation. This behavior could be related to poor temperature reading, insufficient heat exchange, or a weakened control signal.
We conducted a full reading of accessible components:
Outdoor fan check
The outdoor fan had to be able to effectively expel the heat captured inside. Low rotation, abnormal noise, or hesitant start can harm performance. In this case, the fan was working, but the dirty environment around the condenser clearly limited the air exchange efficiency.
Electrical check
We inspected the connections to the outdoor box and visible connection points. A weakened contact can cause intermittent interruptions, especially on older systems. The connections were checked, tightened as needed, and secured to prevent signal loss or unstable power supply.
Refrigeration circuit check
The machine's behavior was evaluated considering its refrigerant R410AA wall-mounted heat pump should never be recharged without diagnosis. Adding refrigerant without investigating the cause can mask an airflow, dirt, or leak problem. We therefore first restored the exchange conditions before assessing the cooling performance.
Temperature check
We compared the temperature of the return air and the blown air at the indoor unit. This step helps determine if the heat pump is effectively removing heat from the space. Before cleaning, the temperature difference was insufficient and irregular. After the intervention, the response improved.
Condenser cleaning and restoration of the outdoor unit
The main correction consisted of carefully cleaning the outdoor unit. The grille and condenser were cleared of visible dirt, and special attention was given to areas where debris accumulated near the base. On a wooden balcony, leaves, dust, organic residues, and particles from brick walls can quickly settle around the device.
This cleaning helped reduce air passage resistance. Once the condenser was better cleared, the outdoor unit could reject heat more efficiently. This had a direct effect on operation stability.
We also checked vibration points. An outdoor unit resting on a balcony can transmit vibrations to the structure, especially if the supports are aging or if the compressor is working harder. Visible fastenings were inspected and supports were checked to confirm that the device remained stable during the cycle.
Contact correction and operation stabilization
During the intervention, we identified connections that required inspection and tightening. On an old machine, this kind of detail can make a big difference. A slightly weakened connection can cause irregular starts, signal interruptions, or unpredictable behavior between the indoor and outdoor units.
After the correction, the system was restarted. The outdoor unit responded more regularly, the fan maintained better stability, and the air blown inside became more consistent. No major parts had to be replaced during this intervention; the repair was mainly based on precise diagnosis, targeted cleaning, minor electrical correction, and full validation of the operating cycle.
Result after the service call in Saint-Léonard
At the end of the intervention, the Sanyo wall-mounted heat pump offered better performance. The customer noticed more stable cooling and less hesitant operation of the outdoor unit. The system was not new, and its age remained a factor to monitor, but the intervention helped extend its use under better conditions.
The results obtained:
- improvement of air conditioning efficiency;
- reduction of irregular operation;
- cleaning of the outdoor unit;
- power supply and contact check;
- better stability of the outdoor fan;
- operating temperature control;
- clear advice to the customer on maintenance and the limits of an aging device.
Lessons learned from a Sanyo wall-mounted heat pump repair in Saint-Léonard
An old wall-mounted heat pump can lose efficiency without being completely broken
One of the most important points of this service call is that a heat pump can operate, blow air, respond to the remote control, yet still be losing performance. The customer may feel the machine is simply “weaker,” while there is often an identifiable technical cause.
On a Sanyo Inverter wall-mounted heat pump, the diagnosis must take into account:
- condenser cleanliness;
- electrical stability;
- indoor and outdoor ventilation;
- sensors;
- electronic board;
- compressor condition;
- refrigerant charge;
- installation quality;
- clearances around the outdoor unit.
In this case, dirt buildup and the outdoor installation conditions were important factors. The device needed to be restored to better operating conditions before considering heavier repairs.
Mistakes to avoid with an outdoor unit installed on a balcony
A balcony may seem like a convenient location for an outdoor unit, but it requires constant vigilance. Several mistakes can reduce the device’s lifespan.
Allowing debris to accumulate around the condenser
Leaves, dust, and dirt reduce heat exchange. The system has to work harder, which increases wear.
Blocking air circulation
A piece of furniture, a barbecue, a storage box, or an object placed too close to the unit can interfere with heat dissipation. The device must breathe properly.
Ignoring vibrations
A slight vibration can become a problem if it worsens. On a wooden structure, vibrations are sometimes amplified.
Postponing maintenance for several seasons
A wall-mounted heat pump requires regular maintenance. Indoor filters are not enough; the outdoor unit must also be inspected.
Adding refrigerant without diagnosis
A system with R410A should never be recharged blindly. The condition of the exchanger, presence of leaks, temperatures, and actual system behavior must first be checked.
When to call AirGreen for HVAC repair
A service call is recommended as soon as any of the following signs appear:
- air less cold or less hot than before;
- outdoor unit that starts poorly;
- noisy outdoor fan;
- cycles that are too long;
- unusual smell;
- ice on the pipes;
- sudden drop in comfort;
- vibrating noise;
- electrical consumption that seems to increase;
- error code or intermittent shutdown.
At AirGreen, we work on wall-mounted heat pumps, wall-mounted air conditioners, MultiZone heat pumps, central heat pumps, and residential HVAC systems in Greater Montreal. Our service calls cover Montreal, Laval, Longueuil, the North Shore, and the South Shore, with an approach based on real diagnostics rather than systematic replacement.
Why this service call in Saint-Léonard well illustrates our method
This repair in Saint-Léonard shows that effective service is not just about checking if the unit starts. You need to understand its environment, constraints, age, maintenance history, and behavior during a full cycle.
In this case, we treated the outdoor unit as a central part of the problem. The condenser was exposed to balcony dirt, limited space, and ventilation that could be improved with proper cleaning. By restoring better air exchange and securing connections, we enabled the Sanyo heat pump to regain more reliable operation.
For the client, the result was tangible: cooler air, a more stable machine, and a better understanding of what to monitor in the coming months. For us, this is exactly the goal of a successful HVAC service call: repair, optimize, and advise precisely.
AirGreen, specialist in wall-mounted heat pump repairs in Saint-Léonard
An older Sanyo wall-mounted heat pump can still be useful when well maintained, but it must be inspected methodically. Inverter systems require careful technical reading, as their variable operation can hide certain issues. A drop in performance is not always dramatic at first, but it can signal more significant wear if ignored.
At AirGreen, we help owners make the right decision: repair when it makes sense, maintain when it’s sufficient, and recommend replacement only when the actual condition of the unit justifies it. This service call in Saint-Léonard perfectly illustrates this practical, transparent approach focused on lasting comfort.
