Repair of a Sharp wall-mounted heat pump in Rosemont–La Petite-Patrie (Montreal)

In Rosemont–La Petite-Patrie, we often work on wall-mounted installations in urban residential settings: narrow yards, brick walls, limited access, and outdoor units mounted on metal brackets. This is precisely the context of this repair on a Sharp wall-mounted heat pump ( Eco Inverter series, with Plasmacluster technology), a system known for its consistent comfort… provided the outdoor unit has proper ventilation and the electronics are protected from the harsh Montreal climate.

The context: an outdoor wall unit in a confined space

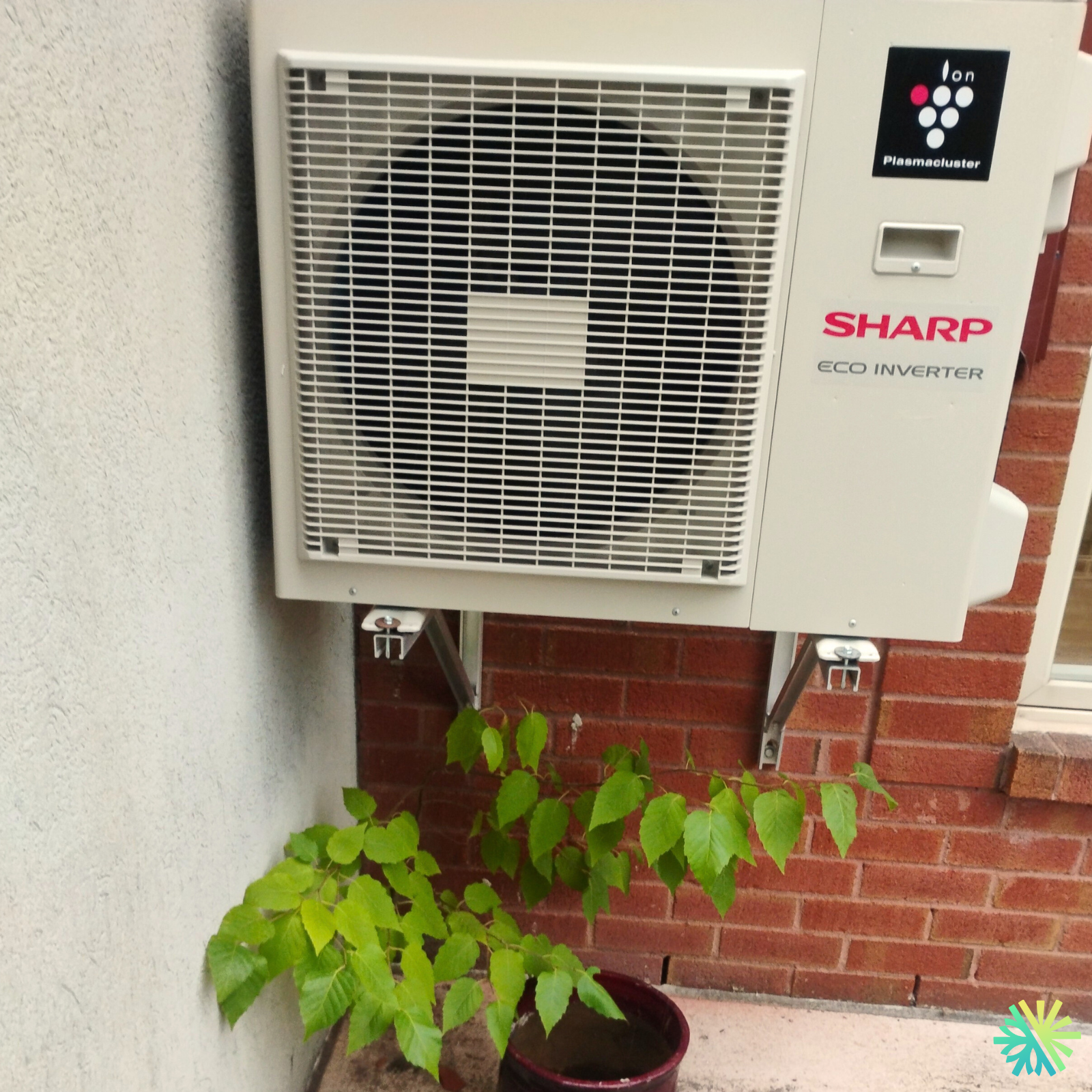

The photo shows a Sharp outdoor unit mounted on wall brackets, fixed against a brick wall, with an adjacent wall very close to the left. This type of location is common in Montreal: practical for freeing up ground space and limiting snow accumulation, but more demanding in two respects:

• Air clearance : if the space is too tight, air recirculation can increase pressure and strain the compressor.

• Fouling : vegetation near the unit (leaves, dust, pollen) accelerates the obstruction of the coil fins.

In this case, the client contacted us because the system was heating less well , making intermittent stops , and the performance was no longer constant (temperature that “floats”, longer cycles, different noise at start-up).

The type of machine and the model (consistent with Sharp)

• Type : wall-mounted heat pump (mini-split)

• Brand : Sharp (confirmed)

• Model (consistent with the range) : Sharp ZU1 (Eco Inverter, residential)

Even when the exact model is not legible in a photo, this identification remains consistent with the format of the Sharp outdoor unit and the “Eco Inverter” casing.

Symptoms observed on site

During our visit, we observed symptoms typical of a mini-split unit that is no longer exchanging heat efficiently or is protecting its compressor:

• Less efficient heating, especially in cold weather

• More frequent starts (shorter cycles)

• Slight increase in noise/operating effort

• Intermittent messages/alerts (depending on the remote control and model)

Our AirGreen assessment: we don't "guess," we measure.

For this type of breakdown, we follow a simple and rigorous sequence:

1. Complete visual inspection

   • Condition of the external coil (dirt, obstruction)

   • Clearances around the unit (walls, obstacles, vegetation)

   • Mounts and vibrations (brackets, anchors, silent blocks)

   • Possible traces of oil at the fittings (indication of a micro-leak)

2. Electrical and electronic controls

   • Supply voltage, stability, connections

   • Checking communications (outdoor card ↔ indoor unit)

   • Reading fault codes (if available)

3. Thermal and refrigeration measurements

   • Indoor supply/return air temperature

   • Pipe temperatures (liquid/gas) to validate the transfer

   • Inverter compressor pressures and behavior (depending on conditions)

In this specific case, the diagnosis revealed impaired heat exchange on the outdoor unit side (fouling and imperfect air circulation in a confined space), which can trigger protection circuits, increase energy consumption, and reduce capacity. We also checked the connections and the integrity of the circuit to rule out a slow leak (a common issue when cycles become irregular).

The repair steps (and why they matter)

1) Technical cleaning of the outdoor coil (HVAC method, not “with a hose”)

We performed a thorough cleaning of the fins and coil, using an approach that respects the heat exchanger (and avoids bending the fins, which further reduces airflow). The result: improved airflow for the unit, better heat dissipation in cooling mode, and better heat capture in heating mode.

2) Clearing and correcting obstruction factors

Vegetation too close to the unit, even if it appears “innocent,” eventually:

• sticking debris onto the heat exchanger,

• disrupt the airflow,

• retain moisture.

A minimal clearance around the unit (and simple seasonal maintenance) was recommended to prevent the problem from recurring.

3) Checks of connections, vibrations and stability on wall brackets

A wall-mounted unit on brackets is excellent against snow, but it requires:

• solid anchors,

• vibration control,

• correct alignment.

We tightened/validated the fixing, reduced micro-vibrations, and confirmed that the unit was stable — a detail that improves acoustic comfort and protects the piping in the long term.

4) Final validation: performance, cycles, comfort

After the procedure:

• more stable cycles,

• a more pronounced temperature rise

• normalized operating noise

• performance has returned to a consistent level for a Sharp inverter system.

The result: restored comfort and renewed confidence

The customer immediately noticed a difference: the heat pump maintains the set temperature better , with less fluctuation and smoother operation. And above all, the installation is healthier: an outdoor unit that breathes and operates in optimal conditions is the foundation for the longevity of a Sharp Eco Inverter system .

Key takeaway (useful for many homes in Montreal)

If your outdoor unit is:

• in a confined space (between two walls),

• mounted on wall brackets ,

• close to vegetation ,

Therefore, proactive maintenance and checks can prevent performance drops, unexpected shutdowns, and accelerated wear of the inverter compressor.

At AirGreen, we don't just "get the machine running again": we look for the real cause, we correct what creates the constraint, and we validate the result with measurements.
