In Rosemont–La Petite-Patrie, work often takes place on typical Montreal brick buildings, where outdoor units are mounted high on wall brackets to save space and minimize vibrations in the floor. Here, the unit is a Sharp wall-mounted heat pump (mini-split type), with a Sharp Eco Inverter outdoor unit. Its appearance and model range closely resemble a Sharp ZU1 (a standard residential series), mounted on a wall bracket with side access for service.
This type of installation is excellent… but it also requires particular rigor during maintenance and repairs: at height, on facade, with refrigeration fittings (flares) which must remain perfectly sealed despite freeze/thaw cycles and vibrations.
The reported problem: unstable comfort and declining performance
The client contacted us about a situation that has become typical during peak seasonal use:
-
Less efficient cooling (longer time to reach the setpoint)
-
irregular cycles (starts/stops too often)
-
The feeling that the heat pump is "working hard" without delivering its usual efficiency
-
Sometimes, there is a slight difference in noise when the outdoor unit starts up.
On a Sharp inverter wall-mounted heat pump, these symptoms can come from several causes: air restriction (clogged coil), fan problem, temperature sensor, or — very frequently — insufficient refrigerant charge caused by a micro-leak.
AirGreen diagnosis: complete method (no guesswork)
On site, our technicians proceeded as we do at AirGreen: step-by-step diagnosis, without jumping to conclusions.
1) Visual inspection of the installation
The unit is mounted on sturdy wall brackets , above ground level, which provides good protection against snow and standing water. However, we systematically check:
-
stability of supports and tightening
-
Condition of the pipes (insulation, protection, traces of oil)
-
air clearance around the condenser
-
general condition of the coil (dust, debris)
2) Reading pressures and operating behavior

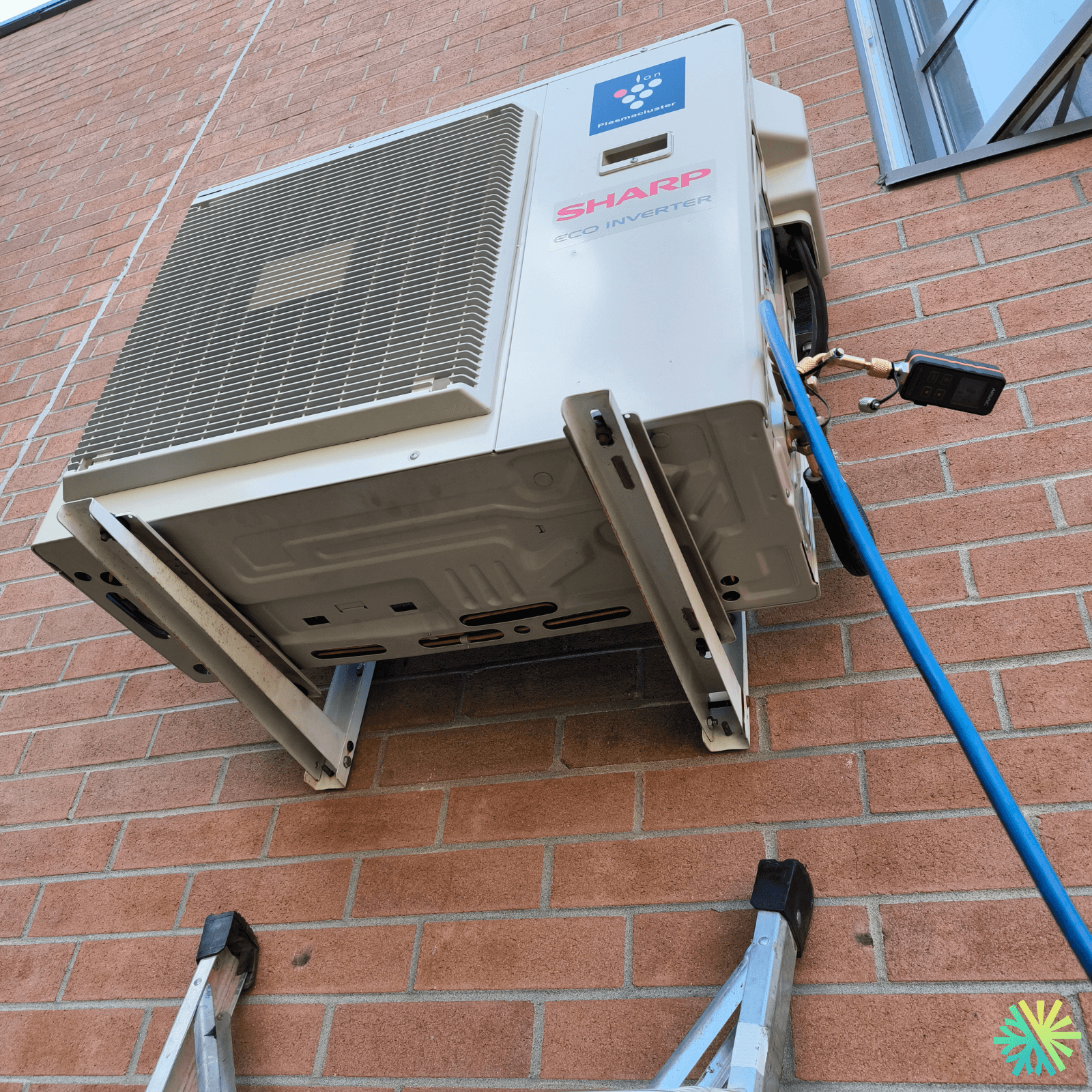

As you can see in the photo, our technicians connected the service instrumentation (pressure gauges/measuring tools) directly to the outdoor unit in order to observe:
-
Pressures in heating/cooling mode (depending on conditions)
-
inverter compressor operating system stability
-
line temperatures (suction/liquid) and heat transfer consistency
The observed values indicated degraded performance consistent with a suboptimal load.
3) Leak detection (frequent micro-leaks on fittings)
In these kinds of situations, you don't just "add more gas" without understanding the situation. You conduct targeted research, especially on:
-
flare fittings on the outdoor unit side
-
vibration points
-
service valves
-
sections where the insulation is damaged or compressed
The diagnosis confirmed a micro-leak at a fitting (classic symptom: slow loss, performance that gradually deteriorates).
Repair: resealing + controlled refill
A lasting repair is one that eliminates the cause, not just the effect.
Step 1 — Repairing the faulty connection
We have :
-
disassembled the fitting in question
-
inspected the condition of the flare (marks, crushing, misalignment)
-
redid a proper finish (clean cut, precise flare, appropriate tightening torque)
Objective: to achieve perfect and stable sealing over time.
Step 2 — Pressurization / Validation
Before putting it back into service, we validate:
-
pressure resistance
-
absence of a fall over an observation period
-
consistency of measures
Step 3 — Vacuuming and recharging
Next, a rigorous vacuum is drawn to remove moisture and air from the circuit, then the charge is replaced according to best practices (and not "by eye").
In new generation systems, precision is what protects the compressor and guarantees efficiency.
Step 4 — Final operational check
Once the Sharp is restarted, we check:
-
inverter operating stability
-
expected air supply temperatures (indoor unit)
-
consistent line pressure/temperature
-
No error codes and normal cycles
Result: restored performance and immediate comfort
After the repair, the customer immediately noticed:
-
return of constant cooling (or heating)
-
more stable cycles (fewer unnecessary starts)
-
faster temperature rise/fall
-
regained confidence in the equipment
And above all: a Sharp heat pump that works as it should again — with the advantage of inverter: efficiency, silence, stable comfort .
What this intervention shows (and why it's important in Montreal)
In a neighborhood like Rosemont–La Petite-Patrie, brick-fronted installations are very common. They are excellent, but they require:
-
a good wall mount (anti-vibration, securely anchored)
-
adequate protection of the lines
-
periodic maintenance
-
And, in case of performance loss: a serious diagnosis, not a quick fix
At AirGreen, we treat this type of repair with a simple logic: we correct the cause, we secure the system, we validate the result .
