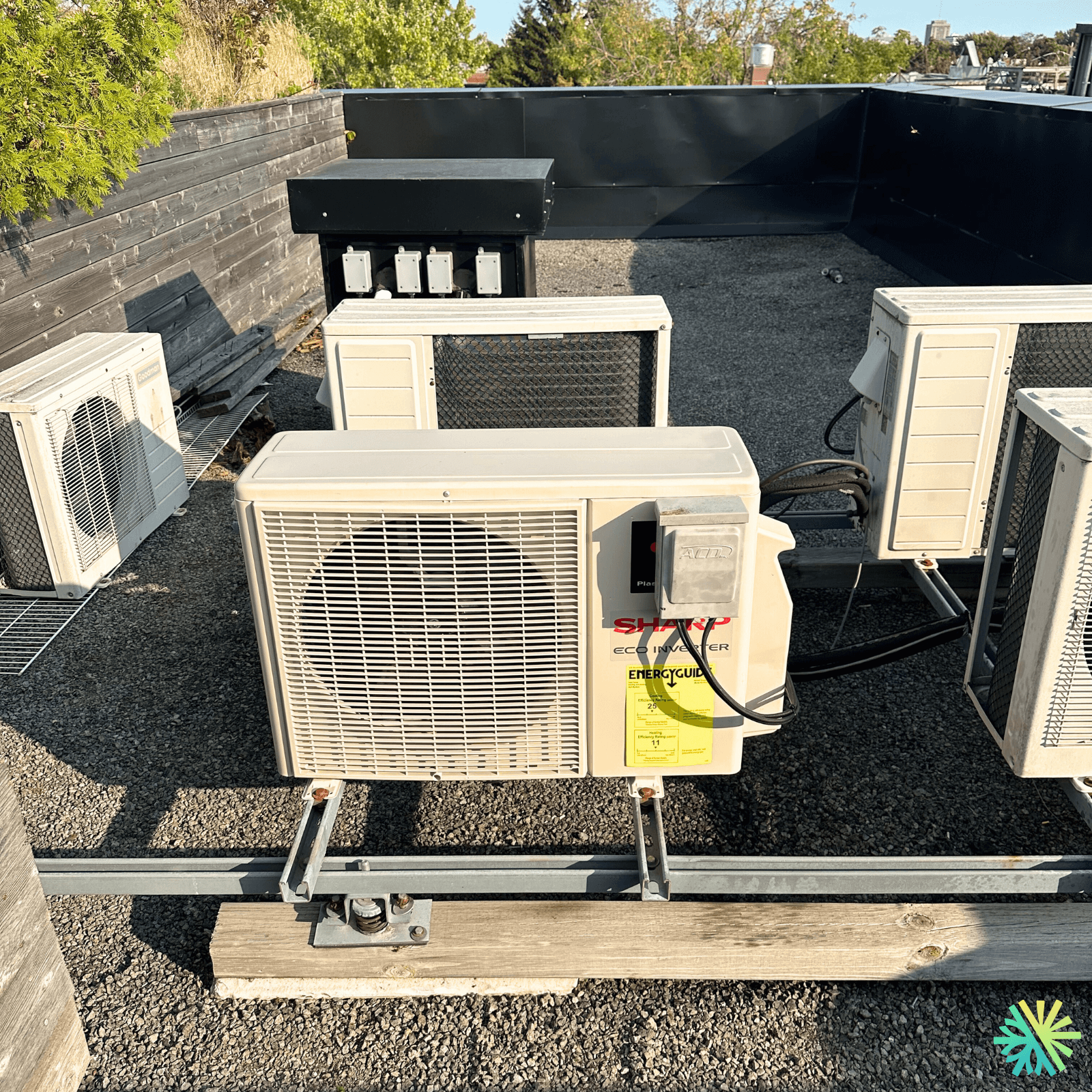

On some condominium buildings in Ville-Marie , the outdoor units of wall-mounted heat pumps are installed on rooftop terraces, often grouped together on metal rails, with sometimes limited clearance and direct exposure to wind, sun, and temperature fluctuations. This is precisely the context of the intervention we are presenting here: a Sharp wall-mounted heat pump ( Eco Inverter range, model number Sharp ZU1 ) installed on a gravel roof, among other condensers, with a dedicated power supply and protected refrigerant lines.
At AirGreen , we regularly work on this type of installation, because the breakdowns often have a particular signature: vibrations amplified by the structure, exposed connections, accelerated fouling, and access constraints that require a very rigorous diagnostic method.
Context of the installation (what we see and what it implies)
The Sharp outdoor unit is mounted on metal rails with anti-vibration supports (pads/springs) and a stabilizing beam . A service disconnect/circuit breaker (electrical box) is also visible, mounted directly on the chassis, as well as refrigerant lines (insulated pipes) running to the indoor unit.
This type of configuration is common in condominiums, and it brings two major constraints:
-
Vibration and noise : on a roof, the slightest resonance is transmitted to the structure. A loose part or a worn support can cause buzzing, rattling, or premature wear.
-
Exposure : UV, freeze/thaw cycles, humidity, dust/gravel… All of this accelerates the aging of insulation, connectors and drainage.
Reported symptoms (typical signals on a Sharp Eco Inverter)
In this case, the symptoms were consistent with an “intermittent” failure often encountered on inverter systems:
-
Cooling/heating less efficient than usual (indoor temperature difficult to stabilize).
-
Irregular cycles : the unit starts, slows down, then stops, without apparent logic.
-
At times, there is a feeling that the compressor is "straining", with a drop in efficiency.
-
External operating noise is more present than usual (vibration/transmission).
These signs can point to several causes: lack of refrigerant, fouling of the coil, faulty probe, fan problem, or a limitation related to the electronics/power supply.
Our diagnostic approach (step-by-step, without assumptions)
On a Sharp ZU1 / Eco Inverter , a proper diagnosis isn't simply a matter of "measuring pressure." We proceed in a structured way:
1) Visual and mechanical inspection
-
Check clearances around the unit (important when several condensers share the same roof area).
-
Checking supports , bolts, rails and anchor points: a sagging support or a loose bolt can create vibration which eventually damages a connection or piping.
-
Inspection of refrigeration line insulation : on a roof, insulation can crack under UV light, causing condensation, loss of efficiency and sometimes localized corrosion.
2) Safety electrical verification
-
Checking the disconnect switch and the power supply: tightness, condition of the connections, presence of oxidation, integrity of the wiring.
-
Voltage measurement under load (an inverter is sensitive to voltage drops).
-
Reading the indicators/feedback from the card (depending on accessibility), as poor power supply can cause protection shutdowns.
3) Control of the refrigeration circuit and heat transfer
-
Condition of the external coil : dust, debris, micro-obstructions between the fins (gravel and dust from the roof often end up in the heat exchanger).
-
Checking operating temperatures (differentials, superheating/subcooling according to the method appropriate to the system) to confirm whether the problem is a simple heat exchange or a load imbalance.
-
Search for signs of micro-leaks : traces of oil, abnormally soiled areas, vibration at a brazing point.
4) Validation of inverter behavior
-
Observation of the start-up, the increase in speed and the modulation.
-
Fan check (speed, noise, stability): a motor or capacitor/driver in difficulty can cause the regulation to fail.
The diagnosis was confirmed (what was actually causing the performance loss).
In this case, we opted for a combined diagnosis, which is very common on rooftop outdoor units:
-
Heat exchange is impaired by fouling of the coil (fins loaded with dust and fine particles). As a result, the system compensates by "forcing" itself, the modulation becomes unstable, and comfort drops.
-
Vibration/transmission related to a necessary adjustment on the supports/fasteners: this was not “the” main failure, but it was an aggravating factor, which could accelerate wear and generate noise.
The objective was not just to "get the machine running again", but to restore stable, efficient and sustainable operation .
Repairs carried out by AirGreen (concrete, clean, sustainable)
Technical cleaning of the external coil
We carried out a cleaning procedure specifically designed for condenser heat exchangers (without deforming the fins):
-
Thorough cleaning of the coil.
-
Restoring the airflow so that the unit regains its normal performance.
-
Final check: more stable indoor supply temperature and modulation has become coherent again.
Mechanical stabilization and vibration reduction
-
Re-checking and adjusting the fixing points on the rails.
-
Checking the seat and anti-vibration elements.
-
Reduction of structural noise and improvement of “sound comfort” (particularly important in co-ownership).
End-of-intervention checks
-
Complete test sequence in heating/cooling mode according to the season.
-
Validation of electrical intensities and modulation behavior.
-
Visual inspection of the connections and exposed insulation.
Results obtained (what the client actually observes)
After the procedure, the gains are immediate and measurable:
-
Return of stable comfort : the indoor temperature stops “fluctuating”.
-
Improved efficiency : fewer erratic cycles, smoother modulation.
-
Noise reduction : the outdoor unit vibrates less, the condominium is reassured.
-
Trust restored : we move from a “capricious” system to a predictable and efficient one.
Why these faults often recur on rooftop units (and how to prevent them)
On a rooftop terrace, a wall-mounted heat pump is more exposed than one on the ground, and this results in three simple recommendations that we give to our clients:
-
Periodic maintenance : a clean external coil is the basis of an inverter's efficiency.
-
Insulation monitoring : on roofs, UV-fatigued insulation must be corrected before it becomes a source of loss and condensation.
-
Vibration control : supports, rails and anchors must remain stable; this is a detail that avoids major problems.
AirGreen in Ville-Marie: condo expertise, roof access, clean interventions
Rooftop work requires meticulous planning: safety precautions, respect for common areas, accurate diagnosis, and clean repairs. This is precisely our approach at AirGreen . With a Sharp wall-mounted heat pump like the Sharp ZU1 , our priority is to preserve the inverter modulation logic, optimize heat exchange, and ensure a quiet and long-lasting installation.
