A SMALLAIR heat pump installed on a balcony that no longer responded as before
In Dorval, our AirGreen team was called for a HVAC service call on a SMALLAIR wall-mounted heat pump of the mini-split type, whose outdoor unit was installed on a narrow balcony against a masonry wall. The client noticed a problem that had become increasingly frequent: the device would start, seem to run for a few minutes, then lose efficiency. Indoor comfort was no longer stable, especially during rapid temperature changes, and the machine seemed to work harder than before without delivering the expected result.
This type of situation is common on wall-mounted heat pump installations in condominiums or residential buildings, especially when the outdoor unit is installed in a confined space: balcony, loggia, alcove, side wall, or facade corner. The equipment may be in generally good condition, but a small electrical fault, air restriction, damaged insulation, or weakened connection can be enough to cause an intermittent failure that is difficult to diagnose without a rigorous method.
At AirGreen, we treated this call not as a simple quick check, but as a full HVAC repair, with diagnosis of the outdoor unit, inspection of connections, refrigerant circuit check, start-up behavior analysis, and verification of the installation around the device.
An accessible outdoor unit, but installed in a demanding environment

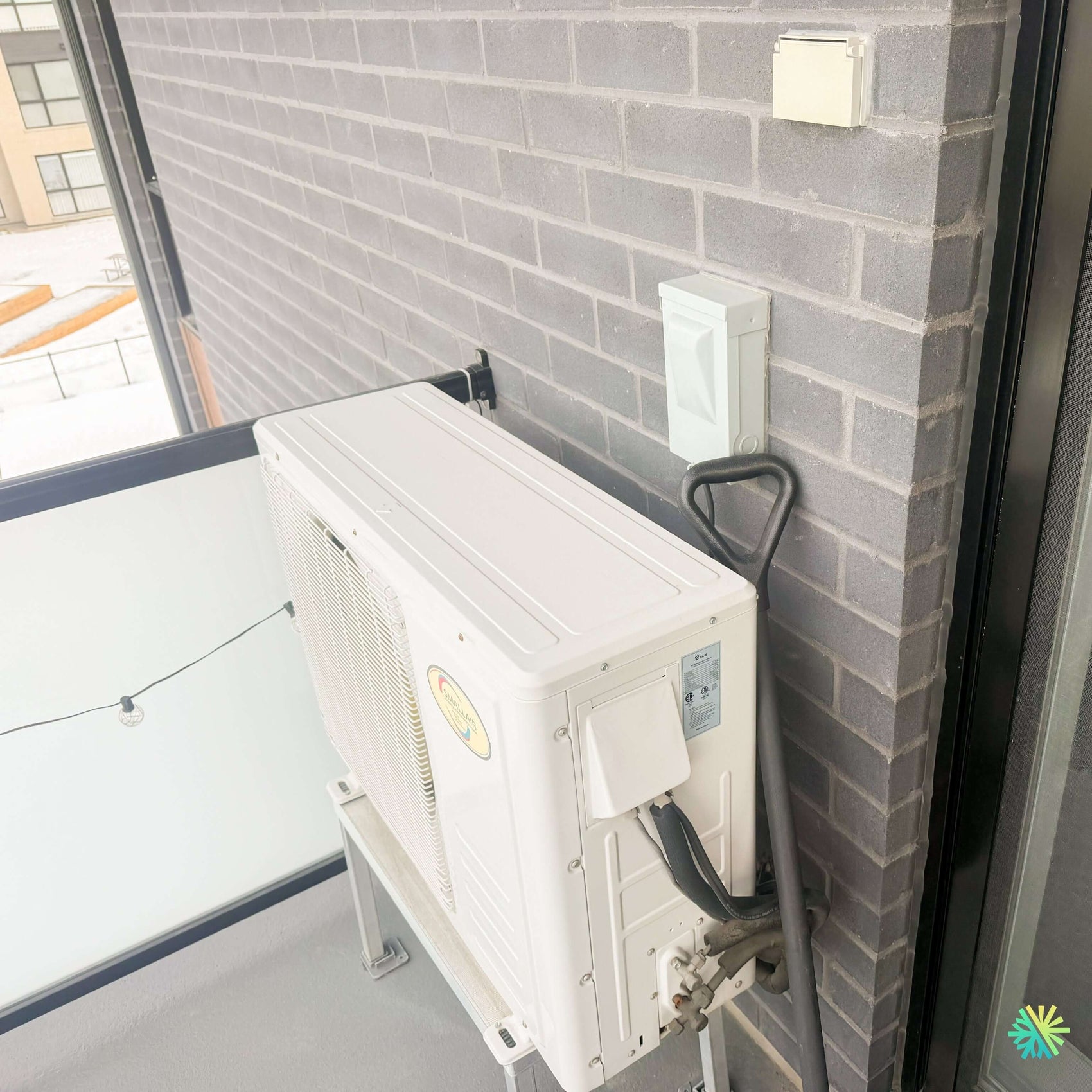

In the service photo, the SMALLAIR outdoor unit is clearly visible, mounted on a metal bracket on the balcony. The installation is clean and compact, but several elements deserved special attention:
- the proximity of the brick wall and the balcony corner;
- the passage of refrigerant pipes to the interior;
- the wall-mounted electrical box located near the unit;
- the condition of the insulation around the pipes;
- air circulation around the condenser;
- possible vibrations transmitted to the support;
- exposure to sun, wind, snow, and humidity.
A wall-mounted heat pump like this depends heavily on the good condition of its outdoor unit. Even if the customer feels the problem inside, the real source is often outside: slowed outdoor fan, dirty heat exchanger, unstable electrical connection, faulty sensor, weakened electronic board, refrigerant leak, or restriction in the piping passage.
In this specific case, the main issue was intermittency. The device did not seem completely dead. It worked, but irregularly. This is often the most misleading type of failure, as a machine can seem “fine” at the time of inspection, then fail again a few hours later.
Symptoms reported by the customer
The customer described several signs observed before our intervention:
- a noticeable drop in efficiency;
- a startup sometimes normal, sometimes hesitant;
- an indoor temperature that took too long to stabilize;
- an impression that the outdoor unit did not always keep up with the demand;
- longer cycles than before;
- a slightly different noise at startup;
- a concern about a possible compressor failure.
These symptoms can point to several causes. A drop in performance can come from lack of maintenance, air restriction, refrigerant problem, electrical fault, temperature sensor, control module, or poor communication between the indoor and outdoor units.
Our priority was therefore to avoid quick conclusions. Replacing a part without confirming the real cause can be costly for the customer and may not solve the problem. That is why our technician started with a structured diagnostic sequence.
Diagnosis, correction, and recommissioning of the heat pump
Electrical check of the power supply and the outdoor box
The first step was to check the power supply. On a SMALLAIR wall-mounted heat pump, an unstable power supply can cause very varied symptoms: intermittent shutdown, protective circuit board, compressor refusing to start, irregular outdoor fan, or communication errors.
Our technician checked:
- the voltage available at the outdoor box;
- the condition of the connections;
- the tightening of the terminals;
- signs of oxidation or overheating;
- the electrical protection;
- the continuity of the communication wires;
- the quality of the connection between the indoor unit and the outdoor unit.
The diagnosis revealed an important point: some connections in the outdoor area showed signs of weakening and slight oxidation, probably worsened by moisture and temperature variations. It was not a dramatic failure, but enough to explain the intermittency. A connection that is no longer perfectly stable may work during a quick test, then cause a drop or error when the device is under load.
Inspection of refrigerant lines and insulation
The team then inspected the visible refrigerant lines behind the outdoor unit. On a balcony, the lines are often exposed to moisture, UV rays, frost, and expansion movements. When the insulation begins to deteriorate or compress, thermal losses increase and the system can lose efficiency.
In this case, we observed that some insulation sections needed correction. The goal was not only aesthetic. Damaged insulation can cause:
- performance losses;
- condensation;
- accelerated deterioration of the pipes;
- less stable thermal reading;
- a higher workload for the compressor.
We therefore corrected accessible insulation, tightened necessary sections, and protected exposed areas to improve the durability of the installation.
Targeted cleaning of the outdoor unit
Even if the outdoor unit seemed relatively clean at first glance, our technician performed targeted cleaning of the exchanger and grille. On balconies, outdoor units can accumulate urban dust, pollen, fine debris, fibers, and dirt from the facade or neighborhood.
Even moderate buildup can impair heat transfer. The heat pump then has to work longer, consume more, and produce less comfort. For a wall-mounted heat pump repair in Dorval, this point is particularly important because balcony installations do not always have the same ventilation as a unit placed in an open space.
Cleaning improved air circulation around the condenser and confirmed that the outdoor fan was working properly, without abnormal friction or vibration.
Startup behavior analysis
After electrical and mechanical corrections, we restarted the device to observe its behavior. This step is essential. A repair is not complete simply because a part has been tightened or replaced. It is necessary to confirm that the machine responds correctly under real demand.
We checked:
- starting of the outdoor unit;
- fan stability;
- compressor response;
- temperature variation;
- communication between units;
- absence of premature shutdown;
- return to a normal cycle;
- stability after several minutes of operation.
The result was positive: the device resumed much more stable operation. The client quickly noticed that the indoor unit responded better to demand, with a more consistent temperature and a less hesitant cycle.
Parts and corrections made
As part of this service call, the interventions performed included:
- Correction and securing of outdoor electrical connections;
- Replacement of weakened terminals/connectors when necessary;
- Tightening of terminal blocks;
- Inspection of the communication wire;
- Correction of the insulation on refrigerant lines;
- Targeted cleaning of the outdoor heat exchanger;
- Check of the outdoor fan;
- Complete operational test in demand mode;
- Verification of the device’s stability after repair.
This type of intervention requires experience because the problem is not always due to a large defective part. Many wall-mounted heat pump failures come from overlooked technical details: a slightly loose connection, a poorly protected wire, worn insulation, a casing exposed to moisture, a partially blocked outdoor grille, or a vibration that eventually weakens a joint.
Why this diagnosis was important
It would have been easy to assume a major compressor or electronic board failure. However, immediately replacing a board or condemning a compressor without a full diagnosis would have been premature. Our approach helped avoid unnecessary expenses and extended the life of the existing equipment.
This is one of the advantages of a well-structured HVAC repair service: we don’t just aim to get the device running for a few hours. We seek to understand why the breakdown occurred, how to fix it, and how to reduce the risk of it happening again.
Mistakes to avoid with a wall-mounted heat pump on a balcony
This service in Dorval illustrates several common mistakes we see in Montreal, Laval, Longueuil, on the North Shore and the South Shore.
Neglecting the space around the outdoor unit
An outdoor unit needs to breathe. Even on a balcony, avoid placing objects, furniture, boxes, plants, or storage too close to the condenser. Poor air circulation can harm performance and cause protective shutdowns.
Ignoring small changes in noise
A different noise at startup can indicate vibration, a loose panel, an unbalanced fan, or a component under strain. The earlier the problem is addressed, the simpler the repair usually is.
Waiting for the machine to stop working completely
A drop in efficiency is already a sign. When a heat pump starts taking longer to heat or cool, it is best to schedule a service call before the failure becomes complete.
Automatically assuming refrigerant is low
Lack of refrigerant is not the only cause of poor performance. A heat pump can malfunction due to electricity, air, maintenance, sensors, circuit boards, or installation. Adding refrigerant without checking the real cause is bad practice.
Ignoring the impact of outdoor humidity
On a balcony, boxes and connections can be exposed to moisture, frost, thawing, and infiltration. Periodic inspection helps prevent many intermittent failures.
A repair that reassures the client
After restarting the system, we explained to the client what had been observed and corrected. This step is important: a client must understand the nature of the fault, especially when it is an intermittent problem. We also recommended monitoring the device’s behavior during upcoming cycles, particularly during periods of high demand.
The client was reassured to know that the compressor was not condemned and that a targeted correction had restored the device to good working order. The SMALLAIR heat pump regained a more stable response, more predictable operation, and better capacity to maintain indoor comfort.
AirGreen expertise for HVAC repairs in Dorval and Greater Montreal
At AirGreen, we regularly work on wall-mounted heat pumps, wall air conditioners, MultiZone heat pumps, central systems, condo units, and equipment installed on balconies. Each configuration has its particularities. A unit on an open exterior wall does not behave exactly like a unit installed in a balcony corner. Installation in a condominium also requires more care regarding access, cleanliness, safety, and respect for the building.
Our field experience in Dorval, Montreal, Laval, Longueuil, on the North Shore and the South Shore allows us to approach each call with a clear method: observe, measure, confirm, correct, test. It is this rigor that makes the difference between a temporary repair and a lasting solution.
When to request a service call for a SMALLAIR wall-mounted heat pump
A service call is recommended if you notice any of the following signs:
- the device starts then stops;
- the air blown is no longer warm or cold enough;
- the outdoor unit does not always start;
- an error code appears;
- the machine makes an unusual noise;
- the circuit breaker trips;
- ice appears on the unit;
- the cycle becomes too long;
- consumption seems to increase;
- the indoor temperature becomes unstable.
In many cases, a quick repair can prevent a full replacement. A heat pump that seems tired can sometimes regain good performance after an electrical fix, cleaning, connection repair, sensor replacement, drain correction, or insulation restoration.
Final result: a more stable heat pump and restored comfort
This repair of a SMALLAIR wall-mounted heat pump in Dorval fixed an intermittent fault without unnecessary replacement of major components. Thanks to a precise diagnosis, targeted electrical corrections, improved pipe insulation, and a complete restart, the device regained reliable operation.
For the customer, the result was clear: less uncertainty, better temperature stability, a quieter device during cycles, and peace of mind knowing the machine had been checked by a team specialized in residential HVAC repair.
At AirGreen, we know that a service call is not just about "getting" a heat pump running again. It's about protecting the customer's comfort, the equipment's lifespan, and the quality of the installation. Whether in Dorval, Montreal, Laval, Longueuil, on the North Shore or the South Shore, our team works with the same precision: an honest diagnosis, tailored solutions, and clean, durable, professional work.
