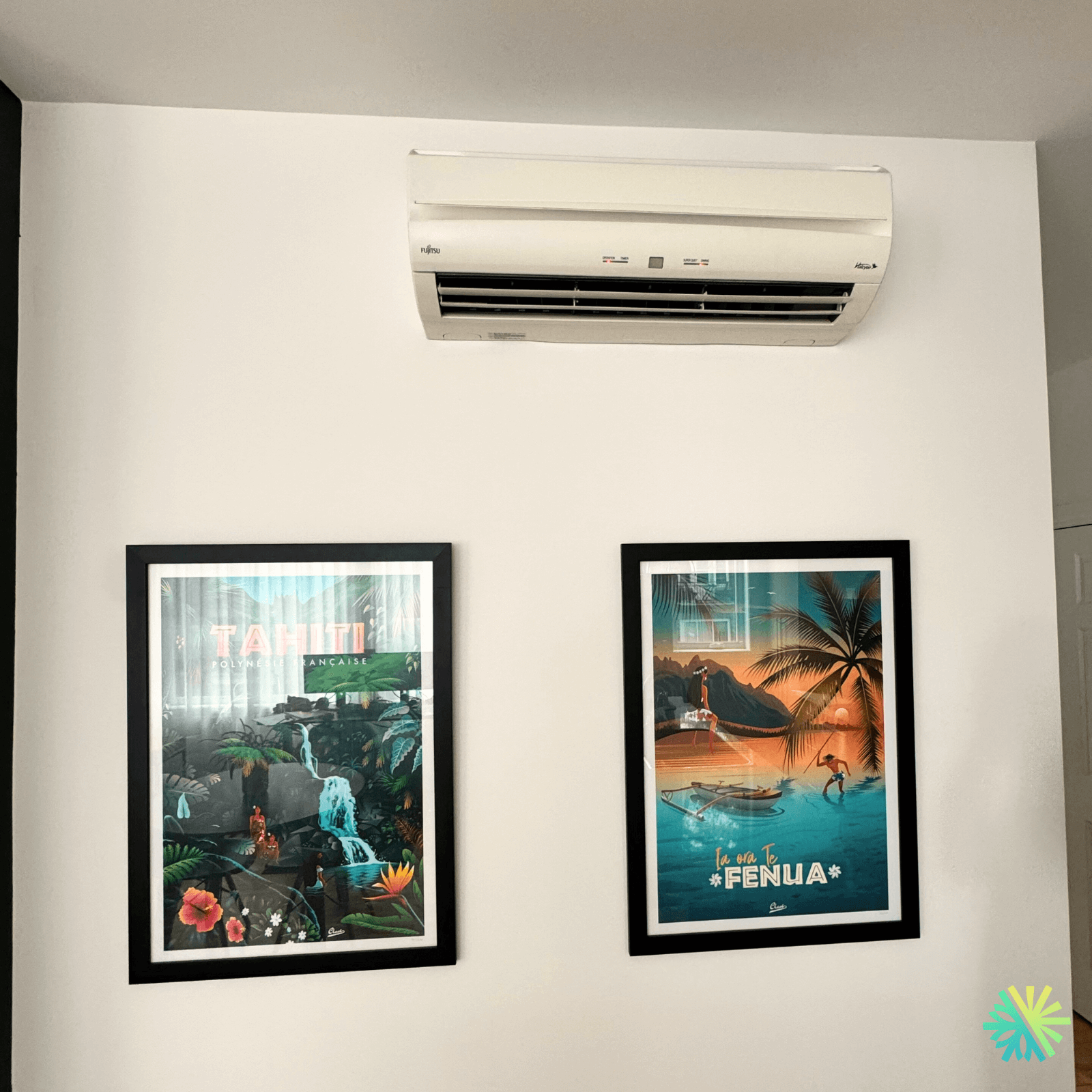

In a condo in Ville-Marie , our AirGreen technicians intervened to recommission a Fujitsu wall-mounted heat pump (mini-split) , from the Halcyon line (typical size and screen printing). The indoor unit was installed very high on the wall , with adequate clearance near the ceiling, and a neat visual finish (discreet installation, perfect for a living space).
Context: Unstable comfort and declining performance
The customer contacted us because of the heat pump:
-
heating and air conditioning were irregular (temperature that “ceilings”),
-
was blowing less hard than before ,
-
and occasionally exhibited slight flow/condensation at the bottom of the unit (a common symptom when the drain is partially obstructed or when the heat exchanger is clogged).
In a condo, this type of problem is particularly troublesome: the air circulates in more compact volumes, and a drop in flow is felt immediately (cold/hot zones, humidity, discomfort).
AirGreen diagnosis: on-site method, no assumptions
On site, we carried out a complete, step-by-step diagnosis:
-
Visual inspection
-
condition of the filters and the turbine,
-
presence of dust on the evaporator,
-
checking the condensate tray and the drain path.
-
-
Performance metrics
-
temperature measurement at the air inlet/outlet (thermal difference),
-
control of actual airflow (flaps, fan speed, turbine noise).
-
-
Refrigeration control
-
Pressure readings and stabilization in heating/cooling mode.
-
search for micro-leaks (typical points: fittings/flares).
-
Diagnostic result:
-
Significant fouling of the heat exchanger and turbine (direct cause of loss of flow rate and efficiency).
-
Slowed drainage (beginning of obstruction), which may cause dripping or intermittent flow.
-
A slightly loose connection on the refrigeration line (slow micro-leak) explains a less stable performance under certain conditions.
Repair: complete overhaul (cleaning + sealing + calibration)
We carried out a “clean” restoration as we do at AirGreen, that is to say by treating the cause, not just the symptom.
1) Thorough cleaning of the Fujitsu indoor unit
-
secure removal of the caches
-
Clean the evaporator (coil) with a suitable product.
-
Complete cleaning of the turbine (blower wheel) , often responsible for low flow and noise.
-
Controlled rinsing and protection of electronic components.
2) Unblocking and testing the drainage
-
purging and cleaning of the condensate line,
-
flow validation (continuous flow test),
-
Checking the tray and slopes to prevent water from flowing back.
3) Correction of the micro-leak and restoration of the circuit
-
refitting the connection (re-flare/tightening to the correct torque depending on access),
-
leak test,
-
vacuuming (evacuation) and charge adjustment according to system readings and specifications.
4) Final testing and customer validation
-
Testing in heating and then in air conditioning.
-
Temperature differential control, stability and noise,
-
defrost cycle check (if applicable depending on the season),
-
confirmation of comfort in the room.
Result: restored airflow, stable comfort, reassured customer
After the procedure:
-
The airflow has returned to normal (stronger airflow, better diffusion).
-
The target temperature is reached more quickly, without fluctuations.
-
The risk of runoff has been eliminated thanks to the restored drainage.
-
The customer has regained quiet and “regular” operation, typical of a well-maintained Fujitsu Halcyon wall-mounted unit .
What we recommend to prevent it from happening again
For a Fujitsu wall-mounted heat pump in a condo in Montreal:
-
Filters: clean every 4 to 6 weeks during periods of intensive use.
-
Complete maintenance: once a year (or every 2 years minimum), especially if the unit is running almost year-round.
-
Signs to watch for: shortness of breath, odors, turbine noise, droplets, excessively long cycles.
At AirGreen, we always prioritize a sustainable approach: a clean, airtight and well-calibrated system consumes less, heats/cools better, and lasts longer.
