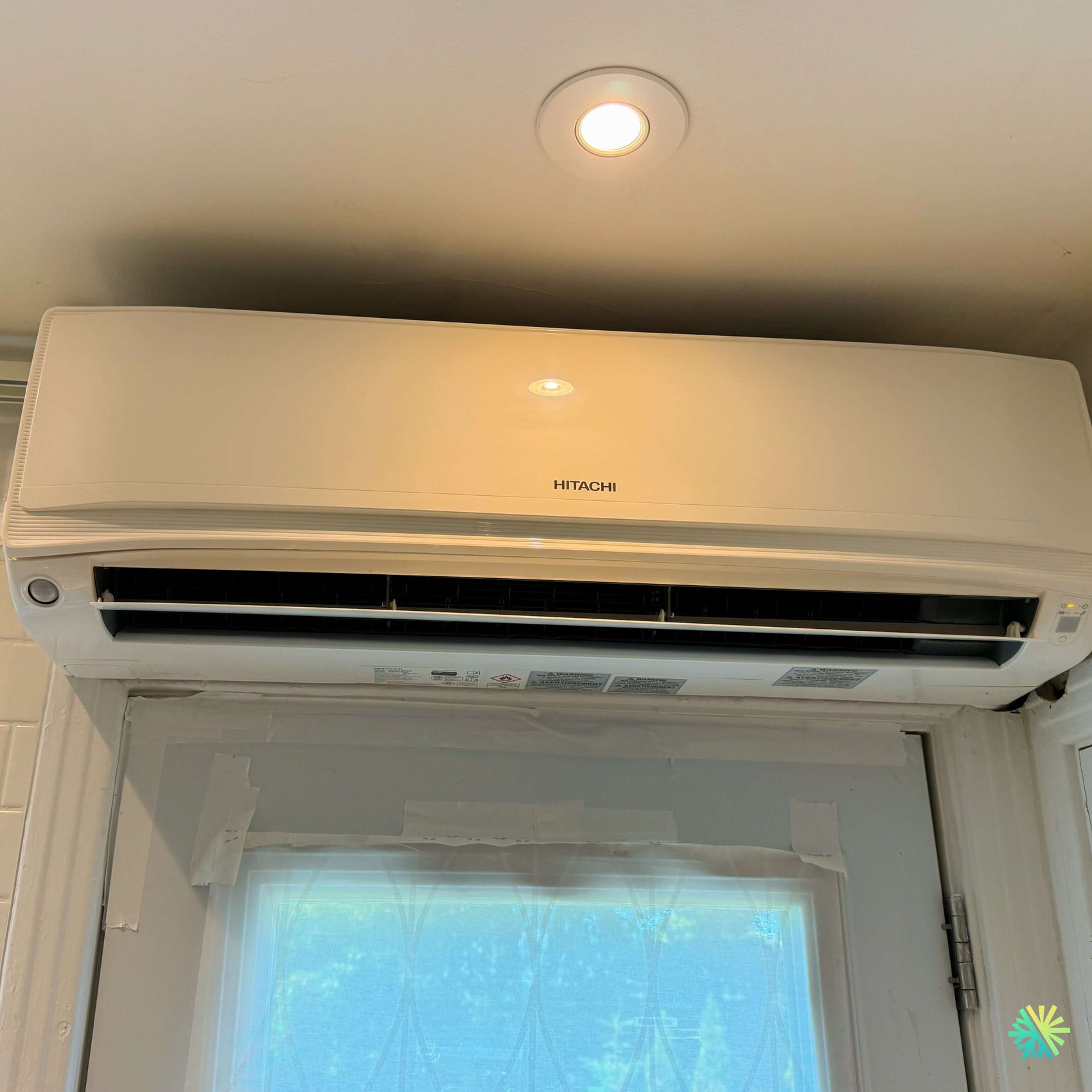

A compact installation above an exterior door, in an area where every clearance mattered
This wall-mounted heat pump installation in Saint-Constant required particularly precise planning. The indoor unit Hitachi airHome 600 had to be installed directly above an exterior door, between the ceiling, the side studs of the opening and a nearby recessed light fixture.
The project photo clearly shows the main constraint: very little vertical space remained between the top of the unit and the ceiling. The available width was also limited by the sides of the opening. In this type of configuration, a difference of a few centimeters can determine whether the installation remains functional, accessible and compliant with airflow requirements.
We used the space above the door to preserve the room’s main walls. This solution avoids taking up an area that could be used for furniture or storage, while positioning the heat pump at a height that promotes air distribution.
However, the success of this project did not depend solely on being able to fit the unit into the available space. It was also necessary to consider:
- the air intake located above the unit;
- opening the front panel;
- access to the filters;
- the path of the airflow louver;
- the presence of the light fixture;
- the structure above the door;
- the passage of the refrigerant lines;
- condensate drainage;
- the sealing of the wall penetration;
- potential vibrations near the frame.
Why install a wall-mounted heat pump above a door?
The space above a door is often underused. In some homes in Saint-Constant, Candiac, Sainte-Catherine and Châteauguay, it may be one of the only places where a wall-mounted unit can be installed without changing the room’s layout.
This position can offer several advantages when properly evaluated.
The unit remains elevated, which promotes the projection of cool air in summer. The main wall remains free. The airflow can be directed toward the center of the room rather than directly at a sofa or bed. The refrigerant line route can also be shortened when the outdoor unit is located on the other side of the wall.
In this project in Saint-Constant, the heat pump occupies practically the entire width available above the door. Its location therefore makes maximum use of an area that would otherwise be difficult to use.
An installation above an opening is not suitable for every home, however. We must confirm that the width, height, structure, and clearances are sufficient. The unit must not interfere with the door’s operation or become impossible to service.
Limited clearance between the indoor unit and the ceiling
The airHome 600 draws in ambient air primarily through its upper section. The clearance above the unit must therefore allow sufficient airflow.
When a unit is installed very close to the ceiling, several problems can arise if the configuration has not been validated:
- reduced air intake;
- increased fan noise;
- reduced airflow reach;
- less representative temperature readings;
- difficulty lifting the front panel;
- complicated access to the filters;
- longer and more costly maintenance.
In this installation, the available height was clearly very limited. The wall plate had to be positioned precisely to maintain the necessary upper clearance while preventing the bottom of the unit from extending too far down over the opening.
We always check the required space using the model’s actual dimensions, not just a photograph or an approximate measurement. The airHome 600 series includes several sizes whose widths vary according to capacity.
The 9,000, 12,000, and 15,000 BTU/h models have an indoor unit approximately 37.4 inches wide, while higher capacities use wider housings. The 18,000 BTU/h unit measures approximately 41.34 inches, and the largest version approximately 43.3 inches.
The structure above the door had to be respected.
The area above a door usually contains a lintel and structural studs. We therefore cannot treat this surface like an ordinary empty wall.
Before drilling, we must determine:
- the location of the lintel;
- the type of structure;
- the wall thickness;
- the position of the electrical wires;
- the possible presence of the light fixture wiring;
- the exit path to the outside;
- the condensate drainage point.
A poorly positioned opening could hit an electrical component or unnecessarily weaken part of the framing. An overly tight route could also force the refrigerant lines to take an excessive angle behind the unit.
The mounting plate must be securely fastened. A unit installed above a door is subject to the compressor and fan’s normal vibrations, as well as the repeated movements caused by opening and closing the door below.
An unstable mounting could eventually cause creaking noises, cabinet vibration, or slight movement of the drain pan.
An exterior door directly beneath the heat pump
The position above an exterior door requires particular attention to air infiltration.
When a door opens during winter, a mass of cold air quickly enters the room. The heat pump's temperature sensor may detect this change and temporarily increase its output. In summer, opening the door instead introduces warm, humid air.
This phenomenon does not prevent installation, but it must be considered when choosing the capacity and adjusting the louvers.
We direct the airflow so that it distributes air throughout the room rather than creating a draft directly toward the opening. In heating mode, a slightly downward angle helps warm air reach the occupied area. In cooling mode, a more horizontal projection allows cool air to travel through the room before descending.
The proximity of a recessed light fixture
The light fixture visible on the ceiling is positioned in front of the unit. It does not appear to directly block the air intake, but its presence had to be taken into account.
A light fixture can produce heat and slightly influence the local temperature near the ceiling. It can also complicate drilling if its power supply runs through the work area.
Before installation, we verify that:
- the light fixture wiring does not cross the planned route;
- the light fixture remains accessible;
- the airflow does not create vibration;
- the light fixture does not block the panel opening;
- the heat produced does not excessively distort the sensor reading.
The reflection of the light fixture on the heat pump's glossy front also shows how close the unit is installed to the ceiling. Nevertheless, this white finish allows for discreet integration into the room.
Concealed connections for a minimalist finish
No long cable channel is visible around the indoor unit. The photograph suggests that the lines run directly behind the unit or immediately along the right side, in the area adjacent to the frame.
A discreet installation requires planning the routing of several elements at the same time:
- the refrigerant liquid line;
- the insulated gas line;
- the communication cable;
- the planned power wiring;
- the condensate drain pipe;
- the insulation surrounding the pipes.
The opening must have an appropriate outward slope when the drain operates by gravity. The pipes must pass through the wall without being crushed, bent, or subjected to mechanical stress.
After the lines have been routed, the opening must be sealed to limit air, water, and insect infiltration. This step is particularly important above a door, an area already more exposed to temperature changes and air movement.
Condensate drainage above an opening
In cooling mode, the indoor coil becomes cold and condenses moisture from the room. The water collected in the pan must be safely drained outdoors.
Poor drainage above a door could damage:
- the frame;
- the paint;
- the weatherstripping;
- the wall finish;
- the door;
- the floor below.
We therefore perform a drainage test before completing commissioning. Water is introduced into the pan to confirm that it flows freely to the drainage point.
We pay particular attention to:
- pinched pipes behind the unit;
- incomplete connections;
- back-pitches;
- sags in the drain;
- leaks at the wall outlet;
- gurgling noises.
When gravity does not allow reliable drainage, a condensate pump may be necessary. However, it adds a mechanical component and must remain accessible for maintenance. Whenever possible, a well-designed gravity drain remains the simplest solution.
Temporary protection for the door during the work
The photo shows that the door and its glass surface had been temporarily protected during the work. This precaution limits the risk of scratches, dust, or damage while drilling and handling the unit.
Installing a heat pump above an opening requires working directly above the door. Tools, screws, drilling dust, and sections of piping must therefore be carefully controlled.
We protect the surfaces below the work area and then check that the door opens normally, without contacting the unit or accessories.
Why the Hitachi airHome 600 is suitable for heating and cooling needs in Saint-Constant
A range from 9,000 to 24,000 BTU/h
The Hitachi airHome 600 is available in several capacities to meet different residential needs. The documentation covers a commercial range from 9,000 to 24,000 BTU/h.
The technical table lists rated cooling capacities of:
- 9,000 BTU/h;
- 12,000 BTU/h;
- 15,000 BTU/h;
- 18,000 BTU/h;
- 22,000 BTU/h.
The corresponding rated heating capacities range from 11,000 to 25,200 BTU/h.
The photo does not clearly show the complete model number of the unit installed in Saint-Constant. Therefore, we cannot confirm its exact capacity based on its appearance alone.
This caution is important. Several models share nearly the same exterior dimensions. The capacity must be verified on the nameplate, the invoice, and the indoor-outdoor combination.
Size according to the building, not just the available space
When the location is this narrow, it may be tempting to simply choose the unit that physically fits above the door. This approach would be insufficient.
The capacity must match the actual thermal needs of the room or area being served. We take the following into account, among other factors:
- floor area;
- ceiling height;
- insulation;
- airtightness;
- the number of windows;
- solar orientation;
- the presence of an exterior door;
- airflow to adjacent rooms;
- winter heat losses;
- summer heat gains.
In this project, the exterior door is an important factor. A frequently used door can create rapid temperature fluctuations and temporarily increase demand.
A unit that is too small could run constantly at maximum output. An oversized heat pump could reach the temperature around its sensor too quickly, reduce its output, and control humidity less effectively.
Continuous heating down to −25 °C
The airHome 600 range is designed to maintain heating operation down to an outdoor temperature of −25 °C.
Hitachi also states that the capacity can reach 100% at −15 °C, depending on the combination. The outdoor unit includes a heater in the condensate pan and adaptive defrosting to better handle winter conditions.
These characteristics are relevant in Saint-Constant and Montreal's South Shore, where temperatures can remain below freezing for long periods.
However, it is important to distinguish between minimum operation and the capacity actually available. According to the manufacturer's table, the maximum capacities at −25 °C range from 7,200 to 15,000 BTU/h, depending on the selected combination.
To determine whether the heat pump can heat an area on its own, we therefore compare its capacity at low temperatures with the estimated heat losses.
Inverter technology to reduce fluctuations
Inverter technology adjusts the compressor speed according to demand.
After an exterior door is opened in winter, the unit can increase its output to compensate for the influx of cold air. When the temperature stabilizes, it gradually reduces its speed rather than stopping completely.
This modulation allows:
- more stable temperatures;
- longer cycles;
- fewer abrupt starts;
- generally quieter operation;
- better humidity management;
- energy consumption adapted to demand.
The heat pump does not heat more quickly because the setpoint is set to an extreme value. It operates according to its available capacity. A stable setpoint is generally better suited to Inverter operation.
Efficiency of up to 23.0 SEER2
Depending on capacity, the Hitachi airHome 600 achieves a SEER2 of up to 23.0 and an HSPF2 for Climate Region 5 of up to 9.2.
The SEER2 represents seasonal cooling efficiency. The HSPF2 is used to compare seasonal heating efficiency.
The five combinations detailed in the documentation are also identified as ENERGY STAR certified.
These ratings are useful for comparing units, but they do not compensate for poor installation. A system that is efficient on paper may lose some of its advantages if airflow is restricted, the ductwork is inadequate, or the refrigerant charge does not match the actual layout.
FrostWash 3.0 and coil cleaning
The FrostWash 3.0 feature cleans the indoor coil through a three-step sequence.
The coil is first heated to facilitate the detachment of certain particles. It is then cooled to form a layer of ice that traps contaminants. The ice eventually melts and carries the impurities to the drain.
This feature can be activated manually or automatically when no one is detected in the room.
FrostWash helps keep the heat exchanger cleaner, but it does not replace professional HVAC maintenance. The blower wheel, filters, drain pan, and drain must also be cleaned when deposits accumulate.
For an installation above a door, accessibility is very important. The technician must be able to open the unit and protect the door during cleaning.
PM2.5 filtration and mold protection
The airHome 600 includes a stainless-steel prefilter and an activated carbon filter designed for PM2.5 particles.
The mold protection feature circulates air through the internal components and heats the coil after certain cycles. It helps reduce residual moisture that may contribute to odors.
These features improve the unit’s internal hygiene, but they do not replace general ventilation or a central filtration system for the entire home.
User-accessible filters should be inspected regularly. Dust buildup reduces airflow, increases noise, and may decrease the heat pump’s efficiency.
Wi-Fi control with airCloud Go
The range’s combinations include a Wi-Fi adapter that enables use of the airCloud Go app.
The owner can, among other things:
- adjust the temperature remotely;
- create a weekly schedule;
- use geolocation features;
- view certain energy estimates;
- control the unit with Amazon Alexa or Google Home.
The Smart Eco function uses a motion sensor to detect when the room is unoccupied and reduce consumption. SleepSense gradually adjusts the temperature during sleep.
These options make it possible to adjust comfort according to the room’s actual use without requiring multiple manual changes.
Quiet operation and vibration control
Depending on the capacity and fan speed, the indoor sound level varies. The documentation indicates very low levels in quiet mode and mentions a value of up to 27 dB(A) for the 12,000 BTU/h combination under the conditions specified by the manufacturer.
The installation nevertheless affects the perceived noise level.
Above a door, we carefully check:
- plate fastening;
- contact between the piping and the structure;
- cabinet support;
- louver vibrations;
- noise transmitted to the framing;
- operation at different speeds.
The door must also be able to open and close without causing the indoor unit to vibrate.
R32 refrigerant and piping suited to each capacity
The Hitachi airHome 600 uses R32 refrigerant.
Piping diameters vary by model:
- 9,000 and 12,000 BTU/h: 1/4 in and 3/8 in;
- 15,000 and 18,000 BTU/h: 1/4 in and 1/2 in;
- larger capacity: 1/4 in and 5/8 in.
This information is essential when replacing an old wall-mounted air conditioner. Existing lines cannot be kept simply because they are already routed in the right place.
We must therefore check their diameter, length, insulation, condition, and compatibility. Improper piping can impair refrigerant flow, oil return, and compressor lifespan.
Electrical supply and protection
The models in the range operate on a nominal supply of 208-230 V, single-phase, 60 Hz.
The minimum ampacity ranges from 12 to 20 A, while the maximum overcurrent protection is 15 or 25 A depending on the combination.
The circuit breaker and wiring must therefore be determined from the outdoor unit’s nameplate, not from a general value applied to all wall-mounted heat pumps.
Financial incentives: verify the exact combination
The documentation indicates that the range qualifies for most provincial heat pump incentives.
Actual eligibility depends, however, on the indoor model, outdoor model, low-temperature capacity, installation date, and current criteria.
We recommend keeping:
- the paid invoice;
- the serial numbers;
- the complete model numbers;
- a photo of the outdoor unit’s nameplate;
- proof of installation;
- the applicable energy-efficiency documents.
It is best to confirm the financial assistance before purchasing rather than assume that an entire product line automatically receives the same amount.
Mistakes to avoid when installing a heat pump above a door
Choosing the unit solely because it fits in the space
Physical dimensions matter, but the capacity must match the heating and cooling needs.
Placing the unit directly against the ceiling
The upper air intake and filter access must remain sufficiently clear.
Ignoring the lintel
The structure above the door must be located before drilling.
Neglecting the door’s movement
The door must be able to operate without touching the heat pump, lines, or accessories.
Overlooking air infiltration
An exterior door affects local temperatures. The airflow and capacity must be adapted.
Insufficiently sealing the penetration
The line routing can become a source of air, water, or insect infiltration.
Failing to test the drain
A leak above a door can damage several finishes before it is noticed.
Making maintenance impossible
The front panel, filters, and internal components must remain accessible.
Efficient use of a challenging architectural space
This HVAC installation in Saint-Constant shows that a narrow area above a door can accommodate a wall-mounted heat pump when all constraints are analyzed before the work begins.
The Hitachi airHome 600 was installed between the ceiling and the opening, near a recessed light, while preserving the door’s normal operation and directing airflow into the room.
The result depends on several less visible decisions: checking the structure, securing the mounting plate, routing the lines compactly, drainage, sealing, vibration control, and commissioning.
At AirGreen, we install wall-mounted heat pumps in Saint-Constant, Montreal, Laval, Longueuil, on the South Shore, and on the North Shore. We adapt each project to the building’s actual configuration rather than imposing a standard location.
An efficient heat pump must be properly sized, but it must also be installed in a way that preserves its airflow, accessibility, and reliability for many years.
