Integrating a cold-climate heat pump into a condo balcony without sacrificing outdoor space
This wall-mounted heat pump installation in Pierrefonds-Roxboro had neither a large backyard nor a fully unobstructed foundation wall. The outdoor unit had to be placed on the balcony of a residential building, several floors above the ground, between a large window, a brick wall, and the glass railing.
In this type of configuration, every centimetre counts. The unit must retain enough space to draw in and discharge air, remain accessible to technicians, and avoid turning the balcony into a mechanical room that is difficult to use.

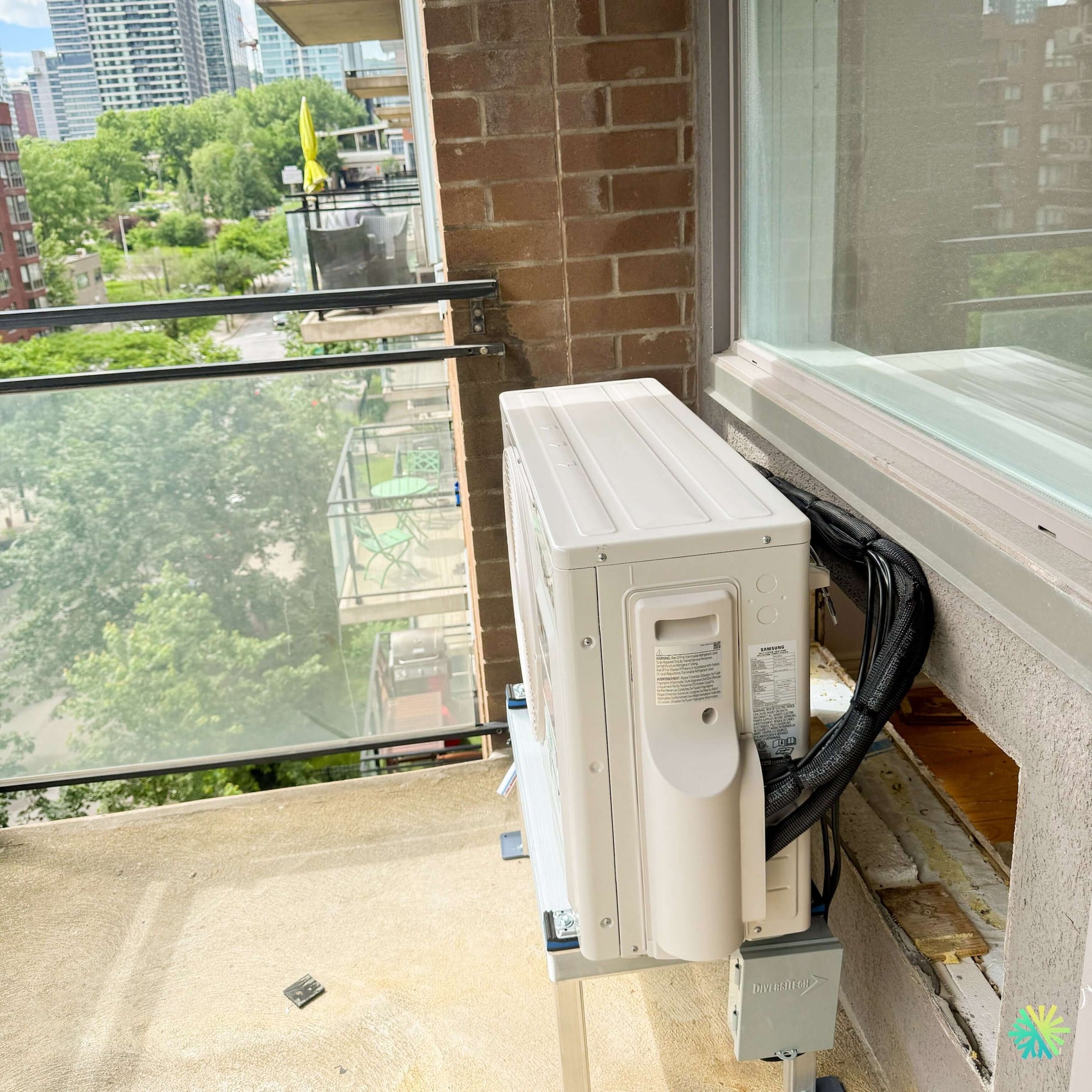

Our AirGreen team installed a 12,000 BTU Samsung WindFree™ MaxHeat R32 on a raised metal structure. As shown in the job-site photo, the support keeps the unit above the floor while leaving open space beneath it. The refrigerant lines, wiring, and insulation were grouped along the wall, beneath the window. The electrical disconnect was placed below the heat pump, in an accessible outdoor enclosure.
This compact arrangement met several objectives:
- preserve the balcony’s usable surface;
- keep the heat pump base away from water, snow, and debris;
- direct the fan toward the open part of the balcony;
- limit the obstruction in front of the window;
- protect the refrigerant lines;
- maintain access for future HVAC maintenance;
- achieve a clean installation despite the limited space.
Why a balcony installation requires more planning
An outdoor unit installed on the ground can generally be positioned away from windows, furniture, and obstacles. On a balcony, we have to work with much tighter geometry.
For this project in Pierrefonds-Roxboro, the unit had to be integrated between the façade and the railing. We therefore assessed the direction of the air discharge, the available depth, the balcony opening, and access to the service panel.
A heat pump must not only fit into the designated space. It must also be able to operate there without excessively recirculating the air it has just expelled. Poor positioning facing a glass panel, wall, or outdoor furniture could reduce the unit’s efficiency.
The risk is particularly significant when residents later add:
- a decorative cover that is too enclosed;
- a storage chest;
- a table in front of the fan;
- large plants;
- a privacy screen;
- objects stored against the coil.
We oriented the unit toward the most open area of the balcony to promote air discharge. The glass railing remains relatively far from the fan outlet, while the back of the unit retains the space needed for air intake and for the lines to pass through.
A metal support that protects the unit and the balcony
The Samsung heat pump visible in the photo does not rest directly on the balcony surface. It is installed on a metal support adjusted to the configuration of the site.
This elevation meets several technical needs.
Facilitate drainage during defrost cycles
In heating mode, a heat pump extracts energy from the outdoor air. When conditions favor frost formation, the system starts a defrost cycle. The water produced must be able to drain from beneath the unit.
The Samsung WindFree™ MaxHeat range has an integrated base-pan heater designed to promote drainage and limit ice buildup in the base. Samsung also indicates that the system delivers its full heating performance at approximately -15 °C and continues to produce heat down to approximately -30 °C.
Even with this feature, a unit installed too close to the floor could end up surrounded by ice. The raised structure provides additional clearance for drainage and makes it easier to inspect the base.
Reduce vibrations transmitted to the building
A balcony is directly connected to the building’s structure. A poorly isolated rigid attachment can transmit a humming sound or vibration into the dwelling, particularly when the compressor changes speed.
So we check:
- the stability of the support;
- the leveling of the unit;
- the quality of the support points;
- the absence of unwanted metal contact;
- the positioning of the copper lines;
- the wiring fastening;
- the presence of suitable anti-vibration materials.
The quality of the support affects noise just as much as the unit itself. A heat pump that is quiet on paper can become disruptive if its installation structure acts as a resonance box.
Keep access to the electrical disconnect switch
The gray box visible beneath the unit is the disconnect switch for the outdoor unit. Its location allows the power supply to be shut off locally during maintenance or servicing.
It must remain accessible without having to move the heat pump, dismantle the railing, or remove a significant portion of the lines. We placed this component at a practical height while avoiding having it unnecessarily occupy the wall next to the window.
A discreet installation beneath the window
The routing of the lines was another significant challenge. In the photo, the connections were grouped behind the unit and then guided beneath the window sill.
This bundle normally includes:
- the liquid refrigerant line;
- the gas refrigerant line;
- the communication cable;
- the conductors required by the configuration;
- thermal insulation;
- the outdoor protection;
For the 12,000 BTU Samsung WindFree™ MaxHeat R32 configuration, the refrigerant connections use 1/4 in. and 3/8 in. lines. The system uses R32, a refrigerant that requires tools, procedures, and commissioning practices compatible with the manufacturer’s requirements.
We avoid sharp bends and strain on the connections. The copper must not be crushed against the masonry or bent to the point of reducing its internal diameter. The insulation must also remain continuous to limit condensation and heat loss.
The visible grouping behind the unit helps keep the balcony more open. It also protects the lines from impacts caused by furniture, gardening tools, or occupants’ daily movements.
The technical profile of the installed Samsung WindFree™ MaxHeat
The 12,000 BTU configuration pairs the AR12DXDABWKNCV indoor unit with the AR12DXDACWKXCV outdoor unit. It provides a nominal cooling and heating capacity of 12,000 BTU/h, with modulation that adapts operation to the home’s actual load.
Its main published performance ratings are:
- 24.0 SEER2 for seasonal cooling;
- 14.1 EER2;
- 10.5 HSPF2 in heating;
- cold-climate certification;
- heating capacity of approximately 10,600 BTU/h at -8 °C;
- capacity of approximately 9,000 BTU/h at -15 °C;
- continuously variable compressor;
- refrigerant R32;
- AHRI reference 215399291.
These values are useful for comparing appliances, but they do not replace proper sizing. The “12,000 BTU” designation refers to a nominal capacity measured under specific conditions. The actual available capacity varies depending on the outdoor temperature and operating mode.
WindFree™ mode for better control of air currents
In a condo, the indoor unit is often installed in a living room, open-concept area, or bedroom where occupants are nearby. A direct stream of cold air can then become uncomfortable, even when the room’s overall temperature is adequate.
WindFree™ technology allows air to flow through numerous microperforations when the main louver is closed. This creates a gentler air movement than the concentrated jet of a traditional wall-mounted air conditioner.
This feature is particularly useful when the indoor evaporator is located:
- facing a sofa;
- near a worktable;
- above a bed;
- in a narrow room;
- in an open-plan area where occupants remain in the same place for long periods.
WindFree™ mode is primarily used to maintain comfort after the temperature has approached the setpoint. When a rapid temperature drop is needed, the unit may first use a higher airflow rate before switching to gentler air distribution.
Why we do not size systems based solely on square footage
In Pierrefonds-Roxboro buildings, two condos of similar size can have very different heating and cooling loads. A unit on an upper floor, with large sun-exposed windows, may require more cooling than a north-facing unit.
Our analysis takes several factors into account:
- window orientation;
- number of exterior walls;
- quality of doors and windows;
- ceiling insulation;
- ceiling height;
- wind exposure;
- floor area open to air circulation;
- presence of closed-off rooms;
- electrical appliances and internal heat gains;
- existing heating system.
An oversized unit may reach its setpoint too quickly and reduce its ability to control humidity. An undersized heat pump may run continuously without reaching the desired comfort level on the hottest days or during very cold periods.
The variable-speed compressor in the Samsung MaxHeat offers good flexibility, but this modulation cannot correct improper sizing.
A condo installation prepared for winter, maintenance, and LogisVert requirements
Commissioning as important as the equipment
Once the units are secured and the lines connected, several procedures must be completed before final startup.
In particular, we check:
- the quality of each flared connection;
- refrigerant circuit tightness;
- the absence of stress on the lines;
- evacuation of the system;
- vacuum stability after isolating the pump;
- electrical connections;
- communication between the units;
- condensate drain operation;
- air temperatures in heating and cooling mode;
- the absence of vibration or unusual noise.
Vacuum evacuation should not be assessed solely by how long the pump has been running. We must obtain an adequate reading and confirm that the circuit remains stable. An abnormal rise may indicate a leak or residual moisture.
These steps are invisible once the installation is complete, but they directly affect the compressor’s performance and service life.
The condensate drain in a multistory building
The outdoor unit produces water during defrost cycles. The indoor unit, for its part, removes moisture from the air during cooling and generates condensate.
In a multistory building, this water must not simply drain onto the balcony below or down the façade. The drain route must be planned according to the building’s configuration and the applicable requirements.
We check:
- the drain slope;
- the absence of a reverse slope;
- protection against crushing;
- the discharge point;
- the risk of overflow;
- accessibility for cleaning;
- the possibility of freezing depending on the route.
Poor drainage can cause an indoor leak, marks on the façade, or inconvenience for neighbors.
Common mistakes in balcony installations
A compact installation must never become an improvised installation. Several mistakes can reduce the quality of the result.
Placing the fan too close to a solid guardrail
A glass or metal panel directly in front of the unit can trap warm air in summer and promote its recirculation.
Placing the unit directly on the floor
This method reduces the clearance beneath the heat pump and increases the risks associated with snow, water, and ice.
Wrapping an excessive length of lines behind the unit
A large, poorly supported loop can vibrate, rub against the masonry, or make access to the panel more difficult.
Hiding the disconnect behind the unit
The technician must be able to disconnect the power without moving a heavy unit.
Blocking the window opening
The outdoor unit and its lines should not prevent the normal use of the dwelling’s features.
Neglecting condominium approval
Balconies and façades may be considered common areas or be subject to special rules. The necessary authorizations must be obtained before the work begins.
Preserving the installation after the technicians leave
The arrangement shown in the photo still allows the balcony to be used, but certain precautions must be followed.
We recommend that occupants:
- do not store objects behind the unit;
- keep the fan outlet clear;
- avoid closed covers;
- remove snow around the support;
- watch for any unusual ice buildup;
- keep the disconnect accessible;
- clean the indoor filters regularly;
- do not use a pressure washer on the coil;
- schedule HVAC maintenance when the unit becomes dirty.
A full cover must not be installed while the heat pump is operating. It would block airflow and could damage the unit.
Potential eligibility for the LogisVert program
Heat pumps installed since November 26, 2025, must be certified ENERGY STAR® to qualify for the LogisVert program. Hydro-Québec also requires a minimum rated cooling capacity of 12,000 BTU/h for the outdoor unit and a complete installation including both the indoor and outdoor units.
For a cold-climate certified heat pump, the regular subsidy currently amounts to $120 per 1,000 BTU/h of capacity at -8 °C. The 12,000 BTU Samsung unit shown has a published capacity of approximately 10,600 BTU/h at that temperature, which could represent an estimated incentive of $1,272, subject to the official list in effect on the installation date and compliance with all conditions.
Since this installation is located in a multi-unit building, an additional incentive may also be relevant. For installations completed since June 15, 2026, certain eligible multi-unit buildings may receive a total of $220 per 1,000 BTU/h at -8 °C for a cold-climate certified wall-mounted heat pump.
The building must, among other things:
- have been built in 1995 or earlier;
- contain at least two dwellings;
- have one electric meter per dwelling;
- have a property value per dwelling below the regional median;
- be located in an area designated by Hydro-Québec.
This additional incentive is therefore not automatic for all condos or buildings in Pierrefonds-Roxboro. The address, the applicant’s status, the building’s characteristics, and the exact combination of models must be verified.
The result: a preserved balcony and an accessible system
The result of this HVAC installation in Pierrefonds-Roxboro relies on precise use of the available space.
The heat pump is:
- raised above the balcony;
- oriented toward the open area;
- placed without blocking the large window;
- equipped with an accessible disconnect switch;
- connected with grouped and protected lines;
- positioned to allow servicing;
- ready to operate in cooling and heating mode.
The balcony retains a useful amount of walking space. The unit is not placed in the center of the area, and the connections do not cross the space used by occupants.
At AirGreen, we regularly encounter similar constraints in condos and multi-unit buildings in Montréal, Laval, Longueuil, the North Shore, and the South Shore. Each balcony has its own dimensions, materials, regulations, and obstacles. We therefore adapt the bracket, the routing of the lines, and the unit’s position to the reality of the building.
A good wall-mounted heat pump installation must offer more than immediate operation. It must remain safe, accessible, and consistent with the property’s day-to-day use over the following years.
