Installation of a Sharp ZU1 wall-mounted heat pump in Rosemont–La Petite-Patrie (Montreal)
AirGreen installed a Sharp ZU1 wall-mounted heat pump in Rosemont–La Petite-Patrie. Discover the details of an installation on a raised support, best practices for clearance and noise reduction, as well as our maintenance tips for lasting comfort in Montreal.
In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.
In Rosemont–La Petite-Patrie, residential comfort often hinges on very concrete details: a narrow backyard, a nearby fence, paved surfaces, and the need for a high-performance system that provides both cooling in the summer and heating during cooler periods. At AirGreen , we recently installed a Sharp wall-mounted heat pump , a modern, quiet, and efficient mini-split solution perfectly suited to this type of Montreal environment.
In this article, we explain what has been installed, why this configuration is relevant, and above all what we check on the ground to ensure that the installation is durable, clean and efficient.
A Sharp mini-split system designed for everyday comfort
The system installed here is a Sharp brand wall-mounted heat pump (mini-split) . This type of equipment is very popular in Montreal homes and apartment buildings because it allows for:
-
to effectively air-condition one or more living areas in summer;
-
to heat efficiently in mid-season (and often a good part of the winter depending on the model and use);
-
to avoid major pipework (ideal for existing buildings);
-
to achieve excellent control piece by piece .
In this project in Rosemont, the choice fell on a Sharp ZU1 (wall-mounted range), a heat pump recognized for its approach focused on energy efficiency and comfort.
Why Sharp? A logical choice for Montreal
Sharp is not just a well-known name in electronics: in residential HVAC, the brand has distinguished itself with units designed to be stable, quiet and pleasant to live in , thanks in particular to features focused on air quality and comfort.
The installed outdoor unit clearly displays the Sharp logo and the ECO Inverter designation, indicating intelligent power modulation: instead of operating in "on or off" mode, the compressor adjusts its speed according to demand. The result:
-
more stable temperature;
-
electricity consumption better controlled;
-
reduced noise;
-
reduced mechanical wear over the long term.
We also note the Plasmacluster technology (Sharp signature) which is part of a logic of overall comfort , in addition to thermal performance.

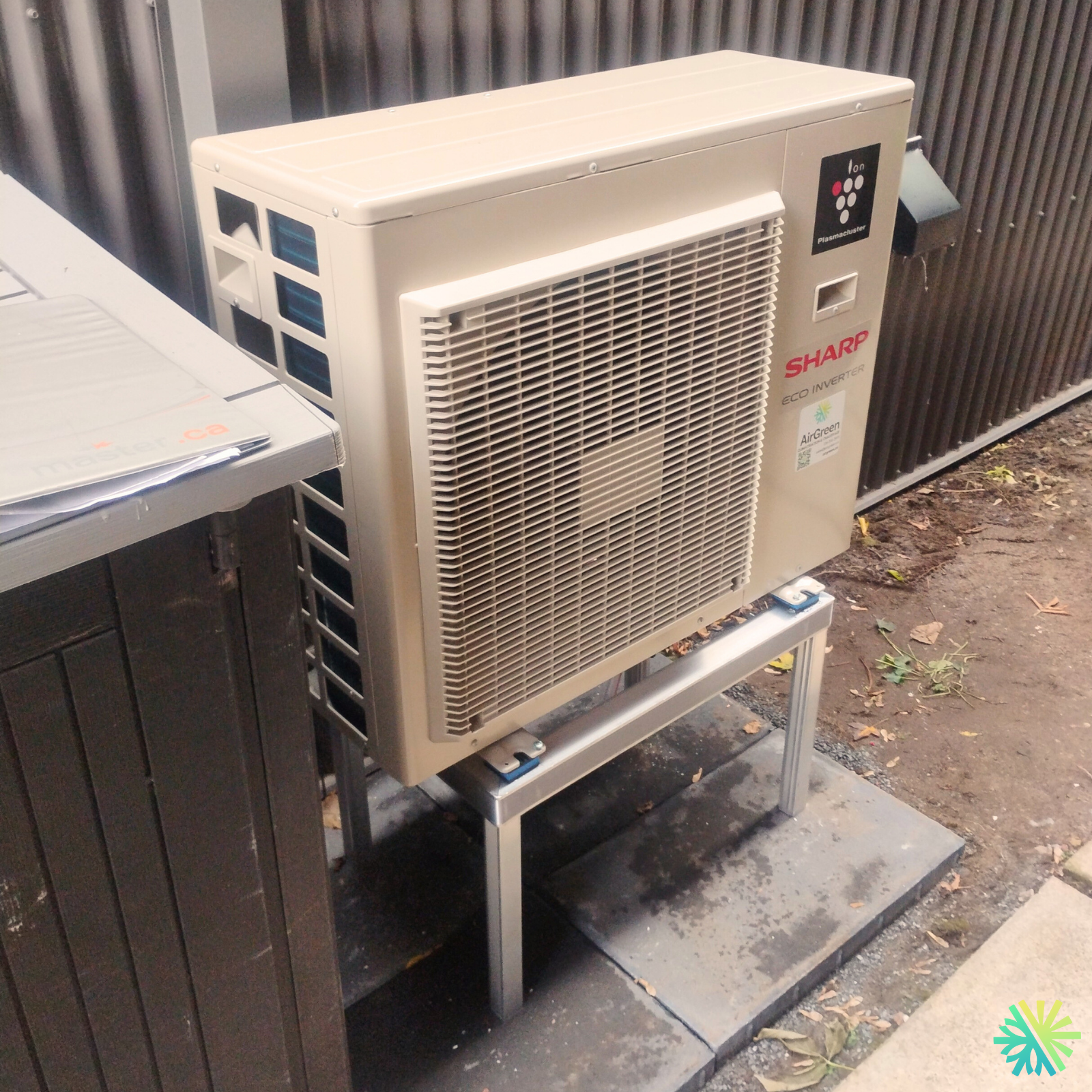

Observable installation details: a typical backyard, real constraints, clean solution
Each installation in Montreal is a “field case”. Here, the outdoor unit is installed in a restricted outdoor space, with a nearby fence and a slab surface — a very common configuration in Rosemont (and in several dense residential areas).
1) Outdoor unit on a raised support
The unit is placed on a raised metal stand , securely anchored and leveled. This choice is important because:
-
improve protection against water , dirt, leaves and ground accumulation;
-
promote drainage and limit the risks associated with humidity;
-
reduce vibrations that are transmitted to the ground.
We systematically pay particular attention to support points and anti-vibration elements (depending on the configuration), as this is often what makes the difference between a “correct” installation and a truly comfortable installation for everyday use.
2) Floor slabs and stability
A slab base is visible beneath the installation area, which helps maintain a stable and clean ground surface. In a Montreal environment, with rain, freezing/thawing, leaves, and debris, this is a detail that contributes to durability.
-
less mud and dust vacuumed up around the equipment;
-
easier maintenance;
-
better stability season after season.
3) Air clearance and proximity to obstacles
An outdoor unit needs to breathe . In backyards, a common mistake is placing the unit too close to a fence or wall. At AirGreen, we always check:
-
the recommended clearances around the device (lateral, rear, front);
-
the absence of obstructions in front of the fan;
-
air circulation to avoid recirculation and preserve efficiency.
Even if space is limited, there is almost always a clever way to position the unit to reconcile aesthetics, neighborhood, and performance.
4) Noise management: a real issue in Rosemont
In a neighbourhood like Rosemont–La Petite-Patrie, backyards are close by, and tranquility is precious. A properly installed heat pump isn't just a high-performing machine: it's a machine that you forget about .
In particular, we are evaluating:
-
the orientation of the unit (where the air “pushes”);
-
the risks of resonance with the structures;
-
optimization of contact points and vibrations;
-
the logic of pipe and wiring routing for a clean installation (and less unwanted vibration).
The Sharp ZU1: performance, versatility and comfort
Even without going into endless technical details, here's what we can conclude about choosing a Sharp ZU1 for a Montreal residence:
-
Inverter (ECO Inverter) : adapts the power according to the actual need, therefore more stable and often more economical.
-
Thermal comfort : fewer variations, better feeling in the room.
-
Air quality/comfort approach : the Sharp signature is often sought after for the user experience (beyond the simple “it heats/it cools”).
At AirGreen, our role is to ensure that the performance advertised on paper becomes real performance in the home — and 70% of that depends on the quality of the installation.
Key steps we apply to this type of project
Here is our typical workflow for a Sharp mini-split installation in an area like Rosemont:
-
Site analysis
-
logical location (noise, clearances, maintenance, aesthetics)
-
soil stability and required support
-
-
Mechanical installation
-
raised, level support
-
secure and durable fixing
-
-
Refrigeration and electrical connections
-
clean and protected route
-
Connections made according to best practices (sealing and reliability)
-
-
Commissioning
-
functional tests
-
basic parameter check
-
validation of the unit's comfort and behavior
-
-
Usage tips for the customer
-
good habits (temperatures, modes, maintenance)
-
what to watch out for season after season
-
Maintenance tips to keep your Sharp performing at its best
For a Sharp wall-mounted heat pump installed in a backyard, we recommend:
-
Light and regular cleaning around the outdoor unit (leaves, debris).
-
Keep the front of the fan clear in all seasons.
-
Inside: filters to be cleaned according to the frequency of use (often every 3–6 weeks during active periods).
-
Periodic professional maintenance to check everything (performance, general condition, drainage, cleanliness).
Proper maintenance is the best way to preserve:
-
comfort,
-
electricity consumption,
-
and the longevity of the system.
Conclusion: a clean, stable Sharp installation adapted to the Rosemont context
This installation in Rosemont–La Petite-Patrie perfectly illustrates what we like to do at AirGreen: take a real-world situation (limited space, backyard, neighborhood, clearance constraints) and deliver a clean, stable, efficient and discreet solution.
If you are considering a Sharp wall-mounted heat pump in Montreal, Laval, on the North Shore or the South Shore, our team can guide you towards a coherent choice and above all an installation carried out according to the rules of the art — because in the end, it is the installation that transforms a good device into an excellent system.
How it goes, from the first call to the end
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
What the unit delivers when it is cold
The range as published on airgreen.ca: pick a size to see its capacity in deep cold.
| Size | Heating at −8 °C | Heating at −15 °C | Coldest certified point | COP at −15 °C | SEER | HSPF | Indicative LogisVert aid |
|---|---|---|---|---|---|---|---|
| Sharp ZU1 12 000 | 14,500 | 12,000 | −27 °C: 7,200 | 2.11 | 22.0 | 11.0 | $1,740 |
| Sharp ZU1 15 000 | 18,100 | 15,300 | −27 °C: 10,100 | 2.1 | 24.0 | 11.0 | $2,172 |
| Sharp ZU1 18 000 | 22,000 | 18,000 | −27 °C: 11,500 | 2.2 | 24.0 | 11.0 | $2,640 |
| Sharp ZU1 24 000 | 22,400 | 19,000 | −27 °C: 12,300 | 2.2 | 22.0 | 11.0 | $2,688 |
According to NEEP, it delivers 14,500 BTU/h at −8 °C (17 °F), more than at 8 °C (14,000 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 7,200 BTU/h, 60% of its nominal 12,000 BTU size.
At 8 °C, its certified maximum capacity reaches 17,100 BTU/h, 42% more than its nominal 12,000 BTU size.
According to NEEP, it delivers 18,100 BTU/h at −8 °C (17 °F), more than at 8 °C (18,000 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 10,100 BTU/h, 67% of its nominal 15,000 BTU size.
At 8 °C, its certified maximum capacity reaches 21,800 BTU/h, 45% more than its nominal 15,000 BTU size.
According to NEEP, it delivers 22,000 BTU/h at −8 °C (17 °F), more than at 8 °C (21,600 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its COP at −27 °C is 1.88: the highest of the ZU1 line, which ranges from 1.79 to 1.82 at that temperature.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 11,500 BTU/h, 64% of its nominal 18,000 BTU size.
At −27 °C, its certified minimum capacity is 3,200 BTU/h (5,500 at 8 °C). It slows down instead of cycling on and off.
According to NEEP, its certified heating capacity at −15 °C (5 °F) is 19,000 BTU/h, 79% of its nominal 24,000 BTU size. Its COP there is 2.20.
Data read live from the airgreen.ca page of each size (NEEP / AHRI certified performance). When the title names the installed size, it is highlighted; otherwise the whole range is shown. The aid shown is today’s, using Hydro-Québec’s rule ($120 per 1,000 BTU/h at −8 °C); amounts quoted in the article date from its publication. Only Hydro-Québec confirms the assistance granted.
And at your place?
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Baseboards and electric furnaces turn 1 kWh of electricity into 1 kWh of heat. A heat pump delivers more: that is its COP. At Hydro-Québec’s rate D (11.142¢/kWh above 40 kWh a day, since 1 April 2026):
Hydro-Québec: a heat pump can be up to three times more efficient than baseboards for heating in the colder months.
Estimate per kWh of heat, at the chosen temperature, using the certified COP from the product page. Taxes, access charge and backup heat not included.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
Which type of equipment for your project?
Pick what looks like your need.
Four mistakes we do not make
Flip each card to see what we do instead.
What people ask us about this kind of work
Does a wall-mounted heat pump heat in winter?
Wall-mounted or multi-zone: how do I choose?
Where does the outdoor unit go?
Are there grants?
Do I need a permit?
How cold can it heat?
How much can I save?
How is the LogisVert assistance calculated?
Is it noisy?
The outdoor unit is covered in ice: is that normal?
Does AirGreen hold the required licences?
Is the estimate free?
No question matches. Write to us: we answer.
