Installation of a Sharp ZU1 Wall-Mounted Heat Pump in Sainte-Thérèse, North Shore
Discover the blend of technology and aesthetics with AirGreen’s Sharp ZU1 heat pump installation—where comfort meets design!
In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.
A Seamless Integration: Ensuring Comfort Without Compromise
When it comes to enhancing the comfort of a home without the need for extensive renovations, the strategic placement and installation of HVAC systems play a crucial role. AirGreen's recent project in Sainte-Thérèse, a picturesque locality on Montreal’s North Shore, showcases our expertise in installing a Sharp ZU1 Wall-Mounted Heat Pump that not only meets the homeowner's needs for efficiency and comfort but does so with an impressive subtlety and aesthetic sensitivity.
Project Overview
- Location: Sainte-Thérèse, North Shore
- Type of Machine: Wall-Mounted Heat Pump
- Brand: Sharp
- Model: ZU1
- Capacity: 18,000 BTU
Specifications and Features
- Cooling/Heating Capacity: 18,000 BTU with a heating operation down to -27°C
- Efficiency: 24.0 SEER, Energy Star® certified
- Technological Enhancements: WiFi capabilities, Plasmacluster air purification, Coanda airflow control
- Serial Numbers: Interior AY-XP18ZU1, Exterior AE-X18ZU1
- Noise Level: Down to 25 dB(A) indoor
- Refrigerant Type: R-32, enhancing environmental sustainability
The Challenge: Preserving the Home's Integrity
The primary challenge in this installation was the homeowner's request to avoid any visible piping or electrical wiring that might necessitate subsequent renovations. They desired a solution that provided high efficiency and environmental friendliness without disrupting the existing aesthetics of their home.
Innovative Installation Techniques
At AirGreen, we utilized a methodical approach to ensure that all conduits, wires, and pipes were meticulously concealed behind the indoor unit. This not only preserved the visual appeal of the room but also exemplified our commitment to clean, professional service. Our technicians employed specialized techniques to route the necessary components through the least obtrusive paths, ensuring that the integrity of the home's interior was maintained.
Highlight on Aesthetic and Functional Integration

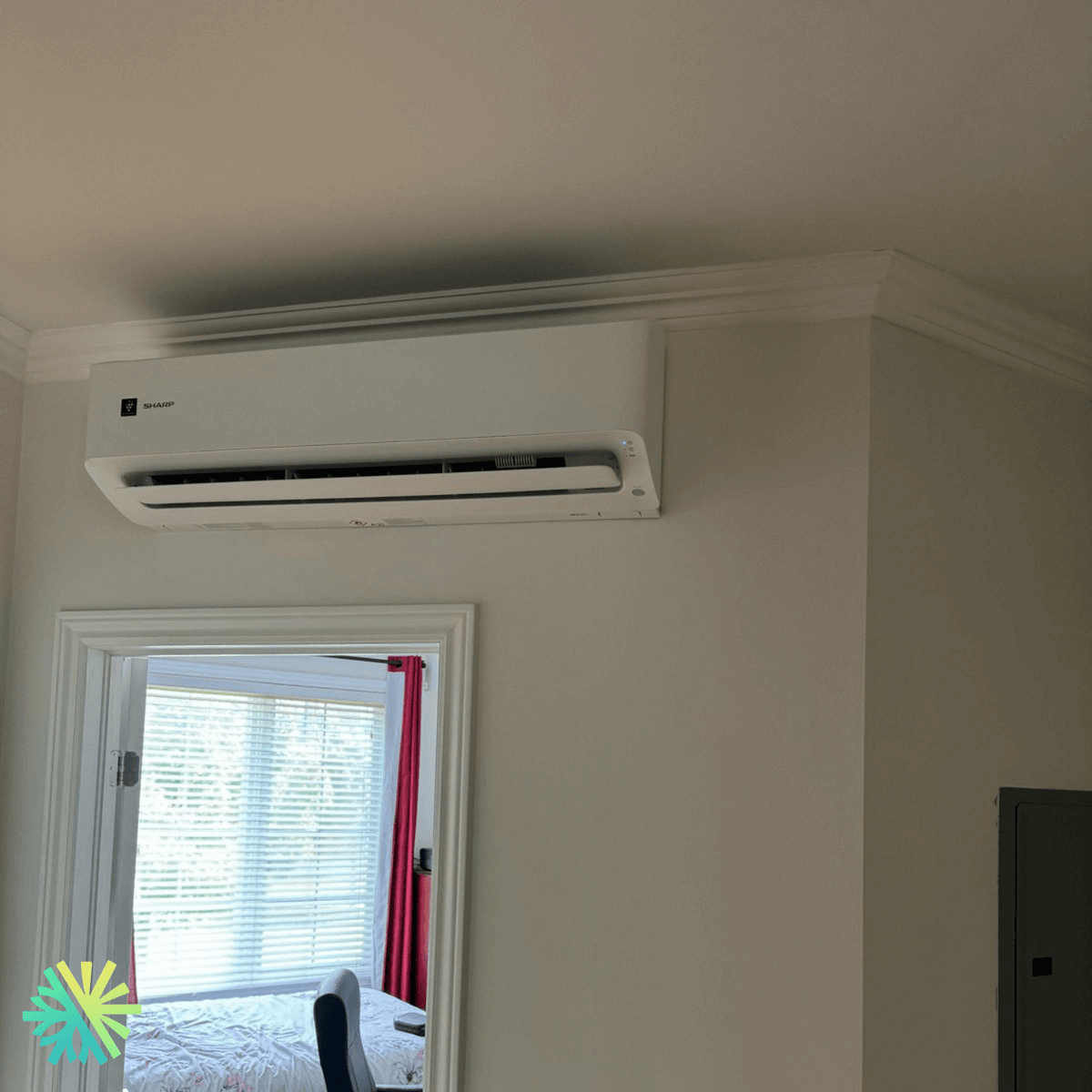

The placement of the Sharp ZU1 was strategically decided to optimize both performance and aesthetics. The unit was mounted high on the wall, above the doorway, which not only helps in effective space utilization but also enhances the distribution of conditioned air across the room. This position allows the Coanda effect to optimally channel airflow along the ceiling, ensuring even temperature distribution without direct drafts on the inhabitants.
Technological Edge: Sharp ZU1 Features
The Sharp ZU1 model is renowned for its Plasmacluster technology and Coanda airflow feature, which together provide a superior indoor climate control:
- Plasmacluster Technology: This advanced air purification system replicates natural air cleaning processes, effectively neutralizing airborne pathogens, allergens, and odors, thereby maintaining a healthy indoor environment.
- Coanda Airflow: This technology ensures that air is not directly blown onto occupants but is rather directed upwards and along the ceiling, promoting even air distribution and enhancing comfort.
Customer Satisfaction: Above and Beyond
The homeowner was exceedingly satisfied with the outcome of the installation. The seamless integration of the heat pump, coupled with the absence of any visible alterations or disruptions to their living space, highlighted our dedication to customer satisfaction and professional service. Their commendation of our work underscores AirGreen’s reputation as a leader in providing HVAC solutions that do not just meet but exceed our clients’ expectations.
Conclusion
AirGreen's installation of the Sharp ZU1 in Sainte-Thérèse is a testament to our ability to combine cutting-edge technology with client-centric service solutions. This project not only provided the homeowner with a state-of-the-art heating and cooling system but also enhanced their living space without the need for invasive alterations.
How it goes, from the first call to the end
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
What the unit delivers when it is cold
The range as published on airgreen.ca: pick a size to see its capacity in deep cold.
| Size | Heating at −8 °C | Heating at −15 °C | Coldest certified point | COP at −15 °C | SEER | HSPF | Indicative LogisVert aid |
|---|---|---|---|---|---|---|---|
| Sharp ZU1 12 000 | 14,500 | 12,000 | −27 °C: 7,200 | 2.11 | 22.0 | 11.0 | $1,740 |
| Sharp ZU1 15 000 | 18,100 | 15,300 | −27 °C: 10,100 | 2.1 | 24.0 | 11.0 | $2,172 |
| Sharp ZU1 18 000 | 22,000 | 18,000 | −27 °C: 11,500 | 2.2 | 24.0 | 11.0 | $2,640 |
| Sharp ZU1 24 000 | 22,400 | 19,000 | −27 °C: 12,300 | 2.2 | 22.0 | 11.0 | $2,688 |
According to NEEP, it delivers 14,500 BTU/h at −8 °C (17 °F), more than at 8 °C (14,000 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 7,200 BTU/h, 60% of its nominal 12,000 BTU size.
At 8 °C, its certified maximum capacity reaches 17,100 BTU/h, 42% more than its nominal 12,000 BTU size.
According to NEEP, it delivers 18,100 BTU/h at −8 °C (17 °F), more than at 8 °C (18,000 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 10,100 BTU/h, 67% of its nominal 15,000 BTU size.
At 8 °C, its certified maximum capacity reaches 21,800 BTU/h, 45% more than its nominal 15,000 BTU size.
According to NEEP, it delivers 22,000 BTU/h at −8 °C (17 °F), more than at 8 °C (21,600 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its COP at −27 °C is 1.88: the highest of the ZU1 line, which ranges from 1.79 to 1.82 at that temperature.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 11,500 BTU/h, 64% of its nominal 18,000 BTU size.
At −27 °C, its certified minimum capacity is 3,200 BTU/h (5,500 at 8 °C). It slows down instead of cycling on and off.
According to NEEP, its certified heating capacity at −15 °C (5 °F) is 19,000 BTU/h, 79% of its nominal 24,000 BTU size. Its COP there is 2.20.
Data read live from the airgreen.ca page of each size (NEEP / AHRI certified performance). When the title names the installed size, it is highlighted; otherwise the whole range is shown. The aid shown is today’s, using Hydro-Québec’s rule ($120 per 1,000 BTU/h at −8 °C); amounts quoted in the article date from its publication. Only Hydro-Québec confirms the assistance granted.
And at your place?
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Baseboards and electric furnaces turn 1 kWh of electricity into 1 kWh of heat. A heat pump delivers more: that is its COP. At Hydro-Québec’s rate D (11.142¢/kWh above 40 kWh a day, since 1 April 2026):
Hydro-Québec: a heat pump can be up to three times more efficient than baseboards for heating in the colder months.
Estimate per kWh of heat, at the chosen temperature, using the certified COP from the product page. Taxes, access charge and backup heat not included.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
Which type of equipment for your project?
Pick what looks like your need.
Four mistakes we do not make
Flip each card to see what we do instead.
What people ask us about this kind of work
Does a wall-mounted heat pump heat in winter?
Wall-mounted or multi-zone: how do I choose?
Where does the outdoor unit go?
Are there grants?
Do I need a permit?
How cold can it heat?
How much can I save?
How is the LogisVert assistance calculated?
Is it noisy?
The outdoor unit is covered in ice: is that normal?
Does AirGreen hold the required licences?
Is the estimate free?
No question matches. Write to us: we answer.
Useful pages for what comes next
More jobs to see, near you
By town, by equipment or by region: browse more than 4,700 published projects.
Each dot: a town where AirGreen has published projects. The glowing dot: this job.
Tell us about your house. We come and see it for free.
The on-site estimate is free and the quote follows within 24 hours.
Text and photo: a real AirGreen Climatisation & Chauffage job. The diagrams are generic illustrations of the type of installation, not a survey of this job site. Sources of the added figures: airgreen.ca product pages (NEEP / AHRI performance), Hydro-Québec (Heat pumps page, LogisVert, read on 13 October 2026), Régie de l’énergie (rate D as of 1 April 2026).
