Installation of a Zephyr 23 Wall-Mounted Heat Pump in Île-Bizard–Sainte-Geneviève
Nestled in Île-Bizard–Sainte-Geneviève, our latest Zephyr Model 23 installation is a blend of efficiency and elegance. Dive in to discover the AirGreen difference!
- City
- Region
- Equipment
- Brand
- Challenges
- Published
The job on one screen
The article, chapter by chapter
The Perfect Blend of Efficiency and Elegance: Our Latest HVAC Triumph
Setting the Scene in Île-Bizard–Sainte-Geneviève
Nestled in the picturesque locale of Île-Bizard–Sainte-Geneviève, our latest installation project was nothing short of a delightful experience. The serene backdrop of this beautiful location was the perfect setting for our team to showcase their expertise.
Choosing the Zephyr 23: A Decision Driven by Excellence
Our discerning clients had a clear vision: they wanted a machine that not only delivered top-notch performance but also came with a promise of longevity. Enter the Zephyr 23 Wall-Mounted Heat Pump. With its impressive 10-year warranty on everything, it was an easy choice for our customers. The added bonus? The Zephyr's heart beats with a robust Toshiba compressor, a name synonymous with reliability.
The Installation: A Seamless Symphony of Skill and Precision
-

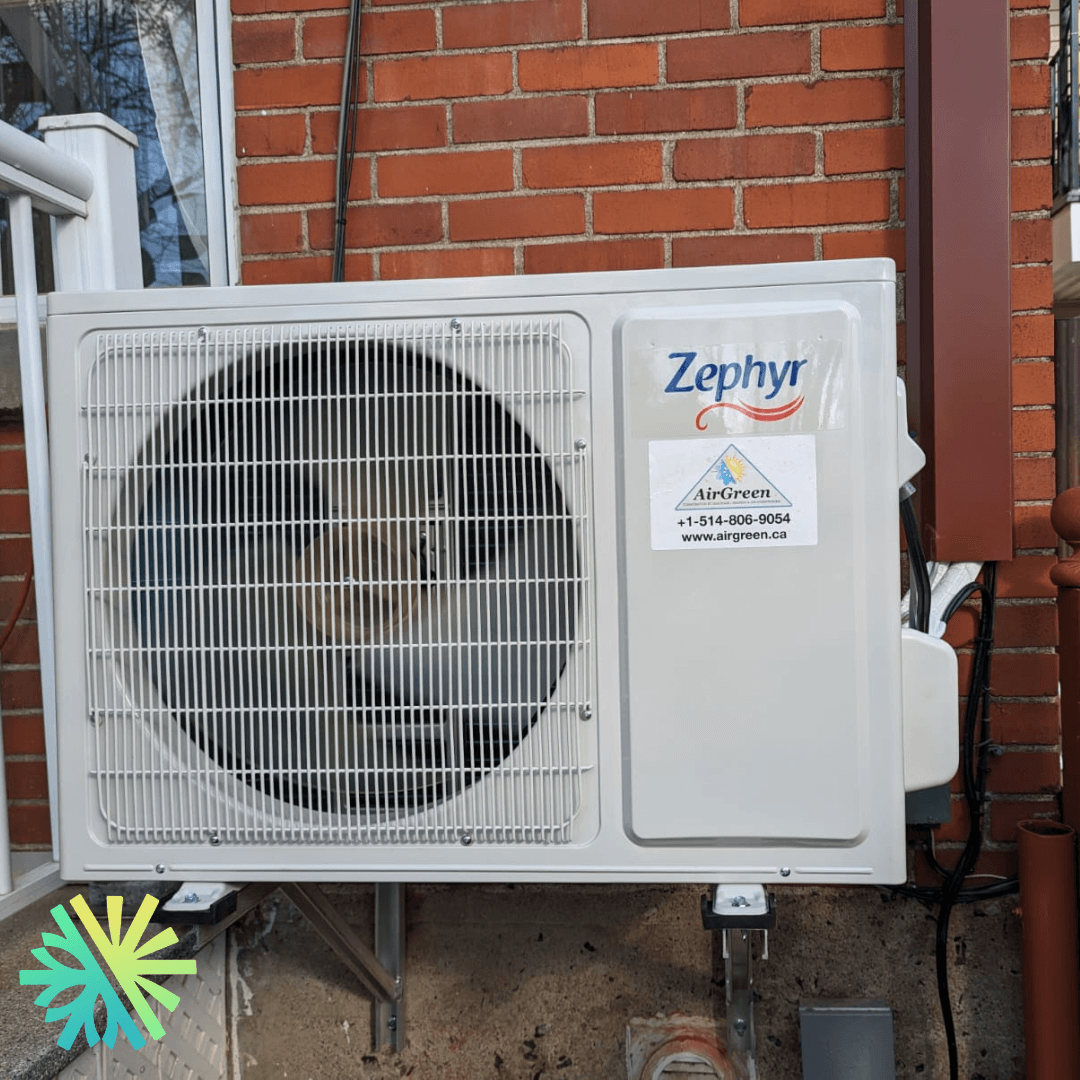

Location: The heart of the home, an expansive open-concept kitchen and living area, was chosen for the head unit. The compressor found its place discreetly at the back of the house.
-
Simplicity: Despite the vastness of the space, our team found the installation process to be straightforward, thanks to the impeccable design of the Zephyr Model 23.
-
The Provincial Grant Advantage: Our clients were ecstatic to discover that their chosen model was eligible for a $580 Provincial Grant. Quality and savings? A match made in HVAC heaven!
Diving Deeper: The Zephyr Model 23 at a Glance
-
Cooling and Heating Mastery: With a cooling capacity of 18,000 BTU and the ability to heat even at a chilling -25°C, this machine is a force to be reckoned with.
-
Dimensions: The interior unit, sleek and compact, measures 44.5 x 9.06 x 12.44 inches, while the exterior unit stands at 33.88 x 12.25 x 25.63 inches.
-
Quiet Operation: The Zephyr ensures peace with sound pressure levels of 34/45 dB(A) for the interior and 55.0 dB(A) for the exterior.
-
Eco-Friendly: With the Energy Star® certification and the use of R-410A gas, the Zephyr is as kind to the environment as it is to your interiors.
-
Connectivity and Efficiency: Opt for WiFi connectivity and enjoy the impressive 23.0 SEER efficiency rating.
-
Safety and Warranty: The 10-10-10 warranty (Compressor - Parts - Labor) is a testament to the machine's durability.
A Tale of Success: The AirGreen Promise
Every installation we undertake is a story of collaboration, expertise, and commitment. This project in Île-Bizard–Sainte-Geneviève was no different. Our clients, having heard of the Zephyr's prowess, were instantly sold. And we, with our unwavering dedication, ensured that their vision was brought to life flawlessly.
Our journey with the Zephyr Model 23 in Île-Bizard–Sainte-Geneviève is a testament to what we stand for at AirGreen: delivering excellence, every single time. So, if you're on the lookout for HVAC solutions that blend performance with aesthetics, you know who to call!
The job tools
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
How the job unfolds
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
What we check on a job like this one
Each number is a point we check on site. Switch between summer and winter to watch air and heat move.
In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.
Is your home ready?
Check what applies at your place. A "no" is not a refusal: it is what we sort out during the estimate.
Good habits, once the unit is in place
Six simple habits that keep the unit going. Your list stays on this device.
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
The right pages, at the right time
Four statements: true or false?
It all comes down to details you have just seen.
1. In heating mode, the outdoor unit can produce water.
During defrost cycles. That water must drain away without forming ice.
2. You pick the capacity with a simple square-footage rule.
Windows, insulation, orientation and how the room is used all count. Capacity is chosen on site.
3. A multi-zone connects several indoor heads to a single condenser.
One head per room, all on the same condenser. Each room keeps its own temperature.
4. The disconnect can sit behind the patio furniture.
It must stay accessible: it is what shuts the unit off for service.
0 / 4 right answers
What people ask us about this kind of work
Does a wall-mounted heat pump heat in winter?
Wall-mounted or multi-zone: how do I choose?
Where does the outdoor unit go?
Are there grants?
Do I need a permit?
How cold can it heat?
How much can I save?
How is the LogisVert assistance calculated?
Is it noisy?
The outdoor unit is covered in ice: is that normal?
Does AirGreen hold the required licences?
Is the estimate free?
No question matches. Write to us: we answer.
More jobs to see, near you
By town, by equipment or by region: browse more than 4,700 published projects.
Each dot: a town where AirGreen has published projects. The glowing dot: this job.
An on-site estimate, the right capacity, the right equipment.
The on-site estimate is free and the quote follows within 24 hours.
Text and photo: a real AirGreen Climatisation & Chauffage job. The diagrams are generic illustrations of the type of installation, not a survey of this job site. Sources of the added figures: airgreen.ca product pages (NEEP / AHRI performance), Hydro-Québec (Heat pumps page, LogisVert, read on 13 October 2026), Régie de l’énergie (rate D as of 1 April 2026).
