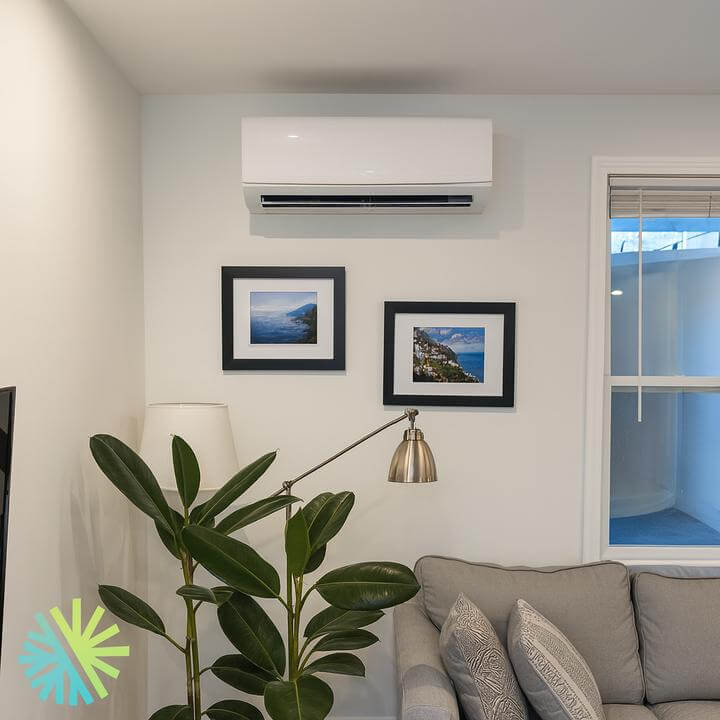

Installation of a Tosot Lomo 23 Wall-Mounted Mini Split in Griffintown, Montreal
Dive into the details of AirGreen's recent installation of a Tosot Lomo 23 in Griffintown, Montreal. Experience our dedication to quality HVAC services and customer satisfaction.
Take a tour of the installation
Each number is a point we check on site. Switch between summer and winter to watch air and heat move.
In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.
A Seamless Installation Experience with AirGreen
At AirGreen, we take pride in providing top-notch HVAC services across Montreal, Laval, Longueuil, Rive-Nord, and Rive-Sud. Our recent installation in Griffintown, Montreal, demonstrates our commitment to quality and customer satisfaction.
The Tosot Lomo 23: A Concentration of Efficiency
The highlight of this installation was the Tosot Lomo 23, a wall-mounted mini-split system that perfectly blends efficiency and innovation. This model, with its 18,000 BTU cooling capacity, is designed to provide optimal comfort while being energy efficient. It boasts a 20.0 SEER rating, making it eligible for a provincial rebate of $620.
The Lomo 23 is also an Energy Star® certified model, ensuring it meets the highest standards for energy efficiency and environmental protection. It comes with optional WiFi for smart and convenient control. The model’s sound pressure levels, both outdoor (55.0 dB(A)) and indoor (39 / 47 dB(A)), ensure quiet operation, making it an ideal choice for homes and offices.
The Installation Process: Simple and Efficient
The installation process was straightforward, thanks to the wall-to-wall setup in the client’s living room. Our standard installation package includes 15 feet of piping and 15 feet of electrical wiring, which was more than sufficient for this project.
Despite the simplicity of the installation, our team ensured every detail was handled with the utmost precision. The result was a flawless installation that delighted our client.
Why Choose AirGreen?
Choosing AirGreen for your HVAC needs means choosing quality, professionalism, and customer satisfaction. We understand that every installation is unique, and we tailor our services to meet your specific needs. Our team of experienced professionals is dedicated to providing you with the best HVAC solutions, ensuring your comfort and satisfaction.
Whether you’re looking for a simple wall-mounted mini-split system like the Tosot Lomo 23 or a more complex HVAC solution, we have what you need. We offer a wide range of HVAC services, from installation to maintenance and repair, all aimed at enhancing your indoor comfort.
Conclusion
Our recent installation in Griffintown, Montreal, is just one example of our commitment to quality and customer satisfaction. At AirGreen, we believe in delivering HVAC solutions that not only meet but exceed your expectations.
So, if you are in Montreal, Laval, Longueuil, Rive-Nord, or Rive-Sud and need HVAC services, look no further than AirGreen. We are here to provide you with the best HVAC solutions tailored to your specific needs.
The big day, step by step
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
What would it look like at your place?
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
Four mistakes we do not make
Flip each card to see what we do instead.
Your own project, step by step
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
Is your home ready?
Check what applies at your place. A "no" is not a refusal: it is what we sort out during the estimate.
Four statements: true or false?
It all comes down to details you have just seen.
1. In heating mode, the outdoor unit can produce water.
During defrost cycles. That water must drain away without forming ice.
2. You pick the capacity with a simple square-footage rule.
Windows, insulation, orientation and how the room is used all count. Capacity is chosen on site.
3. A multi-zone connects several indoor heads to a single condenser.
One head per room, all on the same condenser. Each room keeps its own temperature.
4. The disconnect can sit behind the patio furniture.
It must stay accessible: it is what shuts the unit off for service.
0 / 4 right answers
What people ask us about this kind of work
Does a wall-mounted heat pump heat in winter?
Wall-mounted or multi-zone: how do I choose?
Where does the outdoor unit go?
Are there grants?
Do I need a permit?
How cold can it heat?
How much can I save?
How is the LogisVert assistance calculated?
Is it noisy?
The outdoor unit is covered in ice: is that normal?
Does AirGreen hold the required licences?
Is the estimate free?
No question matches. Write to us: we answer.
More jobs to see, near you
By town, by equipment or by region: browse more than 4,700 published projects.
Each dot: a town where AirGreen has published projects. The glowing dot: this job.
Every house has its constraints. We see them before we install.
The on-site estimate is free and the quote follows within 24 hours.
Text and photo: a real AirGreen Climatisation & Chauffage job. The diagrams are generic illustrations of the type of installation, not a survey of this job site. Sources of the added figures: airgreen.ca product pages (NEEP / AHRI performance), Hydro-Québec (Heat pumps page, LogisVert, read on 13 October 2026), Régie de l’énergie (rate D as of 1 April 2026).
