GreenTek PROFILE P 1.2ED Air Exchanger Greater Montreal

• Energy Star®: Yes
• Warranty (Core-Motor-Parts): ∞-7-5
• Voltage: 115 V
• PCM/CFM - @ 0.4”: 127.0
• Maximum sensible recovery efficiency: 75.0
• Defrost cycle: Ventilation

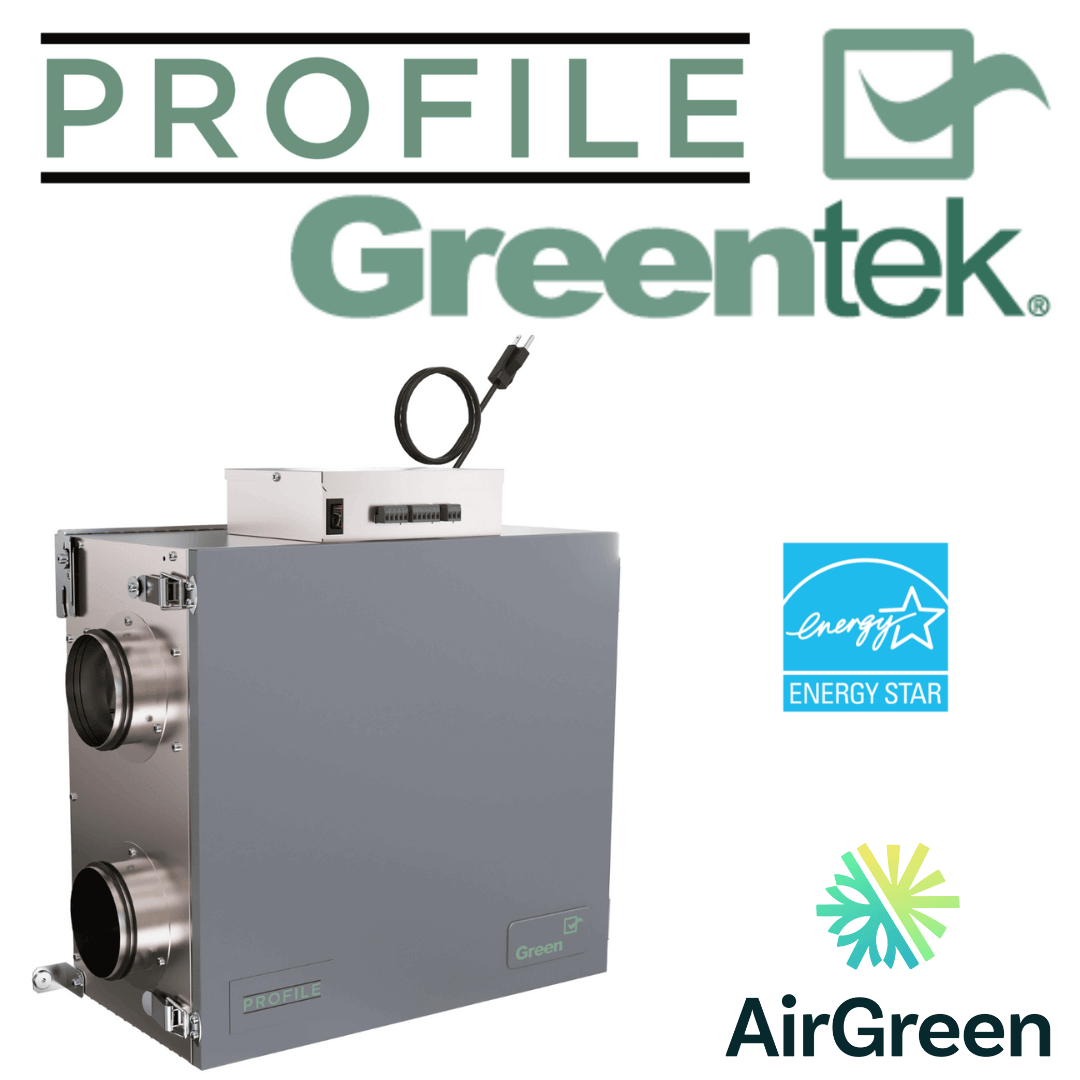

GREENTEK PROFILE P 1.2E-D: Advanced Ventilation Technology for Improved Indoor Air Quality

Presenting the advanced Greentek Profile P 1.2E-D, an innovative Energy Recovery Ventilator (ERV) from the renowned Profile series by Systemair. With an integrated mechanical shutoff damper, this compact ERV is specifically designed for multi-family applications and for installations where mechanical space is limited.

INTRODUCING THE P 1.2E-D

The Profile P 1.2E-D serves as an air purifier, supplying a continuous flow of fresh air into the premises, while at the same time expelling an equivalent volume of contaminated air. Its unique energy recovery core effectively transfers both heat and moisture from the outgoing exhaust air to the incoming fresh air, dramatically reducing the energy required for air conditioning.

PRODUCT OVERVIEW

• Compact Design: Perfect for installations with limited mechanical space
• No Drain Required: Further simplifying the installation process
• Mechanical Shutoff Damper: Prevents drawing outside air directly into the air handling unit when not in operation
• Easy Installation: Can be conveniently installed on ceiling or wall with the included mounting bracket
• Energy Recovery Core: Transfers both heat and moisture from the exhaust air to the fresh air, significantly saving energy
• Electrostatic Filters (Washable): Filters are washable and help maintain high indoor air quality by effectively removing airborne contaminants
• Removable Screw Terminal: Provides easy connection with external access
• Multiple Speed Operation: Allows users to adjust the airflow according to their needs
• Lightweight: Weighing only 35 lbs (16 kg), including the core, this ERV is easy to install and maintain

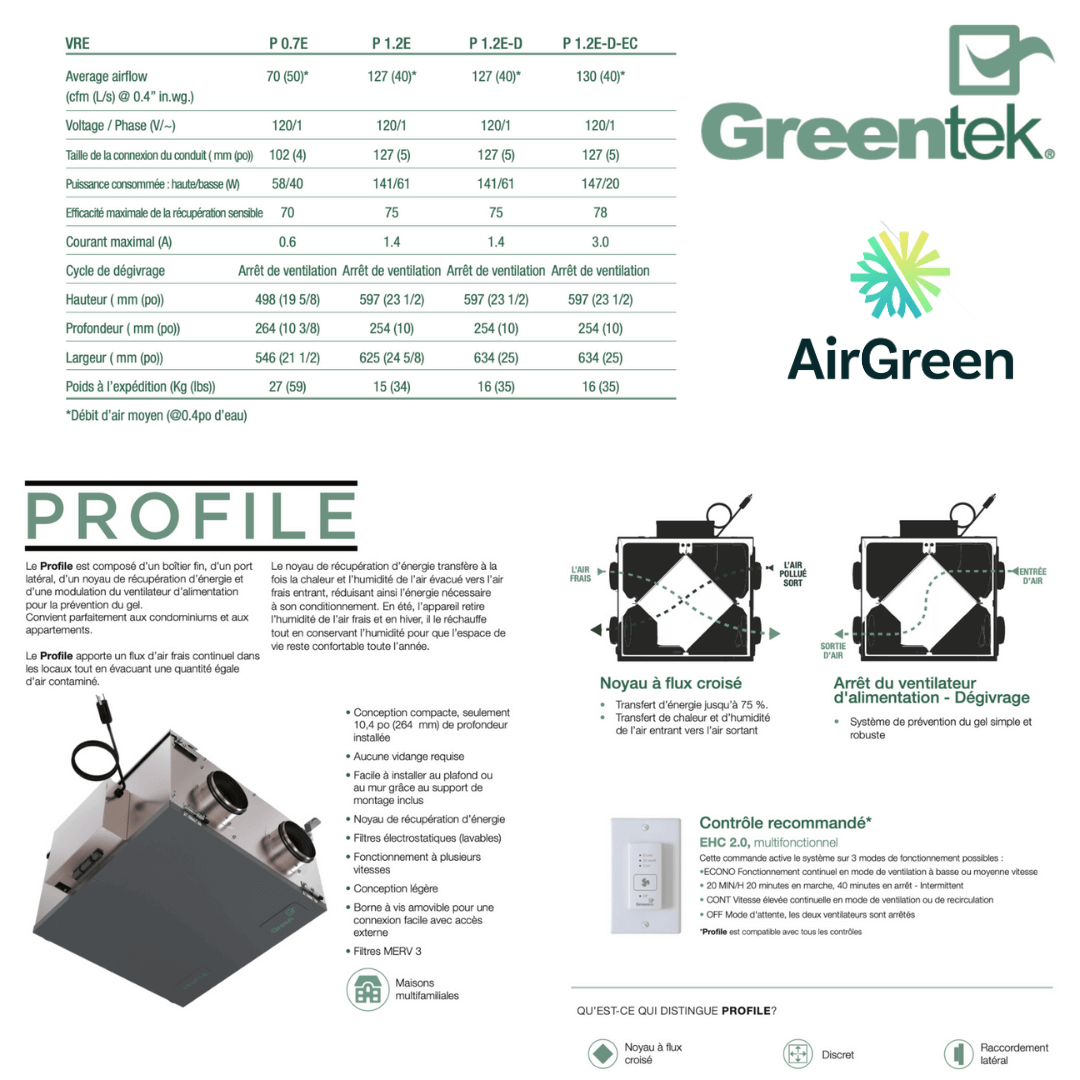

SPECIFICATIONS

The Greentek Profile P 1.2E-D comes with a variety of impressive features. Let's delve into the technical specifics of this remarkable device:

• Manufacturer: Greentek, a Systemair company
• Model Series: Profile Series
• Model Description: Profile P 1.2E-D
• Manufacturer's Part Number: 464403
• Ventilation Performance: Average airflow of 127 cfm (60 L/s) @ 0.4 in. wg (100 Pa)
• Mechanical Shutoff Damper: Integrated, made from polymer material, activated by a non fail-safe actuator
• Core Type: Energy Recovery Ventilator (ERV) with core dimensions of 12 in. x 12 in. (305 x 305mm) with a 8.15 in. (207mm) depth
• Frost Prevention: Preset frost prevention sequence activated at an outdoor air temperature of 14°F (-10°C) and lower
• Duct Size: 5 in. (125 mm) round
• Voltage/Phase: 120/1
• Rated Power: 120 W
• Running Amperage: 1.0 A
• CSA Rated Amperage: 1.4 A
• Weight: 35 lbs (16 kg) including the core
• Housing: 22 gauge galvanized steel cabinet with a pre-painted steel corrosion resistant door
• Insulation: Insulated with 3/4 in. (20 mm) high density expanded polystyrene
• Control Options: Compatible with various Greentek controls including STS 2.0 (461580), EHC 2.5 (415518), EHC 2.0 (415520), T4 (415519), T5 (463915), and RD-1 (463020)
• Filters: Two (2) washable electrostatic panel type air filters 11.3 in. (287mm) x 8.15 in. (207mm) x 0.125 in. (3mm)
• Fan: Two (2) factory-balanced fans with backward curved blades. Motors come with permanently lubricated, sealed ball-bearings to guarantee long life and maintenance-free operation.
• Installation: Typically hung using ceiling bracket supplied with unit. Optional chain kit available.
• Dimensions: 23 5/8 in x 20 3/4 in x 25 in x 20 7/8 in x 10 in x 9 1/4 in (600 mm x 527 mm x 634 mm x 529 mm x 254 mm x 235 mm)
• Energy Performance: Demonstrates high energy recovery efficiency in both heating and cooling conditions.

WARRANTY

The Greentek Profile P 1.2E-D offers an excellent limited warranty that covers:

• 5 years on the energy recovery core
• 7 years on the motors
• 5 years on parts

STANDARDS & CERTIFICATIONS

The P 1.2E-D adheres to a multitude of rigorous standards:

• UL 1812 - Regulates the construction and installation of Heat Recovery Ventilators
• CSA C22.2 no. 113 - Standard applicable to ventilators
• CSA F326 - Governs the installation of Heat Recovery Ventilators
• CSA C439 - Published results of tests related to the standard
• HVI Certified

The Greentek Profile P 1.2E-D is an impressive ventilation device that combines superior ventilation performance, efficient energy recovery, and a compact, easy-to-install design for optimal use in residential and multi-family installations. Its variety of control options, simple installation and maintenance, and robust reliability and durability make it an excellent choice for improving indoor air quality while minimizing energy consumption.
