vänEE 50H Air Exchanger | Montreal, Laval, Longueuil, South Shore and North Shore
Is it the right size for your home?
It delivers 89 cfm net, enough to ventilate 1,000 to 1,600 sq ft. Choose your home's living area.
It's the right size.
For a 900 to 1,500 sq ft home, about 63 cfm of air needs to be renewed continuously. This unit delivers 89 cfm net — enough for the house, with extra capacity to boost ventilation for the bathroom and kitchen.
Calculation: 0.35 air changes per hour over the living volume, with 9 ft ceilings. Our estimator sets the exact airflow room by room, following CSA F326.
What it does, in numbers
$38.07
Electricity per year
Less than a 60 W light bulb
Bulbs left on day and night. Same calculation for every line: wattage × 8,760 h × 11.142 ¢/kWh.
Meets the Québec Construction Code for Greater Montréal. The Code requires 54% at −25 °C below 6,000 degree-days (Montréal, Laval, Longueuil and both shores) and 60% above that. This unit is rated at 55% at 68 cfm.
Airflow and efficiency: manufacturer's published data. Cost: 39 W over 8,760 h at Hydro-Québec's Rate D second tier (11.142 ¢/kWh).
What you should know about this one
Published, verifiable facts, not brochure claims.
89 cfmMore airflow than the 40H+ in a same-size cabinet
The 50H shares the 40H+'s overall size (15 5/8 × 15 7/16 × 18 5/8 in) and 30 lb weight, yet delivers 89 cfm net at 0.4 in instead of 71. The maker aims it at larger applications.
WashableHeat recovery core washes in soapy water
At the annual service, the 50H's polypropylene core soaks in lukewarm soapy water, then is rinsed and left to dry. The two foam filters are washed as well, every three months.
55%What it still recovers at −25 °C
The only efficiency figure that matters for a Québec winter, and the one the Code uses. An efficiency quoted without its temperature means nothing; this one is measured at a test airflow of 68 cfm.
DamperIt defrosts without depressurizing the house
In cold weather, a motorized damper closes the outdoor air intake and recirculates indoor air through the core to thaw it. The house doesn't go into negative pressure during the cycle: no cold air drawn in through leaks, and none of the imbalance manufacturers warn about when there's a fireplace or a combustion appliance.
HRVIt recovers heat, not moisture
Excess moisture leaves the house. In Québec, that's the right choice in most cases: in winter, the problem is almost always too much humidity, not too little.
−6 cfmWhat the ducts cost it
Between a nearly unrestricted test bench (0.2 in) and a real duct system (0.4 in), it drops from 95 to 89 cfm. Most spec sheets show only the first number, precisely because it looks better.
39 WMeasured at the airflow it actually runs at
Its 66% at 0 °C is measured at 47 cfm, the continuous airflow of a typical home. At that setting it draws 39 W, or about 342 kWh a year.
LifetimeThe core warranty
The core does the work and is the most expensive part to replace. Motors and parts: 5 years. We register the warranty in your name at commissioning.
4 inWhat it needs on site
4 in ducts, top connection and a condensate drain. It weighs 30 lb, and it needs enough clearance to slide the core out once a year.
What it needs on site
In a condo with no floor drain, or with little ceiling clearance, we usually look at a side-port model instead. Our estimator checks the location, the drain and the duct route before ordering.

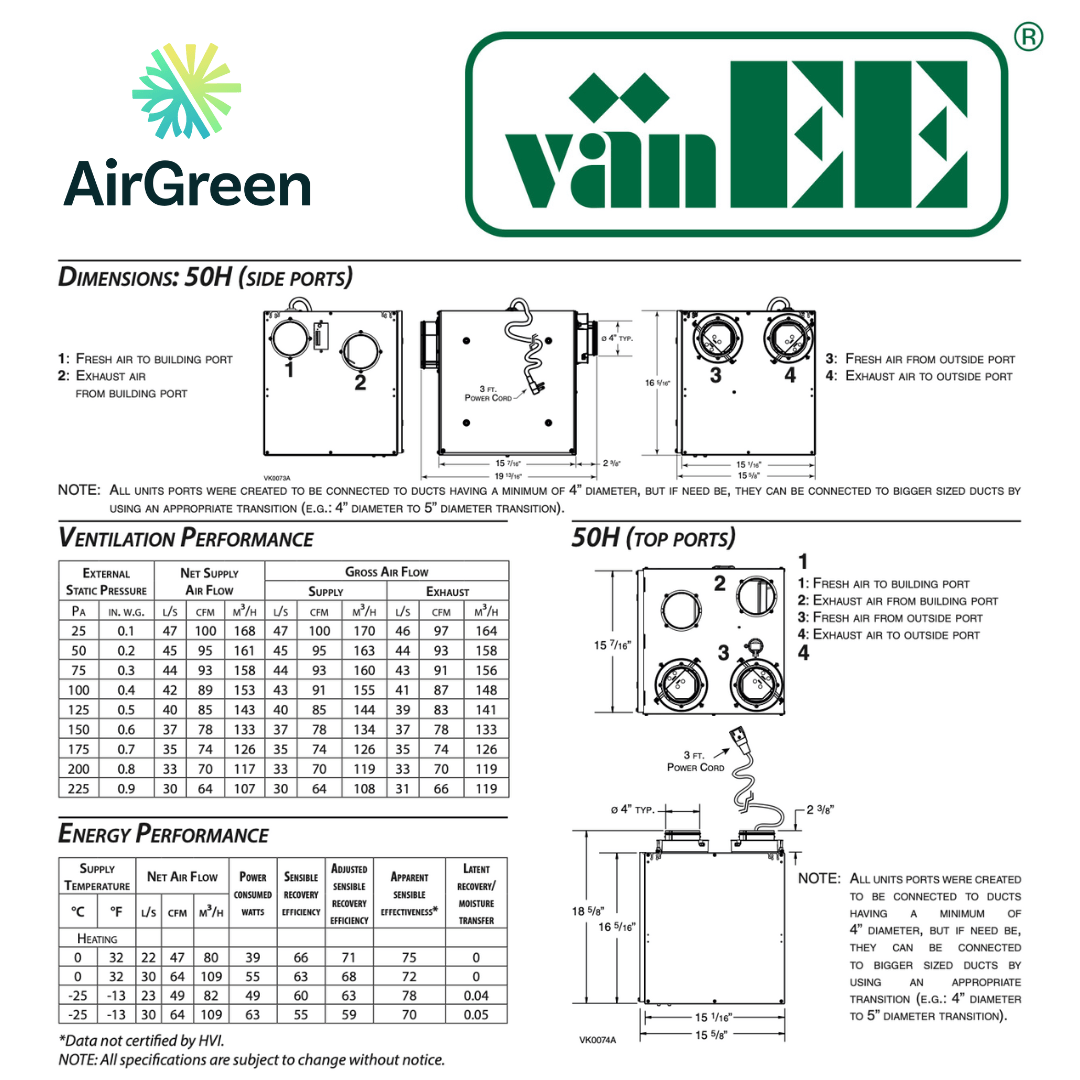

Complete spec sheetData and cited sources
- Net airflow at 0.2 in. w.g.
- 95 cfm
- Net airflow at 0.4 in. w.g.
- 89 cfm
- SRE at 0 °C (47 cfm)
- 66%
- SRE at −25 °C (68 cfm)
- 55%
- ASE at 0 °C
- 73%
- Power draw
- 39 W
- Efficacy
- 1.2 cfm/W
- Type
- HRV
- Connection
- Top ports
- Duct collars
- 4 in
- Condensate drain
- Required
- Defrost cycle
- Recirculation (motorized damper)
- Filters
- 2 washable 30 ppi foam filters
- Dimensions (L × D × H)
- 15.62 × 15.44 × 18.62 in
- Weight
- 30 lb
- Power supply
- 120 V
- Warranty — core
- Lifetime
- Warranty — motors
- 5 years
- Warranty — parts
- 5 years
Airflow and efficiency: manufacturer's published data. Annual consumption calculated at 39 W running continuously for 8,760 h, at Hydro-Québec's Rate D second tier (11.142 ¢/kWh), in effect since April 1, 2026.
The next model down and up
Talk to an HVAC technician before you choose
We calculate the airflow room by room, check the location and the drain, and give you an installed price. Balancing is measured at commissioning, not estimated.
AirGreen Unveils the vänEE 50H: The Compact HVAC Revolution in Montreal
Mastering Air Quality with the vänEE 50H: A New Era in HVAC Technology
The vänEE 50H: Redefining Compact Efficiency in Air Exchangers
At AirGreen, a leading HVAC company in Montreal, we are excited to introduce the vänEE 50H from the Bronze Series, a groundbreaking addition to our range of air exchangers. This model, a VRC type with vertical ports, is not just an air exchanger; it's a symbol of our dedication to providing innovative HVAC solutions in Montreal, Laval, Longueuil, and across the North Shore and South Shore regions. The vänEE 50H, with its sensible recovery efficiency of 66% and PCM/CFM of 95, is designed to offer superior air exchange in a compact form, measuring just 15.63 x 18.63 x 15.44 inches.
Compact Design, Expansive Impact
The vänEE 50H is a testament to the idea that great things come in small packages. It offers more airflow than its predecessor, the 40H+, thanks to a high-performance motor, making it suitable for larger applications while remaining easy to install due to its compact size and port configuration options.
Innovative Features of the vänEE 50H
Advanced Air Exchange Capabilities
- Optimized Air Flow: The vänEE 50H is equipped with pressure taps and balancing dampers, ensuring balanced and efficient air exchange, which is crucial for maintaining optimal indoor air quality.
- Flexible Installation: With its 4-inch vertical or horizontal ports, the unit can be installed in small spaces such as a closet or a mechanical room above a hot water tank, offering versatility in placement.
Quiet Operation and Enhanced Comfort
- Patent-Pending Single Blower System: The vänEE 50H's unique single blower design makes it quieter than any other similar HRV on the market, contributing to a more peaceful indoor environment.
Installation and Maintenance: Simplified and Streamlined
Effortless Installation
- User-Friendly Design: The vänEE 50H is designed for easy installation, featuring integrated hooks and port straps to simplify the process. Weighing just 30 lb., it can be installed without opening the unit.
- Versatile Configuration: Whether installed with top or side ports, the vänEE 50H adapts to various architectural needs, making it a flexible choice for different building layouts.
Maintenance Made Easy
- Accessible Parts: All components of the vänEE 50H that may require maintenance can be removed in less than five minutes, allowing for quick and easy repairs.
- Permanently Lubricated Motor: The PSC motor is permanently lubricated, ensuring long-lasting operation with minimal maintenance.
Energy Efficiency and Environmental Considerations
The ERV Edge
- Heat Recovery Ventilation: The vänEE 50H uses a recirculation defrost method, maintaining balanced air pressure in the home. This method is efficient in both humid and dry climates, making it an excellent choice for year-round ventilation.
- Eco-Friendly Operation: By optimizing energy use, the vänEE 50H contributes to a reduced environmental footprint, aligning with modern eco-conscious living standards.
Why Choose AirGreen for Your vänEE 50H Installation?
At AirGreen, we understand the importance of quality air in your home or business. Our team of skilled professionals is dedicated to providing not just products, but complete HVAC solutions that cater to your specific needs.
Our Commitment to Excellence
- Expert Installation Services: Our technicians are trained to install the vänEE 50H with precision and care, ensuring optimal performance and customer satisfaction.
- Comprehensive Support: We believe in building lasting relationships with our clients, offering ongoing support and advice to ensure your comfort and well-being.
Conclusion: Experience the Difference with AirGreen and the vänEE 50H
In conclusion, the vänEE 50H, offered by AirGreen, represents a significant advancement in HVAC technology, combining efficiency, reliability, and environmental responsibility. Its advanced features, compact design, and superior performance make it an ideal solution for enhancing indoor air quality in Montreal and its surrounding areas. Choose AirGreen for your vänEE 50H installation and experience the difference in comfort, quality, and peace of mind.
