Air Exchanger VENMAR AVS® SERIES AI2 A180H75RT Greater Montreal
Is it the right size for your home?
It delivers 193 cfm net, enough to ventilate 2,300 to 3,600 sq ft. Choose your home's living area.
It's the right size.
For a 2,500 to 3,200 sq ft home, about 150 cfm of air needs to be renewed continuously. This unit delivers 193 cfm net — enough for the house, with extra capacity to boost ventilation for the bathroom and kitchen.
Calculation: 0.35 air changes per hour over the living volume, with 9 ft ceilings. Our estimator sets the exact airflow room by room, following CSA F326.
What it does, in numbers
$21.47
Electricity per year
Less than a 60 W light bulb
Bulbs left on day and night. Same calculation for every line: wattage × 8,760 h × 11.142 ¢/kWh.
Meets the Québec Construction Code everywhere in the province. The Code requires 54% at −25 °C below 6,000 degree-days (Montréal, Laval, Longueuil and both shores) and 60% above that. This unit is rated at 68% at 83 cfm.
Airflow and efficiency: manufacturer's data; airflow at 0.4 in and power draw from the V180H75RT spec sheet. Cost: 22 W over 8,760 h at Hydro-Québec's Rate D second tier (11.142 ¢/kWh).
What you should know about this one
Published, verifiable facts, not brochure claims.
LCDLCD shows airflow and power draw in real time
The built-in screen is used to set the desired airflow, shows real-time airflows and power consumption, and serves as a diagnostic tool with error codes.
MERV 13Optional MERV 13 filter (part V24300)
A MERV 8 filter is included and can be replaced by the optional MERV 13 filter, part V24300, for finer filtration. The optional filter is disposable and is changed when too dirty.
68%What it still recovers at −25 °C
The only efficiency figure that matters for a Québec winter, and the one the Code uses. An efficiency quoted without its temperature means nothing; this one is measured at a test airflow of 83 cfm.
DamperIt defrosts without depressurizing the house
In cold weather, a motorized damper closes the outdoor air intake and recirculates indoor air through the core to thaw it. The house doesn't go into negative pressure during the cycle: no cold air drawn in through leaks, and none of the imbalance manufacturers warn about when there's a fireplace or a combustion appliance.
HRVIt recovers heat, not moisture
Excess moisture leaves the house. In Québec, that's the right choice in most cases: in winter, the problem is almost always too much humidity, not too little.
−6 cfmWhat the ducts cost it
Between a nearly unrestricted test bench (0.2 in) and a real duct system (0.4 in), it drops from 199 to 193 cfm. Most spec sheets show only the first number, precisely because it looks better.
22 WMeasured at the airflow it actually runs at
Its 78% at 0 °C is measured at 64 cfm, the continuous airflow of a typical home. At that setting it draws 22 W, or about 193 kWh a year.
10 yearsThe core warranty
The core does the work and is the most expensive part to replace. Motors and parts: 5 years. We register the warranty in your name at commissioning.
6 inWhat it needs on site

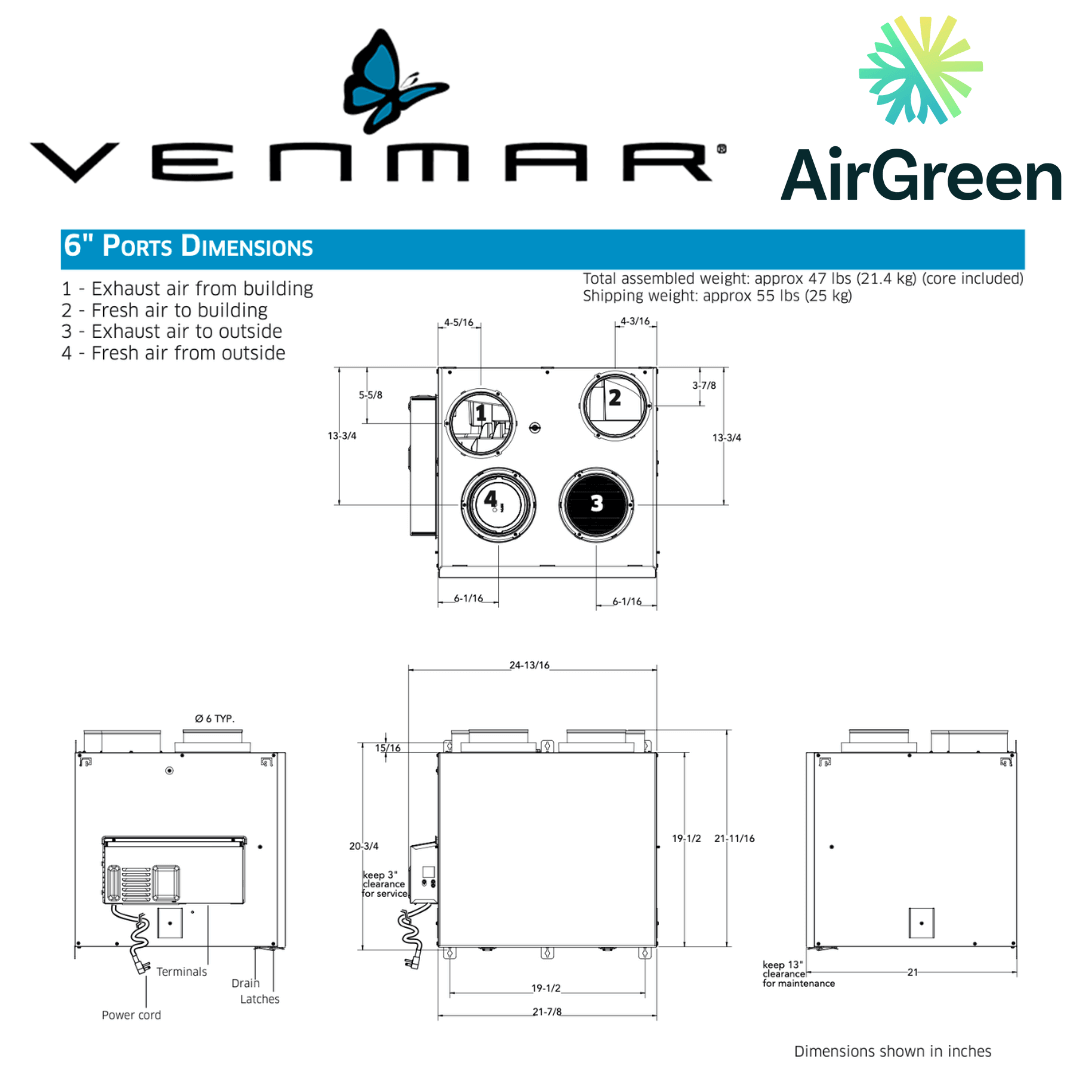

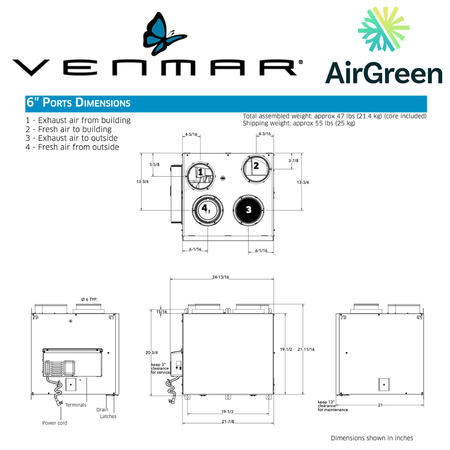

6 in ducts, top connection and a condensate drain. It weighs 47 lb, and it needs enough clearance to slide the core out once a year.
What it needs on site
In a condo with no floor drain, or with little ceiling clearance, we usually look at a side-port model instead. Our estimator checks the location, the drain and the duct route before ordering.
Complete spec sheetData and cited sources
- Net airflow at 0.2 in. w.g.
- 199 cfm
- Net airflow at 0.4 in. w.g.
- 193 cfm
- SRE at 0 °C (64 cfm)
- 78%
- SRE at −25 °C (83 cfm)
- 68%
- ASE at 0 °C
- 82%
- Power draw
- 22 W
- Efficacy
- 2.9 cfm/W
- Type
- HRV
- Connection
- Top ports
- Duct collars
- 6 in
- Condensate drain
- Required
- Defrost cycle
- Recirculation (motorized damper)
- Filters
- Washable MERV 8 filter and washable exhaust filter included
- Dimensions (L × D × H)
- 24.81 × 21 × 21.69 in
- Weight
- 47 lb
- Power supply
- 120 V
- Warranty — core
- 10 years
- Warranty — motors
- 5 years
- Warranty — parts
- 5 years
Manufacturer's published data for this model; airflow at 0.4 in and power draw from the V180H75RT spec sheet, a model with identical published ratings. Annual consumption calculated at 22 W running continuously for 8,760 h, at Hydro-Québec's Rate D second tier (11.142 ¢/kWh), in effect since April 1, 2026.
The next model down and up
Talk to an HVAC technician before you choose
We calculate the airflow room by room, check the location and the drain, and give you an installed price. Balancing is measured at commissioning, not estimated.

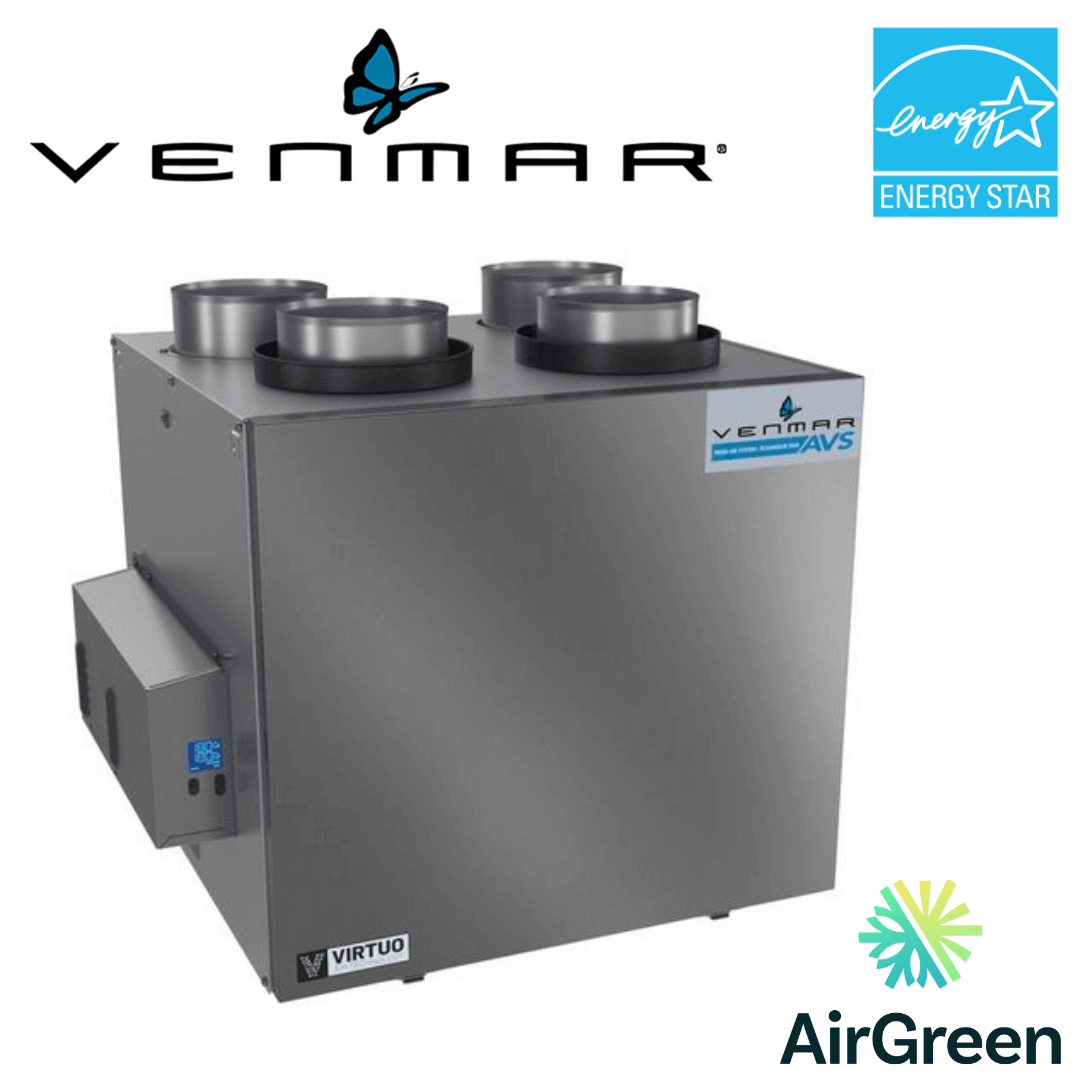

VENMAR AVS® AI2 SERIES HRV 199 CFM 78% SRE A180H75RT
Welcome to AirGreen, your leading HVAC solution provider based in Montreal. We are proud to deliver exceptional HVAC sales and installation services throughout Greater Montreal, Laval, Longueuil, the South Shore, and the North Shore. Within our extensive portfolio, we have a dedicated Air Exchanger section on our website, where we proudly offer Venmar Air Exchangers.
One of our standout products is the VENMAR AVS® AI2 SERIES HRV 199 CFM 78% SRE A180H75RT. This comprehensive and unique product description will delve into the product's superior capabilities, outstanding features, and the unparalleled value this product brings to your home or business.
The Apex of Indoor Air Quality
As leaders in residential indoor air quality, Venmar sets an industry high bar with the AVS HRV model. It is a prime example of innovation, incorporating VIRTUO™ technology, widely recognized for delivering the most straightforward installation process on the market. This fresh air system trumps others in its category, saving installers up to 20 minutes, courtesy of its auto-balancing and self-adjusting technology.
The built-in LCD screen is an integral part of this product, showcasing real-time airflows and power consumption, and serving as a handy diagnostic error tool. This technology, by simplifying the most complex parts of the installation process, not only saves contractors' valuable time but also significantly reduces the number of call-backs.
Consistent, Reliable and Efficient
This product is a champion of consistency and reliability, delivering unmatched airflow verification results irrespective of the dwelling type. Capable of delivering a potent 180 CFM, the unit's powerful, efficient, and proprietary blower fan motors position it as the ideal solution for larger homes.
Reimagining Ventilation
Installing the VENMAR AVS® AI2 SERIES HRV is more than just an appliance addition; it's an upgrade to your indoor air quality. This Heat Recovery Ventilator (HRV) systematically supplies tempered, filtered outdoor fresh air, while concurrently exhausting the stale, polluted air from your home. The result? An indoor environment filled with healthier and more comfortable air.
Unmatched Filtration for a Healthier Home
The appliance includes a standard MERV 8 filter. This design outperforms many other models on the market, boasting a larger capture area. What's more, homeowners stand to save money with the reusable, easy-to-wash design.
Installation and Performance Made Easy with VIRTUO™ technology
The VIRTUO™ technology ensures quick setup by taking charge of airflow verification and balancing, effectively eliminating a complex part of the installation process. It's a set-it-and-forget-it system that continues to deliver fresh, clean air. The VIRTUO™ technology guarantees consistent results with airflow verification, auto-balancing, and self-adjustment technology, allowing the system to maintain the initial configuration's quality in all dwelling types.
Powerful, Reliable, and Energy Efficient
The VENMAR AVS® AI2 SERIES HRV is equipped with potent and energy-efficient ECM PMSM motors, capable of delivering up to 199 CFM. This proprietary design is the most reliable on the market. The superior HRV core performance and durability are impressive, reaching up to 78% SRE 0°C at 64 CFM and Certified at 68% SRE -25°C at 83 CFM.
Enhanced Air Quality and User-friendly Controls
The unit delivers superior air quality with an included MERV 8 filter, with optional high filtration available. An integrated LCD screen makes it easy to set the desired CFM, displaying real-time airflows, power consumption, and acting as a diagnostic error tool. This model is compatible with a wide range of modern and user-friendly controls to meet specific needs and different applications.
Flexible Installation and Certified Performance
With both top & side port configurations on offer, the HRV's universal platform accommodates different installation locations. Options include a suspended installation (chains included) or a wall-mount installation with 2 or 4 brackets (universal brackets included). What's more, the unit is ENERGY STAR® certified, so it delivers not just superior performance but also energy efficiency.
At AirGreen, we take pride in offering our customers the very best in HVAC solutions. With years of industry experience and a relentless commitment to customer satisfaction, we provide an unparalleled level of service in the HVAC industry. Our team of experts is ready to help you choose the right HVAC solutions for your needs, offering professional installation and comprehensive after-sales support.
In the VENMAR AVS® AI2 SERIES HRV 199 CFM 78% SRE A180H75RT, we are thrilled to bring you an air exchanger that perfectly encapsulates our values of quality, performance, and customer satisfaction. This product earned the ENERGY STAR® by meeting stringent energy efficiency guidelines set by Natural Resources Canada and the US EPA. This product meets ENERGY STAR requirements only when used in Canada.
With AirGreen and VENMAR AVS® AI2 SERIES HRV, enjoy superior indoor air quality with the peace of mind that comes from knowing you've chosen the best in the market.
