Air Exchanger VENMAR AVS® AI2 SERIES A230H75RS Greater Montreal
Is it the right size for your home?
It delivers 225 cfm net, enough to ventilate 2,600 to 4,200 sq ft. Choose your home's living area.
It's the right size.
For a 2,500 to 3,200 sq ft home, about 150 cfm of air needs to be renewed continuously. This unit delivers 225 cfm net — enough for the house, with extra capacity to boost ventilation for the bathroom and kitchen.
Calculation: 0.35 air changes per hour over the living volume, with 9 ft ceilings. Our estimator sets the exact airflow room by room, following CSA F326.
What it does, in numbers
$24.40
Electricity per year
Less than a 60 W light bulb
Bulbs left on day and night. Same calculation for every line: wattage × 8,760 h × 11.142 ¢/kWh.
Meets the Québec Construction Code everywhere in the province. The Code requires 54% at −25 °C below 6,000 degree-days (Montréal, Laval, Longueuil and both shores) and 60% above that. This unit is rated at 67% at 81 cfm.
Airflow and efficiency: manufacturer's data; airflow at 0.4 in and power draw from the V230H75RS spec sheet. Cost: 25 W over 8,760 h at Hydro-Québec's Rate D second tier (11.142 ¢/kWh).
What you should know about this one
Published, verifiable facts, not brochure claims.
19.5 inSide-port version, 19.5 in tall
Same published performance as the A230H75RT, but with the 6 in collars on the side: the cabinet is 19.5 in tall and 27.13 in wide instead of 21.69 in tall and 24.81 in wide.
MERV 13Upgrade path to a MERV 13 filter (V24300)
The included MERV 8 filter can be swapped for the optional MERV 13 filter, part V24300, which installs over the core. It is disposable and replaced when too dirty.
67%What it still recovers at −25 °C
The only efficiency figure that matters for a Québec winter, and the one the Code uses. An efficiency quoted without its temperature means nothing; this one is measured at a test airflow of 81 cfm.
DamperIt defrosts without depressurizing the house
In cold weather, a motorized damper closes the outdoor air intake and recirculates indoor air through the core to thaw it. The house doesn't go into negative pressure during the cycle: no cold air drawn in through leaks, and none of the imbalance manufacturers warn about when there's a fireplace or a combustion appliance.
HRVIt recovers heat, not moisture
Excess moisture leaves the house. In Québec, that's the right choice in most cases: in winter, the problem is almost always too much humidity, not too little.
−6 cfmWhat the ducts cost it
Between a nearly unrestricted test bench (0.2 in) and a real duct system (0.4 in), it drops from 231 to 225 cfm. Most spec sheets show only the first number, precisely because it looks better.
25 WMeasured at the airflow it actually runs at
Its 78% at 0 °C is measured at 66 cfm, the continuous airflow of a typical home. At that setting it draws 25 W, or about 219 kWh a year.
10 yearsThe core warranty
The core does the work and is the most expensive part to replace. Motors and parts: 5 years. We register the warranty in your name at commissioning.
6 inWhat it needs on site
6 in ducts, side connection and a condensate drain. It weighs 47 lb, and it needs enough clearance to slide the core out once a year.
What it needs on site
In a condo with no floor drain, or with little ceiling clearance, we usually look at a side-port model instead. Our estimator checks the location, the drain and the duct route before ordering.
Complete spec sheetData and cited sources
- Net airflow at 0.2 in. w.g.
- 231 cfm
- Net airflow at 0.4 in. w.g.
- 225 cfm
- SRE at 0 °C (66 cfm)
- 78%
- SRE at −25 °C (81 cfm)
- 67%
- ASE at 0 °C
- 82%
- Power draw
- 25 W
- Efficacy
- 2.6 cfm/W
- Type
- HRV
- Connection
- Side ports
- Duct collars
- 6 in
- Condensate drain
- Required
- Defrost cycle
- Recirculation (motorized damper)
- Filters
- Washable MERV 8 filter and washable exhaust filter included
- Dimensions (L × D × H)
- 27.13 × 21 × 19.5 in
- Weight
- 47 lb
- Power supply
- 120 V
- Warranty — core
- 10 years
- Warranty — motors
- 5 years
- Warranty — parts
- 5 years
Manufacturer's published data for this model; airflow at 0.4 in and power draw from the V230H75RS spec sheet, a model with identical published ratings. Annual consumption calculated at 25 W running continuously for 8,760 h, at Hydro-Québec's Rate D second tier (11.142 ¢/kWh), in effect since April 1, 2026.
The next model down and up
Talk to an HVAC technician before you choose
We calculate the airflow room by room, check the location and the drain, and give you an installed price. Balancing is measured at commissioning, not estimated.

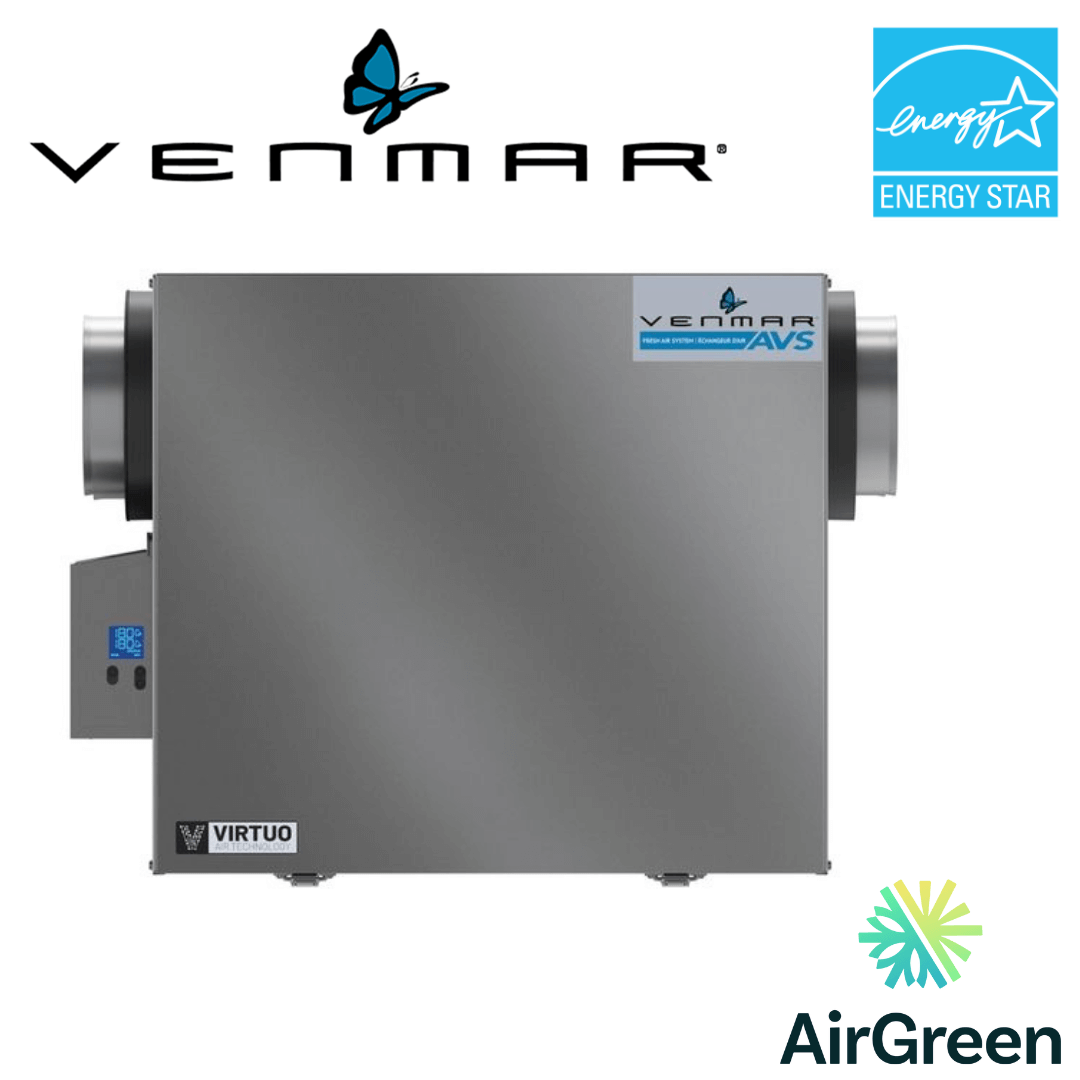

Introducing the VENMAR AVS® AI2 SERIES ERV 230 CFM 78% SRE A230H75RS
Welcome to AirGreen, a premier HVAC company in Montreal. We pride ourselves on our top-tier HVAC sales and installation services throughout Greater Montreal, Laval, Longueuil, South Shore, and North Shore. Our website boasts an impressive Air Exchanger section, where we feature a selection of Venmar Air Exchangers. A standout product among these is the VENMAR AVS® AI2 SERIES ERV 230 CFM 78% SRE A230H75RS (side ports).
As a leader in residential indoor air quality solutions, Venmar has crafted this exceptional Heat Recovery Ventilator (HRV) featuring their advanced VIRTUO™ technology. The VIRTUO™ technology ensures this fresh air system provides the simplest installation process in the market. This efficient technology allows installers to save up to 20 minutes during installation, courtesy of the auto-balancing and self-adjusting features.
Moreover, the built-in LCD screen offers a glimpse into real-time airflows, power consumption, and doubles as a diagnostic error tool. This technology streamlines the most intricate part of the installation process, significantly reducing the frequency of call-backs and saving contractors valuable time.
Consistent and Reliable Performance
This HRV stands out for its ability to deliver consistent results with airflow verification, making it the most reliable and efficient solution available on the market, regardless of the dwelling type. With a powerful 230 CFM capacity from our efficient, proprietary blower fan motors, it is the ideal solution for larger homes.
Improved Indoor Air Quality with the HRV
The process of installing a Heat Recovery Ventilator (HRV) significantly improves the indoor air quality of your home. The HRV supplies tempered, filtered outdoor fresh air while simultaneously exhausting stale polluted air from your home. This exchange process results in healthier, more comfortable indoor air. Moreover, the standard MERV 8 filter presents a larger capture area than competing units in the market, providing more effective filtration and saving homeowners money with its reusable and washable design.
User-friendly Installation with VIRTUO™ technology
The VIRTUO™ technology simplifies the installation process by managing the airflow verification and balancing. This feature eradicates a complex part of the installation process, rendering the setup process straightforward. The auto-balancing and self-adjustment technology ensure the initial configuration of quality is maintained across all dwelling types, providing consistent results.
Powerful and Energy-efficient HRV
The HRV is equipped with powerful and energy-efficient ECM PMSM motors, delivering up to 231 CFM. Our proprietary design is one of the most reliable on the market. The superior HRV core performance and durability reach up to 78% SRE at 0°C at 66 CFM, and it's certified at 67% SRE at -25°C at 81 CFM.
Delivering Superior Air Quality and User-friendly Controls
Our HRV delivers superior air quality with an included MERV 8 filter and optional high filtration. The integrated LCD screen facilitates easy setting of the desired CFM, displaying real-time airflows, power consumption, and acting as a diagnostic error tool. The universal platform offers both top and side port configurations to accommodate different installation locations. It is compatible with a wide range of modern and user-friendly controls to meet specific needs and applications.
Certifications and Warranties
Our VENMAR AVS® AI2 SERIES ERV is not just high performing but also reliable and certified. It carries the ENERGY STAR® certification and has undergone rigorous testing from the Home Ventilation Institute (HVI). Moreover, it comes with a 5-year warranty on parts and a 10-year warranty on the core or thermal wheel, offering peace of mind for your investment.
Efficiency and Environmental Compliance
This product has earned the ENERGY STAR® by meeting the strict energy efficiency guidelines set by Natural Resources Canada and the US EPA. This product meets ENERGY STAR requirements only when used in Canada, providing additional assurance for our environmentally conscious customers.
We, at AirGreen, are excited to partner with you in improving indoor air quality by providing high-quality air exchange solutions that prioritize your comfort and health. Whether you're in Greater Montreal, Laval, Longueuil, South Shore, or North Shore, trust AirGreen for all your HVAC needs. Let us breathe new life into your living spaces with top-quality air exchange solutions that put your comfort and health at the forefront. Choose the VENMAR AVS® AI2 SERIES ERV 230 CFM 78% SRE A230H75RS for an unparalleled indoor air quality experience.
