Air Exchanger VENMAR AVS® N SERIES A130E65RT Greater Montreal
Is it the right size for your home?
It delivers 119 cfm net, enough to ventilate 1,400 to 2,200 sq ft. Choose your home's living area.
It's the right size.
For a 1,500 to 2,500 sq ft home, about 105 cfm of air needs to be renewed continuously. This unit delivers 119 cfm net — enough for the house, with extra capacity to boost ventilation for the bathroom and kitchen.
Calculation: 0.35 air changes per hour over the living volume, with 9 ft ceilings. Our estimator sets the exact airflow room by room, following CSA F326.
What it does, in numbers
$29.28
Electricity per year
Less than a 60 W light bulb
Bulbs left on day and night. Same calculation for every line: wattage × 8,760 h × 11.142 ¢/kWh.
Meets the Québec Construction Code for Greater Montréal. The Code requires 54% at −25 °C below 6,000 degree-days (Montréal, Laval, Longueuil and both shores) and 60% above that. This unit is rated at 56% at 66 cfm.
Airflow and efficiency: manufacturer's published data. Cost: 30 W over 8,760 h at Hydro-Québec's Rate D second tier (11.142 ¢/kWh).
What you should know about this one
Published, verifiable facts, not brochure claims.
−5 °CDefrost starts at −5 °C, Plus setting for colder areas
Per the spec sheet, Homeshield defrost activates at −5 °C (23 °F) and below, following a time table based on airflow. The Plus setting extends defrost for colder regions, and an extra 10-minute defrost runs every 5 cycles.
MembranePolymer membrane core: vacuum it, never wash it
The ERV core is a polypropylene crossflow core with a polymer membrane and aluminum covers, and it is not washable. At the yearly service, vacuum it with a soft brush and never soak it in water.
56%What it still recovers at −25 °C
The only efficiency figure that matters for a Québec winter, and the one the Code uses. An efficiency quoted without its temperature means nothing; this one is measured at a test airflow of 66 cfm.
DamperIt defrosts without depressurizing the house
In cold weather, a motorized damper closes the outdoor air intake and recirculates indoor air through the core to thaw it. The house doesn't go into negative pressure during the cycle: no cold air drawn in through leaks, and none of the imbalance manufacturers warn about when there's a fireplace or a combustion appliance.
ERVIt moves moisture too, not just heat
An ERV transfers some moisture between the two airstreams. Useful in a house that gets too dry in winter or takes on a lot of humidity in summer. The trade-off: it generally recovers less heat than a comparable HRV.
−12 cfmWhat the ducts cost it
Between a nearly unrestricted test bench (0.2 in) and a real duct system (0.4 in), it drops from 131 to 119 cfm. Most spec sheets show only the first number, precisely because it looks better.
30 WMeasured at the airflow it actually runs at
Its 67% at 0 °C is measured at 66 cfm, the continuous airflow of a typical home. At that setting it draws 30 W, or about 263 kWh a year.
5 yearsThe core warranty
The core does the work and is the most expensive part to replace. Motors and parts: 5 years. We register the warranty in your name at commissioning.
5 inWhat it needs on site

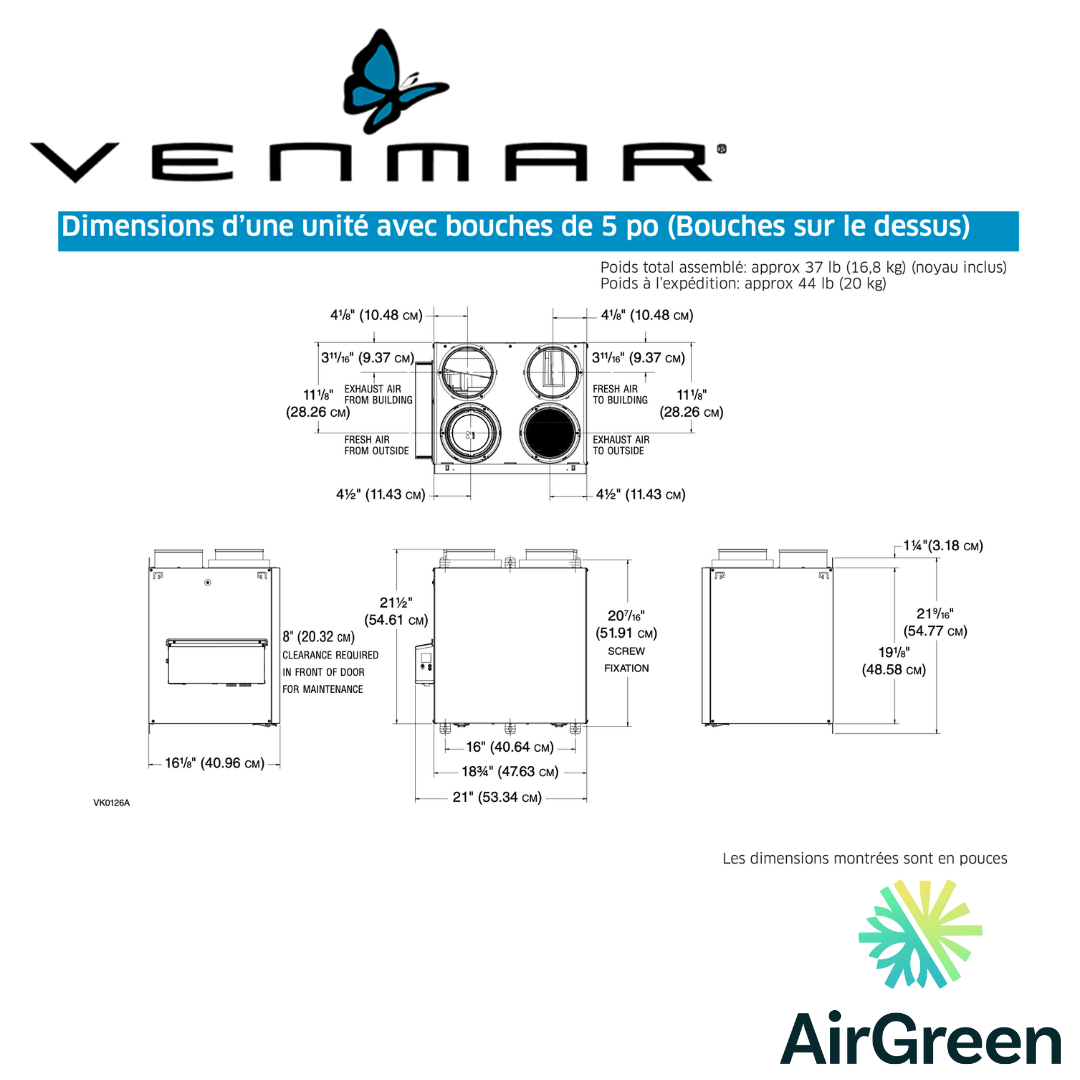

5 in ducts, top connection. It weighs 37 lb, and it needs enough clearance to slide the core out once a year.
What it needs on site
In a condo with no floor drain, or with little ceiling clearance, we usually look at a side-port model instead. Our estimator checks the location, the drain and the duct route before ordering.
Complete spec sheetData and cited sources
- Net airflow at 0.2 in. w.g.
- 131 cfm
- Net airflow at 0.4 in. w.g.
- 119 cfm
- SRE at 0 °C (66 cfm)
- 67%
- SRE at −25 °C (66 cfm)
- 56%
- ASE at 0 °C
- 71%
- Power draw
- 30 W
- Efficacy
- 2.2 cfm/W
- Type
- ERV
- Connection
- Top ports
- Duct collars
- 5 in
- Defrost cycle
- Recirculation (motorized damper)
- Filters
- Washable MERV 8 filter and washable exhaust filter included (kit SV66133)
- Dimensions (L × D × H)
- 21 × 16.13 × 21.5 in
- Weight
- 37 lb
- Power supply
- 120 V
- Warranty — core
- 5 years
- Warranty — motors
- 5 years
- Warranty — parts
- 5 years
Airflow and efficiency: manufacturer's published data. Annual consumption calculated at 30 W running continuously for 8,760 h, at Hydro-Québec's Rate D second tier (11.142 ¢/kWh), in effect since April 1, 2026.
The next model down and up
Talk to an HVAC technician before you choose
We calculate the airflow room by room, check the location and the drain, and give you an installed price. Balancing is measured at commissioning, not estimated.

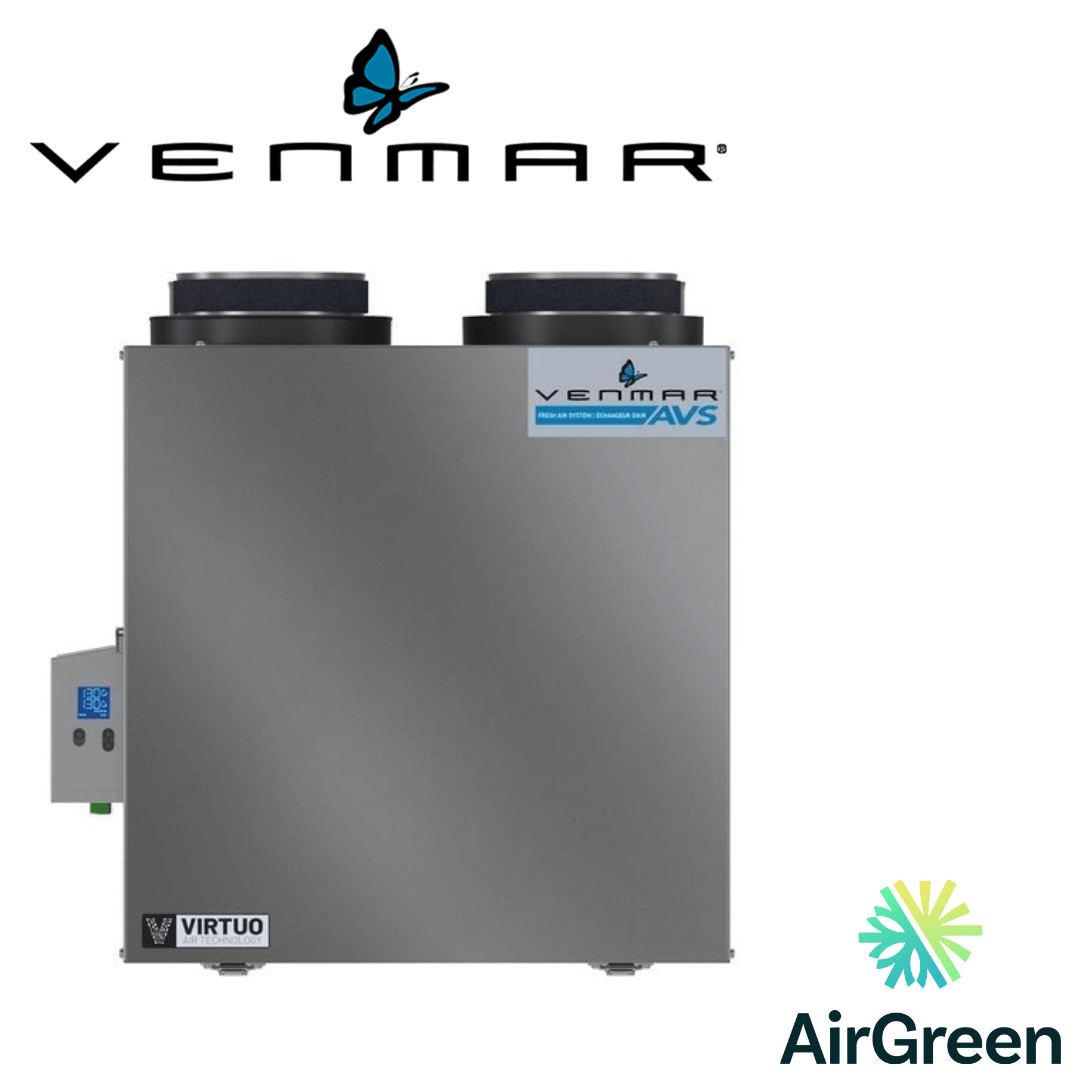

VENMAR AVS® N SERIES™ ERV 131 CFM 65% SRE WITH VIRTUO AIR TECHNOLOGY™ TOP PORTS A130E65RT
At AirGreen, a renowned HVAC company based in Montreal, we provide top-of-the-line HVAC sales and installation services throughout Greater Montreal, Laval, Longueuil, South Shore, and North Shore. Our extensive suite of high-quality products features in our Air Exchanger section on our website, the innovative Venmar Air Exchangers. We are thrilled to introduce one such standout product - the VENMAR AVS® N SERIES™ ERV 131 CFM 65% SRE WITH VIRTUO AIR TECHNOLOGY™ TOP PORTS A130E65RT. This air exchanger is a game-changer in the industry, offering unparalleled fresh air system features that not only simplify the life of contractors but also maximize profitability while consistently ensuring superior air quality.
Industry's Most Advanced Residential Fresh Air System
The VENMAR AVS® N SERIES™ERV 131 CFM 65% SRE with Virtuo Air Technology™ top ports A130E65RT is a groundbreaking development in residential fresh air systems. It boasts a universal platform explicitly designed and upgraded to make life easier and more profitable for contractors while delivering unwaveringly superior air quality. This innovative system's advanced features are all in the service of one goal - to provide you with fresh, clean air every day.
Virtuo Air Technology™: The Cutting Edge of Airflow Calibration and Auto-Balancing
Virtuo Air Technology™ sits at the heart of the A130E65RT model. This advanced technology facilitates swift and enduring airflow calibration and auto-balancing.
- Integrated LCD Screen: The device allows you to select your desired CFM (from 35 to 130 CFM) using an integrated LCD screen - the first of its kind. Once you set the CFM, the airflow sets up automatically.
- Real-Time LCD: The integrated electronic airflow measurement device offers real-time monitoring, enabling precise, immediate readings.
- Integrated Diagnostic Tool: The built-in diagnostic tool assures the effortless maintenance and troubleshooting of the unit.
Exceptional Energy Efficiency
The A130E65RT model comes equipped with PMSM ECM motors, drastically reducing power consumption while maintaining high-performance levels. This energy-efficient operation translates into significant cost savings over time. The unit's electrical characteristics include 120 volts, 60 Hz, 2.4 A, and 110 W.
Flexible Installation Options
To enhance your convenience, the unit offers various installation options - it can be either suspended (chains included) or wall-mounted using the included universal brackets (option of 2 or 4 brackets).
Superior Air Quality with Unmatched Features
The Venmar AVS® N Series™ERV A130E65RT brings together a plethora of high-end features that collectively enhance indoor air quality:
- Impressive SRE Performance: It achieves a remarkable SRE of 67% at 0°C and 56% at -25°C (66 CFM, 31 L/s), ensuring optimal energy conservation.
- Port Size: The unit features a port size of 5", compatible with standard installations.
- Recirculation Defrost: This method promotes better utilization of existing heat, thereby reducing energy costs.
- Durable Construction: The corrosion-resistant galvanized steel door and cabinet ensure the unit's longevity.
- Air Leakage Prevention: A one-piece molded insulation shell (expanded polystyrene; UL 94 HF-1 certified) prevents any air leakage.
Virtuo Constant Airflow and Auto-Balancing Device
Our advanced unit incorporates a patent-pending Virtuo constant airflow and auto-balancing device. Paired with motorized dampers, the unit ensures efficient, balanced ventilation under all circumstances.
Simplified Maintenance
- No Drain Required: The device operates without a drain, simplifying the installation process and reducing maintenance requirements.
- Recirculation Mode: The unit can recirculate air within the dwelling using a main wall control, adding an additional layer of control over your indoor air quality.
- Power Cord: The unit comes with a 6' power cord for your convenience.
Whisper-Quiet Operation
Our unit maintains remarkably quiet operation, ensuring that your living environment remains serene.
High-Quality Core
The unit features a polypropylene crossflow core with a polymeric membrane and aluminum covers. This impact-resistant, non-washable core measures 12" x 12" x 9" (30.5 cm x 30.5 cm x 23 cm), ensuring durability and high performance.
Effective Filtration
- Standard Filter: The unit comes with a washable standard MERV 8 grade filter, allowing for excellent air filtration.
- Optional Filters: To further enhance indoor air quality, a MERV13 grade filter (part no. V24285) and a HEPA media type filter (part no. V25000) are available as optional choices.
Additional Options
- Register and Diffuser Options: We offer a full range of registers and diffusers for complete ventilation solutions.
- Compatibility: The unit is compatible with the Tandem transition (part no. 14690), recommended for installations producing up to 110 CFM.
Unique Defrost System
Our Homeshield™ Defrosting System ensures no negative pressure is created by air exhausted to the outdoors as the air is recirculated into the house, helping to prevent any backdraft.
Fan Curves with Virtuo Air Technology™
Thanks to Virtuo Air Technology™, there's no need to manually balance the unit. Both PMSM motors are controlled by an artificial intelligence performing 120 readings per minute, then processing this information to maintain the requested airflow.
For a typical installation, Virtuo will ensure balanced ventilation at every selected speed, regardless of weather conditions, the type of connection, variable speed furnace/AHU, stack effect, filter clogging, etc. This results in peace of mind for installers and users, knowing the unit will always remain balanced and maintain its maximum heat/energy recovery efficiency.
Compliance with Requirements and Standards
The Venmar AVS® N Series™ERV 131 CFM 65% SRE with Virtuo Air Technology™ top ports A130E65RT is UL 1812 compliant (safety), CSA C22.2 No. 113 compliant (safety), can be installed in compliance with CSA F326, has been performance tested in accordance with CSA C439 Standard, is compliant with Prop 65, and complies with the ROHS 2015/863 directive.
At AirGreen, we're committed to offering a broad range of HVAC products designed for the comfort and wellness of our customers. Choose AirGreen for an unmatched HVAC experience.
