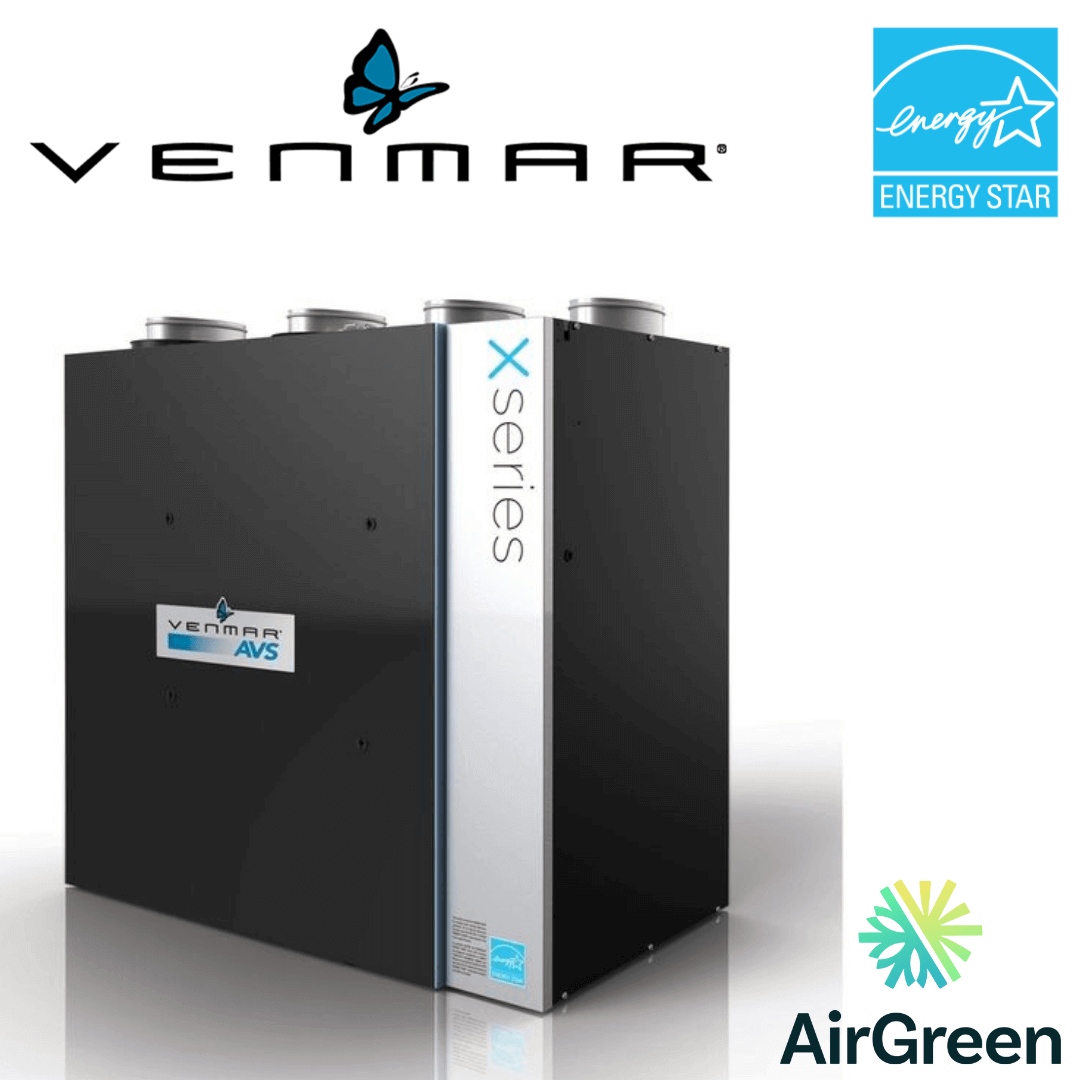

VENMAR AVS® X SERIES X30HRVE Air Exchanger Greater Montreal
Is it the right size for your home?
It delivers 252 cfm net, enough to ventilate 3,000 to 4,800 sq ft. Choose your home's living area.
It's the right size.
For a 3,200 to 5,000 sq ft home, about 215 cfm of air needs to be renewed continuously. This unit delivers 252 cfm net — enough for the house, with extra capacity to boost ventilation for the bathroom and kitchen.
Calculation: 0.35 air changes per hour over the living volume, with 9 ft ceilings. Our estimator sets the exact airflow room by room, following CSA F326.
What it does, in numbers
$17.57
Electricity per year
Less than a 60 W light bulb
Bulbs left on day and night. Same calculation for every line: wattage × 8,760 h × 11.142 ¢/kWh.
Meets the Québec Construction Code everywhere in the province. The Code requires 54% at −25 °C below 6,000 degree-days (Montréal, Laval, Longueuil and both shores) and 60% above that. This unit is rated at 66% at 64 cfm.
Airflow and efficiency: manufacturer's published data. Cost: 18 W over 8,760 h at Hydro-Québec's Rate D second tier (11.142 ¢/kWh).
What you should know about this one
Published, verifiable facts, not brochure claims.
X SeriesThe highest airflow in the X Series
The X30HRV delivers 252 cfm at 0.4 in, versus 244 cfm for the X30ERV, 227 cfm for the X24HRV and 210 cfm for the X24ERV, in the same cabinet. Venmar aims it at mid-size to large homes.
CommercialAllowed in light commercial (NBC Part 9)
The guide also allows installation in offices and shops of 3 storeys or less and no more than 600 m², under Part 9 of the National Building Code. The sheet calls it fit for some light commercial uses thanks to its high fresh air supply.
66%What it still recovers at −25 °C
The only efficiency figure that matters for a Québec winter, and the one the Code uses. An efficiency quoted without its temperature means nothing; this one is measured at a test airflow of 64 cfm.
DamperIt defrosts without depressurizing the house
In cold weather, a motorized damper closes the outdoor air intake and recirculates indoor air through the core to thaw it. The house doesn't go into negative pressure during the cycle: no cold air drawn in through leaks, and none of the imbalance manufacturers warn about when there's a fireplace or a combustion appliance.
HRVIt recovers heat, not moisture
Excess moisture leaves the house. In Québec, that's the right choice in most cases: in winter, the problem is almost always too much humidity, not too little.
−19 cfmWhat the ducts cost it
Between a nearly unrestricted test bench (0.2 in) and a real duct system (0.4 in), it drops from 271 to 252 cfm. Most spec sheets show only the first number, precisely because it looks better.
18 WMeasured at the airflow it actually runs at
Its 75% at 0 °C is measured at 64 cfm, the continuous airflow of a typical home. At that setting it draws 18 W, or about 158 kWh a year.
LifetimeThe core warranty
The core does the work and is the most expensive part to replace. Motors and parts: 5 years. We register the warranty in your name at commissioning.
6 inWhat it needs on site
6 in (oval) ducts, top connection and a condensate drain. It weighs 93 lb, and it needs enough clearance to slide the core out once a year.
What it needs on site
In a condo with no floor drain, or with little ceiling clearance, we usually look at a side-port model instead. Our estimator checks the location, the drain and the duct route before ordering.

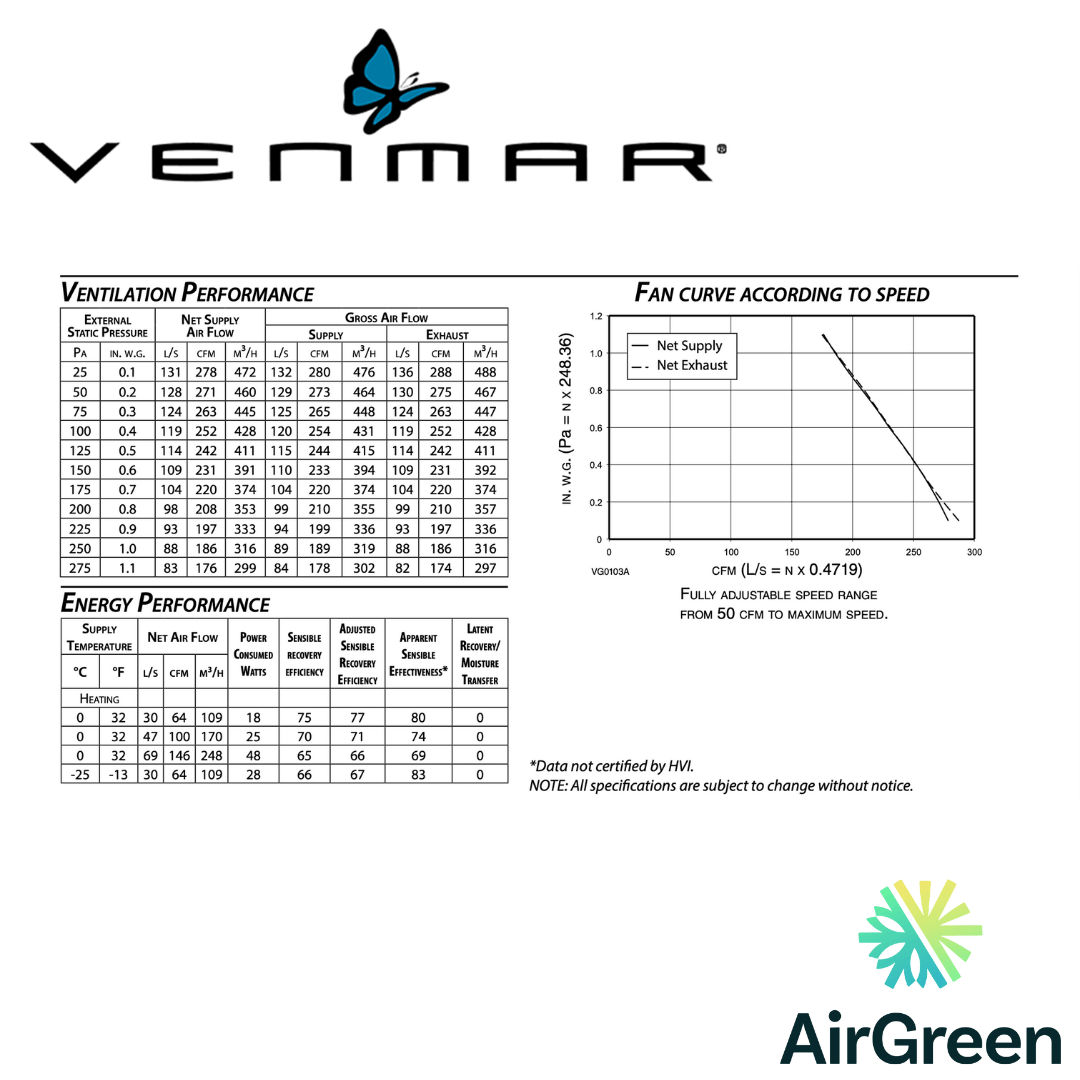

Complete spec sheetData and cited sources
- Net airflow at 0.2 in. w.g.
- 271 cfm
- Net airflow at 0.4 in. w.g.
- 252 cfm
- SRE at 0 °C (64 cfm)
- 75%
- SRE at −25 °C (64 cfm)
- 66%
- ASE at 0 °C
- 80%
- Power draw
- 18 W
- Efficacy
- 3.6 cfm/W
- Type
- HRV
- Connection
- Top ports
- Duct collars
- 6 in (oval)
- Condensate drain
- Required
- Defrost cycle
- Recirculation (motorized damper)
- Filters
- 2 washable MERV 6 filters; optional HEPA filter no. 21996
- Dimensions (L × D × H)
- 32.19 × 20.06 × 33.19 in
- Weight
- 93 lb
- Power supply
- 120 V
- Warranty — core
- Lifetime
- Warranty — motors
- 5 years
- Warranty — parts
- 5 years
Airflow and efficiency: manufacturer's published data. Annual consumption calculated at 18 W running continuously for 8,760 h, at Hydro-Québec's Rate D second tier (11.142 ¢/kWh), in effect since April 1, 2026.
The next model down and up
Talk to an HVAC technician before you choose
We calculate the airflow room by room, check the location and the drain, and give you an installed price. Balancing is measured at commissioning, not estimated.
Embrace the Future of Fresh Air with the Venmar AVS® X Series™ HRV 271 CFM 75% SRE Top Ports X30HRVE
At AirGreen, we are proud to be a leading HVAC company based in Montreal. We take pride in providing top-tier HVAC sales and installation services across Greater Montreal, Laval, Longueuil, South Shore, and North Shore. One of our most sought-after offerings falls under the Air Exchanger category, where we proudly showcase Venmar Air Exchangers. One product that we are particularly excited about is the VENMAR AVS® X SERIES™ HRV 271 CFM 75% SRE TOP PORTS X30HRVE.
Introducing Venmar X30HRVE: The Apex of Ventilation Technology
Embrace the future of fresh air with this innovative home ventilation system. It is one of the key components of energy-efficient homes in today's world. The new X Series from Venmar AVS merges exceptional performance with top-notch energy efficiency. As a result, you get fresher, purer air circulating throughout your home at lower operating costs. This is what we call 'Pure Efficiency.'
Tailored to Fit Mid to Large Size Homes
The X30HRV ECM is an energy-efficient ventilation solution that has been designed keeping mid to large size homes in mind. It can provide a significant boost to the freshness and purity of your indoor air, thanks to its ability to deliver up to 250 CFM at 0.4 in. w.g.
High-Efficiency Heat Recovery Core
At the heart of the X30HRV lies its high-efficiency heat recovery core. This pivotal component presents a sensible recovery efficiency of 75% at 0°C and 66% at -25°C. In other words, it delivers optimal performance while conserving energy.
German-Made ECM Motors
The X30HRV is equipped with German-made ECM motors. These motors are celebrated globally for their durability and exceptional performance. This leads to extended product longevity, greater reliability, and outstanding performance of your air exchanger unit.
Unbeatable Energy Efficiency
The X30HRV is a shining beacon of energy conservation. It impresses with a minimal power consumption of 18W and 3.6 CFM/Watt at 64 CFM. High efficiency is synonymous with lower energy costs, making this ventilation solution an economical choice for your home.
Superlative Filtration Capabilities
The X30HRV is not only about ventilation; it's about providing purified air. It comes with MERV 6 grade filters, ensuring the circulating air is clean and healthy. For those seeking an even higher level of filtration, the unit provides optional HEPA filtration.
Electronic Balancing: Simplifying the Complex
One of the standout features of the X30HRV is its electronic balancing capability. Unlike other units, the X30HRV does not rely on balancing dampers. Instead, balancing is accomplished with the help of the X-Touch wall control, simplifying the process and enhancing overall efficiency.
Easy Repairs and Maintenance
The X30HRV is designed for ease of maintenance. Its high-output ECM motors are permanently lubricated, promising a longer lifespan. Furthermore, the unit's electronic circuit board minimizes electromechanical parts, significantly reducing repair time.
Industry-Leading Warranty
We know peace of mind matters. That's why the X30HRV comes with a 5-year warranty on parts and a limited lifetime warranty on the heat recovery core. We stand behind our products, and this extended warranty reflects our confidence in the quality and durability of our units.
Advanced Controls
To make operation as straightforward and efficient as possible, the X30HRV comes with the exclusive X-Touch wall control. This control unit is the only one compatible with the X Series and offers electronic balancing for easy operation.
Additional Options for Enhanced Performance
Beyond its core features, the X30HRV provides additional options to boost its performance and cater to your specific needs. This includes an optional HEPA filter 21996, adding an extra layer of filtration for the cleanest possible air. Please note that this feature entails an additional 0.3 in.w.g. static pressure at the highest speed.
Compliance with Standards
The X30HRV fully complies with the CSA C22.2 no. 113 Standard applicable to ventilators and the CSA F326 requirements governing the installation of Heat Recovery Ventilators. Its technical data were obtained from published results of tests relating to CSA C439 Standards. Additionally, it is HVI certified and ENERGY STAR® qualified.
