Honeywell HE105C1000/U Humidifier | Installation in Montreal, Laval, Longueuil, South Shore and North Shore
Is it the right size for your home?
It puts 12 gallons of water a day into the air, enough to humidify about 1,400 sq ft (our estimate). Pick your home's living area.
It's the right size.
For a condo or house under 900 sq ft, it's within its range. It will run at part load on ordinary days and keep a reserve for the coldest days.
AirGreen estimate. Honeywell (Resideo) publishes no area for this model. For an average-construction home, we count 120 sq ft per gallon a day, the ratio in AprilAire's and Lennox's tables. Older or leaky house: go one size up; our estimator confirms it on site.
What it does, in numbers
Output: manufacturer's spec (12 gal/day).
What you should know about this one
Published, verifiable figures, not brochure claims.
12 galWhat it produces per day, at full output
About 45 litres of water turned into humidity in 24 hours. The control runs it to match the humidity you set: it rarely runs flat out, except in very cold weather.
Heat pumpBehind a heat pump, it produces less
It evaporates water from a pad using the heat of the air coming off the furnace. A heat pump blows cooler air, so it evaporates less. With a heat pump, talk to our estimator: depending on the manufacturer, we connect it to hot water or suggest a steam model instead.
C kitEverything to install it
The C version adds 24 in. of 6 in. bypass duct, 20 ft of thermostat wire, 20 ft of feed tubing, 10 ft of drain tubing and a saddle valve.
7 WNext to nothing in electricity
Its valve uses 7 W at 24 V. It works with water pressure from 40 to 120 psi.
UpkeepWhat gets replaced, and when
HC22 pad, replace once a year.
35%The humidity to aim for in winter, at most
At −7 °C, no more than 35%; at −18 °C, no more than 25%. Above that, the moisture condenses on the windows. The control adjusts for you if it has an outdoor sensor.
5 yearsThe parts warranty
Parts are covered for 5 years by the manufacturer. We register the warranty in your name at start-up.
What it needs on site
Our estimator checks the ducts, the water supply and the drain before ordering.
Complete spec sheetData and cited sources
- Brand
- Honeywell
- Model
- HE105C1000/U
- Type
- Bypass
- Output
- 12 US gal/day
- Upkeep
- HC22 pad, replace once a year.
- Living area
- 1,400 sq ft (AirGreen estimate)
- Dimensions (L × D × H)
- 16.57 × 9.47 × 15.16 in
- Power supply
- 24 V
- Current
- 0.5 A
- Warranty — parts
- 5 years
Output, dimensions, electrical data and warranty: Honeywell manufacturer's data. Living area: AirGreen estimate, explained under « Your home ».
The next model down and up
Talk to an HVAC technician before you choose
We look at your heating system, the electrical panel, the water supply and the drain, and give you an installed price.

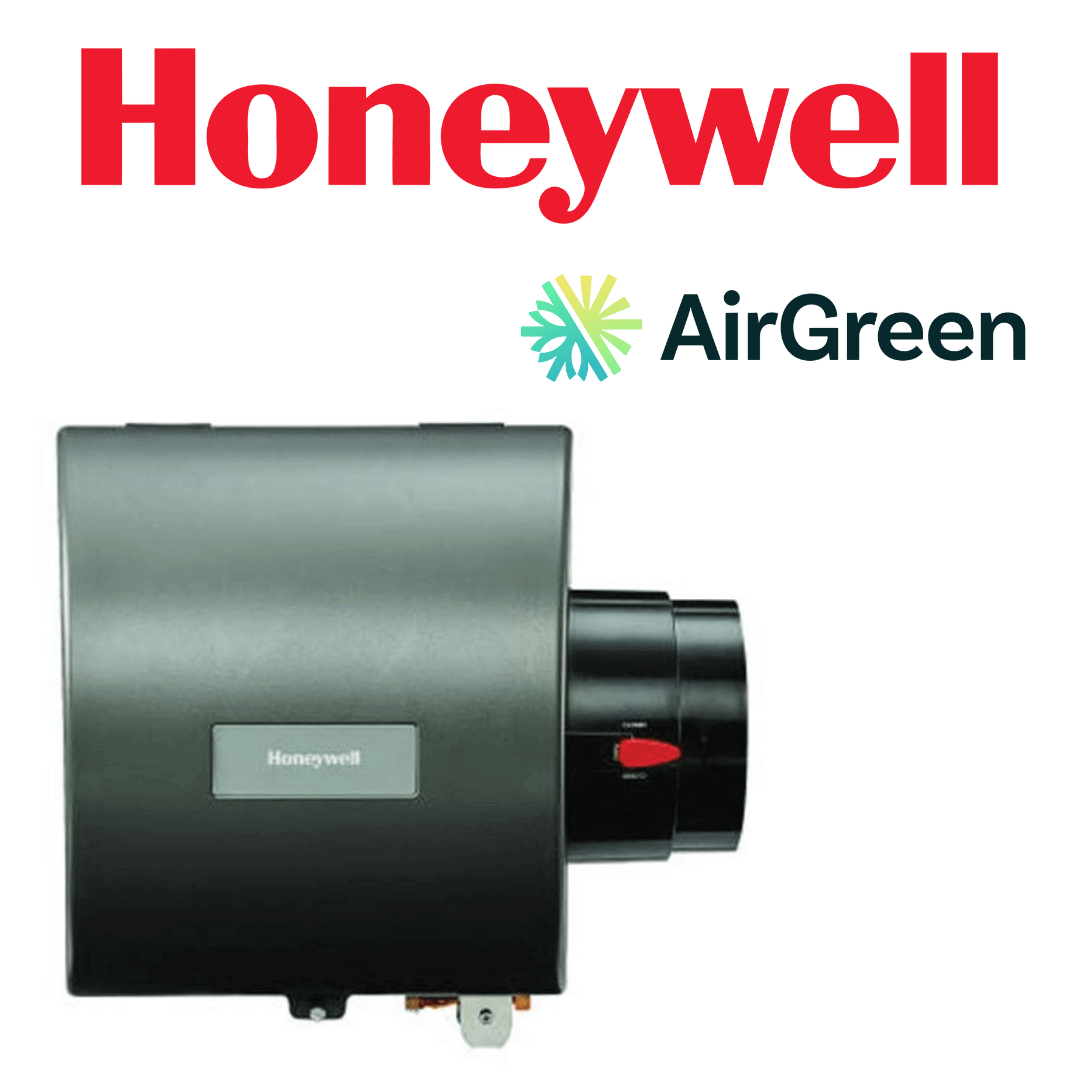

Honeywell HE105C1000/U: a bypass humidifier that ships with its installation kit
The HE105C1000/U is a Honeywell bypass humidifier that delivers 12 gal/day. It suits a home of about 1,400 sq ft by our estimate. It isn't part of the TrueEASE line: no automatic damper, simple operation.
Everything you need in the box
The C version adds the installation materials:
- 24 in. of 6 in. bypass duct and 20 ft of thermostat wire;
- 20 ft of feed tubing, 10 ft of drain tubing and a saddle valve;
- a valve that uses only 7 W at 24 V.
What we check before installing it
It needs water pressure from 40 to 120 psi, a drain nearby and a 24 V supply. We cut a 9 5/16 × 9 7/16 in. opening in the plenum. The HC22 pad is replaced once a year. Like any bypass humidifier, it produces less when the heating air is cooler, for example behind a heat pump. If that's your situation, a steam model is worth considering.
Before we install, we come and look
Our estimator visits before any quote: they examine the heating system, the panel capacity, the water supply and the drain. AirGreen installs in Montréal, Laval, Longueuil, the South Shore and the North Shore. Call 514 316-2973.
