Honeywell HE150C1014/U Humidifier | Installation in Montreal, Laval, Longueuil, South Shore and North Shore
Is it the right size for your home?
It puts 12 gallons of water a day into the air (with 49 °C (120 °F) furnace air), enough to humidify about 1,400 sq ft (our estimate). Pick your home's living area.
It's the right size.
For a condo or house under 900 sq ft, it's within its range. It will run at part load on ordinary days and keep a reserve for the coldest days.
AirGreen estimate. Honeywell (Resideo) publishes no area in sq ft for this model, only a volume of 16,000 cu ft. For an average-construction home, we count 120 sq ft per gallon a day, the ratio in AprilAire's and Lennox's tables. Older or leaky house: go one size up; our estimator confirms it on site.
What it does, in numbers
Output: manufacturer's spec (12 gal/day, with 49 °C (120 °F) furnace air).
What you should know about this one
Published, verifiable figures, not brochure claims.
12 galWhat it produces per day, at full output
About 45 litres of water turned into humidity in 24 hours. The control runs it to match the humidity you set: it rarely runs flat out, except in very cold weather.
Heat pumpBehind a heat pump, it produces less
It evaporates water from a pad using the heat of the air coming off the furnace. A heat pump blows cooler air, so it evaporates less. With a heat pump, talk to our estimator: depending on the manufacturer, we connect it to hot water or suggest a steam model instead.
AdvancedMotorized bypass damper
A TrueEASE 'Advanced' model: its damper closes on its own when the house doesn't need humidity. Resideo claims 30 to 50% water savings.
15 VAA larger transformer
The motorized damper draws 0.75 A at 24 V and needs a 15 VA transformer, instead of 10 VA for the Basic models.
CThe Canadian version
C is the Canadian model, shipped with the installation hardware.
ControlThe control that comes with it
Honeywell HumidiPRO H6062 digital control.
UpkeepWhat gets replaced, and when
HC22A1007 pad (or HC22E1003 antimicrobial), replace at least once a year.
35%The humidity to aim for in winter, at most
At −7 °C, no more than 35%; at −18 °C, no more than 25%. Above that, the moisture condenses on the windows. The control adjusts for you if it has an outdoor sensor.
5 yearsThe parts warranty
Parts are covered for 5 years by the manufacturer. We register the warranty in your name at start-up.
What it needs on site
Our estimator checks the ducts, the water supply and the drain before ordering.
Complete spec sheetData and cited sources
- Brand
- Honeywell
- Model
- HE150C1014/U
- Type
- Bypass
- Output
- 12 US gal/day (with 49 °C (120 °F) furnace air)
- Control included
- Honeywell HumidiPRO H6062 digital control.
- Upkeep
- HC22A1007 pad (or HC22E1003 antimicrobial), replace at least once a year.
- Living area
- 1,400 sq ft (AirGreen estimate)
- Dimensions (L × D × H)
- 14.5 × 10.1 × 14 in
- Power supply
- 24 V
- Current
- 0.75 A
- Warranty — parts
- 5 years
Output, dimensions, electrical data and warranty: Honeywell manufacturer's data. Living area: AirGreen estimate, explained under « Your home ».
The next model down and up
Talk to an HVAC technician before you choose
We look at your heating system, the electrical panel, the water supply and the drain, and give you an installed price.

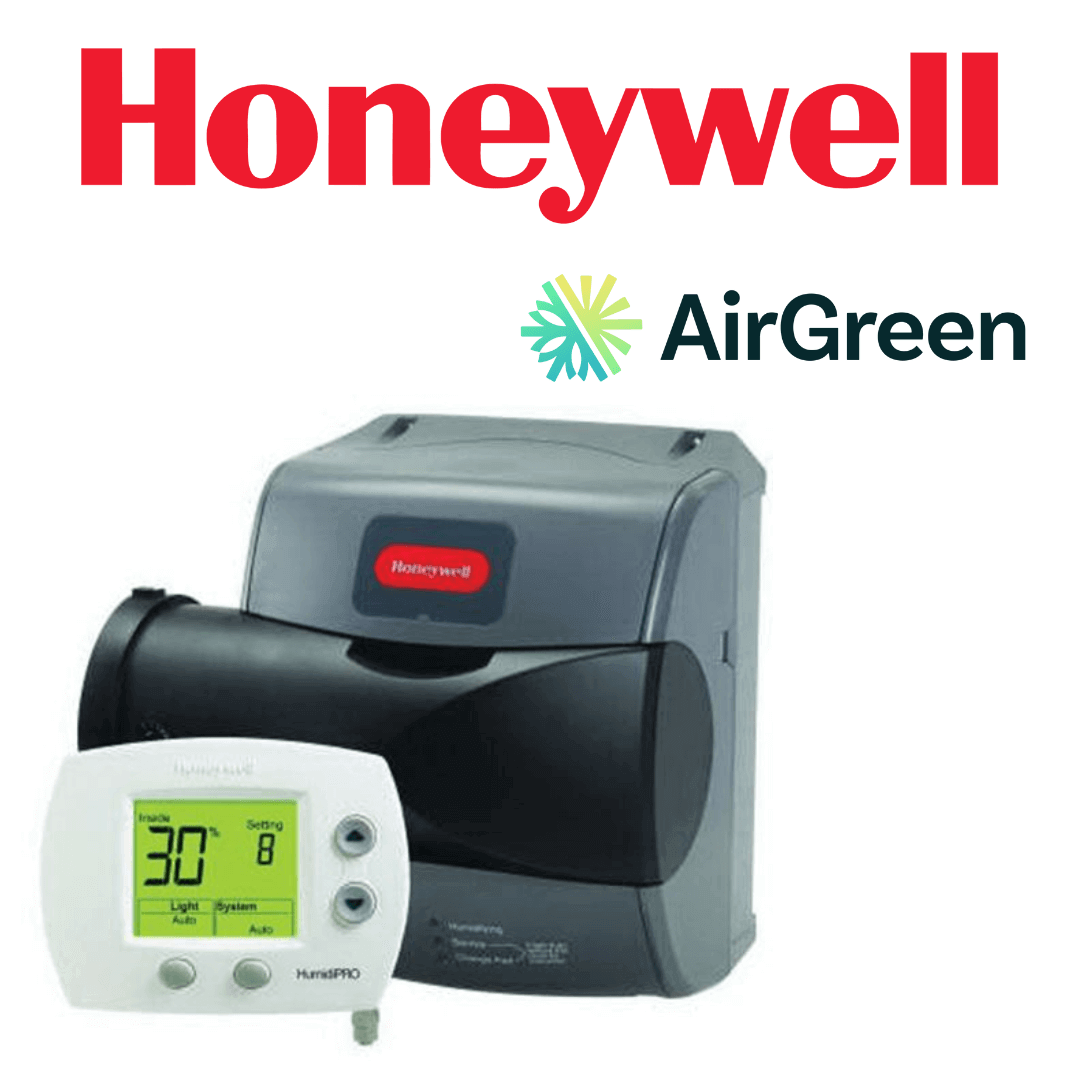

Honeywell HE150C1014/U: the small TrueEASE with a motorized damper
The HE150C1014/U is a Honeywell TrueEASE bypass humidifier. It delivers 12 gal/day with 49 °C (120 °F) furnace air, for a home of about 1,400 sq ft by our estimate. It shares the cabinet of the HE100C1001/U, but it manages its own bypass.
'Advanced': the damper closes on its own
Its motorized bypass damper closes when the house doesn't need humidity. Resideo claims 30 to 50% water savings. It comes with the Honeywell HumidiPRO H6062 digital control. C is the Canadian version, shipped with the installation hardware.
Hookup and upkeep
The motorized damper draws 0.75 A at 24 V. It needs a 15 VA transformer, instead of 10 VA for the Basic models. The opening is 9 5/16 × 9 7/16 in. in the plenum, with a 6 in. bypass duct. It needs a water supply and a drain. The HC22A1007 pad, or the HC22E1003 antimicrobial pad, is replaced at least once a year. Its output is rated with 49 °C (120 °F) air: behind a heat pump it produces less, and a steam model is the safer choice.
Installed by AirGreen
Before we give you a quote for the installed unit, our estimator comes to your home. They look at the heating system, the electrical panel, the water supply and the drain. We install in Montréal, Laval, Longueuil, the South Shore and the North Shore. Call us at 514 316-2973.
