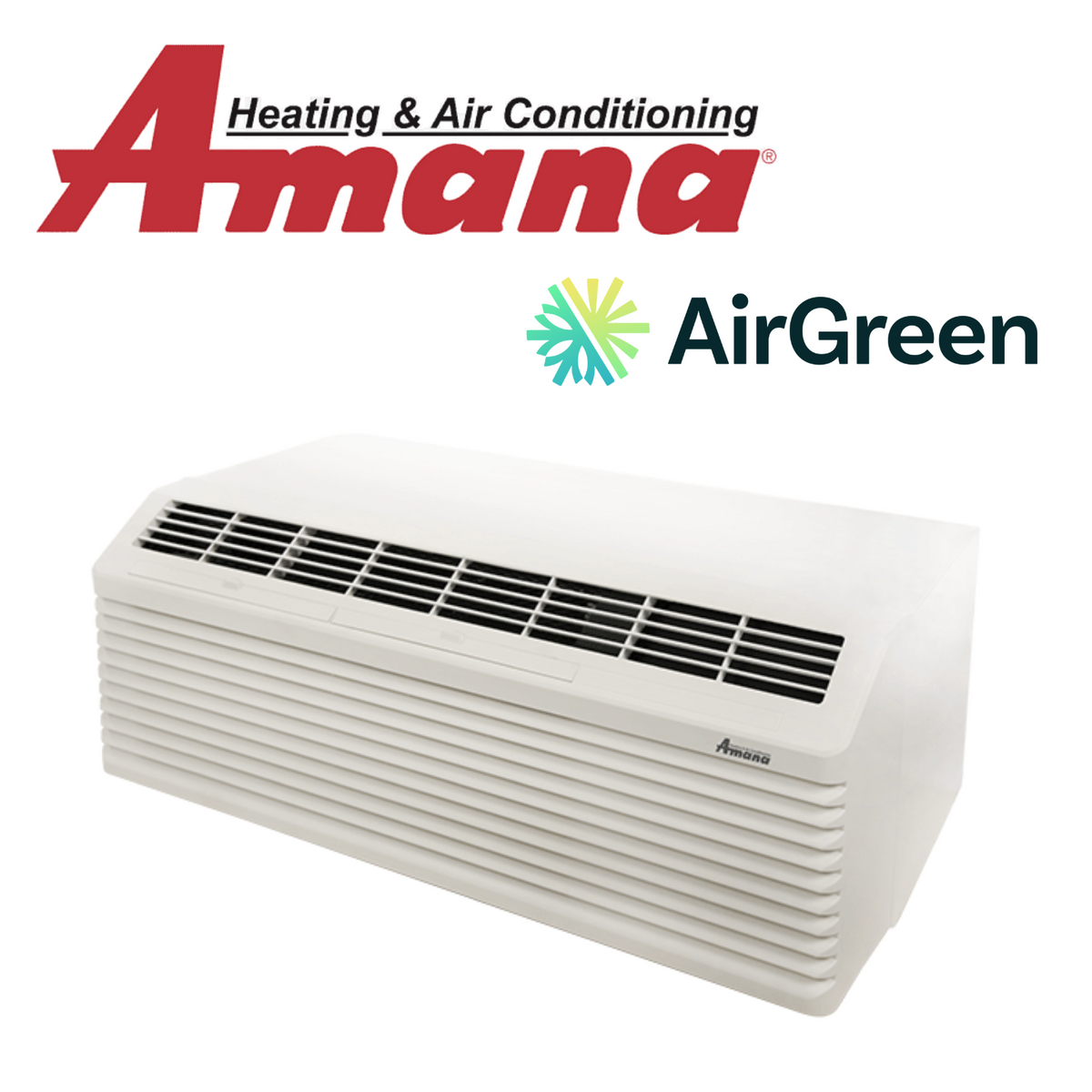

PTAC AMANA | HEC (HIGH EFFICIENCY) R32 J | 17,000 BTUs

Quiet Performance and Comfort for Residential and Commercial Applications

At AirGreen, we know that choosing the right HVAC system is crucial, whether for a hotel, residential building, office, or healthcare facility. The AMANA | HEC (HIGH EFFICIENCY) R32 J | 17,000 BTU PTAC embodies a perfect combination of energy performance, acoustic comfort, and reliability, offering a solution ready to meet the climate challenges of the greater Montreal area, Laval, Longueuil, North Shore, and South Shore .

High Energy Efficiency

With an EER of up to 14.0 and a COP of up to 3.9 , this model is among the most efficient air conditioning and heating units in its class. This increased efficiency opens the door to potential subsidies offered by electricity companies , thus reducing the acquisition cost for our customers. Thanks to the use of R32 refrigerant , which has a GWP of only 677 , the environmental footprint is significantly reduced compared to traditional R410A or R454B refrigerants.

Discreet Operation

Thermal comfort should never come at the expense of sound comfort. The PTAC AMANA HEC R32 J has been redesigned to deliver the quietest experience ever produced by the brand. The use of two separate motors (inside/outside) and a tangential fan achieves an STC rating of 29 , ensuring a peaceful environment, ideal for a restful night's sleep or a quiet workspace.

Connectivity and Intelligent Management

Native integration of Bluetooth® and RF communications marks a significant advancement in HVAC equipment management. Using the Amana mobile app (available on iOS and Android), our technicians quickly and efficiently configure, diagnose, and optimize unit operation. When combined with the optional Eden thermostat and Eden Concierge energy management system, it is possible to reduce unit energy consumption by 35% or more , while maintaining optimal comfort.

Design Thought for Sustainability

Made in the USA at our Waller, Texas, factory, this model undergoes rigorous quality control , including a full functional test and leak check before shipping. In addition, the 5-1-0 manufacturer's warranty (compressor, parts) ensures long-term peace of mind for our customers.

Key Features

• Cooling capacity : 17,000 BTU

• Voltage : 220V

• Dimensions : 42 x 21.5 x 16 in

• Refrigerant : R32 – more efficient and more environmentally friendly

• Warranty : 5 years compressor / 1 year parts

• Installation : zero ground clearance possible

• Simplified maintenance thanks to a washable and accessible filter

• Condensate dispersion system optimizing cooling efficiency

Space and Maintenance Optimization

With only 7⅝" of front depth , the unit maximizes available room space. Washable filters are easily removed for quick maintenance , reducing maintenance costs and extending the life of the unit. The condensate dispersion system allows for rapid evaporation on the outdoor coil, limiting runoff and increasing efficiency.

Advanced Features for Total Comfort

• Frost protection automatically activates the auxiliary heating below 4°C

• 30-second fan off delay to release remaining conditioned air

• Emergency heating mode in case of heat pump failure

• Hidden ventilation control to prevent unauthorized tampering

• Compressor lock-in to avoid short cycles that are harmful to the longevity of the device

• Smart Vent compatibility and energy saver to automatically adjust the supply of fresh air according to the outside temperature and humidity

Concrete Cases of Installation by AirGreen

• North Shore Hotels and Motels : Reduced Nighttime Noise Complaints and Measurable Energy Savings in the First Quarter

• Seniors' residences in Longueuil : improved thermal comfort while facilitating centralized management of parameters thanks to the Eden Concierge system.

• Commercial offices in Montreal : reduced operational costs thanks to smart programming and reduced electricity consumption.

Why Choose AirGreen for Your AMANA PTAC Installation

At AirGreen, every installation is carried out by certified refrigeration engineers , guaranteeing not only optimal installation, but also fast and efficient after-sales service . We apply a transparent pricing policy and do not request any payment before complete customer satisfaction .

In summary , the PTAC AMANA | HEC (HIGH EFFICIENCY) R32 J | 17,000 BTU is a high-performance HVAC solution, designed to combine energy savings, acoustic comfort and intelligent management. Perfect for residential and commercial needs, it is a sustainable and advantageous choice for any project in the Montreal metropolitan area.

Contact AirGreen today to get your free estimate and discover how this solution can transform your daily comfort.
