FUJITSU Aquila XLTH R32 4-Zone Heat Pump | 36,000 BTU | Montreal, Laval, South Shore, North Shore

• WiFi: Optional
• Warranty (Compressor - Parts - Labor): 10-10-0 years
• Additional Warranty (10-10-10): Possible
• Voltage: 220 V
• Sound Pressure Level (Outdoor): 56.0 dB(A)

The ideal solution for four-zone performance, even in extreme climates

In a market where residential and commercial needs are evolving rapidly, it is becoming essential to offer efficient, reliable HVAC solutions that are perfectly adapted to Quebec winters . At AirGreen, we have installed and recommended on numerous occasions the FUJITSU Aquila XLTH R32 | 36,000 BTU 4-Zone Heat Pump , a unit designed to perform even at -26°C , while ensuring personalized comfort in four distinct zones . Available in Montreal, Laval, on the South Shore and the North Shore , this system stands out as much for its advanced technology as for its proven durability .

Smart design for tailored comfort

Independent management of 4 zones

With its Quad-Zone configuration, this system allows you to install up to four separate wall units (from 7,000 to 24,000 BTU per zone), ensuring precise temperature control in each room . Whether you have a cooler basement , a south-facing living room , or a bedroom requiring quiet comfort , this heat pump adapts flexibly to your needs.

Optimized zone combinations

The system accepts a wide variety of combinations: 7+7+9+12 , 9+9+9+9 , 7+12+12+12 , etc. This flexibility is ideal for multi-level properties, multi-generational housing or any building requiring precise thermal distribution.

Exceptional energy performance with R-32

Cutting-edge energy efficiency

With a SEER2 of 22.0 , an HSPF2 of 10.0 and an EER2 of 13.0 , this system is among the best in its class in terms of efficiency. Its INVERTER compressor allows the energy used to be modulated according to actual needs, which reduces operating costs without compromising comfort.

R-32 refrigerant: ecological and efficient

R-32 gas , recognized for its low global warming potential (GWP) , reduces environmental impact while improving performance. Less polluting than R-410A, it meets the most stringent environmental requirements of the North American market.

Technology designed for the Quebec climate

Heating down to -26°C

With its integrated base heater and cold climate design, the FUJITSU Aquila XLTH operates without interruption even during periods of extreme freezing in Montreal and surrounding areas. This system is ENERGY STAR® Cold Climate certified, a guarantee of reliable performance during the winter.

Cooling up to 50°C

This model can also cool down to 122°F (50°C) , a plus for increasingly hot summers. Blue Fin fins protect the heat exchanger from corrosion, ensuring increased longevity even in polluted urban conditions .

An installation designed for sustainability

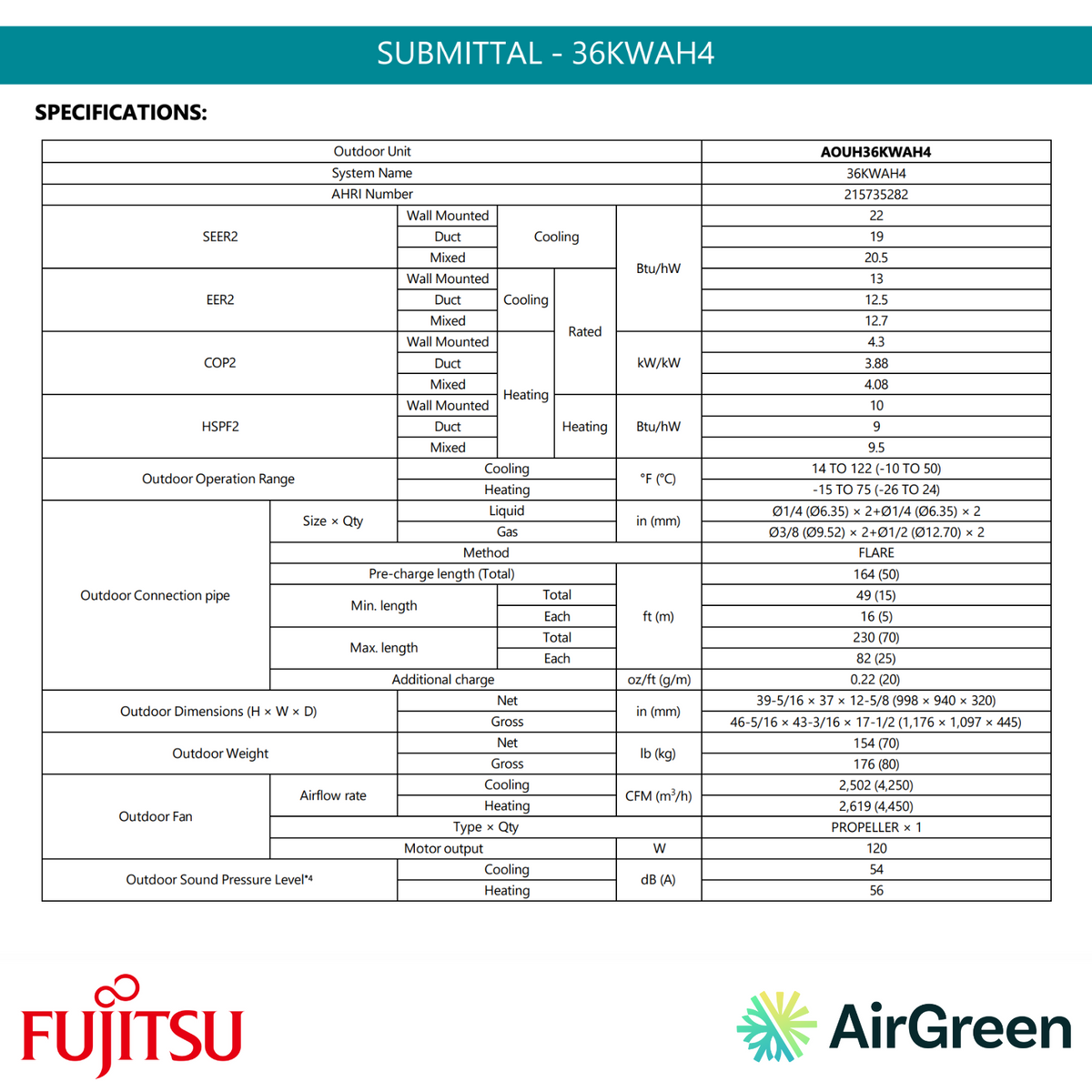

Precise technical data

• Exterior model : AOUH36KWAH4

• Capacity : 36,000 BTU

• Power supply : 220V, 1 Phase, 60 Hz

• Allowable voltage : 187–253 V

• Maximum consumption : 28.9 A

• Total pipe length : up to 70 m (230 ft)

• External sound pressure : only 56 dB(A)

Compatibility with FUJITSU indoor units

The system is compatible with the models: ASUH07KPAS , ASUH09KPAS , ASUH12KPAS , ASUH18KPAS , and ASUH24KPAS , thus offering great flexibility of arrangement according to the needs of your building.

AirGreen expertise at the service of your project

Our facilities in the region

We installed this system in several properties in Laval , including a single-family residence in Chomedey that required independent temperature control in a finished basement, an open-plan living room, a dining room, and an office. The result: optimal comfort and a 30% reduction in energy consumption compared to their old central system.

A free on-site estimate

At AirGreen, we believe nothing beats a personalized technical visit . We offer 100% free on-site estimates to ensure a solution that truly fits your space and budget.

Payment at the end only

You only pay once the work is completed and you are satisfied . No advance, no deposit: this is our commitment to transparency and trust.

Why choose AirGreen for your FUJITSU heat pump?

• Local company with offices in Montreal and a showroom in Boucherville .

• Team of certified refrigeration engineers , specialized in multi-zone systems.

• Responsive after-sales support with fast service when needed.

• Complete assistance for LogisVert subsidies (up to $2928 for this model , updated May 2025).

• 5-star reputation based on hundreds of successful residential projects on the South Shore , North Shore , Longueuil , Laval and Montreal .

Expert advice: what to look out for

• Overloading zones : Avoid installing heads that are too powerful for the space (e.g., a 24,000 BTU in a 150 sq ft room).

• Pipe lengths : respect the maximum and minimum distances to ensure optimal performance.

• Access to the electrical panel : this model requires a 35 A circuit breaker , plan for an installation that complies with the electrical code.

A sustainable and intelligent multi-zone system

The FUJITSU Aquila XLTH R32 | 36,000 BTU 4-Zone Heat Pump is a smart investment for any property requiring efficient, energy-efficient multi-room thermal management . Offering reliable performance even at -26°C, quiet operation, and provincial grant compatibility, it is a benchmark in its category.

Contact us now to schedule a free visit, discuss your needs, or discover our recent facilities in Montreal, Laval, Longueuil, on the North Shore or the South Shore .
