A central electric furnace that heated intermittently and compromised the home's comfort
In Repentigny, our AirGreen team was called for a Carrier electric furnace repair installed in a compact residential mechanical room, connected to an existing duct network. The customer contacted us because the central heating was no longer responding consistently: air was coming out of the registers, but it was sometimes lukewarm, sometimes almost cold, and the indoor temperature struggled to reach the thermostat setpoint.

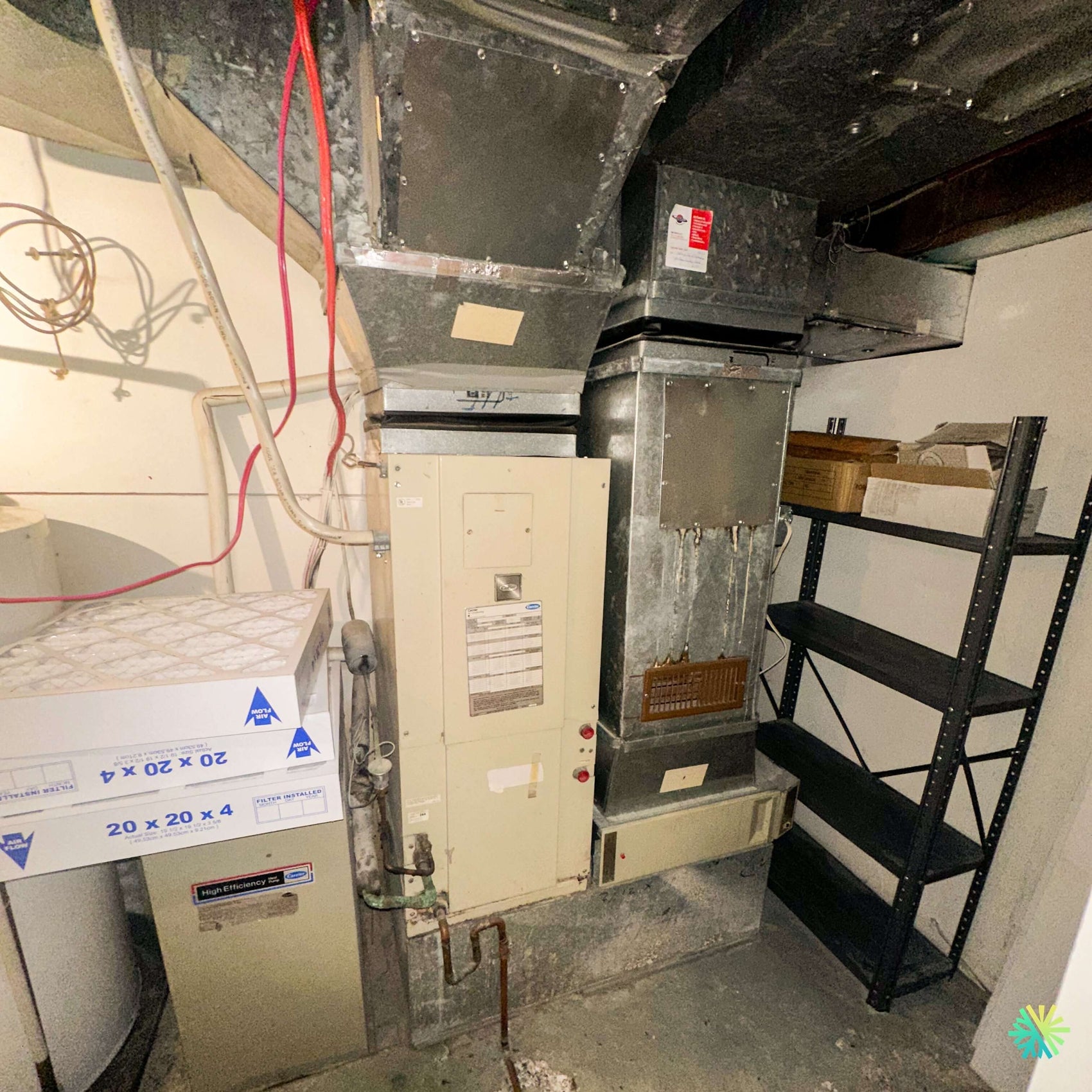

The observed installation featured a typical configuration of a residential central system: an electric furnace connected to a vertical plenum, a network of metal ducts, a filter box with a 20 x 20 x 4 filter, as well as a cramped mechanical space where access to service panels was partially limited by ducts, pipes, and storage. In this type of mechanical room, every intervention requires a good method, as a failure can come from a heating element, a sequencer, a relay, a blower motor, a safety limit, or a simple air circulation problem.
The customer had recently replaced the filter, but the furnace continued to operate irregularly. This detail was important: when a central unit keeps blowing air without producing enough heat, one should not quickly conclude a complete breakdown. An electric furnace consists of several heating stages. If only one stage does not activate, the machine may seem functional while delivering very reduced performance.
A Carrier electric furnace connected to an existing central system
The inspected device was a Carrier brand electric furnace, integrated into an older duct network. The exact model was not clearly readable in the photo, but the equipment matched a residential central forced-air furnace designed to heat the air before distributing it throughout the house.
This type of system is very common in Repentigny, on the North Shore, but also in many properties in Montreal, Laval, Longueuil, and the South Shore. It provides uniform heating when well maintained, but it becomes sensitive to three factors: airflow, the condition of electrical components, and the balance of the duct network.
An electric furnace operates according to a simple logic on the surface:
- The thermostat calls for heat.
- The control board or relays activate the electric stages.
- The sequencers gradually start the elements.
- The blower pushes air through the heat chamber.
- Warm air is distributed through the ducts.
When one of these elements is weakened, the result can be misleading. The user hears the ventilation, feels air at the registers, but the house does not warm properly. This was precisely the situation encountered during this service call.
Symptoms reported before our arrival
The customer described a problem that had gradually worsened. At first, they simply noticed that heating took longer to stabilize the temperature. Then, some cycles seemed incomplete. The furnace would start, then stop earlier than expected, or blow for a long time without producing enough heat.
The main symptoms were as follows:
- Insufficiently warm air at the registers.
- Irregular heating cycles .
- Unstable indoor temperature, especially in the evening.
- Functional blower, but reduced heat.
- Slightly heavier operating noise than usual.
- Temperature difference between rooms far from the furnace.
- No obvious error code visible to the customer.
This last point is common with older electric furnaces or systems with limited diagnostic logic. A partial failure may not produce a clear signal. The technician must therefore check the components one by one, instead of relying solely on the visible behavior of the device.
Mechanical room inspection and access constraints
The mechanical room presented several significant constraints. The furnace was surrounded by ducts, a large filter box, piping, wiring, and shelving. The available space to open panels and take measurements was limited. In this type of configuration, it is essential to work cleanly and methodically to avoid moving or damaging existing elements.
Before any intervention, we secured the area and cut off the electrical power to the device. An electric furnace can have significant loads, and each test must be done according to a safe sequence. We then proceeded with a complete inspection:
- Verification of the 20 x 20 x 4 filter.
- Inspection of the blower compartment.
- Verification of low voltage control wires.
- Inspection of high voltage connections.
- Visual inspection of sequencers and relays.
- Testing of heating elements.
- Verification of temperature limits.
- Measurement of blower behavior.
- Observation of air distribution in the ducts.
The filter was in place and appeared recent, but the diagnosis did not stop there. A new filter can still be too restrictive for some systems, especially if the blower is aging or if the return air network is limited. We therefore checked the actual flow rather than relying only on the filter's appearance.
Diagnosis: a defective heating stage and weakened air circulation
The diagnosis revealed two combined problems. The first was a partial failure of a heating sequencer, preventing the stable activation of an electrical stage. The second was weakened air circulation, caused by dust accumulation in the blower compartment and a slight restriction in the return air.
The role of the sequencer in the failure
In an electric furnace, the heating elements usually do not all start at the same time. The sequencer allows for a gradual activation. This protects the components, stabilizes the electrical demand, and ensures a controlled temperature rise.
In this case, one of the stages was not receiving the command correctly at each cycle. The furnace was therefore producing only part of its capacity. The customer felt air, but not enough heat. This is a typical failure that can easily be mistaken for a thermostat problem or a general lack of power.
The role of airflow
The blower was working, but it had to push air through a relatively tight duct network. Dust buildup in the compartment, combined with high filtration resistance, slightly reduced the airflow. This lack of circulation increased temperature variations and could cause less efficient cycles.
A good HVAC diagnosis is not just about finding a defective part. You need to understand how the defective part affects the rest of the system. Here, the sequencer was reducing heat production, while the weakened airflow reduced distribution. Both problems needed to be addressed.
Repair performed by AirGreen
We carried out a complete intervention to reliably put the furnace back into service.
Replacement of the defective sequencer
The faulty sequencer was replaced with a part compatible with the Carrier furnace configuration. We inspected the connections, checked the terminals, and confirmed that the heating stages responded correctly to demand.
This step restored the full heating capacity of the unit. After replacement, each stage activated in a normal sequence without intermittent cutoffs.
Heating elements check
We then tested the heating elements to confirm their continuity and proper behavior under load. No element was open. This check was important because a burnt element would have required more extensive repair. In this case, the main source of the problem was indeed the stage control, not the element itself.
Cleaning of the blower compartment
The blower compartment was cleaned in accessible areas. We checked the fan wheel, the motor condition, and signs of vibration. The motor was still functional, but dust buildup was reducing the quality of the airflow. After cleaning, the blower returned to more regular operation.
Filter check and recommendation for appropriate replacement
Even though the filter seemed recent, we validated its impact on the airflow. We recommended that the client use a filter compatible with the blower capacity and the air return configuration. For many central systems, a filter that is too restrictive can cause as many problems as a dirty filter.
The goal is to find the balance between indoor air quality and HVAC performance. A good filter protects the equipment without choking airflow.
Safety limit testing
We checked the limit switches to confirm the furnace could complete a heating cycle without triggering premature protection. These components are essential to prevent internal overheating. After corrections, the furnace operated normally during test cycles.
Results after restart
Once the repair was completed, we powered the furnace back on and ran several full cycles. The difference was immediate. The blown air was warmer, the temperature rise more stable, and the system no longer stopped unpredictably.
Observed results:
- Central heating restored .
- Normal activation of electric stages .
- More regular cycles .
- Improved airflow .
- Reduced blower noise .
- More uniform temperature in the house.
- No safety shutdowns during testing.
The client quickly noticed that the house regained more consistent warmth. We also explained the signs to watch for: low return air, short cycles, unusual odors, tripped circuit breakers, or persistent lukewarm air despite a high setpoint.
Preventing electric furnace breakdowns in Repentigny and Greater Montreal
An electric furnace can operate for many years if properly maintained. However, like all HVAC equipment, it requires regular attention, especially before the cold season.
Common mistakes to avoid
Replacing the thermostat without diagnosis
When the heating system doesn’t respond well, many homeowners immediately suspect the thermostat. In this service call in Repentigny, the thermostat was correctly sending the request. The problem was in the furnace. Replacing the thermostat would not have fixed anything.
Neglecting airflow
A central system depends as much on air circulation as on heat production. A filter that is too dirty, too dense, or improperly installed can reduce overall performance. A clogged blower can also cause symptoms similar to an electrical failure.
Ignoring short cycles
A furnace that starts and stops too often signals a problem. This can come from overheating, a safety limit, a sequencer, a relay, or poor air circulation. Waiting for the unit to stop working completely often increases costs.
Leaving the mechanical space too cluttered
A mechanical space must remain accessible. Technicians must be able to open panels, measure components, check ducts, and work safely. In this case, access was possible but limited. We recommended keeping a clear area around the furnace.
Recommended maintenance for an electric furnace
To maintain good performance, we recommend preventive maintenance including:
- Checking heating elements.
- Testing of sequencers and relays.
- Inspection of electrical connections.
- Cleaning of the blower compartment.
- Filter check.
- Blow temperature measurement.
- Thermostat control.
- Safety switch verification.
- Visual inspection of accessible ducts.
- Airflow assessment.
These checks are especially important in regions where winters are harsh, notably in Montreal, Laval, Longueuil, on the North Shore and the South Shore.
Why choose AirGreen for electric furnace repair
At AirGreen, we treat every service call as a complete diagnosis, not just a simple part replacement. An electric furnace can hide several causes under the same symptom. Our role is to identify the real source of the problem, secure the equipment, and restore performance without unnecessary replacement.
In this intervention in Repentigny, our approach allowed us to:
- Identify a faulty sequencer.
- Check the heating elements.
- Correct air circulation.
- Clean the blower.
- Validate safety limits.
- Restore stable central heating.
This repair demonstrates that an aging central system can still deliver good performance when properly diagnosed and maintained. For the customer, the result was tangible: more comfort, less uncertainty, and a furnace ready to face the upcoming cold periods.
