vänEE 70E ERV-R Air Exchanger | Montreal, Laval, Longueuil, South Shore and North Shore
Is it the right size for your home?
It delivers 102 cfm net, enough to ventilate 1,200 to 1,900 sq ft. Choose your home's living area.
It's the right size.
For a 900 to 1,500 sq ft home, about 63 cfm of air needs to be renewed continuously. This unit delivers 102 cfm net — enough for the house, with extra capacity to boost ventilation for the bathroom and kitchen.
Calculation: 0.35 air changes per hour over the living volume, with 9 ft ceilings. Our estimator sets the exact airflow room by room, following CSA F326.
What it does, in numbers
$39.04
Electricity per year
Less than a 60 W light bulb
Bulbs left on day and night. Same calculation for every line: wattage × 8,760 h × 11.142 ¢/kWh.
Below the Code threshold for a new home. The Code requires 54% at −25 °C below 6,000 degree-days (Montréal, Laval, Longueuil and both shores) and 60% above that. This unit is rated at 46% at 51 cfm. The requirement applies to new buildings and major renovations: for a replacement, talk to us about your project before choosing.
Airflow and efficiency at 0 °C and −25 °C: HVI directory, Section III. Cost: 40 W over 8,760 h at Hydro-Québec's Rate D second tier (11.142 ¢/kWh).
What you should know about this one
Published, verifiable facts, not brochure claims.
ReversedCold and warm sides reversed from the 70E

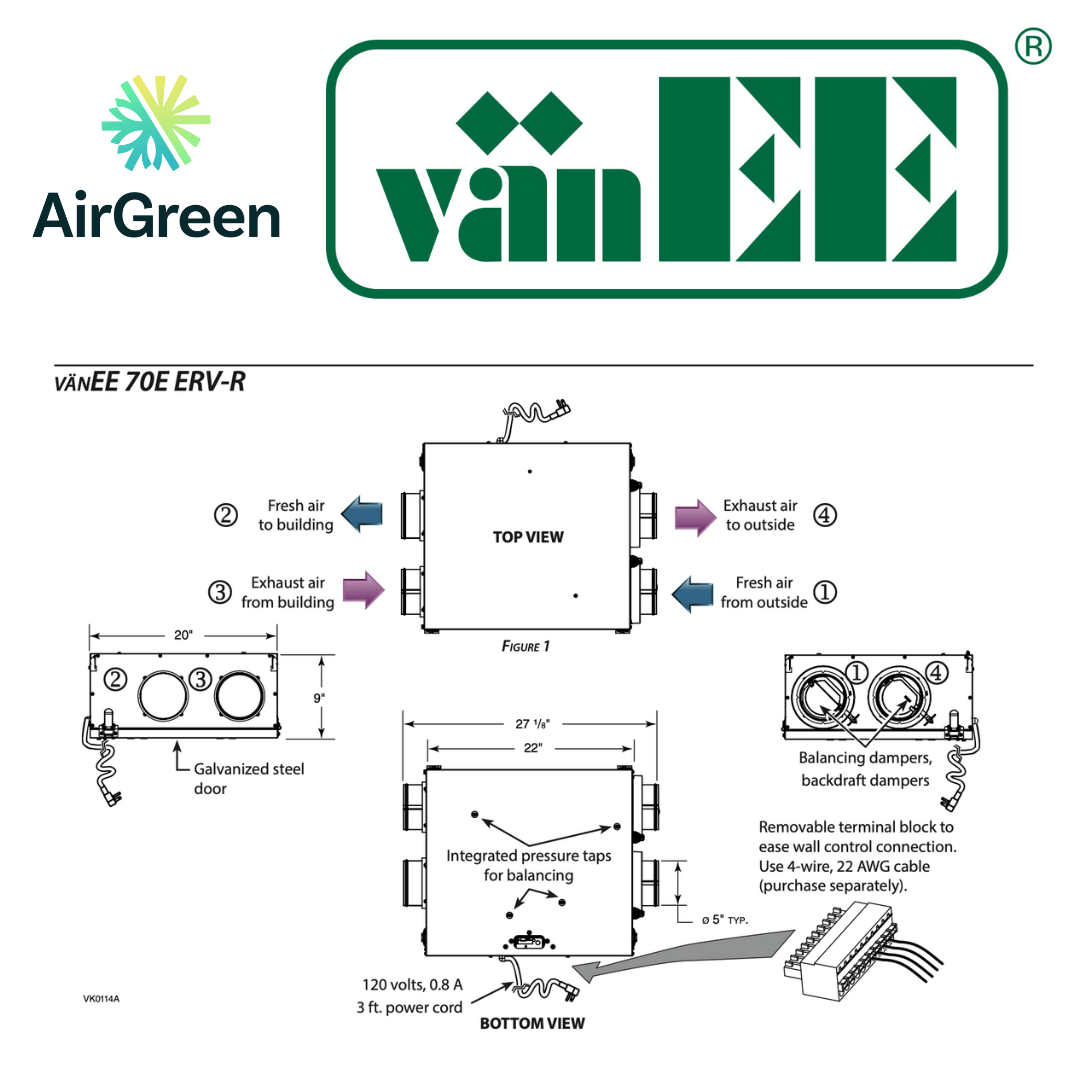

Same parts and same performance as the 70E (41800), but the cold-side and warm-side ports are reversed. This symmetrical layout simplifies installation in buildings where two dwellings sit back to back.
ColdShieldColdShield protection against freezing supply air
An electronic safeguard watches the temperature of the air sent into the home: it first adds extra defrost, then stops distribution if that air drops below freezing under abnormal conditions.
46%What it still recovers at −25 °C
The only efficiency figure that matters for a Québec winter, and the one the Code uses. An efficiency quoted without its temperature means nothing; this one is measured at a test airflow of 51 cfm.
ExhaustIt defrosts by pausing the fresh air for a few minutes
In cold weather, the supply fan stops for a few minutes while the exhaust keeps running, so warm indoor air thaws the core. During the cycle the house is briefly under negative pressure; if you have a fireplace or a naturally vented combustion appliance, mention it to our estimator.
ERVIt moves moisture too, not just heat
An ERV transfers some moisture between the two airstreams. Useful in a house that gets too dry in winter or takes on a lot of humidity in summer. The trade-off: it generally recovers less heat than a comparable HRV.
2005033Its HVI certification number
Listed in Section III of the Home Ventilating Institute's certified products directory. Anyone can check it, and it's the first condition for the Rénoclimat grant.
−6 cfmWhat the ducts cost it
Between a nearly unrestricted test bench (0.2 in) and a real duct system (0.4 in), it drops from 108 to 102 cfm. Most spec sheets show only the first number, precisely because it looks better.
40 WMeasured at the airflow it actually runs at
Its 66% at 0 °C is certified at 49 cfm, the continuous airflow of a typical home. At that setting it draws 40 W, or about 350 kWh a year.
5 yearsThe core warranty
The core does the work and is the most expensive part to replace. Motors and parts: 5 years. We register the warranty in your name at commissioning.
5 inWhat it needs on site
5 in ducts, side connection. It weighs 32 lb, and it needs enough clearance to slide the core out once a year.
Rénoclimat: $500 to install or replace an HRV or ERV
First condition met: HVI Section III certified, No. 2005033. Second: your EnerGuide rating must improve between the two evaluations. Québec warns that an air exchanger installed on its own can increase a home's energy use; that's why we balance it to the calculated airflow rather than running it at full speed.
What it needs on site
In a condo with no floor drain, or with little ceiling clearance, we usually look at a side-port model instead. Our estimator checks the location, the drain and the duct route before ordering.
Complete spec sheetData and cited sources
- Net airflow at 0.2 in. w.g.
- 108 cfm
- Net airflow at 0.4 in. w.g.
- 102 cfm
- SRE at 0 °C (49 cfm)
- 66%
- SRE at −25 °C (51 cfm)
- 46%
- ASE at 0 °C
- 73%
- Power draw
- 40 W
- Efficacy
- 1.2 cfm/W
- Type
- ERV
- Connection
- Side ports
- Duct collars
- 5 in
- Defrost cycle
- Exhaust only (supply fan off)
- Filters
- 2 washable 20 ppi foam filters (optional MERV 8 kit no. V21030)
- Dimensions (L × D × H)
- 27.12 × 20 × 9 in
- Weight
- 32 lb
- Power supply
- 120 V
- HVI certification (Section III)
- 2005033
- Warranty — core
- 5 years
- Warranty — motors
- 5 years
- Warranty — parts
- 5 years
Net airflow, efficiency at 0 °C and −25 °C, and power draw: Home Ventilating Institute certified products directory, Section III (HVID 2005033). Annual consumption calculated at 40 W running continuously for 8,760 h, at Hydro-Québec's Rate D second tier (11.142 ¢/kWh), in effect since April 1, 2026.
The next model down and up
Talk to an HVAC technician before you choose
We calculate the airflow room by room, check the location and the drain, and give you an installed price. Balancing is measured at commissioning, not estimated.
AirGreen Presents: The vänEE 70E ERV-R - Revolutionizing Indoor Air Quality in Montreal
Elevating Comfort with Advanced HVAC Solutions
The vänEE 70E ERV-R: A Synthesis of Innovation and Efficiency
At AirGreen, we are proud to introduce the vänEE 70E ERV-R, a cutting-edge air exchanger from the renowned Bronze Series, designed to redefine indoor air quality in Montreal, Laval, Longueuil, and the surrounding areas. This state-of-the-art Energy Recovery Ventilator (ERV) is a testament to our commitment to providing advanced HVAC solutions that blend efficiency, reliability, and environmental consciousness.
Unmatched Performance and Design
The vänEE 70E ERV-R stands out with its exceptional Sensible Recovery Efficiency of 65% and a PCM/CFM of 108, ensuring optimal air exchange without compromising energy efficiency. Its compact dimensions of 27.13 x 9 x 20 inches make it a perfect fit for various residential and commercial settings.
Key Features That Set the vänEE 70E ERV-R Apart
Innovative Air Flow Technology
- Balanced Air Flow: Equipped with pressure taps and a balancing chart, the vänEE 70E ERV-R ensures a perfectly balanced air flow, crucial for maintaining indoor air quality.
- Integrated Dampers: The inclusion of balancing and backdraft dampers in the cold supply and exhaust ports enhances the unit's efficiency and durability.
Robust and Flexible Construction
- Reversed Port Configuration: Unique to the vänEE 70E ERV-R, the reversed cold and warm side ports offer unparalleled installation flexibility, catering to diverse architectural needs.
- Durable Materials: Constructed with galvanized steel and a one-piece molded insulation shell, this unit is built to last while maintaining its aesthetic appeal.
The Heart of the vänEE 70E ERV-R: Motors, Filters, and ERV Core
High-Efficiency Motors
- Powerful and Reliable: The unit features two high-reliability, external rotor PSC motors, totally enclosed and thermally protected, ensuring long-term performance even in high static pressure environments.
Advanced Filtration System
- Superior Air Quality: With two washable 20 ppi reticulated polyester urethane foam filters, UL 900 class 2 certified, the vänEE 70E ERV-R effectively removes contaminants, enhancing indoor air quality.
- Optional MERV 8 Filter Kit: For those seeking even higher filtration efficiency, an optional MERV 8 filter kit is available, providing an additional layer of air purification.
Revolutionary ERV Core
- Efficient Moisture Transfer: The crossflow aluminum-polymerized paper core facilitates direct vapor transfer, efficiently managing humidity levels without the need for condensation.
- Hygienic Air Exchange: The core's design prevents the growth of mold and bacteria, ensuring a healthier living environment.
Installation and Operation: Simplified and User-Friendly
Easy Installation Process
- Flexible Installation Options: Whether opting for a fully ducted or a central draw point installation, the vänEE 70E ERV-R accommodates various installation preferences with ease.
- Simplified Ceiling Installation: The unique three-step process for ceiling installation makes it accessible even for spaces with limited access.
Intuitive Controls and Maintenance
- User-Centric Control System: The integrated push-button control allows for effortless switching between low and high-speed operations.
- Hassle-Free Maintenance: The removable terminal block and washable filters make maintenance a breeze, ensuring the unit's longevity and optimal performance.
Why Choose AirGreen for Your vänEE 70E ERV-R Installation?
At AirGreen, we don't just sell HVAC systems; we provide comprehensive solutions tailored to your specific needs. Our team of skilled professionals is dedicated to ensuring that your experience with the vänEE 70E ERV-R is nothing short of exceptional.
Our Commitment to Your Comfort
- Expert Installation Services: Our technicians are trained to install the vänEE 70E ERV-R with precision, ensuring that it operates at peak efficiency.
- Unparalleled Customer Support: We believe in building lasting relationships with our clients, offering ongoing support and advice to ensure your utmost satisfaction.
Conclusion: Experience the AirGreen Difference with the vänEE 70E ERV-R
In conclusion, the vänEE 70E ERV-R, offered by AirGreen, represents the pinnacle of HVAC innovation, combining efficiency, reliability, and environmental responsibility. Its advanced features and superior design make it an ideal choice for enhancing indoor air quality in Montreal and its surrounding areas. Choose AirGreen and experience the difference in comfort and quality.
