vänEE 70E+ Air Exchanger | Montreal, Laval, Longueuil, South Shore and North Shore
Is it the right size for your home?
It delivers 106 cfm net, enough to ventilate 1,200 to 2,000 sq ft. Choose your home's living area.
It's the right size.
For a 900 to 1,500 sq ft home, about 63 cfm of air needs to be renewed continuously. This unit delivers 106 cfm net — enough for the house, with extra capacity to boost ventilation for the bathroom and kitchen.
Calculation: 0.35 air changes per hour over the living volume, with 9 ft ceilings. Our estimator sets the exact airflow room by room, following CSA F326.
What it does, in numbers
$39.04
Electricity per year
Less than a 60 W light bulb
Bulbs left on day and night. Same calculation for every line: wattage × 8,760 h × 11.142 ¢/kWh.
Meets the Québec Construction Code for Greater Montréal. The Code requires 54% at −25 °C below 6,000 degree-days (Montréal, Laval, Longueuil and both shores) and 60% above that. This unit is rated at 56% at 66 cfm.
Airflow and efficiency at 0 °C and −25 °C: HVI directory, Section III. Cost: 40 W over 8,760 h at Hydro-Québec's Rate D second tier (11.142 ¢/kWh).
What you should know about this one
Published, verifiable facts, not brochure claims.
3 modesThree defrost modes set right on the unit
A button on the unit selects defrost: Standard (factory setting, used for the HVI data), Plus for regions reaching −27 °C and below, or Discretion, which defrosts at the current speed. A main wall control (not included) is required for ventilation modes.
ReturnReturn/return furnace connection allowed
Of the three 70E models, only the 70E+ allows the simplified installation with both ducts on the furnace return, at least 3 ft apart. The furnace blower must then always run in sync with the unit.
56%What it still recovers at −25 °C
The only efficiency figure that matters for a Québec winter, and the one the Code uses. An efficiency quoted without its temperature means nothing; this one is measured at a test airflow of 66 cfm.
DamperIt defrosts without depressurizing the house
In cold weather, a motorized damper closes the outdoor air intake and recirculates indoor air through the core to thaw it. The house doesn't go into negative pressure during the cycle: no cold air drawn in through leaks, and none of the imbalance manufacturers warn about when there's a fireplace or a combustion appliance.
ERVIt moves moisture too, not just heat
An ERV transfers some moisture between the two airstreams. Useful in a house that gets too dry in winter or takes on a lot of humidity in summer. The trade-off: it generally recovers less heat than a comparable HRV.
2004999Its HVI certification number
Listed in Section III of the Home Ventilating Institute's certified products directory. Anyone can check it, and it's the first condition for the Rénoclimat grant.
−11 cfmWhat the ducts cost it
Between a nearly unrestricted test bench (0.2 in) and a real duct system (0.4 in), it drops from 117 to 106 cfm. Most spec sheets show only the first number, precisely because it looks better.
40 WMeasured at the airflow it actually runs at
Its 67% at 0 °C is certified at 49 cfm, the continuous airflow of a typical home. At that setting it draws 40 W, or about 350 kWh a year.
5 yearsThe core warranty
The core does the work and is the most expensive part to replace. Motors and parts: 5 years. We register the warranty in your name at commissioning.
5 inWhat it needs on site
5 in ducts, side connection. It weighs 35 lb, and it needs enough clearance to slide the core out once a year.
Rénoclimat: $500 to install or replace an HRV or ERV
First condition met: HVI Section III certified, No. 2004999. Second: your EnerGuide rating must improve between the two evaluations. Québec warns that an air exchanger installed on its own can increase a home's energy use; that's why we balance it to the calculated airflow rather than running it at full speed.
What it needs on site
In a condo with no floor drain, or with little ceiling clearance, we usually look at a side-port model instead. Our estimator checks the location, the drain and the duct route before ordering.
Complete spec sheetData and cited sources
- Net airflow at 0.2 in. w.g.
- 117 cfm
- Net airflow at 0.4 in. w.g.
- 106 cfm
- SRE at 0 °C (49 cfm)
- 67%
- SRE at −25 °C (66 cfm)
- 56%
- ASE at 0 °C
- 74%
- Power draw
- 40 W
- Efficacy
- 1.1 cfm/W
- Type
- ERV
- Connection
- Side ports
- Duct collars
- 5 in
- Defrost cycle
- Recirculation (motorized damper)
- Filters
- 2 washable 20 ppi foam filters (optional MERV 8 kit no. V21030)

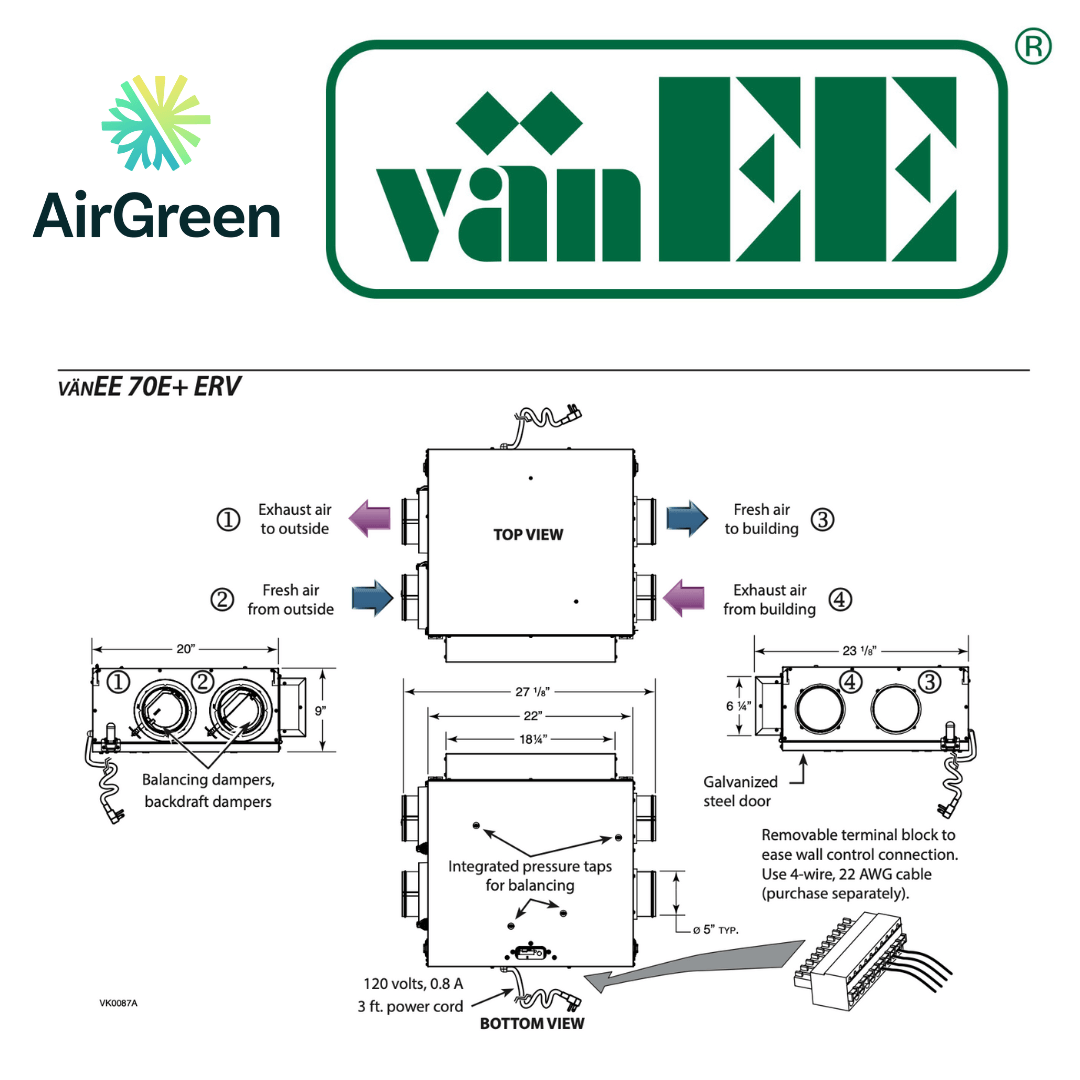

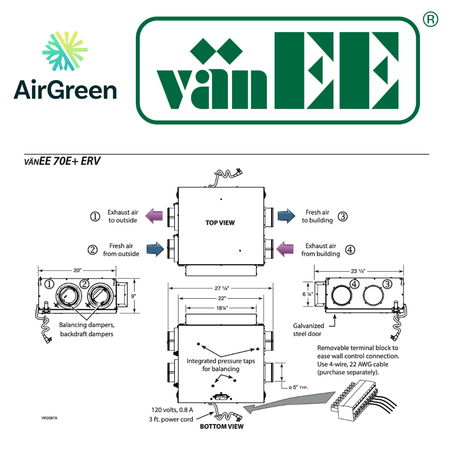

- Dimensions (L × D × H)
- 27.12 × 23.12 × 9 in
- Weight
- 35 lb
- Power supply
- 120 V
- HVI certification (Section III)
- 2004999
- Warranty — core
- 5 years
- Warranty — motors
- 5 years
- Warranty — parts
- 5 years
Net airflow, efficiency at 0 °C and −25 °C, and power draw: Home Ventilating Institute certified products directory, Section III (HVID 2004999). Annual consumption calculated at 40 W running continuously for 8,760 h, at Hydro-Québec's Rate D second tier (11.142 ¢/kWh), in effect since April 1, 2026.
The next model down and up
Talk to an HVAC technician before you choose
We calculate the airflow room by room, check the location and the drain, and give you an installed price. Balancing is measured at commissioning, not estimated.
AirGreen's Expert Guide to the vänEE 70E+ Air Exchanger: Revolutionizing Indoor Air Quality in Montreal and Beyond
Unveiling the vänEE 70E+ Air Exchanger: A Game-Changer in HVAC Technology
The Cutting-Edge Design of vänEE 70E+ Air Exchanger
AirGreen, a leading HVAC company in Montreal, is proud to introduce the vänEE 70E+ Air Exchanger, a state-of-the-art ventilation solution designed to enhance indoor air quality across Montreal, Laval, Longueuil, North Shore, and South Shore. This innovative air exchanger, part of the esteemed Bronze Series, is a testament to our commitment to providing top-tier HVAC services and products.
Key Features of the vänEE 70E+ Air Exchanger
- Model and Type: The vänEE 70E+ falls under the VRE type with lateral ports, ensuring seamless integration into various architectural designs.
- Performance and Efficiency: Boasting a Sensible Recovery Efficiency of 65% and a PCM/CFM of 114, this air exchanger is designed for optimal performance.
- Dimensions: Its compact size of 27.13 x 9 x 20 inches allows for easy installation in diverse settings.
Advanced Technology and Specifications
The vänEE 70E+ ERV (Energy Recovery Ventilator) is a marvel of engineering, offering a range of features that set it apart in the HVAC industry.
Energy Recovery and Air Flow
- Energy Recovery: This ERV unit efficiently recycles energy, contributing to a greener, more sustainable environment.
- Air Flow Management: Equipped with pressure taps and balancing charts, the vänEE 70E+ ensures balanced and efficient air distribution.
Construction and Durability
- Robust Build: The unit is constructed with galvanized steel and a one-piece molded insulation shell, ensuring longevity and durability.
- Innovative Design: The inclusion of integrated dampers and a backdraft damper in the cold exhaust port highlights the unit's advanced design.
Installation and Operational Excellence
Simplified Installation Process
AirGreen specializes in the hassle-free installation of the vänEE 70E+ ERV. Our expert technicians ensure a smooth and efficient setup, adhering to the highest standards of quality and safety.
User-Friendly Controls and Maintenance
- Control System: The unit is operated via a main wall control (sold separately), offering ease of use and flexibility.
- Maintenance: With removable terminal blocks and washable filters, the vänEE 70E+ is designed for easy maintenance and long-term reliability.
Health Benefits and Indoor Air Quality Enhancement
The vänEE 70E+ ERV is not just a mechanical marvel; it's a health-conscious choice. By ensuring a constant supply of fresh air and efficient removal of indoor pollutants, this air exchanger significantly improves the indoor air quality, contributing to the well-being of occupants.
Why Choose AirGreen for Your vänEE 70E+ Installation?
At AirGreen, we are not just HVAC experts; we are your partners in ensuring a comfortable and healthy living environment. Our team of skilled professionals is dedicated to providing personalized solutions that meet your specific needs.
Our Commitment to Excellence
- Expert Installation: Our technicians are trained to install the vänEE 70E+ with precision and care, ensuring optimal performance.
- Customer Satisfaction: We prioritize your comfort and satisfaction, offering comprehensive support and guidance throughout the installation process.
Conclusion: Breathe Easy with AirGreen and vänEE 70E+
In conclusion, the vänEE 70E+ Air Exchanger, offered by AirGreen, is an exemplary choice for anyone looking to enhance their indoor air quality in Montreal and its surrounding areas. With its advanced features, energy efficiency, and superior design, it stands as a testament to our commitment to providing the best HVAC solutions in the market.
