Installation of a Sharp ZU1 Wall-Mounted Air Conditioner in Châteauguay
Discover how our team installed the Sharp ZU1 air conditioner in Châteauguay, a top-performing, energy-efficient solution that provides both cooling and heating down to -27°C.
In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.
A Seamless Integration of Comfort and Energy Efficiency
At AirGreen, we pride ourselves on providing cutting-edge HVAC solutions that combine reliability, energy efficiency, and customer satisfaction. Our recent installation in Châteauguay exemplifies our commitment to quality and precision in every project we undertake. For this particular installation, we equipped a residence with a Sharp ZU1 15,000 BTU wall-mounted air conditioner, ensuring the homeowner enjoys year-round comfort with superior cooling and heating capabilities.
Why the Sharp ZU1?
When it comes to choosing the best air conditioning unit for a home, the Sharp ZU1 stands out as a top-tier option, particularly due to its energy-efficient performance and adaptability to Québec’s extreme climate. This model is not just an air conditioner; it's also a highly efficient heat pump, capable of heating even when outside temperatures plummet to an impressive -27°C. This feature is vital in Québec, where winters can be harsh and unforgiving. Additionally, the ZU1’s ability to switch between cooling and heating ensures that homeowners are covered for every season.
Key Features of the Sharp ZU1 15,000 BTU
- Cooling Capacity: 15,000 BTU – Perfect for keeping large spaces cool during the hottest summer months.
- Heating Capacity: Capable of providing warmth even in temperatures as low as -27°C, making it ideal for Québec winters.
- Energy Efficiency: Rated at 24.0 SEER, the ZU1 is designed to minimize energy consumption, which is further enhanced by its use of R-32 refrigerant, a more eco-friendly alternative to older refrigerants.
- Wi-Fi Connectivity: Included in the model, allowing users to control and monitor their system remotely through their smartphone or other smart devices.
- Noise Levels: Operating at a quiet 23 dB(A) indoors, ensuring minimal disruption to household activities.
- Air Purification: Features Sharp’s proprietary Plasmacluster technology, which neutralizes airborne bacteria, viruses, and allergens, making it an excellent choice for households with allergy concerns or sensitive family members.
Installation Process: Precision and Expertise in Châteauguay
The installation process for the Sharp ZU1 was as smooth and efficient as the system itself. Our team at AirGreen took meticulous care to ensure that the unit was placed in an optimal location to maximize both efficiency and comfort for the homeowners.
Step 1: Site Assessment
Before installation, our experts conducted a thorough evaluation of the home in Châteauguay to determine the best placement for the indoor unit. With the goal of maximizing airflow while minimizing noise, we chose to install the indoor head unit in a central location, just above the door frame near the kitchen. This positioning allows the cool air to distribute evenly throughout the space while maintaining easy access for any future maintenance or servicing.
Step 2: Installing the Interior Unit

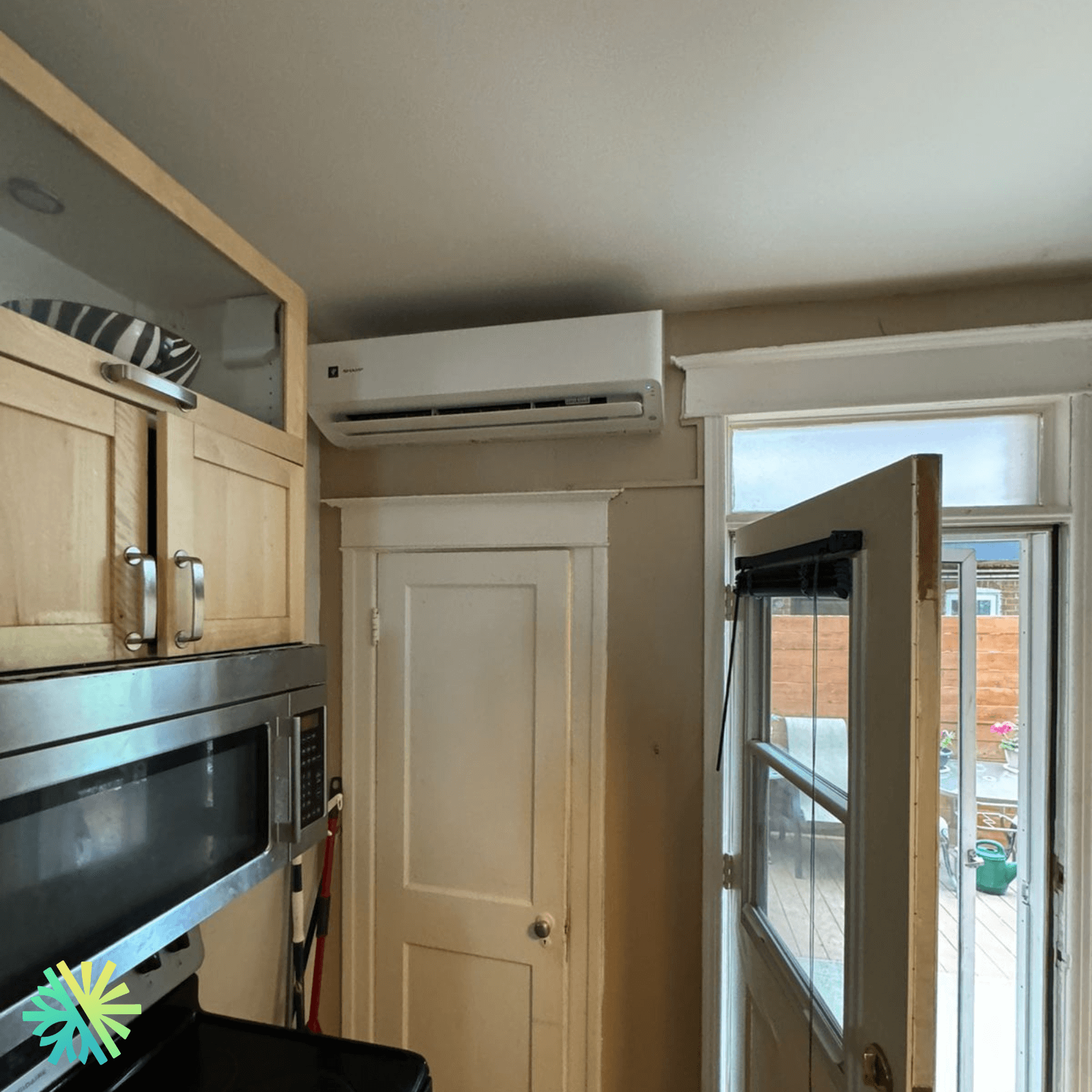

The Sharp ZU1 indoor unit, with its sleek dimensions of 41.42 x 9.80 x 12.44 inches, fits seamlessly into the kitchen area. The Coanda airflow technology built into the system ensures that cool or warm air is dispersed gently, avoiding uncomfortable drafts that might disturb the homeowners. With its quiet operation, the unit is barely noticeable even when running at full capacity, making it perfect for households where peace and tranquility are priorities.
Step 3: Installing the Exterior Unit
For the outdoor compressor, we selected a location that would allow for efficient heat dissipation and easy access to drainage, especially important given the extreme cold temperatures the unit will face during winter. The outdoor unit measures 30.72 x 10.59 x 21.25 inches and was securely mounted on an exterior wall. Its 49.0 dB(A) sound pressure level ensures that it operates quietly even during defrost cycles or high-performance modes.
Eligibility for Grants and Rebates
One of the highlights of this installation is the eligibility for multiple energy efficiency grants, making this Sharp ZU1 an incredibly cost-effective solution for homeowners. The model qualifies for up to $2,172 in rebates through the LogisVert grant by Hydro-Québec, as well as additional federal grants that can offer up to $5,000 in incentives for energy-efficient home improvements.
By opting for the Sharp ZU1, the homeowner in Châteauguay not only gains long-term energy savings but also immediate financial relief through these generous grant programs.
A Greener Solution for a Sustainable Future
One of the key selling points of the Sharp ZU1 is its use of the R-32 refrigerant. Compared to older refrigerants like R-22, R-32 is not only more efficient but also significantly reduces the system's impact on the environment. With a lower global warming potential, R-32 refrigerants contribute to a more sustainable future while also reducing electricity consumption by around 10%.
Additionally, the inverter technology in the ZU1 allows it to operate more efficiently by adjusting power consumption based on the temperature needs of the home, rather than constantly turning on and off. This results in lower utility bills and a more comfortable, consistent indoor climate.
Smart Technology for Modern Living
With Wi-Fi connectivity and real-time energy monitoring, the Sharp ZU1 provides homeowners with the tools to optimize their energy usage. Through a smartphone app, the homeowner can monitor temperature and humidity levels, track energy consumption, and even control the system remotely. For example, if the homeowner leaves the house and forgets to turn off the system, they can easily do so from their phone.
Moreover, the motion sensor technology integrated into the system detects when the room is empty, automatically adjusting the settings to conserve energy. These smart features not only improve convenience but also help reduce unnecessary energy expenditure, aligning with modern eco-conscious living.
Conclusion: An Installation that Meets All Expectations
The installation of the Sharp ZU1 15,000 BTU wall-mounted air conditioner in Châteauguay was a perfect example of how AirGreen delivers top-quality service combined with state-of-the-art technology. From the Plasmacluster air purification system to the Coanda airflow control, every aspect of this installation was designed to provide maximum comfort, efficiency, and long-term value for the homeowner.
At AirGreen, we’re committed to providing HVAC solutions that meet the needs of modern homeowners while helping them reduce their environmental footprint. The Sharp ZU1 is more than just an air conditioner—it’s an investment in comfort, energy savings, and a greener future.
How it goes, from the first call to the end
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
What the unit delivers when it is cold
The range as published on airgreen.ca: pick a size to see its capacity in deep cold.
| Size | Heating at −8 °C | Heating at −15 °C | Coldest certified point | COP at −15 °C | SEER | HSPF | Indicative LogisVert aid |
|---|---|---|---|---|---|---|---|
| Sharp ZU1 12 000 | 14,500 | 12,000 | −27 °C: 7,200 | 2.11 | 22.0 | 11.0 | $1,740 |
| Sharp ZU1 15 000 | 18,100 | 15,300 | −27 °C: 10,100 | 2.1 | 24.0 | 11.0 | $2,172 |
| Sharp ZU1 18 000 | 22,000 | 18,000 | −27 °C: 11,500 | 2.2 | 24.0 | 11.0 | $2,640 |
| Sharp ZU1 24 000 | 22,400 | 19,000 | −27 °C: 12,300 | 2.2 | 22.0 | 11.0 | $2,688 |
According to NEEP, it delivers 14,500 BTU/h at −8 °C (17 °F), more than at 8 °C (14,000 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 7,200 BTU/h, 60% of its nominal 12,000 BTU size.
At 8 °C, its certified maximum capacity reaches 17,100 BTU/h, 42% more than its nominal 12,000 BTU size.
According to NEEP, it delivers 18,100 BTU/h at −8 °C (17 °F), more than at 8 °C (18,000 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 10,100 BTU/h, 67% of its nominal 15,000 BTU size.
At 8 °C, its certified maximum capacity reaches 21,800 BTU/h, 45% more than its nominal 15,000 BTU size.
According to NEEP, it delivers 22,000 BTU/h at −8 °C (17 °F), more than at 8 °C (21,600 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its COP at −27 °C is 1.88: the highest of the ZU1 line, which ranges from 1.79 to 1.82 at that temperature.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 11,500 BTU/h, 64% of its nominal 18,000 BTU size.
At −27 °C, its certified minimum capacity is 3,200 BTU/h (5,500 at 8 °C). It slows down instead of cycling on and off.
According to NEEP, its certified heating capacity at −15 °C (5 °F) is 19,000 BTU/h, 79% of its nominal 24,000 BTU size. Its COP there is 2.20.
Data read live from the airgreen.ca page of each size (NEEP / AHRI certified performance). When the title names the installed size, it is highlighted; otherwise the whole range is shown. The aid shown is today’s, using Hydro-Québec’s rule ($120 per 1,000 BTU/h at −8 °C); amounts quoted in the article date from its publication. Only Hydro-Québec confirms the assistance granted.
And at your place?
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Baseboards and electric furnaces turn 1 kWh of electricity into 1 kWh of heat. A heat pump delivers more: that is its COP. At Hydro-Québec’s rate D (11.142¢/kWh above 40 kWh a day, since 1 April 2026):
Hydro-Québec: a heat pump can be up to three times more efficient than baseboards for heating in the colder months.
Estimate per kWh of heat, at the chosen temperature, using the certified COP from the product page. Taxes, access charge and backup heat not included.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
Which type of equipment for your project?
Pick what looks like your need.
Four mistakes we do not make
Flip each card to see what we do instead.
What people ask us about this kind of work
Does a wall-mounted heat pump heat in winter?
Wall-mounted or multi-zone: how do I choose?
Where does the outdoor unit go?
Are there grants?
Do I need a permit?
How cold can it heat?
How much can I save?
How is the LogisVert assistance calculated?
Is it noisy?
The outdoor unit is covered in ice: is that normal?
Does AirGreen hold the required licences?
Is the estimate free?
No question matches. Write to us: we answer.
Useful pages for what comes next
More jobs to see, near you
By town, by equipment or by region: browse more than 4,700 published projects.
Each dot: a town where AirGreen has published projects. The glowing dot: this job.
Tell us about your house. We come and see it for free.
The on-site estimate is free and the quote follows within 24 hours.
Text and photo: a real AirGreen Climatisation & Chauffage job. The diagrams are generic illustrations of the type of installation, not a survey of this job site. Sources of the added figures: airgreen.ca product pages (NEEP / AHRI performance), Hydro-Québec (Heat pumps page, LogisVert, read on 13 October 2026), Régie de l’énergie (rate D as of 1 April 2026).
