A compact HVAC solution precisely integrated into an already finished residential space

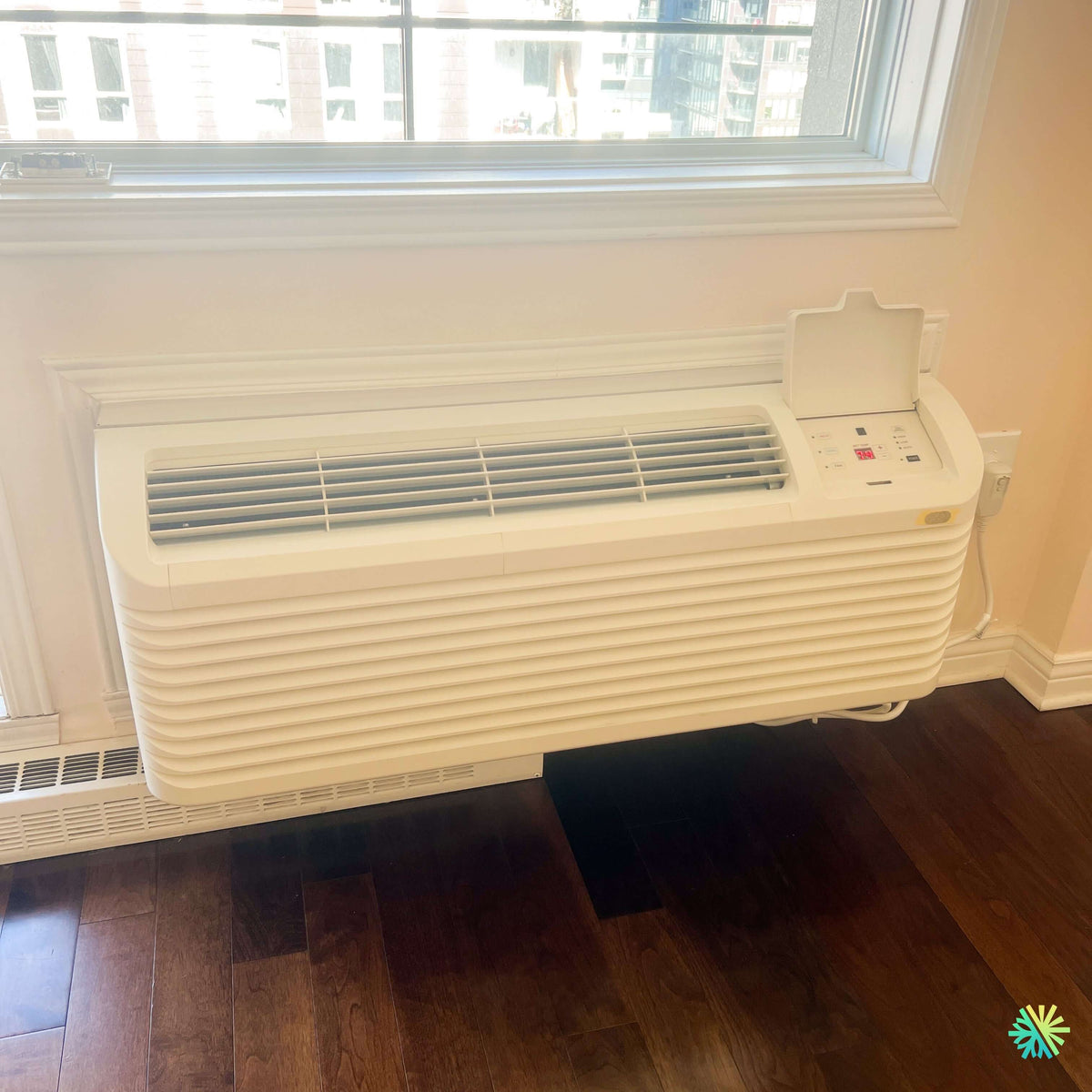

In Saint-Constant, on the South Shore of Montreal, we installed a FORESTAIR PTAC in a residence where available space, interior appearance, and ease of use were criteria just as important as heating and cooling performance.
The layout was particularly well suited to this type of unit: a large window, an accessible exterior wall, and a location beneath the opening that allowed the system to be integrated without installing a wall-mounted unit higher up. The result visible in the photo shows a unit positioned directly beneath the window, aligned with the existing trim, and connected to a nearby electrical supply.
This project clearly illustrates why a PTAC, also known as a packaged terminal air conditioner, remains a relevant option in certain apartments, condominiums, hotels, senior residences, and multifamily buildings. Unlike a traditional wall-mounted heat pump, the PTAC houses its main components in a single unit that passes through the exterior wall.
At AirGreen, we never consider a PTAC to be simply an appliance to slide into an opening. Its operating quality depends directly on wall preparation, leveling, sealing, drainage, electrical power, and airflow around the unit.
Why install a FORESTAIR PTAC in this Saint-Constant residence?
Choosing a FORESTAIR PTAC addressed several practical constraints specific to this room.
The unit had to provide a local comfort solution without requiring the installation of a duct network. It was also necessary to preserve the interior walls, avoid the visible routing of long refrigerant lines, and maintain simple operation for the occupant.
The PTAC is therefore an appealing solution, as it generally combines:
- room air conditioning;
- heating, depending on the exact configuration of the unit;
- ventilation and recirculation of indoor air;
- a control directly accessible on the unit;
- a compact installation through an exterior wall;
- maintenance that can be performed from inside the dwelling.
On this installation, the control panel is located on the upper-right section of the PTAC. The occupant can therefore adjust the temperature and operating mode without necessarily adding a separate wall thermostat.
The long, horizontal supply grille distributes air throughout the room from the upper section of the unit. The large lower front grille primarily serves as the return-air grille. This arrangement requires sufficient clearance in front of the unit. A sofa, table, heavy curtains, or piece of furniture placed too close could reduce airflow and affect performance.
An under-window installation requiring precise measurements
The space beneath a window often seems like the simplest location for a PTAC. In practice, several checks must be completed before confirming the installation.
We must assess, in particular:
- the height between the floor and the bottom of the window;
- the available width between the moldings and the adjacent walls;
- the thickness of the exterior wall;
- the composition of the structure;
- the presence of electrical or plumbing lines;
- the position of the baseboard heaters;
- the location of the electrical outlet or connection;
- the manufacturer's clearance requirements;
- the ability to properly drain condensation water.
In this project in Saint-Constant, the PTAC had to fit into an already finished area surrounded by decorative moldings. An inaccurate measurement could have resulted in an opening that was too wide, visible gaps around the sleeve, or interference with the window frame.
The completed installation has a clean alignment and a visually cohesive transition with the white finish of the wall and window. This level of precision is particularly important in a condominium, where a poorly positioned unit can quickly look like an improvised modification.
The essential role of the wall sleeve
A FORESTAIR PTAC must not be installed directly against wall materials without a suitable structure. The unit is normally inserted into a wall sleeve designed to support it and properly separate the interior from the exterior.
This sleeve serves several purposes:
- It keeps the unit in a stable position.
- It protects the building materials around the opening.
- It facilitates future removal of the PTAC for maintenance or replacement.
- It contributes to air and water tightness.
- It helps maintain a slight, appropriate slope toward the exterior when required.
Leveling is a critical step. A unit tilted too far inward can encourage water to drain into the room. Conversely, an excessive slope can create vibrations, affect the unit’s fit, or compromise the installation’s appearance.
We therefore check that the sleeve is properly supported before inserting the PTAC. We also inspect the perimeter seals to limit cold air infiltration, drafts, moisture, and noise from outside.
Particular attention to airtightness around the unit
In the climate of the Greater Montreal area, an opening through an exterior wall must be treated rigorously. An insufficiently airtight installation can negate some of the system’s energy benefits.
The most common problems around an improperly installed PTAC include:
- cold air infiltration in winter;
- condensation around the frame;
- moisture stains;
- drafts beneath the unit;
- increased transmission of outdoor noise;
- heat loss;
- water accumulating in the wall materials.
Our work therefore does not stop at mechanical fastening. We pay particular attention to the continuity of the seals, closing the opening around the sleeve, and protecting the exterior side.
This step is often invisible once the work is complete, but it directly affects occupant comfort and the installation’s durability.
Electrical power: a visible detail that should never be improvised
In the photo, the electrical connection is on the right side of the unit. The cord is kept close to the wall, preventing it from crossing a traffic area.
A PTAC may require a specific power supply depending on its capacity, voltage, and heating functions. Some units operate on a 208- or 230-volt supply, while other configurations may vary. The outlet type, circuit gauge, and electrical protection must always match the nameplate of the installed model.
You should never choose a circuit based solely on the unit’s physical size or its approximate BTU capacity. Two PTAC units that look similar may have different electrical requirements, especially when an electric heating element is built in.
Before installation, we check in particular:
- the available voltage;
- the circuit’s minimum amperage;
- the maximum permitted protection;
- the plug type;
- the presence of a dedicated circuit;
- the condition of the outlet;
- the connection’s compliance.
An unapproved extension cord or adapter is not an acceptable solution for powering this type of equipment.
The presence of a baseboard heater near the PTAC
The photo also shows a baseboard heater along the bottom of the wall, to the left of the unit. This situation is common in Quebec condominiums and apartments.
The presence of an existing baseboard heater does not automatically mean it must be removed. Depending on the dwelling’s design and the owner’s needs, it can be retained as supplementary or backup heating.
However, unwanted interactions between the two systems must be avoided. For example, if a baseboard heater directly heats the air near the PTAC’s temperature sensor, the unit could interpret the room temperature incorrectly.
The final layout must also preserve airflow around the baseboard heater and the PTAC. Neither appliance should be blocked by furniture or curtains.
Capacity selection: why floor area alone is not enough
Since the exact capacity of the installed model cannot be read from the photo, we avoid assigning one arbitrarily. At AirGreen, we select the capacity of a FORESTAIR PTAC based on several factors, rather than on a simple rule based solely on floor area.
We assess, among other things:
- the size of the room;
- ceiling height;
- the number and size of windows;
- exposure to sunlight;
- the quality of the insulation;
- the floor of the dwelling;
- exposure to wind;
- the number of occupants;
- heat-producing appliances;
- the presence of open or closed areas;
- actual heating needs.
An oversized unit may cool quickly without running long enough to properly control humidity. It may then short-cycle, be noisier, and create temperature fluctuations.
An undersized unit, on the other hand, may run continuously without reaching the requested temperature on very hot or very cold days.
Proper sizing therefore contributes to the PTAC’s comfort, efficiency, and service life.
What this PTAC installation in Saint-Constant brings to everyday life
Once installed and commissioned, the FORESTAIR PTAC provides direct temperature control in the room. This autonomy is particularly useful in buildings where each dwelling or zone must be adjustable independently.
An accessible system for maintenance
One of the practical advantages of the PTAC is its accessibility from indoors. The front panel can generally be removed to access the filters and certain maintenance components.
The occupant should clean the filters at a frequency suited to the unit’s use. In a home occupied daily, checking them monthly during periods of heavy use is a good habit.
A clogged filter can cause:
- reduced airflow;
- increased noise;
- reduced performance;
- higher electricity consumption;
- coil icing;
- premature wear of certain components.
Cleaning the filter does not replace professional HVAC maintenance. Over time, dust can accumulate on the coils, fan, and condensation pan. Periodic inspection also makes it possible to detect vibrations, deteriorated seals, or signs of abnormal leakage.
Reducing vibrations and noise
A PTAC contains the compressor and fans in the same cabinet. It is therefore normal for its operation to be more noticeable than that of a wall-mounted heat pump, whose compressor is located in a separate outdoor unit.
Precise installation nevertheless helps reduce unnecessary noise. We check:
- the stability of the sleeve;
- the points of contact with the wall;
- the tightness of the components;
- the absence of improperly latched panels;
- leveling;
- the clearance around the grilles;
- the condition of the internal supports.
A unit that vibrates heavily should not simply be ignored. The noise may be caused by improper mounting, a loose part, an obstruction, or a mechanical problem requiring attention.
Mistakes to avoid when installing a PTAC
Our experience with HVAC installation in Montreal, Laval, Longueuil, the North Shore, and the South Shore has shown us that many problems associated with PTACs stem less from the unit than from its installation.
Some of the most important mistakes to avoid include:
Choose a unit without validating the sleeve dimensions
PTACs may appear to have comparable formats, but their dimensions, exterior grilles, and sleeves are not necessarily interchangeable. A replacement must be planned based on actual measurements and the manufacturer’s requirements.
Neglect to seal the wall
A small opening around the sleeve can become a constant source of drafts and condensation.
Install the unit without the proper slope
Condensation drainage partly depends on the unit’s position. Incorrect installation can lead to indoor water leakage.
Block the return or supply of air
A piece of furniture placed in front of the lower grille or curtains hanging over the upper outlet can significantly reduce performance.
Using an inadequate electrical supply
The outlet and circuit must precisely match the model's electrical specifications. Using an adapter or extension cord may pose a serious risk.
Neglecting the exterior finish
The exterior section must be protected by a compatible grille installed in a way that allows air to circulate. A blocked or unsuitable grille can cause recirculation of the discharged hot air.
An installation designed for the building, not just the unit
In a Saint-Constant condominium, PTAC installation may also be governed by the rules of the condominium association. Any modification to the exterior wall or the appearance of the façade may require prior authorization.
Before starting the work, it is prudent to check:
- condominium bylaws;
- condominium association approvals;
- municipal requirements;
- restrictions affecting the façade;
- the permitted hours for the work;
- applicable electrical standards;
- responsibility for maintaining the exterior grille.
This preparation prevents delays and protects the owner against unauthorized modifications.
The AirGreen approach to PTAC installations on the South Shore
At AirGreen, we install and replace heating, ventilation, and air conditioning equipment in homes and multi-unit buildings in Saint-Constant, Longueuil, Brossard, Châteauguay, Candiac, Saint-Lambert, as well as throughout Greater Montreal.
Our approach includes analyzing the space, verifying the dimensions, selecting the capacity, reviewing the electrical supply, preparing the opening, installing the sleeve, sealing, installing the PTAC, and conducting operational tests.
We also explain to the owner or occupant:
- how to use the controls;
- how to remove and clean the filters;
- which clearances to maintain;
- which sounds are normal;
- which signs require an inspection;
- how to prepare the unit for the different seasons.
This FORESTAIR PTAC installation in Saint-Constant demonstrates that compact equipment can be cleanly integrated into a residential interior when every detail is planned: dimensions, structure, electrical work, drainage, sealing, and finishing.
The result is an accessible HVAC solution, suited to the room and installed in a way that simplifies both use and future maintenance.
