A wall-mounted appliance precisely integrated beneath a large window

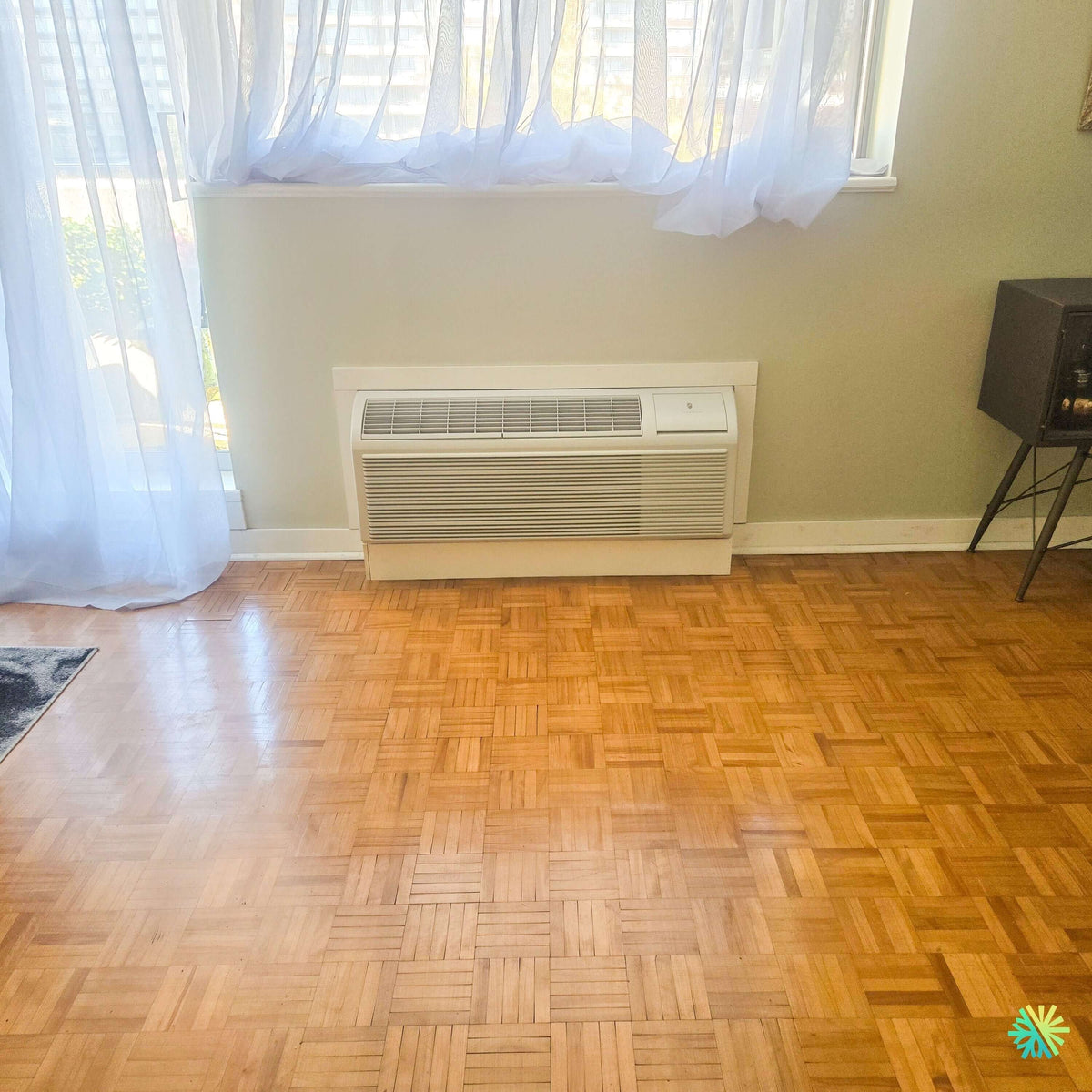

This installation of a FRIEDRICH ZoneAire® Premier PTAC in Acton Vale met a very concrete need: to efficiently cool a bright room with a large amount of glazing while preserving as much usable living space as possible and maintaining a clean interior appearance.
The appliance was integrated into the lower part of the exterior wall, directly beneath the window. This position allows the PTAC to connect with the outdoors through a wall sleeve, without requiring a separate condensing unit on the ground, on a wall bracket, or near the patio door.
The result is particularly well suited to the layout shown in the photo. The FRIEDRICH ZoneAire® Premier remains centered beneath the window, its front panel is easily accessible, and a large clear area has been maintained in front of the appliance. Air can therefore circulate through the room without being immediately blocked by a sofa, table, or storage unit.
Several constraints nevertheless had to be considered:
- the proximity of the curtains;
- protection of the parquet floor;
- the limited height below the window;
- alignment with the trim and baseboards;
- accessibility of the controls;
- the clearance required for air discharge;
- the airtight seal around the sleeve passing through the wall;
- proper condensate drainage.
It is precisely these details that distinguish a simple appliance insertion from a truly professional HVAC installation.
Why a PTAC was suitable for this room in Acton Vale
A PTAC, or packaged terminal air conditioner that passes through the wall, combines the main components required to treat the air in a room in a single chassis. Depending on the version selected, it can provide air conditioning, ventilation, and various forms of heating.
Unlike a wall-mounted mini-split heat pump, a PTAC does not include an indoor evaporator connected to an outdoor unit by refrigerant lines. The complete chassis is installed in a sleeve that passes directly through the wall.
This configuration offers several advantages in a room like this:
- no separate outdoor unit takes up space near the window;
- no pipe cover should be added to the interior wall;
- the main components remain accessible from inside the room;
- the appliance can be removed from the sleeve for certain service work;
- each room can have its own setting;
- the upper wall space remains available for windows, artwork, or furniture.
The FRIEDRICH ZoneAire® Premier PTAC is particularly well suited to apartments, condominiums, residences, bedrooms, small offices, and multifamily buildings where independent room-by-room control is desired.
A discreet installation despite a large-format unit
A PTAC necessarily has a certain depth because it contains its ventilation system, indoor heat exchanger, and the components that must release heat outdoors. The goal is therefore not to make the unit invisible, but to integrate it harmoniously.
In this Acton Vale project, we worked with the elements already present in the room:
- a large window;
- a glass door on the left;
- a wall painted in a light color;
- white baseboards;
- a parquet floor;
- light curtains extending nearly to the floor.
The white frame surrounding the unit creates a clean transition with the wall. The PTAC front panel also matches the trim colors, reducing its visual impact.
The installation height is well suited to the windowsill. The top of the unit does not touch the frame, while the upper grille maintains the clearance needed to distribute the conditioned air.
A front panel designed to draw in and redistribute air
The front panel of the FRIEDRICH ZoneAire® Premier installed in Acton Vale has two distinct sections.
The upper section contains the supply grille. Conditioned air is directed upward and forward so that it gradually mixes with the surrounding air.
The large lower front grille allows return air to circulate. It must remain unobstructed so the fan can maintain a steady airflow through the heat exchanger.
An obstacle placed too close to this front panel could cause:
- reduced airflow;
- reduced efficiency;
- noisier operation;
- faster dust accumulation;
- longer operating cycles;
- uneven temperature distribution.
The open space in front of the unit is therefore an important advantage in this installation. It will also make it easier to remove the front panel during HVAC maintenance.
Curtains: an aesthetic detail that affects performance
Light curtains visible in front of the windows provide privacy and reduce glare, but they must be positioned so they do not hang in front of the PTAC.
When fabric is drawn against the grille, airflow decreases quickly. A curtain can also deflect the discharged air toward the window rather than toward the center of the room.
We recommend keeping curtains:
- outside the width of the front panel;
- away from the upper grille;
- short enough or secured at the sides;
- clear of any surface that could heat up.
In this room, the main curtain is above the installation and can be arranged to completely clear the airflow area. The curtain on the glass door, on the left, must also remain away from the front panel when the door is open or when a draft moves the fabric.
A large glazed area to consider when sizing
A unit’s capacity must never be selected solely by measuring the floor area.
The photographed room has a large window and a glass door. These surfaces can strongly influence heat gain in summer and heat loss in winter.
To select the appropriate capacity, we consider, among other factors:
- the room’s floor area;
- the ceiling height;
- the orientation of the windows;
- the duration of sun exposure;
- the type of glazing;
- the quality of the insulation;
- the number of occupants;
- openings to other rooms;
- heat-producing appliances;
- daily use of the space.
An undersized PTAC might run almost continuously without reaching the requested temperature. An oversized unit might short-cycle and control humidity less effectively.
The FRIEDRICH ZoneAire® Premier line includes different configurations. The exact BTU capacity, voltage, and heating characteristics must be confirmed using the complete model number and the nameplate. We never determine these details solely from the front panel width.
The wall sleeve, a central component of the installation
The quality of a PTAC project depends as much on the sleeve as on the unit.
The sleeve is the metal structure integrated into the wall. It supports the chassis, guides its positioning, and protects the building opening. Once the front panel is installed, it becomes barely visible, but it remains essential to the system’s proper operation.
Compatibility check
Two units with similar dimensions are not necessarily compatible with the same sleeve. Support points, depth, outdoor grille configuration, and accessories may vary from one series to another.
Before installing the FRIEDRICH ZoneAire® Premier, we must check:
- the sleeve’s interior dimensions;
- its overall condition;
- the presence of corrosion;
- the strength of its fasteners;
- compatibility with the chassis;
- the clearance around the outdoor grille;
- the possibility of removing the unit later.
A chassis forced into an unsuitable sleeve may vibrate, dissipate heat poorly, or become difficult to service.
Slope check
When a PTAC operates in cooling mode, the moisture removed from the air turns into condensation. The sleeve must allow this water to remain on the side specified by the manufacturer and drain properly.
An inadequate slope can cause water to flow back indoors.
In this installation, the parquet floor is directly in front of the unit. Even a minor leak could:
- stain the wood;
- cause certain sections to swell;
- damage the baseboards;
- cause odors;
- promote internal corrosion;
- damage to the lower part of the wall.
We therefore pay particular attention to the chassis area, the condition of the condensate pan, and how the water behaves during testing.
Sealing around the opening
The sleeve perimeter must limit air and water infiltration. A clean interior finish alone does not guarantee proper watertightness.
We check the connection between the sleeve and the building to reduce:
- cold drafts;
- heat loss;
- rainwater entering;
- condensation inside the wall;
- insect infiltration;
- the transmission of outdoor noise.
In Acton Vale, temperature variations and freeze-thaw cycles make this step particularly important. A faulty seal can become much more noticeable during the Quebec winter.
Commissioning, comfort, and maintenance of the FRIEDRICH ZoneAire® Premier
Easy-to-access integrated controls
The control panel is located in the upper-right section of the unit. This position allows the occupant to adjust the settings without removing the front panel.
Depending on the unit’s exact configuration, the controls may allow you to adjust:
- temperature;
- operating mode;
- fan speed;
- air conditioning;
- heating;
- ventilation;
- certain programmable functions.
The space in front of and above the PTAC makes everyday use easier. No furniture blocks the control area, and the window frame does not hinder access.
When a compatible wall thermostat is used, the internal settings must also be configured consistently. Incorrect programming may make it seem as though the unit is not responding properly, when the issue actually comes from the selected control.
Checks performed during commissioning
After installation, we perform several checks before considering the project complete.
We check in particular:
-
Fan startup
Operation must be smooth, without friction or excessive vibration. -
Compressor startup
We observe the unit’s operation and listen to the noises produced during startup. -
Airflow
The air discharge grille must distribute air evenly. -
Response of the controls
Temperature, mode, and speed changes must be taken into account. -
Chassis stability
The unit must not move in the sleeve or vibrate against the frame. -
Condensate management
We check for the absence of water inside and around the front panel. -
Heating operation
When the configuration includes one, we test the heating mode under appropriate conditions. -
The power supply
The circuit, plug, and protection must match the requirements listed on the nameplate.
Why the power supply must be confirmed before installation
PTACs may require different voltages and different circuits depending on their capacity and heating type.
It is not enough for a plug to fit into an outlet. We must check:
- voltage;
- current;
- the wiring gauge;
- the circuit breaker capacity;
- the type of outlet;
- the heating element’s power;
- the condition of the cord;
- grounding.
Using an extension cord or an adapter not intended for the unit should be avoided. A PTAC is fixed or semi-fixed HVAC equipment that must have a power supply suited to its actual load.
Common mistakes to avoid
Our experience in HVAC installation leads us to regularly correct the same problems on through-the-wall units.
Common mistakes include:
- choose the capacity based on square footage alone;
- install a unit in an incompatible sleeve;
- neglect the slope toward the outside;
- block the grille with a sofa;
- let curtains cover the air intake;
- cover the outdoor grille with a cover;
- plug the unit into an extension cord;
- ignore persistent vibration;
- never clean the filters;
- hide a leak with trim;
- promise a rebate without checking the exact model.
In the Acton Vale project, the room layout contributes to proper operation. The front panel remains completely unobstructed, the controls are visible, and movement around the unit remains easy.
Recommended maintenance for maintaining good airflow
A FRIEDRICH PTAC constantly draws in room air. Its filters trap some of the dust, but they must be maintained to prevent a gradual reduction in airflow.
The user can generally perform certain simple tasks:
- cleaning the filters according to the manufacturer’s recommendations;
- wiping the front panel;
- removing objects placed in front of the unit;
- keeping curtains away;
- watching for any signs of water;
- listening for new noises;
- clearing the outdoor grille.
More comprehensive professional maintenance may include:
- evaporator cleaning;
- condenser section cleaning;
- condensate pan inspection;
- clearing water passages;
- turbine inspection;
- probe inspection;
- the inspection of the electrical connections;
- the examination of the sleeve;
- the leak-tightness check;
- the assessment of overall performance.
A persistent odour, reduced capacity, a leak, a rubbing noise, or repeated shutdowns should be inspected promptly.
PTAC or wall-mounted heat pump: a decision related to the building
Both the PTAC and the wall-mounted heat pump can heat or cool a room, depending on their configuration, but their installation is very different.
The PTAC uses a full wall opening and does not require a separate outdoor unit. It is suitable for buildings already designed for this type of equipment or for projects where an outdoor unit is not desired.
The ductless wall-mounted heat pump uses:
- an indoor unit;
- an outdoor unit;
- refrigerant lines;
- a drain;
- a communication cable;
- a suitable electrical circuit.
It may offer different performance levels and a different air distribution method, but it requires more work and an authorized outdoor location.
We recommend a solution based on the actual constraints of the home, rather than on a general preference for a single equipment category.
Model rebates and eligibility
A PTAC is not automatically eligible for financial assistance programs intended for heat pumps. Eligibility depends on the complete model number, certified performance, equipment category, and the rules in effect at the time of installation.
Before including a rebate in the project calculation, we verify:
- the exact equipment reference;
- its capacity;
- its heating type;
- its certifications;
- the building type;
- the address;
- the purchase date;
- the installation date;
- the conditions of the program concerned.
This verification prevents us from presenting savings that would not be confirmed after the work is completed.
AirGreen for PTAC installations in Acton Vale and Greater Montreal
At AirGreen, we carry out installations, replacements, and service work in air conditioning, heating, and ventilation in Acton Vale, Montérégie, as well as in Montreal, Laval, Longueuil, the North Shore, and the South Shore.
This FRIEDRICH ZoneAire® Premier installation demonstrates that a PTAC can be integrated cleanly into a residential room when it is positioned precisely. The large window, curtains, hardwood floor, and limited clearance beneath the sill required careful planning.
The final result preserves free airflow, direct access to the controls, and an appearance consistent with the existing trim. Behind this finish are the essential elements of a durable project: a compatible sleeve, a controlled slope, proper sealing, suitable electrical power, and complete commissioning.
