Installation of a MIDEA EVOX G3 2 Ton Electric Furnace with Central Air Handler System in Duvernay, Laval

A central MIDEA EVOX G3 installation in a demanding attic: precision, stability, and performance in Duvernay

In the residential sector of Duvernay, Laval, our AirGreen team recently completed a particularly technical HVAC installation: the setup of a 2-ton MIDEA EVOX G3 electric furnace, configured as a central system with an air handler. This type of installation requires much more than a simple equipment replacement. When a central unit needs to be installed in a sloped attic with limited space, existing framework, pre-installed ducts, and significant access constraints, every detail matters.

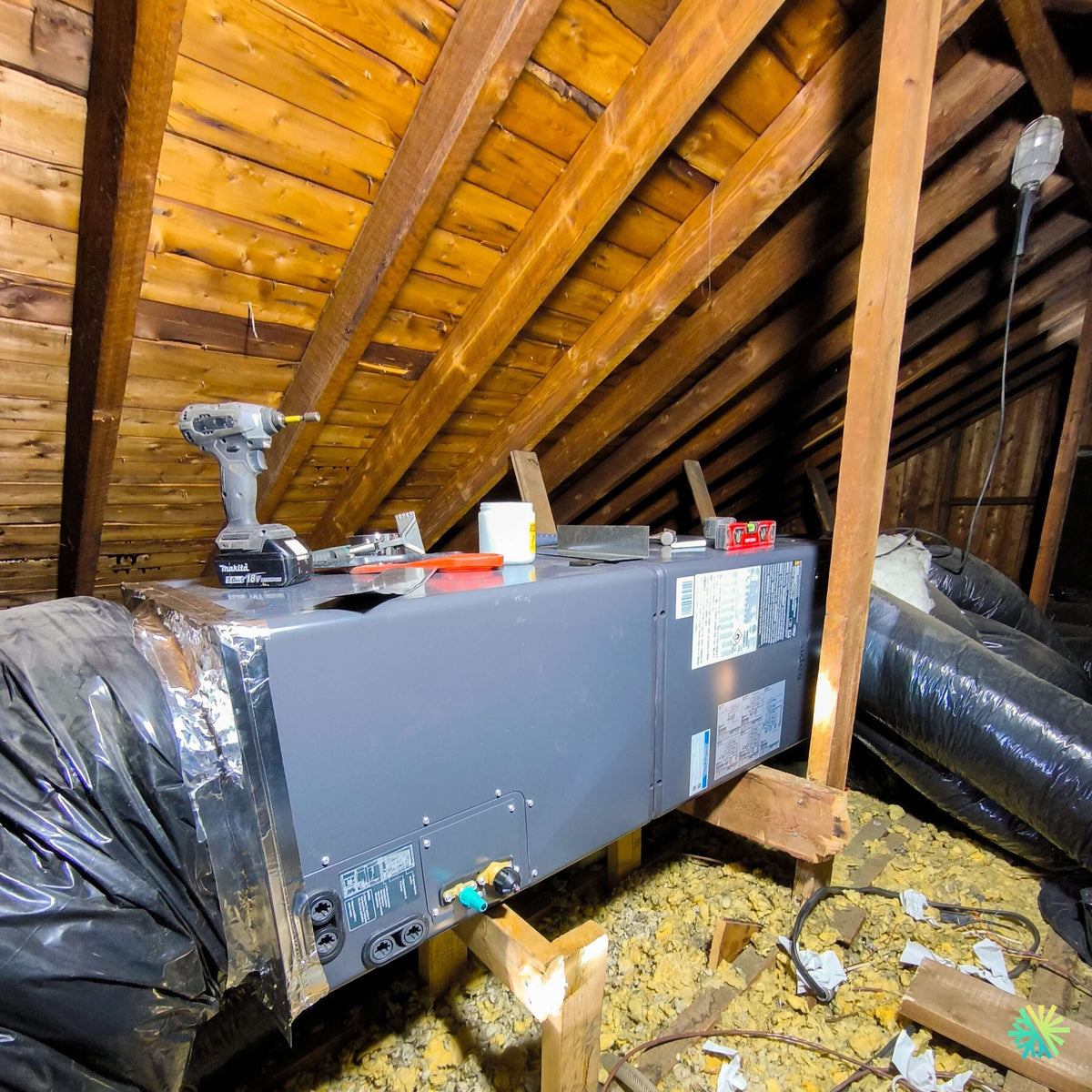

For this installation, the on-site photo clearly illustrates the context: a central unit positioned in a wooden attic, under a steep roof pitch, surrounded by insulated flexible ducts, temporary supports, and structural elements that needed to be respected. The main challenge was not just installing the equipment, but ensuring a solid, safe installation that was accessible for future maintenance and compatible with the home's comfort needs.

At AirGreen, we approach this type of project with a highly structured methodology: space analysis, airflow validation, access planning, building envelope protection, connection adjustments, and comprehensive system performance verification. A central electric furnace like the 2-ton MIDEA EVOX G3 can only deliver its full potential if its installation rigorously adheres to principles of air circulation, airtightness, clearance, drainage, and electrical safety.

Why choose a 2-ton MIDEA EVOX G3 for a residential central system

The MIDEA EVOX G3 range is often chosen for residential projects where a good balance between comfort, efficiency, and reliability is sought. In the case of this Duvernay residence, the choice of a 2-ton model was consistent with the home's air distribution needs and the configuration of the existing ductwork.

An inadequately sized unit can create several problems: short cycles, discomfort between floors, excessive energy consumption, poorly controlled humidity, or premature component wear. That's why, before recommending a MIDEA EVOX G3 electric furnace, we evaluate not only the area but also insulation, room layout, duct quality, thermal losses, and occupants' usage habits.

In this installation, the air handler plays a central role. It ensures the circulation of conditioned or heated air through the duct network. When properly installed, it contributes to better temperature distribution, more stable operation, and more uniform comfort throughout the different zones of the house.

Among the appreciated features of this type of equipment are:

• a configuration adapted to residential central systems;
• compatibility with heating and cooling needs depending on the complete project configuration;
• a design optimized for airflow;
• good integration into technical spaces such as an attic, when clearances and access are properly planned;
• an interesting solution for homeowners in Laval, Montreal, Longueuil, the North Shore, and the South Shore who wish to modernize their central HVAC system.

A low-clearance attic: the true challenge of this HVAC installation

Installing a central unit in a mechanical basement is one thing. Installing it in a sloped attic is another. For this project in Duvernay, the available space required a precise work method. The sloping ceiling, exposed beams, the presence of blown-in insulation on the floor, and pre-positioned flexible ducts forced our team to work with great care.

In this type of environment, a positioning error can have significant consequences. A poorly leveled unit can cause drainage problems. Insufficient access to service panels can complicate future maintenance. A crushed or misaligned duct can impair airflow. Poor airtightness can lead to energy losses in the attic rather than delivering conditioned air to the rooms of the house.

Our work therefore began with preparing the area. The unit had to be placed on a stable, well-supported base, considering the weight of the unit and the existing structure. The visible wooden supports around the unit demonstrate the importance of an installation that does not rest directly on insulation or an unstable surface. An HVAC installation in an attic requires particular attention to mechanical stability.

Support, leveling, and unit protection

The 2-ton MIDEA EVOX G3 was installed to ensure a stable and functional position. Leveling is a critical point, especially when a central system is associated with components that can generate condensation, depending on the configuration. Even a slight misalignment can eventually cause water accumulation, noise, vibrations, or performance problems.

Our technicians paid particular attention to several points:

• the necessary clearance around the unit to allow future interventions;
• the stability of the unit on its supports;
• alignment with existing ducts;
• protection of service panels;
• absence of excessive compression on flexible ducts;
• the possibility of checking and maintaining the system without unnecessarily dismantling the installation.

In the photo, we see the unit placed in a tight but accessible environment. This balance is essential. A too-compact installation may seem clean initially but become problematic during future HVAC maintenance. At AirGreen, we always think about the complete lifespan of the system, not just the installation day.

Duct connections: preserving airflow throughout the house

The duct network plays as important a role as the unit itself. A high-performance electric furnace or air handler can lose much of its efficiency if ducts are poorly connected, too constrained, or insufficiently sealed. In this Duvernay attic, insulated flexible ducts had to be connected while minimizing pressure losses and avoiding excessively tight bends.

Our technicians worked carefully around the connections to ensure an efficient transition between the unit and the existing network. Flexible ducts in the attic must be handled with caution: they must not be crushed, twisted, or pulled excessively. Each deformation reduces the quality of air circulation and can create less comfortable rooms in the house.

For homeowners comparing HVAC contractors in Laval, this detail is important. A central installation is not judged solely by the brand of the unit. It is judged by the quality of the connection, airtightness, duct support, vibration management, respect for technical space, and the team's ability to anticipate future problems.

The importance of airtightness in an attic

An attic is a space where energy losses can become significant if the installation is not done properly. Conditioned air must remain in the distribution network, not be lost in an uninhabited area. That's why airtightness around connections is an essential step.

In this project, our team paid attention to the junctions between the unit and the ducts, metal transitions, and sensitive contact points. Good airtightness contributes to:

• reducing heat loss in winter;
• improving cooling efficiency in summer;
• limiting temperature variations between rooms;
• reducing unnecessary operating cycles;
• protecting the overall comfort of occupants.

In Montreal, Laval, Longueuil, on the North Shore, and the South Shore, several homes have central installations located in difficult technical spaces. It's often these invisible details that make the difference between an average installation and a long-lasting one.

An AirGreen method designed for complex central installations

At AirGreen, every central system installation begins with a complete assessment of the context. In this Duvernay residence, we had to consider the roof's architecture, the framework, existing ducts, the unit's location, technician access, and the comfort expected by the occupants.

Step 1: Space inspection and access validation

Before positioning the unit, we assessed the available space in the attic. Access to this type of area can be limited, requiring good coordination. Transporting a 2-ton MIDEA EVOX G3 air handler into an attic is not done without preparation. The unit must be protected, damage to existing surfaces must be avoided, and the work sequence must be planned to avoid getting stuck once the unit is in place.

A common mistake is underestimating the importance of future access. A unit can be physically installed, but if it becomes almost impossible to open it for diagnosis or maintenance, the installation is not optimal. Our approach always aims to maintain reasonable access to panels, connections, and essential components.

Step 2: Unit positioning and adaptation to the existing network

The positioning of the MIDEA electric furnace had to allow for consistent connection to the already present ducts. In a space like the one visible in the photo, the unit cannot be placed haphazardly. A few centimeters can change a duct's angle, modify static pressure, or complicate access to a connection.

Our technicians therefore adjusted the location to meet three objectives: stability, performance, and maintenance. The result is a compact but thoughtful installation, in which the unit remains accessible while being well integrated into the existing network.

Step 3: Electrical connections and safety checks

An electric furnace imposes serious electrical requirements. The power supply must comply, connections must be secure, and components must be protected. In this type of project, we pay particular attention to safety, as a central unit operates for long periods and must be reliable for both heating and ventilation.

Checks include:

• compliance of connections according to project configuration;
• security of connections;
• validation of unit operation;
• absence of abnormal noise or excessive vibration;
• confirmation that service panels are accessible.

Step 4: Start-up and adjustments

Once the installation is complete, start-up confirms that the system is operating as expected. This moment is essential. It's not enough for the unit to start: it must be verified that air circulates correctly, that ducts react well, that the unit is stable, that connections are adequate, and that the expected comfort can be achieved.

For this installation in Duvernay, our goal was to offer a reliable central system, neatly integrated into a complex environment, with particular attention paid to durability and future maintenance.

Mistakes to avoid during a central attic installation

A homeowner considering a similar HVAC installation should pay attention to certain common pitfalls. In several projects we encounter in Laval, Montreal, Longueuil, on the North Shore, and the South Shore, problems do not always come from the unit, but from the installation itself.

Installing the unit without adequate support

A central unit should never be placed on an unstable surface. In an attic, insulation, uneven boards, or improvised supports can create vibrations, misalignments, and longevity problems. A solid base is essential.

Neglecting flexible ducts

Flexible ducts must retain their shape and cross-section. A crushed or excessively bent duct reduces airflow. This can lead to rooms that are too cold, too hot, or poorly ventilated.

Forgetting access for HVAC maintenance

A unit that is difficult to access will cost more to maintain and repair. During installation, the reality of future service must always be considered: filters, panels, connections, diagnosis, and cleaning.

Underestimating the importance of airtightness

In an attic, air leakage can represent a significant loss. Conditioned air must be sent to the rooms, not into the attic space. Good airtightness is a direct investment in efficiency.

Choosing capacity without analysis

A 2-ton model might be excellent in one house and inadequate in another. The capacity must match the building's actual needs. At AirGreen, we avoid approximate recommendations and favor an approach based on the real context of each residence.

An installation reflecting the type of projects we undertake in Laval and Greater Montreal

This installation of a MIDEA EVOX G3 2-ton unit in Duvernay is a good example of projects where field experience makes all the difference. In an open and easily accessible space, many installations might seem simple. In a sloped attic, with beams, insulation, existing ducts, and little room to maneuver, the quality of the work becomes much more visible to a professional eye.

AirGreen regularly carries out similar installations in Greater Montreal, whether in Montreal, Laval, Longueuil, on the North Shore, or the South Shore. Each house has its peculiarities: some projects require duct adaptation, others need special attention to noise, air distribution, or mechanical access. Our role is to propose a durable, well-installed solution adapted to the reality of the building.

Why installation matters as much as the brand

The MIDEA brand offers an interesting solution for many residential projects, but no appliance can compensate for a poor installation. A high-performance central system depends on the whole: appliance, ducts, electricity, supports, drainage, sealing, clearances, and commissioning.

This is why we place so much importance on visible and invisible details. A well-done HVAC installation must be clean, solid, logical, and designed for years to come. Homeowners usually see the final comfort, but behind this comfort are precise technical decisions made during installation.

In the case of this residence in Duvernay, the objective was clear: install a MIDEA EVOX G3 2-ton electric furnace in a confined space while respecting standards of stability, safety, and performance. The result is a central installation adapted to the building, designed to offer reliable air distribution and simpler maintenance in the future.

Practical advice for homeowners considering a MIDEA central system

For a homeowner considering replacing or installing a central system with an air handler, here are some tips from our experience:

1. Have the ducts evaluated before choosing the appliance.
   The best equipment will not perform well if the distribution network is undersized or in poor condition.
2. Ask where the appliance will be installed and how it will be accessed.
   Location influences comfort, noise, maintenance, and sometimes even the system's lifespan.
3. Do not choose based on price alone.
   A cheaper installation can become costly if it leads to air leaks, vibrations, or premature repairs.
4. Plan for maintenance from the start of installation.
   A well-placed and accessible appliance will be easier to maintain in good condition.
5. Work with a team accustomed to local constraints.
   Houses in Laval, Montreal, Longueuil, on the North Shore, and the South Shore often have very different configurations. Local experience helps avoid unpleasant surprises.

AirGreen: a rigorous approach to central systems

This project in Duvernay clearly demonstrates our way of working: a clean, thoughtful installation adapted to the actual space. We never consider a central replacement as an automatic operation. Every detail is analyzed, especially when an appliance is installed in an attic where margins for error are small.

The MIDEA EVOX G3 2-ton installed here is part of a central solution designed to ensure efficient airflow and reliable comfort. As an HVAC specialist company, AirGreen supports homeowners in the selection, installation, maintenance, and optimization of their heating and air conditioning systems.

For residents of Duvernay, Laval, and Greater Montreal, this installation illustrates the importance of a contractor who understands both the equipment and the building. A good installation is not limited to connecting a machine. It involves creating a coherent, durable system adapted to the home.
