Installation of a 2-ton MIDEA EVOX G3 electric furnace with central Air Handler system on the South Shore

A Central System Designed for Precision, Tight Spaces, and Long-Term Reliability

In many South Shore properties, replacing or installing a central system isn't just about dropping a new unit into a mechanical room. It requires dealing with the existing structure, the ducts already in place, sometimes limited access, technical clearances, condensate drainage, filtration quality, wiring, air distribution sealing, and, above all, the system's actual ability to provide stable comfort throughout the house.

For this installation, our AirGreen team installed a MIDEA EVOX G3 2-ton electric furnace, used as a central Air Handler system. The objective was clear: to offer the client a compact, clean, efficient, and well-integrated solution within an existing duct network, while ensuring reliable air distribution for central heating and air conditioning.

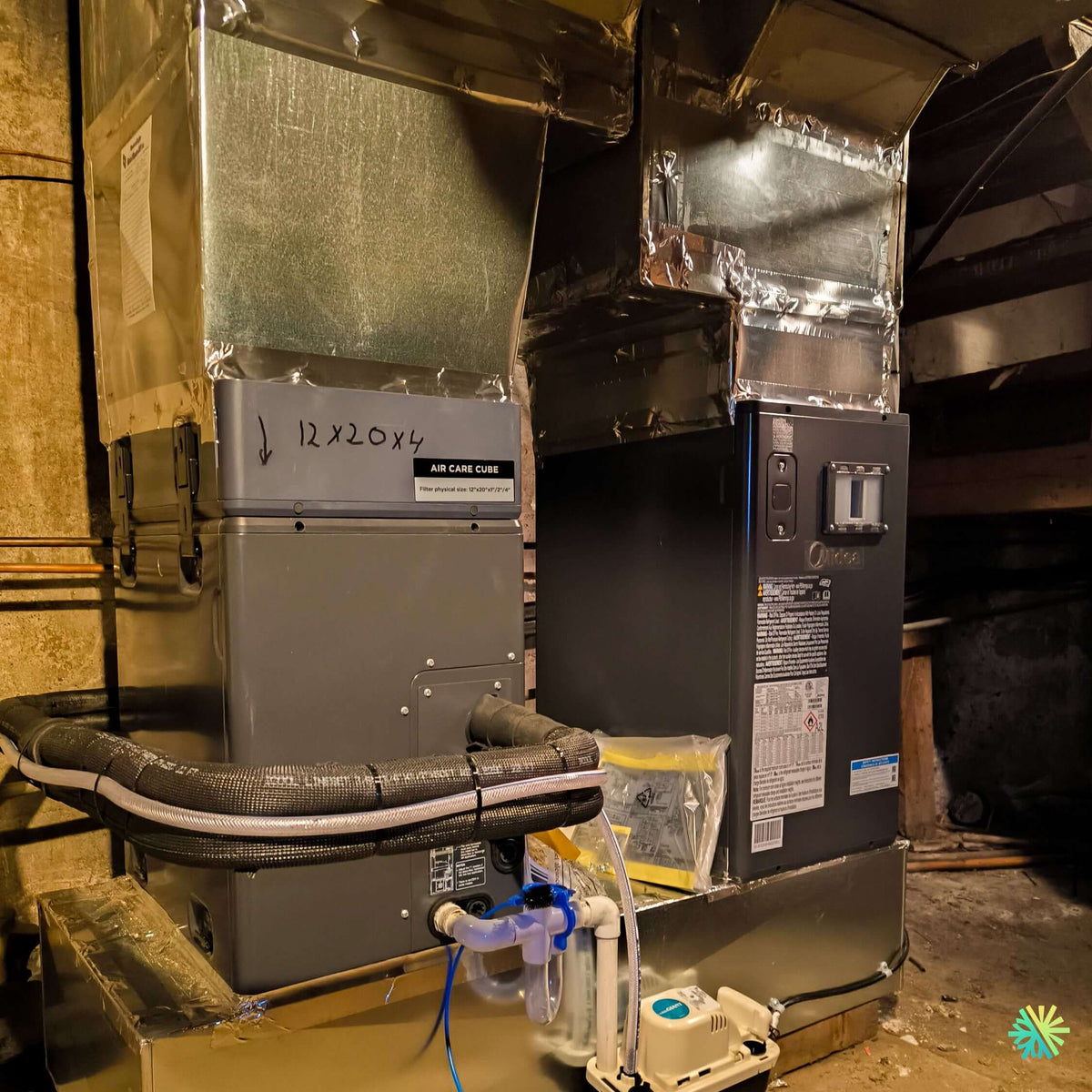

The installation photo clearly shows the context: a low mechanical room, with custom metal ducts, several sealing connections, a side filtration module, insulated refrigeration lines, a condensate pump, and relatively tight technical access. This type of environment requires a rigorous approach. A simple misalignment error, poor drainage slope, or poorly sealed connection can reduce system efficiency, create noise, promote air leaks, or complicate future maintenance.

At AirGreen, we approach every HVAC installation as a complete project, not just a simple equipment connection. In this specific case, the priority was to integrate the MIDEA EVOX G3 2 tons into an existing central configuration while maximizing airflow, filter accessibility, connection cleanliness, and drainage reliability.

Why a MIDEA EVOX G3 2-ton electric furnace on the South Shore?

The choice of an electric furnace with a central Air Handler is particularly relevant in many South Shore homes, especially when the building already has a functional duct network. This type of system allows conditioned or heated air to be distributed through multiple rooms, providing more uniform comfort than a single wall-mounted unit in some configurations.

The MIDEA EVOX G3 2-ton model represents a modern approach to residential comfort. In a central installation, the indoor unit plays an essential role: it ensures air circulation through the evaporator, filter, ducts, and diffusers. Its performance depends not only on its nominal capacity but also on the quality of the installation, the network's static pressure, the ducts' airtightness, and the correct sizing of accessories.

A capacity of 2 tons is often suitable for medium-sized residential spaces, provided that the building analysis confirms this match. At AirGreen, we never rely solely on general surface area. We consider several elements:

• the actual volume to be air-conditioned or heated;
• the building's insulation;
• solar orientation;
• the property's age;
• duct configuration;
• the presence of a basement, an upper floor, or open areas;
• client needs for comfort, noise, and efficiency.

In this project, the central configuration allowed effective use of the existing network, but particular attention had to be paid to the transition between the unit and the ducts. This is precisely what is seen in the image: adjusted, sealed, and insulated metal connections to limit air loss and stabilize system operation.

A compact mechanical room: the real challenge of this HVAC installation

One of the most interesting aspects of this installation is the technical environment. The mechanical room appears to be located in a low space, probably a basement or a service area with limited clearance. This type of space requires finer planning than an open mechanical room.

In a confined space, every decision counts. Access must be provided for the service panel, filter, condensate pump, drains, electrical connections, and refrigeration lines. An installation may seem successful at first glance, but it can become problematic if the client or technician cannot easily replace the filter or inspect essential components during HVAC maintenance.

On this project, our team took care to position the system to maintain convenient access to critical elements. The filter, indicated on the casing with handwritten dimensions, is installed in an accessible side module. This detail may seem simple, but it is fundamental. A difficult-to-reach filter is often neglected, and a neglected filter eventually reduces airflow, increases energy consumption, and puts unnecessary stress on the system.

The presence of a clearly visible filtration module, with the mention "Air Care Cube" and filter dimensions, facilitates client monitoring. This is an important element in a central installation: even the best unit quickly loses its efficiency if the filter is not suitable, clean, and replaced at the right interval.

The importance of custom metal ducts

A central system depends directly on the quality of its distribution network. In this installation, the metal ducts visible above the unit were adjusted to integrate with the existing configuration. Connections were sealed using aluminum tape and appropriate materials to reduce air leaks.

A leak in a central duct can lead to several problems:

• energy efficiency loss;
• less well-tempered rooms;
• excessive air noise;
• longer operating cycles;
• discomfort between floors or zones;
• dust accumulation in certain parts of the network.

In a South Shore home, where winters can impose high heating demand and summers are becoming increasingly demanding for central air conditioning, the quality of the ducts is not a detail. It directly influences the system's actual performance.

This project clearly demonstrates our approach: adapting the installation to the building's reality rather than forcing the building to receive a standard solution. Duct transitions were configured to respect the available space while maintaining consistent airflow. The result is a clean, compact, and functional installation.

Condensate Management: An Often Underestimated Element

The photo clearly shows a condensate pump placed near the indoor unit. In a central air conditioning installation, managing the water produced by condensation is essential. When warm, humid air passes over the cold coil, moisture condenses and must be safely drained.

In some buildings, gravity drainage is possible. In others, especially when the unit is located where the natural slope does not allow direct drainage, a condensate pump becomes necessary. It moves the water to an appropriate discharge point.

Poor condensate management can cause:

• overflows;
• floor damage;
• odors;
• safety shutdowns;
• water accumulation around the unit;
• risk of mold in the mechanical environment.

For this installation, the integration of the pump had to be both functional and accessible. The visible pipes demonstrate a maintenance-oriented configuration: the system can be inspected, cleaned, and maintained without unnecessary disassembly of the installation.

Insulated Refrigerant Lines: Protecting System Performance

One also notices the insulated refrigerant lines running across the front of the installation. Line insulation is essential, particularly for maintaining system performance and preventing thermal losses. Insufficient insulation can impair efficiency, promote undesirable condensation, and create long-term problems.

In a central HVAC installation, the refrigerant line must be protected, well-supported, and carefully installed. It must not be crushed, excessively bent, or unnecessarily exposed to friction. In a tight space like this, the team must plan the routing of the lines to avoid mechanical stress while maintaining access to service panels.

This step illustrates an important difference between a quick installation and a professional installation. Refrigerant lines are not just pipes: they are a critical part of the system. Their condition influences pressure, efficiency, compressor durability, and the overall behavior of the heat pump or associated central system.

A Clean Installation Despite a Demanding Technical Environment

Existing mechanical rooms are not always ideal. They often have unfinished walls, old ducts, beams, obstacles, reduced spaces, and height constraints. However, even under these conditions, the final result must remain organized, accessible, and safe.

In this AirGreen installation, several details show a commitment to professional finishing:

• well-adjusted metal ducts;
• aluminum tape applied to critical joints;
• identified filtration module;
• visible access to the unit panel;
• condensate pump installed nearby;
• grouped insulated lines;
• connections designed for future maintenance.

These are the details that make the difference in the years following installation. A central system is not only evaluated on the day it is commissioned. It must continue to function correctly, season after season, with reasonable maintenance and accessible components.

MIDEA EVOX G3: A Central Solution Adapted to Modern Residential Needs

The MIDEA EVOX G3 range is often appreciated for its ability to integrate into residential projects where efficiency, comfort, and installation flexibility are important. In an electric furnace and central Air Handler configuration, the system allows air distribution through ducts, which is particularly suitable for clients who want to maintain a discreet aesthetic in living areas.

Unlike a visible wall-mounted solution, a central system distributes comfort through grilles, often already present in the house. This can be an advantage for homeowners who want a uniform and less conspicuous solution.

In this type of project, the perceived performance by the client depends on several elements:

• stable temperature from room to room;
• reduced noise at the grilles;
• sufficient air circulation;
• well-maintained filtration;
• reliable drainage;
• compliant electrical installation;
• simple maintenance.

The choice of model is therefore only one part of success. On-site execution plays an equally important role.

What we check before, during, and after installation

For a MIDEA central system installation on the South Shore, our team follows a rigorous sequence to avoid common errors. Before installation, we analyze the available space, the condition of the ducts, the feasibility of connections, line routing, electrical access, and condensate drainage.

During installation, we pay attention to unit alignment, mechanical stability, connection sealing, line protection, and connection compliance. After installation, we validate general operation, airflow, drainage, and component accessibility.

This method is particularly important with central systems, as an error can sometimes be difficult to detect immediately. For example, a small air leak in a transition may not prevent the system from operating, but it can reduce efficiency and create long-term discomfort. Similarly, a poorly positioned condensate pump may work initially, then cause problems after several air conditioning cycles.

Mistakes to Avoid with a Central Electric Furnace

Many homeowners in Montreal, Laval, Longueuil, the North Shore, and the South Shore contact us after experiencing problems with poorly adapted central installations. The most frequent errors do not always concern the unit itself, but rather how it was integrated.

Among the mistakes to avoid:

Neglecting actual sizing

A unit that is too small risks running too long without achieving desired comfort. A unit that is too large can cause short cycles, poor dehumidification, and premature wear. The 2-ton capacity must match the building's thermal reality, not just a quick estimate.

Poorly adapting ducts

Even a good system can yield disappointing results if the ducts are undersized, poorly sealed, or too restrictive. Static pressure must be taken seriously in any central HVAC installation.

Installing a hard-to-access filter

A misplaced filter often ends up being forgotten. In this installation, the filtration module is visible and identifiable, which encourages regular maintenance.

Underestimating Condensation

The condensate pump and drains must be installed with care. Negligent drainage can cause costly damage.

Forgetting Future Maintenance

A compact installation must remain accessible. Panels, filters, drains, and service components must be reachable without excessive intervention.

Practical Tips for South Shore Homeowners

After installing a MIDEA EVOX G3 2-ton electric furnace, a few simple habits can help maintain system performance.

The filter should be checked regularly, especially during periods of intensive use. In a house with pets, renovation work, dust, or high occupancy, it may be necessary to replace it more often. A clean filter protects the appliance, improves air quality, and stabilizes airflow.

The condensate pump should also be part of the maintenance routine. It can accumulate deposits over time. Preventive inspection reduces the risk of overflow during the summer, when air conditioning operates more frequently.

It is also recommended to pay attention to unusual noises, temperature variations between rooms, or a decrease in airflow. These signs do not always indicate a major problem, but they deserve verification before the situation worsens.

At AirGreen, we encourage customers to consider HVAC maintenance as a normal part of the system's life. Good installation is the foundation, but adequate follow-up extends the equipment's lifespan.

An AirGreen Achievement Illustrating Our Approach to Residential Central Systems

This installation on the South Shore perfectly represents the type of project where field experience makes a difference. The context was not a perfectly clear mechanical room with ideal conditions. It required working in a real technical space, with visible constraints, a duct network to adapt, filtration to make accessible, and condensate drainage to secure.

The MIDEA EVOX G3 2-ton electric furnace was integrated as a central Air Handler system with particular attention paid to every practical detail: airflow, ducts, access, drainage, insulation, and finishing. The result is an installation that meets the client's needs while complying with the requirements for reliable operation.

For homeowners on the South Shore, in Longueuil, Montreal, Laval, or the North Shore, this project highlights an important reality: the choice of equipment is essential, but the quality of the installation is just as important. A well-installed central system offers more stable comfort, better efficiency, and long-term peace of mind.

At AirGreen, we apply our HVAC expertise to concrete projects, with an approach that prioritizes precision, transparency, and durability. Whether it's a new installation, a replacement, or an adaptation to an existing network, our goal remains the same: to deliver a clean, high-performance system adapted to the building's reality.
