Installation of a MIDEA EVOX G3 3-Ton Electric Furnace in Îles-Laval: replacement of a central system in a very confined mechanical space

A central installation designed to modernize comfort without compromising existing space

In Îles-Laval, our AirGreen team carried out a particularly interesting HVAC installation: the replacement and integration of a MIDEA EVOX G3 3-ton electric furnace, used as a central system – air handler, in a compact mechanical space where every inch counted.

This type of project very well represents the reality of many residences in the greater Montreal, Laval, Longueuil, North Shore, and South Shore areas: an old central system still functional in some respects, but limited in efficiency, comfort, compatibility with new equipment, and installation quality. The challenge is not just to replace a machine. It's about adapting the new system to the existing building, to the ducts already in place, to electrical constraints, to the configuration of the mechanical room, and to the client's expectations.

In this specific case, the available space was tight, with the washer-dryer close to the old unit, metal ducts already in place, limited wall clearance, and several connections to manage cleanly. The installation therefore had to be precise, solid, and well-thought-out from the start.

Why choose a MIDEA EVOX G3 3-ton electric furnace?

The MIDEA EVOX G3 3-ton is a very relevant choice for a residence equipped with a central duct network. Unlike a simple improvised replacement, this type of central air handler allows for better air distribution throughout the house, with more uniform circulation and better compatibility with a central heat pump when the project includes or anticipates a complete system upgrade.

In a house located in Îles-Laval, where temperature variations can be significant between seasons, a modern electric furnace offers several concrete advantages:

• Consistent air distribution in the main rooms.
• Better integration with an existing central system.
• A suitable solution for residences where multiple wall units are to be avoided.
• More discreet comfort, as air is diffused through the ducts.
• A clean installation when the mechanical space is well planned.
• Interesting compatibility with energy modernization projects.

For many homeowners in Laval and the surrounding areas of Montreal, replacing an old furnace or air handler becomes an opportunity to reorganize the entire HVAC system: ducts, connections, drainage, service accessibility, control, filtration, and overall performance.

A narrow mechanical room: the real challenge of the project

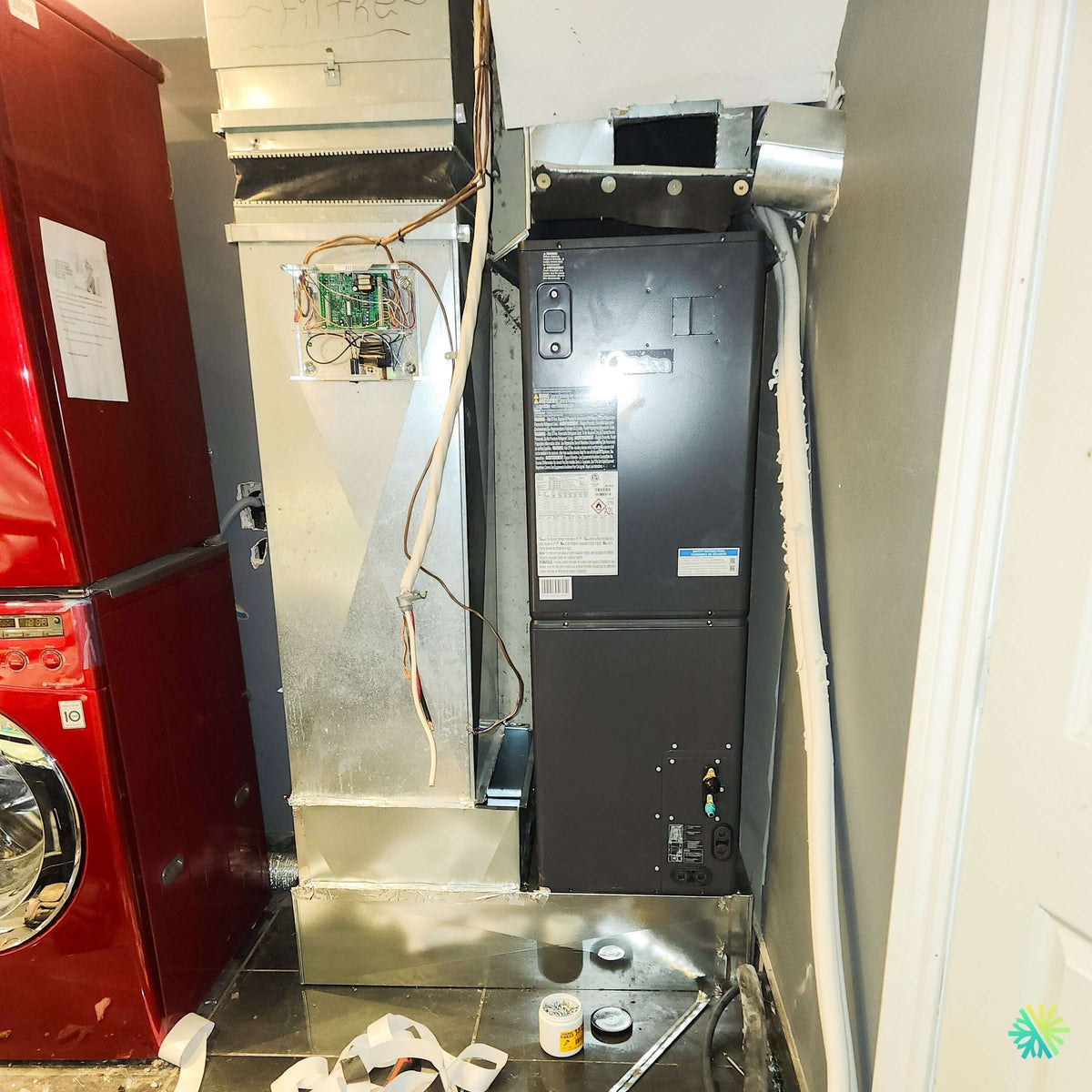

The image of this installation clearly shows a reality that our technicians often encounter: equipment is not always found in a spacious and perfectly clear mechanical room. Here, the furnace had to be installed next to an appliance column, near a wall, with an old section of metal ducts on the side and above.

This configuration required a rigorous approach. Poor planning could have created several problems:

• Difficult access to the service panel.
• Misaligned duct connection.
• Vibrations or parasitic noises.
• Lack of space for future maintenance.
• A visually cluttered installation.
• Airflow losses caused by a poorly designed transition.

At AirGreen, we pay particular attention to these details because they directly influence system performance. A well-chosen electric furnace that is poorly connected can lose a significant portion of its efficiency. Conversely, a clean, sealed, and well-aligned installation allows the client to fully enjoy the intended comfort.

Adapting existing ducts: precision work

One of the most important elements of this installation in Îles-Laval was the adaptation of existing metal ducts. The new MIDEA EVOX G3 3-ton module had to fit into an already built configuration, without unnecessary demolition.

We therefore worked on the metal transitions to ensure:

1. Good alignment between the unit and the distribution network.
2. Adequate sealing of the joints.
3. Reduction of air losses.
4. A solid structure around the base and connections.
5. A sufficiently clean finish to facilitate future maintenance.

In the photo, we note the presence of new metal sections at the base and around the unit. These adjustments are essential in a central HVAC installation. The duct network is not just an accessory: it is the path through which comfort circulates in the house.

The importance of clearance for HVAC maintenance

A point often underestimated by homeowners is future access to equipment. When a central electric furnace is installed too close to a wall, an appliance, or an obstacle, maintenance becomes longer, more expensive, and sometimes more difficult.

On this project in Îles-Laval, our team had to deal with reduced clearance, but we still maintained access to important areas of the unit: panels, connections, fittings, drain, and service components. This attention to detail is particularly important for homeowners who want to protect their long-term investment.

Good HVAC maintenance allows for checking:

• The filter condition.
• The airflow.
• Electrical connections.
• Drainage.
• Cabinet cleanliness.
• Signs of vibration or condensation.
• Proper ventilation operation.

In areas like Montreal, Laval, Longueuil, the North Shore, and the South Shore, we often see efficient systems lose their effectiveness simply because the initial installation did not provide practical access for service.

An HVAC modernization that requires more than just appliance replacement

The role of the air handler in a central system

An air handler, or air treatment unit, is the heart of a central system's distribution. It pushes air through the ducts, ensures circulation in different rooms, and works in coordination with other system components, such as a central heat pump, electric coil, or thermostat.

The MIDEA EVOX G3 3-ton installed in Îles-Laval follows this logic: to offer a reliable central solution, capable of better meeting the comfort needs of a residence with a duct network.

In a house where several rooms must be served in a balanced manner, the quality of ventilation is as important as heating power. An undersized or poorly connected unit can create temperature differences, uncomfortable zones, or excessive noise in certain ducts.

What we check before and during installation

Before finalizing an installation of a MIDEA electric furnace or a central system, our team checks several technical elements. In a project like this, these checks are crucial.

We pay attention to:

• System capacity versus house needs.
• The general condition of existing ducts.
• The unit's positioning in the available space.
• The quality of the electrical supply.
• The potential for integration with a heat pump.
• Ease of access to the filter and panels.
• Vibration risks.
• Drain and connection routing.
• The finish of metal transitions.

These steps prevent unpleasant surprises. They also allow us to better advise the client, especially when the installation is done in an old or already very cramped space.

A clean installation in a real environment

Photos of HVAC projects sometimes show ideal, empty, and perfectly clear mechanical rooms. The reality is different. In this residence in Îles-Laval, the installation had to coexist with a laundry area, close walls, an old duct structure, and visible constraints.

It is precisely in this type of context that the experience of a specialized HVAC installation contractor becomes important. It's not enough to simply place the machine in the right spot. It needs to be integrated into the building logically.

Our team paid particular attention to the unit's stability, the tightness of the connections, and the arrangement of elements around the furnace. The final result had to be functional, safe, and ready for long-term use.

Common mistakes to avoid when replacing an electric furnace

For homeowners considering replacing a central system in Laval, Montreal, Longueuil, on the North Shore or on the South Shore, certain mistakes are common.

Choosing solely based on price

A low price can hide a botched installation, approximate duct transitions, or a lack of attention to detail. In a central system, these shortcuts often result in noise, poor air distribution, or service problems.

Neglecting the condition of the ducts

Even an excellent electric furnace cannot perform at its best if the ducts are poorly adapted, damaged, or improperly sealed. The existing network must be seriously evaluated.

Forgetting maintenance access

An installation that is too tight can complicate future interventions. One must think of today, but also of the coming years.

Installing without checking the real needs of the house

A unit that is too small or too large can create discomfort. The choice of a 3-ton capacity must be consistent with the residence, the duct network, and the general configuration.

Underestimating the metal finish

Metal transitions, bases, and connections play a major role in the quality of the installation. A solid and sealed finish improves performance and durability.

Why AirGreen stands out in this type of project

At AirGreen, we carry out HVAC installations in a wide variety of contexts: single-family homes in Laval, condos in Montreal, residential projects in Longueuil, replacements on the North Shore, modernizations of central systems on the South Shore. This experience allows us to quickly recognize the constraints of a site and propose a realistic solution.

In the case of this installation in Îles-Laval, our added value lay in the ability to adapt modern equipment to an existing configuration without compromising the quality of the result. We know that the client is not just looking for a new machine. They want a reliable, discreet, well-installed, easy-to-maintain system that can improve daily comfort.

Practical advice for homeowners in Îles-Laval and Laval

Before replacing an electric furnace or a central air handler, it is useful to prepare certain information:

• The approximate age of the old system.
• Observed problems: noise, low airflow, irregular heating, frequent breakdowns.
• The configuration of the mechanical room.
• The visible condition of the ducts.
• The presence of a central heat pump or the plan to add one.
• Expectations for comfort and energy savings.
• Space constraints around the unit.

These details allow our team to propose a more precise solution. In some cases, replacing the unit may be sufficient. In others, it is also necessary to correct a transition, review an air return, or improve filter access.

Subsidies and eligibility: a point to validate depending on the configuration

Subsidy programs can vary depending on the type of equipment, the installed combination, energy performance, the residence, and the criteria in effect at the time of the project. For a central system such as the MIDEA EVOX G3 3-ton, eligibility must always be validated according to the complete configuration, particularly if the installation is associated with an eligible central heat pump.

AirGreen assists its clients in this verification to avoid misinterpretations. Homeowners in Montreal, Laval, Longueuil, on the North Shore and the South Shore often contact us precisely for this reason: they want a clear answer before making a decision.

A lasting result for better-controlled central comfort

The installation of a 3-ton MIDEA EVOX G3 electric furnace in Îles-Laval perfectly illustrates our approach: analyze the existing system, respect building constraints, carefully adapt the ducts, properly install the equipment, and deliver a central system ready to operate efficiently.

In a confined space, every detail matters. Alignment, access, connections, finishing, and understanding the duct network make all the difference. It is this rigor that allows an HVAC installation to remain reliable, comfortable, and easy to maintain for many years.

For homeowners considering an electric furnace replacement, a central system modernization, or the addition of a MIDEA air handler in the greater Montreal area, AirGreen offers concrete on-site expertise, adapted to the realities of local homes.
