A compact central installation where every detail counted
In Saint-Lambert, on the South Shore of Montreal, our AirGreen team recently completed the installation of a 3-ton MIDEA EVOX G3 electric furnace, also known as a central Air Handler system, in a particularly cramped mechanical space. This type of project perfectly illustrates the reality of many homes in the region: owners want to improve their comfort, modernize their heating and air conditioning system, optimize their energy efficiency, but must contend with very real physical constraints — limited access, reduced clearances, existing ducts, irregular foundation walls, and technical areas difficult to maneuver.

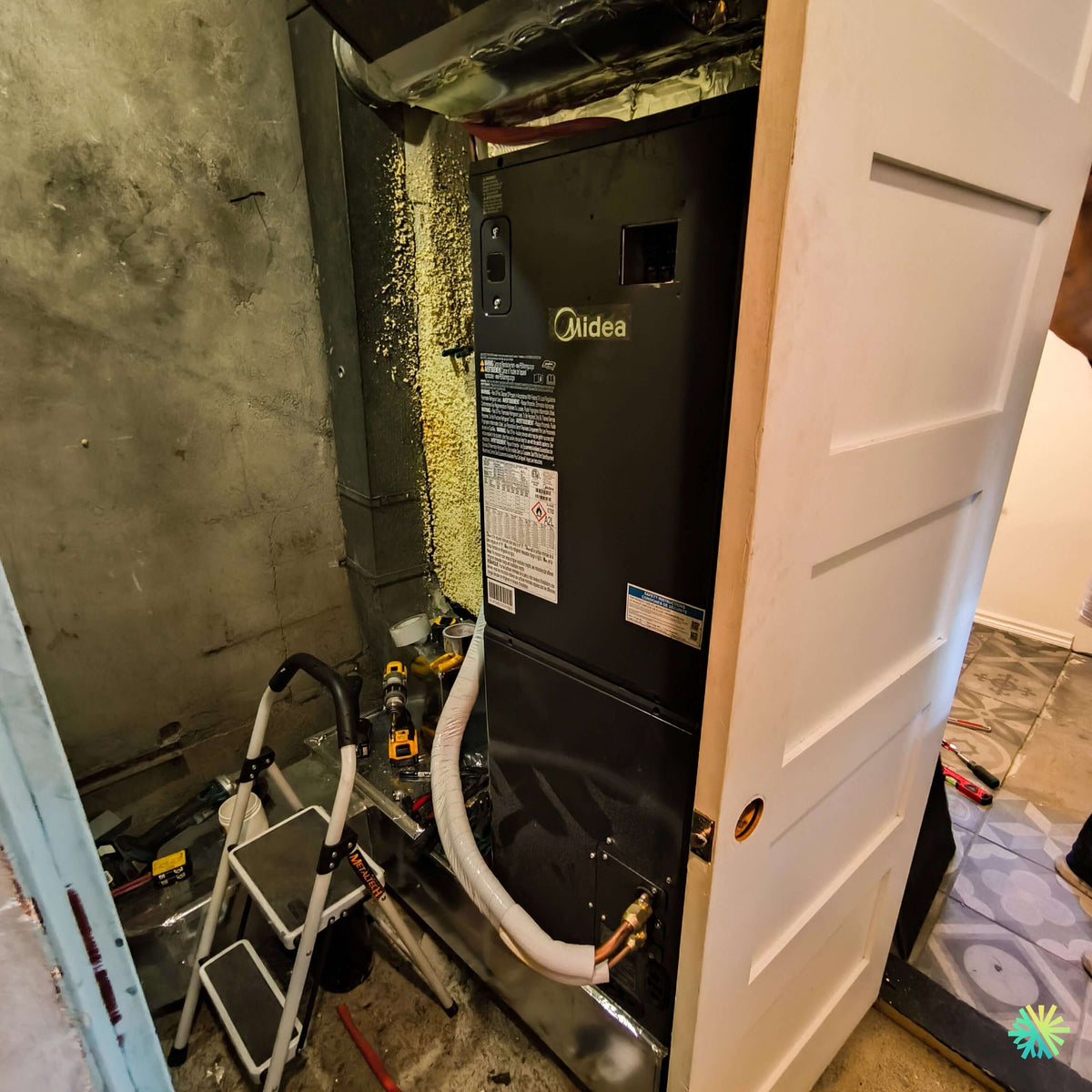

In this specific case, the MIDEA unit was installed in a narrow mechanical closet, adjacent to an interior door, with an existing duct network above the unit. The construction site image immediately shows one of the main challenges: the available space around the machine was limited, both for handling and for final connections. Despite these constraints, our team was able to position the unit cleanly, safely, and functionally, while adhering to the best practices of a sustainable HVAC installation.
This installation was not merely equipment replacement. It involved integrating a 3-ton MIDEA EVOX G3 central system into an existing environment, with precise adjustments to ductwork, refrigeration connections, condensation drainage, and future accessibility for HVAC maintenance.
Why choose a 3-ton MIDEA EVOX G3 electric furnace in Saint-Lambert?
The choice of a MIDEA EVOX G3 electric furnace responds to a very concrete need: to obtain a reliable, efficient central system adapted to the climate of Greater Montreal. In Saint-Lambert, as in several sectors of Longueuil, the South Shore, Montreal, Laval, and the North Shore, homeowners are increasingly looking for solutions capable of ensuring stable comfort during cold winters, while also providing efficient air conditioning during humid heat spells.
The 3-ton version is generally suitable for medium to large homes, depending on the house's configuration, insulation, orientation, number of floors, duct quality, and actual thermal loads. At AirGreen, we never limit ourselves to the nominal capacity indicated on a technical sheet. We always evaluate the complete context: volume to be treated, duct condition, return air, static pressure, indoor unit location, and compatibility with outdoor equipment when a central heat pump is associated.
A central system designed for uniform air distribution
Unlike a wall-mounted air conditioner or a wall-mounted heat pump, a central system with an Air Handler distributes treated air through a network of ducts. This is a significant advantage for homeowners who want to maintain a more homogeneous temperature in several rooms at once.
In this Saint-Lambert house, the installation of a central electric furnace allowed for the preservation of the existing air distribution approach, while modernizing the indoor equipment. The client was looking for a discreet, integrated system, without visible wall units in the main rooms, and capable of effectively meeting comfort needs all year round.
A solution adapted to existing homes on the South Shore
Houses in Saint-Lambert often have varied mechanical configurations. Some have full basements, others compact mechanical rooms, technical closets, or ducts installed at a time when service access was not always a priority. This is precisely what makes this type of HVAC installation in Saint-Lambert interesting: it requires combining the performance of modern equipment with the constraints of an existing building.
In this project, the machine had to be installed near a foundation wall, under an already insulated duct network, with a door very close to the unit's facade. The front clearance had to remain sufficient for inspections, future servicing, and access to internal components. This point is essential: an installation can be functional on the same day, but it must also remain accessible for years to come.
The main challenges observed on this site
The installation image shows several important elements that deserve explanation.
First, the mechanical space was very narrow. The MIDEA EVOX G3 unit had to be positioned precisely to allow connection to the upper duct network without forcing alignments. In a central system, misalignment between the electric furnace and the ducts can create air leaks, vibrations, noise, excessive static pressure, and premature wear of certain components.
Next, the walls around the installation had a rough surface, typical of some older mechanical spaces. This requires particular attention to prevent connections, cables, pipes, or flexible ducts from being poorly supported or exposed to friction. Our technicians therefore worked carefully around the existing structure to protect the connections and maintain a clean installation.
Finally, the clearance near the door added an additional constraint. A door that opens directly onto a central appliance can complicate access, but also create a risk of impact if the unit or accessories are poorly positioned. The installation was therefore carried out in such a way as to preserve access to the service panel and main components, while taking into account traffic in this area of the house.
Meticulous HVAC installation, from positioning to final connections
Space preparation and existing duct analysis
Before installing the unit, our team evaluated the condition of the existing duct network. This step is often underestimated by homeowners, even though it directly influences the system's actual performance. A 3-ton electric furnace may be well-sized on paper, but if the ducts are ill-suited, too restrictive, poorly insulated, or improperly connected, the resulting comfort will not be up to par.
In this project in Saint-Lambert, the upper ducts were already installed and insulated. Our role was therefore to connect the new MIDEA Air Handler in a sealed and stable manner, minimizing air loss. We paid particular attention to the junction between the unit and the plenum, as this section is critical for air distribution.
A good duct transition allows for:
- better air circulation;
- reduced pressure loss;
- quieter operation;
- better energy efficiency;
- a more stable lifespan for the fan motor;
- more consistent comfort in the serviced rooms.
Refrigerant connections and line protection
In the photo, we notice the insulated lines connected to the unit. These conduits must be installed rigorously, as they ensure the circulation of refrigerant between the indoor unit and the outdoor unit when a central heat pump is integrated into the system. Adequate insulation is essential to limit thermal losses, avoid undesirable condensation, and protect the overall performance.
In a central installation, the quality of refrigerant connections is a determining factor. At AirGreen, we pay particular attention to the cleanliness of connections, the routing of lines, and the mechanical protection of exposed sections. A poorly bent, poorly supported, or overly tight line in a confined space can cause long-term problems. Here, the line routing has been adapted to the mechanical closet configuration to preserve accessibility and avoid unnecessary stress on connections.
Condensation Management
Any central system that also provides air conditioning must manage the condensation produced by the indoor coil. In homes in Montreal, Laval, Longueuil, the North Shore, and the South Shore, summer humidity can be significant. Poor condensation drainage can cause water damage, odors, dirt buildup, or operational interruptions.
In this installation, our team checked the drainage path to ensure that water produced during air conditioning operation could be properly evacuated. This is a subtle but fundamental detail. A well-executed central installation is not just about power or brand; it's about all the small technical elements that guarantee reliable operation.
Service access and future maintenance
One of the most important aspects of this installation in Saint-Lambert was future accessibility. A MIDEA EVOX G3 electric furnace must remain accessible for inspection, filter replacement, electrical component verification, fan maintenance, and eventual coil cleaning.
In a narrow mechanical closet, it is tempting to maximize every inch without thinking about future interventions. This is a common mistake. At AirGreen, we always install with a long-term vision. The system must perform well today, but also be easy to maintain tomorrow.
A difficult-to-access appliance often costs more to maintain, takes longer to diagnose, and can discourage homeowners from performing necessary checks. In this project, the final positioning was designed to maintain reasonable access to the service panels, despite the proximity of the door and wall.
Mistakes to avoid during a central system installation
This project highlights several common mistakes we observe during replacements or installations of central systems.
Choosing a capacity solely based on the old appliance
Automatically replacing an old system with an appliance of the same tonnage is not always the best approach. The house's insulation may have changed, windows may have been replaced, comfort needs may be different, or the old appliance may have been oversized already. Too high a capacity can lead to short cycles, poor dehumidification, and uneven comfort. Too low a capacity can lead to prolonged operation and difficulty maintaining temperature during extreme days.
Neglecting the condition of the ducts
A central system heavily relies on its distribution network. Even an excellent appliance can yield disappointing results if the ducts leak, are improperly sized, or poorly insulated. In Saint-Lambert, as elsewhere on the South Shore, many homes have long-installed ducts. A thorough inspection before installation can prevent unpleasant surprises.
Forgetting the necessary space for maintenance
An overly tight installation may seem acceptable at first glance, but become problematic at the first service call. Access to panels, filters, and internal components must always be considered. In this project, this constraint was central, as the machine was in a very compact environment.
Underestimating the importance of sealing
Air leaks at the plenum, transitions, or connections can reduce system efficiency. A clean, well-sealed, and well-aligned installation directly contributes to energy performance and comfort.
Why AirGreen places so much importance on finishing
A central Air Handler system installation is not just about starting it up. The finishing often reveals the quality of the invisible work. Connections must be clean, pipes well protected, panels accessible, ducts well adjusted, and the entire installation must inspire confidence.
On this project, the limited space made the finishing more complex. We had to work around the door, the ladder, the tools, the upper ducts, and the rough wall. Despite this, our team maintained an organized approach to deliver a functional, safe, and compliant installation that met the expectations of an owner looking to invest in a sustainable solution.
A customer experience focused on clarity
When a client in Saint-Lambert contacts us for an HVAC installation, they are not just looking for a machine. They want to understand what will be installed, how the work will proceed, what constraints may arise, and how their comfort will be improved. On this job, we took the time to explain the specific challenges related to the confined space, existing ducts, and future access for maintenance.
This transparency is particularly important in central replacement projects. Homeowners rarely see all the technical details. They mainly see the final result: more stable heating, more comfortable air conditioning, less noise, better airflow, and a system that operates without complications. Our role is to make this transition as smooth as possible, while making the right technical decisions behind the walls, panels, and ducts.
MIDEA EVOX G3: a relevant choice for Greater Montreal homes
The MIDEA EVOX G3 3-ton model falls into a category of modern central equipment, adapted to the current needs of Quebec homeowners. MIDEA systems are often chosen for their good balance of performance, technology, availability, and overall value. For residences in Montreal, Laval, Longueuil, the North Shore, and the South Shore, this combination is particularly interesting because seasonal needs are high: sustained heating in winter, efficient air conditioning in summer, and humidity management during hot periods.
Depending on the complete system configuration and the combination with the appropriate outdoor unit, this type of installation can also be part of a broader reflection on energy efficiency and available subsidy programs. Eligibility criteria may vary depending on the exact model, component pairing, program requirements, and regulations in force at the time of the project. That is why AirGreen always verifies relevant information before presenting a solution as eligible for financial assistance.
Practical advice for homeowners considering a similar installation
For homeowners in Saint-Lambert or other sectors of the South Shore, here are a few points to consider before replacing an electric furnace or a central Air Handler.
Schedule a complete inspection before the work
A technical visit confirms available space, duct condition, line routing, electrical supply, drainage, and access constraints. This step reduces unforeseen issues and allows for a realistic solution to be proposed.
Think about maintenance from the start
Even if the unit is installed in a closet or a small mechanical room, reasonable access to components must be maintained. Good maintenance helps preserve system performance, prevent avoidable breakdowns, and extend equipment lifespan.
Check the compatibility of the complete system
An Air Handler does not operate in isolation when the project includes a central heat pump. Compatibility between units, capacities, controls, ducts, airflow, and electrical requirements must be confirmed.
Avoid decisions based solely on price
The cost of an installation is not limited to the appliance. The quality of workmanship, adjustment to ducts, sealing, drainage, connections, and after-installation service have real value. A cheaper but poorly adapted installation can become more costly in the long term.
A realization representative of AirGreen's expertise
This installation of a MIDEA EVOX G3 3-ton electric furnace in Saint-Lambert accurately represents the type of projects we regularly carry out in Greater Montreal. Each home has its peculiarities. Some installations are very accessible; others require precise planning and more delicate execution. In all cases, our goal remains the same: to offer a reliable, well-installed system, adapted to the building and designed for the real comfort of the occupants.
At AirGreen, we work every week on projects involving central heat pumps, electric furnaces, wall-mounted air conditioners, replacement of existing systems, and HVAC maintenance in Montreal, Laval, Longueuil, on the North Shore and the South Shore. This field experience allows us to anticipate constraints, recommend the right equipment, and carry out clean installations, even when space is limited.
The Saint-Lambert project demonstrates that a successful installation is not just a matter of tonnage capacity or brand on the front panel. It is a combination of precision, analysis, experience, respect for the building, and attention to invisible details. The result: a well-integrated MIDEA central system, ready to offer stable and efficient comfort for seasons to come.
