A flat roof installation in Town of Mount Royal, balancing technical constraints and professional finish
In Town of Mount Royal, installations of wall-mounted heat pumps often require a more strategic approach than in a standard backyard. Properties there frequently feature flat roofs, limited technical access, high aesthetic constraints, and precise requirements regarding noise, clearance, and durability. This installation of a GREE CHARMO R32 carried out by AirGreen perfectly illustrates this reality: an outdoor unit installed on a rooftop, solidly supported, well-cleared, and carefully connected in a residential environment where every detail matters.

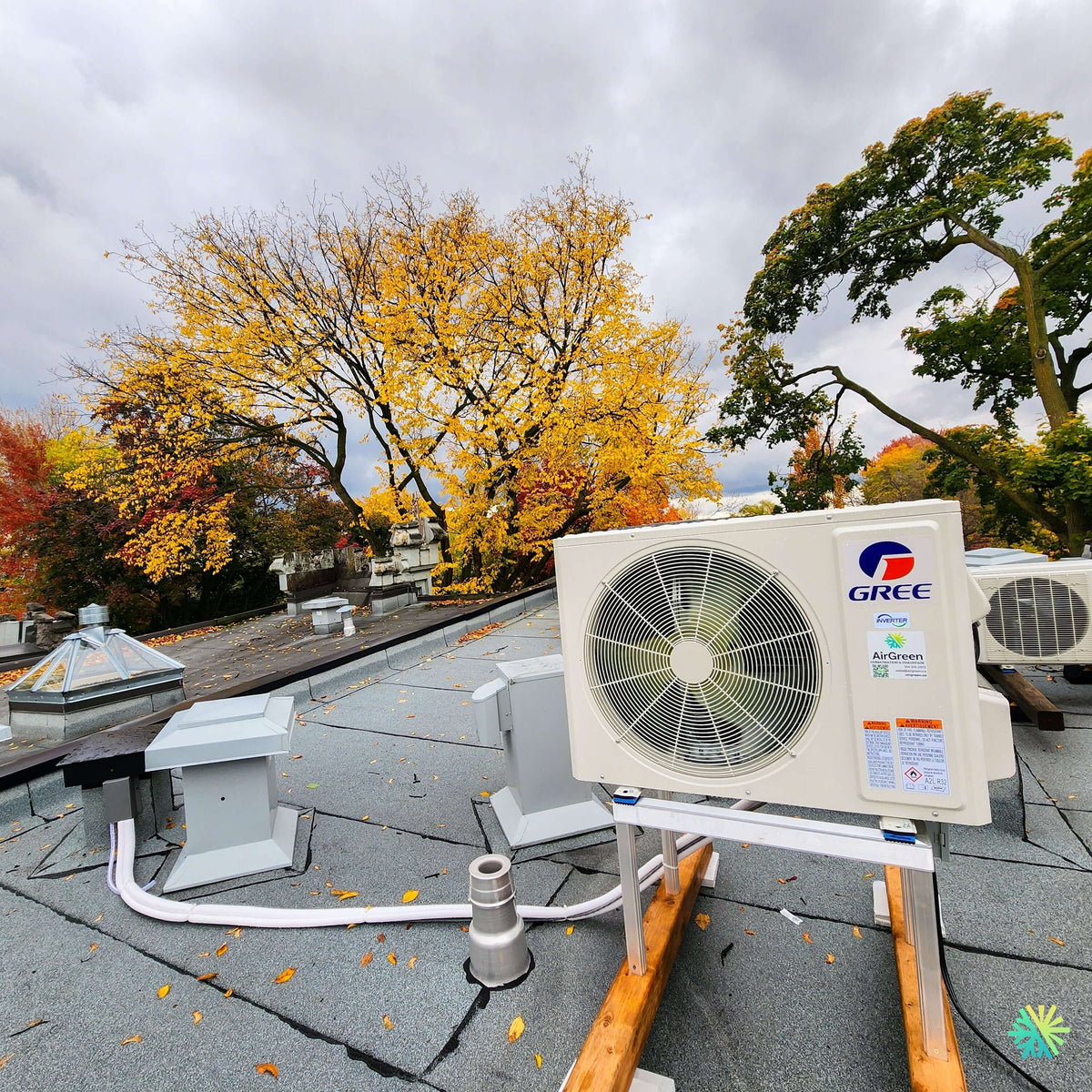

The construction site photo shows a GREE outdoor unit installed on a raised structure, above a flat roof covered with a membrane. Around the unit, one can distinguish protected refrigerant lines, conduit passages, roof vents, skylights, as well as another system already present further away. The autumnal environment, with fallen leaves on the roof and large trees around the residence, adds an important element to the project: it was necessary to plan for an installation capable of remaining accessible, stable, and performing despite exposure to debris, bad weather, snow, and typical seasonal variations in Greater Montreal.
This HVAC installation was therefore not just about putting in a machine. It required integrating a GREE CHARMO R32 wall-mounted heat pump into a complex technical space, taking into account airflow, drainage, vibration reduction, access for HVAC maintenance, the overall appearance of the roof, and long-term reliability.
Why a rooftop installation was the right choice for this project
In many residences in Town of Mount Royal, ground space is precious. Yards are often landscaped, facades must remain clean, and owners want to avoid the outdoor unit being visible or cumbersome in outdoor living areas. The flat roof then becomes an interesting option, provided the installation is carried out rigorously.
On this site, the rooftop installation allowed the equipment to be kept away from traffic areas, while maintaining a logical technical path for the conduits. This choice also offered good exposure to open air, an essential element for ensuring the performance of a heat pump in both cooling and heating modes.
An outdoor unit placed on a roof must, however, adhere to several principles:
- be installed on a stable and resistant structure;
- remain sufficiently elevated to limit risks associated with snow;
- provide adequate clearance around the fan and coil;
- avoid areas where leaves and debris easily accumulate;
- allow safe access for future inspections;
- reduce vibration transmission to the building structure;
- protect refrigerant lines from the elements.
The structure visible under the unit was designed to meet these needs. The device is well clear of the roof membrane, which reduces obstruction risks and facilitates future interventions.
The GREE CHARMO R32: an efficient solution for residential comfort
The GREE CHARMO R32 is a wall-mounted heat pump that is well-suited for owners seeking a modern, efficient solution adapted to the climatic realities of the Montreal region. It allows for combining air conditioning in summer with supplementary heating for a good part of the year, with inverter operation that adjusts capacity according to actual demand.
This modulation is important in a Town of Mount Royal home, where comfort needs can vary considerably depending on room orientation, glazed area, insulation, ceiling height, and interior configuration. A heat pump that operates by modulation helps maintain a more stable temperature, reduces on-off cycles, and contributes to more uniform comfort.
The R32 refrigerant, used in this range, is part of a new generation of HVAC equipment. It provides good thermal efficiency while meeting current market expectations for performance and more recent design. For the customer, this translates into a system that is compact, high-performing, and suitable for daily use.
A roof exposed to leaves: an important detail in planning
The construction site image clearly shows a heavily wooded environment. The majestic trees around the property give the area much character, but they also represent a technical constraint. Fallen leaves can accumulate around outdoor units, near roof drains, against supports, and around conduit passages.
During a HVAC installation on a roof in a neighborhood like Town of Mount Royal, we take this reality into account from the outset. The appliance must be positioned to limit accumulations around the fan and coil. Sufficient space must also be left to allow the owner or our team to inspect the area, remove debris, and ensure nothing obstructs airflow.
A wall-mounted heat pump poorly placed in an environment heavily exposed to leaves can lose efficiency. Debris can partially block the coil, retain moisture, and make maintenance more difficult. In this project, the outdoor unit was positioned on a clear, visible, and accessible base, which facilitates prevention.
A raised support to protect the outdoor unit
One of the most important elements of this installation is the height of the outdoor unit. On a flat roof, the unit should never simply be placed flush with the membrane. This error can lead to several problems: snow accumulation, contact with meltwater, coil blockage, difficulty of maintenance, and premature wear.
The raised structure used here allows the GREE CHARMO R32 to be maintained at a practical and safe height. It also offers better airflow below and around the unit. The supports are installed to distribute the weight correctly and stabilize the equipment despite winds, vibrations, and temperature variations.
This approach is particularly relevant for installations in Montreal, Laval, Longueuil, on the North Shore and the South Shore, where conditions can vary greatly from one building to another.
Conduit routing: a technical and visual finish
The photo shows white lines running along the roof before joining the technical passages. This type of connection requires careful planning. Refrigerant lines must be protected, well-aligned, properly insulated, and secured to withstand the elements.
In a rooftop installation, the conduits are exposed to sun, cold, wind, rain, snow, and seasonal building movements. A makeshift finish can cause problems in the medium term: damaged insulation, infiltration, vibrations, line displacement, or difficulty during maintenance intervention.
At AirGreen, we pay particular attention to these details. The conduits must be functional, but also visually clean. In a neighborhood like Town of Mount Royal, where properties are meticulously maintained, the appearance of the final work site is as important as the mechanical performance.
Coordination with existing roof elements
A residential flat roof is never empty. On this installation, several elements had to be considered: vents, mechanical outlets, skylights, connection boxes, already existing passages, and other equipment. The choice of the outdoor unit's location therefore had to avoid any interference with these components.
Poor positioning can complicate access to a drain, block a passage, hinder maintenance of other equipment, or create an area where water and debris accumulate. Our team therefore chose a location that allowed the GREE CHARMO R32 heat pump to operate efficiently while respecting the other roof elements.
This coordination is essential in high-end residential installations or in buildings where multiple systems coexist. The objective is not only to install a unit but to maintain a functional, accessible, and well-organized roof.
The comfort sought by the client
The client wanted to improve indoor comfort with a reliable, discreet, and efficient solution. In this type of residence, needs are often very specific: cooling a difficult-to-air-condition area, reducing temperature differences between rooms, adding supplementary heating without undertaking major works, or replacing an older, less efficient solution.
The GREE CHARMO R32 meets this demand well. As a mini split, it allows for a relatively less invasive installation compared to a complete central system. It also offers localized comfort control, which is very useful when some rooms are warmer or colder than the rest of the house.
For the owner, the concrete benefits are numerous:
- better air conditioning during hot days;
- more efficient supplementary heating during intermediate seasons;
- quieter operation than a window or portable unit;
- precise temperature control;
- discreet integration of the outdoor unit on the roof;
- reduced clutter in the yard or on visible facades.
Noise and vibration issues on a roof
An outdoor unit installed on a roof must be carefully secured to prevent the transmission of vibrations into the structure. Even a good quality machine can cause discomfort if it is poorly supported. Vibrations can propagate through the building's structure and become perceptible indoors, especially in rooms directly below the roof.
On this project, the stability of the base and the supports were carefully considered. The unit must remain well-leveled, well-anchored, and isolated as much as possible from sensitive surfaces. The positioning was also designed to limit noise disturbances near openings, bedrooms, or resting areas.
In dense residential areas of Montreal, this precaution is important. A good HVAC installation must respect not only the client's comfort but also the immediate environment.
Mistakes to avoid with a heat pump installed on a flat roof
Rooftop installations can be very effective, but they leave little room for improvisation. Among the errors we sometimes observe during correction calls, several recur regularly:
- installing the unit too close to the roof membrane;
- neglecting the impact of leaves and debris;
- placing the unit too close to a vent or obstacle;
- using an insufficiently stable support;
- leaving conduits exposed without adequate protection;
- forgetting future access for HVAC maintenance;
- underestimating vibrations;
- not anticipating the necessary clearance in winter;
- choosing the simplest rather than the most durable location.
On this installation in Town of Mount Royal, every decision was made to avoid these problems. The result is a clean, logical installation designed for the Quebec seasons.
The importance of maintenance in a wooded environment
The presence of numerous trees around the residence makes HVAC maintenance even more important. In autumn, leaves can quickly accumulate on the roof. In spring, buds, small branches, and organic debris can also be found near the unit. Even if the unit is well-installed, it is essential to maintain a clean environment around the fan and coil.
We generally recommend periodically checking for:
- absence of leaves around the outdoor unit;
- clearance in front of the fan;
- visual condition of line insulation;
- apparent stability of the support;
- absence of excessive ice in winter;
- cleanliness of indoor unit filters;
- proper condensation drainage.
Regular maintenance helps preserve performance, prevent efficiency losses, and extend the system's lifespan.
An AirGreen installation designed for the realities of Town of Mount Royal and Greater Montreal
Local expertise serving demanding residential buildings
AirGreen carries out installations of wall-mounted heat pumps, wall-mounted air conditioners, and mini split systems in highly varied contexts: single-family homes, plexes, condos, rental buildings, renovated properties, and light commercial buildings. In Town of Mount Royal, projects often require a combination of technical precision, visual discretion, and respect for existing architecture.
This installation of a GREE CHARMO R32 demonstrates our ability to work in a real technical environment, with an occupied roof, access constraints, and finishing requirements. Our team doesn't just connect a machine; it analyzes the property, anticipates constraints, and delivers a coherent solution.
This approach also applies to our projects in Montreal, Laval, Longueuil, on the North Shore, and the South Shore, where conditions can vary enormously from one building to another.
An installation that promotes durability
The durability of a system depends as much on the quality of the equipment as on the quality of the installation. A high-performance heat pump can lose a large part of its advantage if it is poorly positioned, poorly connected, or poorly protected. Conversely, a rigorous installation allows the machine to operate in better conditions for several years.
In this project, durability relies on several concrete choices:
- elevated support;
- adequate clearance around the unit;
- well-organized refrigeration lines;
- accessibility for maintenance;
- consideration of leaves and snow;
- integration with other roofing elements;
- complete checks during commissioning.
These details may seem technical, but they have a direct impact on customer satisfaction.
The question of subsidies and eligibility
Homeowners who install a wall-mounted heat pump are often interested in available subsidies, particularly under energy efficiency programs. Eligibility depends on the exact model, the indoor-outdoor combination, current criteria, and the installation date.
For a GREE CHARMO R32, it is therefore important to verify the precise references of the installed equipment. At AirGreen, we help our clients navigate the necessary documents: invoice, models, technical information, and proof of installation. This step is particularly appreciated by clients who want to maximize the value of their investment while choosing a reliable system.
Practical advice for homeowners in Ville Mont-Royal
Before installing a wall-mounted heat pump on a flat roof, several elements must be carefully evaluated:
-
The exact location of the outdoor unit
It must offer good clearance, avoid areas of heavy debris accumulation, and allow for future access. -
The height of the support
A unit that is too low can be affected by snow, meltwater, or debris. -
The stability of the structure
The support must limit vibrations and keep the appliance well-leveled. -
The path of the conduits
Lines must be protected, insulated, and installed with a clean finish. -
The immediate environment
Trees, vents, skylights, drains, and other equipment must be taken into account. -
The capacity of the machine
The choice of BTU must be adapted to the area to be treated, insulation, and actual use. -
Future maintenance
An inaccessible installation quickly becomes problematic, even if it works well initially.
These tips are valid not only in Ville Mont-Royal, but also in several areas of Montreal, Laval, Longueuil, the North Shore, and the South Shore where flat roofs are common.
A clean, stable result adapted to Quebec's seasons
The final result of this installation reflects what we seek in every AirGreen project: a high-performance solution, cleanly installed, designed to last, and adapted to the actual conditions of the building. The GREE CHARMO R32 is well positioned, well supported, and ready to provide reliable comfort to the client.
In summer, it will provide efficient air conditioning in the targeted area. During cooler periods, it will contribute to supplementary heating with controlled consumption. Thanks to its roof placement, it remains discreet in the yard and on the facade, while benefiting from good clearance to function correctly.
This installation in Ville Mont-Royal clearly demonstrates the importance of entrusting an HVAC project to a team that understands local realities. A flat roof, trees, existing conduits, mechanical elements, and aesthetic requirements are not obstacles when the work is methodically planned.
AirGreen: A comprehensive approach to wall-mounted heat pump installations
At AirGreen, we approach each project as a complete comfort solution. We evaluate the building, recommend appropriate equipment, plan the location, carry out the installation, and assist the client with the administrative steps related to subsidies when applicable.
This HVAC installation of a GREE CHARMO R32 Wall-Mounted Heat Pump – Air Conditioner – Mini Split in Ville Mont-Royal is a concrete example of our expertise: an outdoor unit installed on a flat roof, a meticulous finish, attention to seasonal details, and integration respectful of the building.
For homeowners in Montreal, Laval, Longueuil, on the North Shore, and on the South Shore, this type of project demonstrates that a successful heat pump installation depends not only on the brand or model. It primarily depends on the quality of the analysis, execution, and follow-up.
