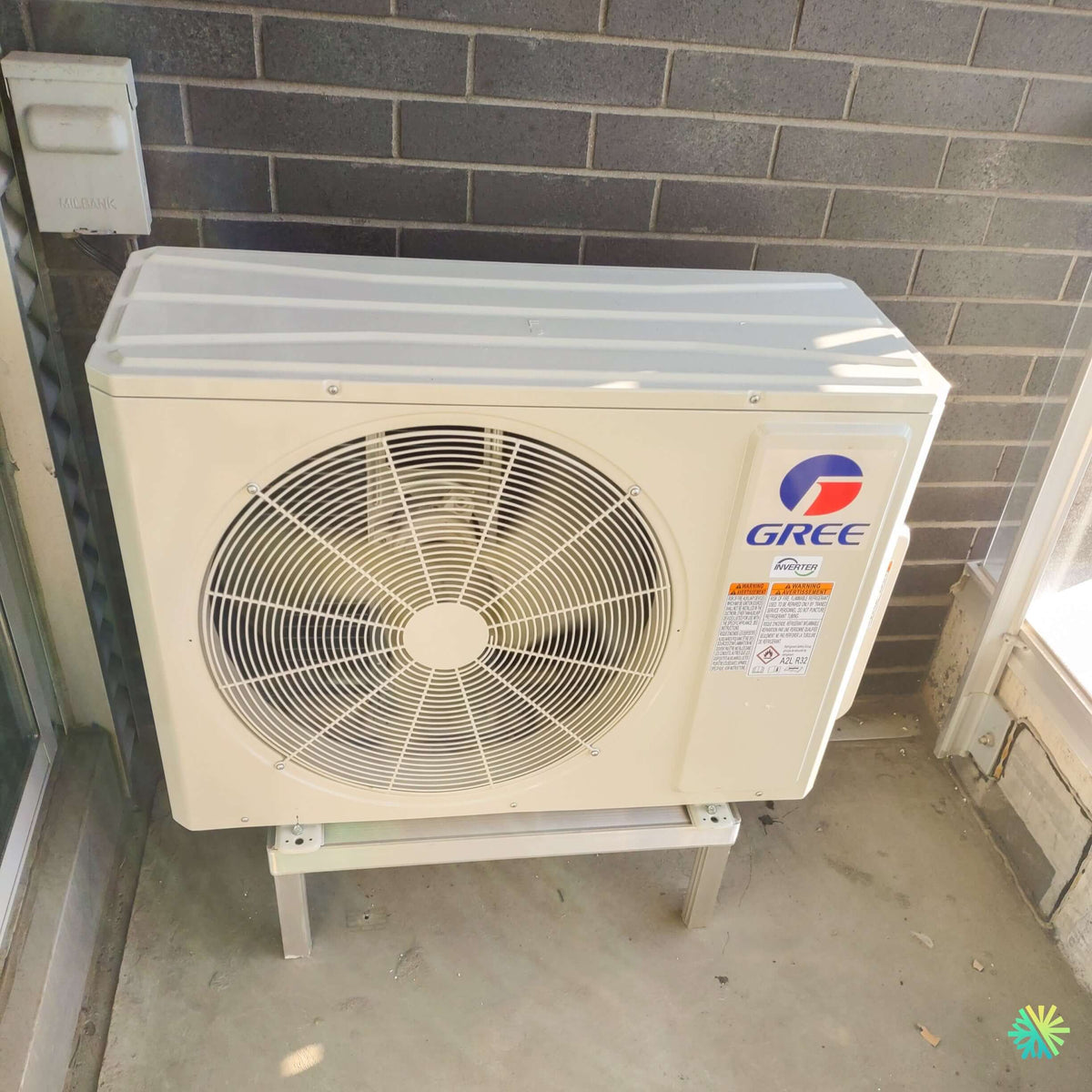

An outdoor unit precisely installed on a balcony, against a brick wall in Pointe-Claire
This installation of a wall-mounted heat pump GREE LIVO R32 in Pointe-Claire perfectly illustrates a type of project we often carry out in the West Island of Montreal: integrating a high-performance mini split system into a limited outdoor space, near a patio door or balcony access, without compromising circulation, safety, or future maintenance of the unit.
In the photo, you can see the GREE outdoor unit installed on an elevated base, directly in front of a gray brick wall, near a wall-mounted electrical box and a glass opening. This type of configuration requires special attention. The unit must be stable, well cleared, protected against water or snow accumulation, and placed to allow good air circulation around the condenser. In an urban environment like Pointe-Claire, where outdoor spaces are sometimes limited by balconies, compact backyards, or party walls, the quality of the HVAC installation becomes as important as the choice of the machine itself.
At AirGreen, we approached this project with a clear priority: to install the GREE LIVO R32 cleanly, safely, and durably, while respecting the building's physical constraints. The result is a neat installation, well positioned and easily accessible for routine checks and HVAC maintenance.
Why the positioning of the outdoor unit was crucial
A wall-mounted heat pump operates with two main components: the indoor unit, which distributes heated or cooled air, and the outdoor unit, which ensures heat exchange with the ambient air. Although the indoor unit is often more visible to the customer on a daily basis, the outdoor unit plays a crucial role in the overall system performance.
In this project in Pointe-Claire, the outdoor location had to meet several requirements:
- maintain sufficient clearance in front of the fan;
- avoid placing the unit directly on the ground;
- limit vibrations transmitted to the structure;
- keep access to the wall electrical box;
- preserve circulation near the adjacent door or window;
- ensure convenient access for future maintenance.
The unit was installed on a low, stable support, which keeps it above the balcony or slab surface. This elevation is particularly important in our Quebec climate. It helps reduce risks related to standing water, dirt accumulation, dead leaves, and, depending on exposure, snow or ice. Installing directly on the ground may seem simpler at first, but it often complicates maintenance and can accelerate the base’s clogging.
A GREE LIVO R32 adapted to residential needs in Pointe-Claire
The GREE LIVO R32 is a popular solution for residential projects seeking a simple, efficient, and discreet system. It is a wall-mounted heat pump, also called a wall air conditioner or mini split, designed to provide both heating and cooling in a specific area of the house or condo.
The LIVO R32 model uses the refrigerant R32, visible on the outdoor unit’s label. This technical detail is important because it reflects the new generation of HVAC systems using a refrigerant newer than the older R410A models. R32 is commonly associated with modern high-efficiency devices, with a refrigerant charge optimized according to the installed capacity and chosen configuration.
In an area like Pointe-Claire, where there are many single-family homes, condos, duplexes, and properties with additions or renovations, a mini split heat pump can meet several needs:
- improve comfort on a floor poorly served by the central system;
- cool an open area during summer;
- heat a room used regularly in autumn, winter, or spring;
- reduce reliance on less efficient supplementary devices;
- add an independent solution in a home, home office, or extension.
The exact capacity, expressed in BTU, must always be validated according to the area, insulation, sunlight, room usage, and building configuration. In the case of a GREE LIVO R32, energy performance and eligibility for subsidies can vary depending on the precise combination of the indoor unit, outdoor unit, and associated AHRI number. That is why we verify this data at the time of the quote rather than relying solely on the model's commercial name.
Visible constraints in the photo and applied solutions
The image shows a fairly tight outdoor space, bordered by a brick wall at the back, a glass surface on the left, and an opening or door on the right. This kind of environment requires precise technical choices.
Clearance in front of the fan
The large front fan of the outdoor unit must be able to expel air freely. If it is too close to a wall, fence, patio furniture, or obstacle, the system can recycle its own air, lose efficiency, and work harder. In this installation, the unit is oriented to allow good airflow out the front.
Elevated base and stability
The metal base visible under the unit helps stabilize the device and keep it at a practical height. It also limits direct contact with concrete or the balcony surface. For a durable HVAC installation in Montreal, Laval, Longueuil, on the North Shore or the South Shore, this detail makes a real difference, especially after several freeze-thaw cycles.
Proximity to the electrical box
A wall-mounted electrical box is visible to the left of the unit. This type of detail should never be overlooked. The installation must allow safe access to electrical components, meet applicable requirements, and avoid any configuration that would complicate future maintenance.
Brick wall and line passage
A brick wall requires clean execution when passing refrigerant lines, communication wires, and drains through or along the building envelope. Protecting the lines, sealing, and exterior finishing are elements that distinguish a professional installation from a rough job.
Key steps of our HVAC installation in Pointe-Claire
Each AirGreen project follows a strict sequence. Even when an installation seems simple, several invisible steps ensure the system's reliability.
1. Building and Location Analysis
Before installation, we assess the location of the indoor unit, the route of the lines, the position of the outdoor unit, and electrical constraints. In this particular case, the limited outdoor space required careful coordination between the machine, the wall, the electrical box, and adjacent openings.
2. Preparation of the outdoor support
The support must be well aligned, stable, and suitable for the unit's weight. A poorly installed base can cause vibrations, noise, or gradual displacement of the device over time. We therefore pay special attention to leveling and ground support.
3. Installation of the GREE outdoor unit
The outdoor unit was placed to respect the necessary clearances and remain accessible. The goal was not just to “fit” the machine into the available space but to provide it with the conditions needed to operate properly.
4. Refrigerant and electrical connections
Refrigerant lines must be handled carefully, properly insulated, and connected according to best practices. Communication wiring and electrical power supply must also be protected and well organized.
5. Vacuuming and system check
Vacuuming is an essential step before starting up. It removes moisture and air from the refrigerant circuit. This step protects the compressor and contributes to the long-term performance of the heat pump.
6. Operational tests
Once the system is started, we check the operation in cooling mode and heating mode, the pressures according to conditions, ventilation, controls, drainage, and the overall behavior of the system.
An installation designed for comfort, efficiency, and system longevity
A GREE LIVO R32 wall-mounted heat pump properly installed can transform the comfort of a house or condo in Pointe-Claire. However, choosing the equipment is only part of the success. Sizing, location, quality of connections, and maintenance will have a direct impact on the actual performance of the system.
What the client was looking for in this project
In this type of residential project, clients generally look for a solution that meets several expectations at the same time: better comfort in summer, effective supplementary heating during cold seasons, a discreet device, silent operation, and an installation that does not alter the outdoor space.
In Pointe-Claire, the visual and practical context was important. The outdoor unit had to be installed in an accessible place but without unnecessarily cluttering the space. The proximity of a glass opening and the brick wall required a careful approach. The client wanted a reliable, clean, and durable solution, without improvisation.
The concrete advantages of a GREE LIVO R32
The GREE LIVO R32 offers several relevant advantages for homeowners in West Island:
- heating and cooling with a single system;
- discreet wall-mounted format indoors;
- inverter technology to modulate power according to needs;
- generally more stable operation than an all-or-nothing system;
- R32 refrigerant associated with new generations of systems;
- good choice for a targeted area: living room, bedroom, office, basement, open area, or extension.
For clients comparing several options of wall air conditioner or wall heat pump, we always recommend looking beyond the listed price. Two systems that look similar on paper can deliver very different results depending on the quality of installation, the positioning of the outdoor unit, the routing of the lines, and the accuracy of commissioning.
Subsidies: what to check before confirming the installation
Subsidy programs, especially those associated with efficient heat pumps, can represent an interesting financial advantage for homeowners in Quebec. However, eligibility must be confirmed according to the precise combination of units, capacity, recognized performance, and criteria in effect at the time of purchase.
At AirGreen, we help our clients verify important information before the final decision. For a GREE LIVO R32, it is especially necessary to confirm:
- the exact system capacity;
- the indoor and outdoor model numbers;
- the recognized energy efficiency;
- the AHRI number, if applicable;
- the subsidy program requirements at the time of installation;
- the information to be correctly entered on the invoice.
This rigor avoids unpleasant surprises. A device may belong to a recognized range, but eligibility often depends on the exact installed combination. That’s why we prioritize clear validation rather than vague estimation.
Mistakes to avoid for an outdoor unit on a balcony or near a wall
An installation like this may seem simple, but some mistakes can harm system performance.
Placing the unit too close to an obstacle
If the front fan lacks clearance, the expelled hot or cold air can return to the unit. This forces the compressor to work harder, increases noise, and reduces efficiency.
Installing the unit directly on the ground
An outdoor unit placed directly on a slab or balcony can be more exposed to water, debris, snow, and vibrations. A proper base improves stability and facilitates maintenance.
Neglecting service access
Access to panels, connections, and inspection areas must be possible. An installation too tight against a wall or obstacle complicates future maintenance.
Ignoring noise impact
Even a relatively quiet outdoor unit must be placed smartly. In a dense residential area, the fan direction, proximity to neighbors, and balcony structure can influence noise perception.
Poorly protecting the lines
Refrigerant lines must be insulated and protected. Poor finishing can lead to premature deterioration, efficiency losses, and a neglected appearance.
Why AirGreen is often chosen for GREE installations in Greater Montreal
Our experience covers installations of wall-mounted heat pumps, wall air conditioners, and mini split systems in very diverse settings: houses in Montreal, condos in Laval, duplexes in Longueuil, properties on the North Shore, residences on the South Shore, and older buildings in the West Island.
We know that every building has its constraints. In Pointe-Claire, constructions may feature brick walls, limited outdoor access, narrow balconies, nearby electrical panels, condominium requirements, or specific aesthetic needs. Our role is to anticipate these details before they become problems.
A successful installation relies on a combination of technical skill and field judgment. You need to know where to place the unit, how to protect the pipes, how to reduce vibrations, how to respect service access, and how to explain to the client the optimal use of their system.
Maintenance tips to extend the life of a GREE LIVO R32
After installation, a few simple actions help preserve the system’s performance:
- regularly clean the indoor unit’s filters;
- keep the area around the outdoor unit clear;
- avoid storing objects in front of the fan;
- monitor the accumulation of leaves, dust, or ice around the base;
- have the system checked periodically by a qualified team;
- report any unusual noise, performance drop, or abnormal leakage quickly.
HVAC maintenance is not just a formality. It helps maintain energy efficiency, reduce the risk of breakdowns, and extend the compressor’s lifespan. For a heat pump installed outdoors, the immediate environment plays an important role: dust, humidity, snow, pollen, leaves, and freeze-thaw cycles can all affect operation throughout the seasons.
A discreet, sturdy installation adapted to the Pointe-Claire climate
This project in Pointe-Claire demonstrates the importance of well-planned work. The outdoor unit GREE LIVO R32 is installed on a stable base, in a tight but functional space, with a consistent orientation for ventilation. The whole setup meets the client’s goal: to have a reliable mini split heating and cooling system without creating unnecessary clutter.
For AirGreen, every installation is an opportunity to deliver a lasting result. We don’t just install a machine; we adapt the system to the building, the client’s lifestyle, and the requirements of the Quebec climate. Whether the project is in Pointe-Claire, elsewhere in Montreal, in Laval, in Longueuil, on the North Shore or the South Shore, our approach remains the same: precision, transparency, quality finishing, and after-installation service.
