Installation of a Sharp Eco Inverter wall-mounted heat pump in Laval (Sainte-Dorothée)

Professional installation of a Sharp Eco Inverter wall-mounted heat pump in Laval (Sainte-Dorothée). AirGreen, HVAC expert in Montreal, Laval, Longueuil, North Shore and South Shore.

By AirGreen Climatisation & Chauffage Admin3 min read
Installation of a Sharp Eco Inverter wall-mounted heat pump in Laval (Sainte-Dorothée)
Installation of a Sharp Eco Inverter wall-mounted heat pump in Laval (Sainte-Dorothée)
Generic diagram: wall-mounted heat pump, indoor and outdoor units

In summer, the outdoor unit rejects the house's heat outside.

Generic illustration of this type of installation, not a survey of this job site. Tap a number.

  1. Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.

  2. The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.

  3. Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.

  4. A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.

  5. The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.

  6. On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.

  7. The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.

A facility adapted to the harsh winters of Greater Montreal

At AirGreen , we know how challenging Quebec's climate is for heating and cooling systems. That's why we offer high-performance wall-mounted heat pumps designed for the most demanding conditions. In this project in Sainte-Dorothée, Laval , our team installed a Sharp Eco Inverter heat pump from the PlasmaCluster range, renowned for its energy efficiency and durability.

The client's objective was clear: to replace an old, inefficient system with a reliable solution capable of providing both economical heating in winter and cooling comfort in summer.

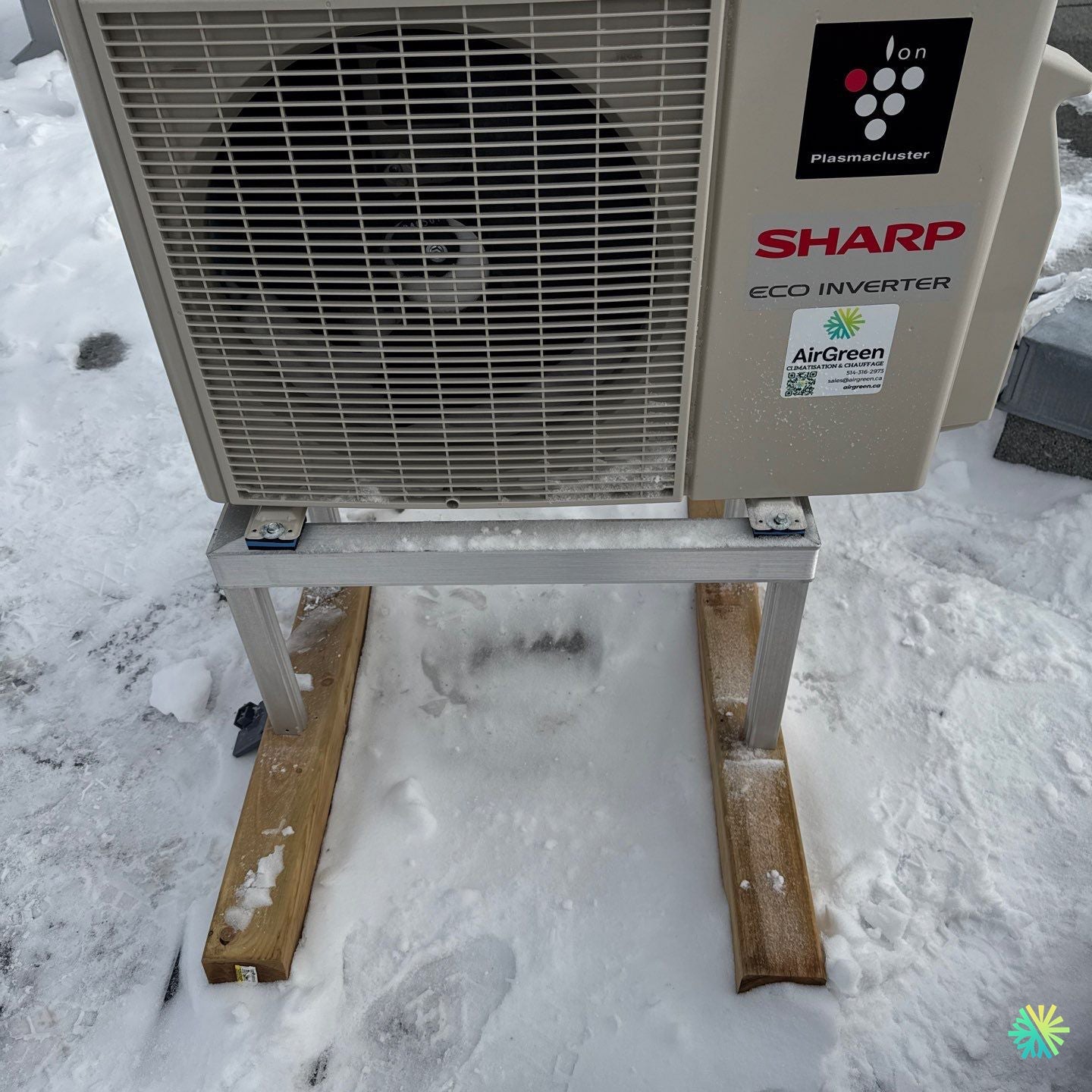

Outdoor unit installed on raised support

The outdoor unit was mounted on a reinforced aluminum support resting on treated wooden sleepers, an essential configuration in a Nordic environment. This approach has several advantages:

  • Raised above ground level : helps prevent snow and ice from accumulating around the compressor.

  • Enhanced stability : The metal structure effectively absorbs vibrations and extends the system's lifespan.

  • Easy access for maintenance : the height allows technicians to intervene quickly, even in winter.

Additionally, the chosen location provides good air circulation, which optimizes the machine's energy efficiency.

The Sharp Eco Inverter: a strategic choice

The Sharp Eco Inverter heat pump is an ideal solution for families in Laval and the North Shore, thanks to several key features:

  • Inverter Technology : Automatically adjusts power to maintain a constant temperature and reduce energy consumption.

  • PlasmaCluster System : Improves indoor air quality by neutralizing certain particles and allergens.

  • Winter heating performance : designed to operate efficiently even in extreme cold, an essential requirement for the Laval climate.

  • Eligibility for grant programs : this type of high-performance wall-mounted heat pump may be eligible for financial assistance such as LogisVert or Canada Greener Homes .

Challenges encountered and solutions provided

As with any HVAC installation in winter , our team had to deal with certain constraints:

  • Snow and ice on the ground : before installation, we carefully cleared the snow and leveled the surface to ensure the stability of the support.

  • Condensate management : Draining defrost water is essential to prevent icy buildup. We have provided sufficient clearance for efficient gravity drainage.

These precautions not only ensure the performance of the system, but also its long-term durability.

A facility tailored to customer needs

By choosing this Sharp Eco Inverter heat pump , the owner benefits from a device:

  • Versatile : efficient heating in winter and air conditioning in summer.

  • Energy efficient : significant reduction in electricity bills.

  • Comfortable : stable temperature, healthier air, quiet operation.

The installation was completed in a single day by our certified technicians, in accordance with the safety and performance standards in force in Quebec.

AirGreen: your HVAC partner in Laval and on the North Shore

At AirGreen, we are committed to providing comprehensive heating and cooling solutions tailored to every home and every budget. Our experts provide:

  • Personalized advice for choosing the right wall-mounted heat pump.

  • Facilities certified and guaranteed by our RBQ license.

  • Preventive maintenance to extend the life of your equipment.

Whether you are in Laval, Montreal, Longueuil, the North Shore or the South Shore , our team is available to support you in your project.

The steps

How it goes, from the first call to the end

The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.

Step 1 of 9The on-site estimate

We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.

  1. The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
  2. The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
  3. Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
  4. The wall openingA single opening, with the slope the drain needs to flow outside.
  5. The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
  6. Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
  7. The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
  8. Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
  9. The walkthroughRemote, modes, filters: we show you the essentials before we leave.
Your numbers

And at your place?

Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.

Size checkYour baseboards, in BTU/h
–BTU/h of installed electric heat

    Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.

    Through the seasons

    What to do, season by season

    Three habits per season for this unit. They take a few minutes and prevent many calls.

    • Clean the indoor unit's filters.
    • Clear leaves and debris left on the outdoor unit by winter.
    • Test cooling before the first hot days.
    And at your place?

    Which type of equipment for your project?

    Pick what looks like your need.

    Mistakes avoided

    Four mistakes we do not make

    Flip each card to see what we do instead.

    Frequently asked questions

    What people ask us about this kind of work

    12 questions
    Does a wall-mounted heat pump heat in winter?
    Yes, it heats and cools. Its capacity drops in very cold weather; the operating range depends on the model and is listed on its spec sheet.
    Wall-mounted or multi-zone: how do I choose?
    One wall head and one condenser outside: the direct solution for a room or an open area. For two to five rooms, a multi-zone puts one head in each room on a single condenser.
    Where does the outdoor unit go?
    Where it stays above the snow, clear and accessible, away from walkways. We decide it with you during the estimate.
    Are there grants?
    Depending on the model and your situation, assistance programs may apply, including Hydro-Québec's LogisVert. AirGreen checks the model number before quoting an amount. See the grants.
    Do I need a permit?
    Rules vary from city to city: location, distances, noise. See permits and by-laws, and we check for your address.
    How cold can it heat?
    It depends on the model. According to Hydro-Québec, newer models work down to a temperature between −15 °C and −25 °C, and some cold-climate models are certified lower. The minimum temperature is on each unit's spec sheet.
    How much can I save?
    Hydro-Québec says a heat pump can be up to three times more efficient than baseboards for heating in the colder months. The result depends on the house, the climate and how it is used.
    How is the LogisVert assistance calculated?
    For ENERGY STAR cold-climate certified heat pumps, Hydro-Québec lists assistance of $120 per 1,000 BTU/h of heating capacity at −8 °C. AirGreen checks the exact model before quoting an amount; only Hydro-Québec confirms the assistance granted. See the grants.
    Is it noisy?
    The sound level depends on the model and is listed in decibels on each unit's spec sheet. Location matters too: when possible, we avoid putting the outdoor unit under a bedroom window.
    The outdoor unit is covered in ice: is that normal?
    Some frost is: the unit runs defrost cycles. Never hit the ice. If the unit stays iced up or stops heating, call us.
    Does AirGreen hold the required licences?
    Yes. AirGreen holds RBQ licence 5645-9605-01, subclasses 15.8 Ventilation, 15.10 Refrigeration and 16 Electricity.
    Is the estimate free?
    Yes. The on-site estimate is free and the quote follows within 24 hours. Book my free estimate.
