A Sharp wall-mounted heat pump installation perfectly integrated into a Montreal plex
At AirGreen , we recently installed a Sharp Eco Inverter wall-mounted heat pump in a typical duplex in the Rosemont–La Petite-Patrie neighborhood of Montreal. This project perfectly illustrates our expertise in HVAC installation in urban residential buildings with brick structures, where energy efficiency must be combined with aesthetics and durability.
A Montreal neighborhood with a unique character
The Rosemont–La Petite-Patrie area is characterized by its red brick buildings, wrought iron exterior staircases, and lush shared courtyards. These buildings, often centuries old, present specific technical challenges: thick walls, tight spaces, and sometimes aging structures. It is precisely in this type of environment that a well-chosen and properly installed wall-mounted heat pump can transform the comfort of a home while significantly reducing energy bills.
Choosing the Sharp Eco Inverter: performance, reliability and silence
The client wanted a solution that was discreet, efficient, and durable . After analyzing the home's layout and thermal requirements, our team recommended the Sharp Eco Inverter , a model renowned for its Plasmacluster Ion technology , which purifies the air while ensuring constant heating and cooling.
This model, belonging to Sharp's ZU1 range , offers:
-
Adjustable power from 12,000 to 24,000 BTU, suitable for small to medium-sized spaces.
-
High energy efficiency thanks to inverter technology, which automatically adjusts the compressor speed according to demand.
-
Effective down to −25°C , ideal for Montreal winters.
-
Ultra-quiet operation, both indoors and outdoors.
These features allow for both optimal comfort in all seasons and eligibility for certain energy subsidies offered in the greater Montreal area, Laval, the North Shore and the South Shore.
A typically Montreal installation context

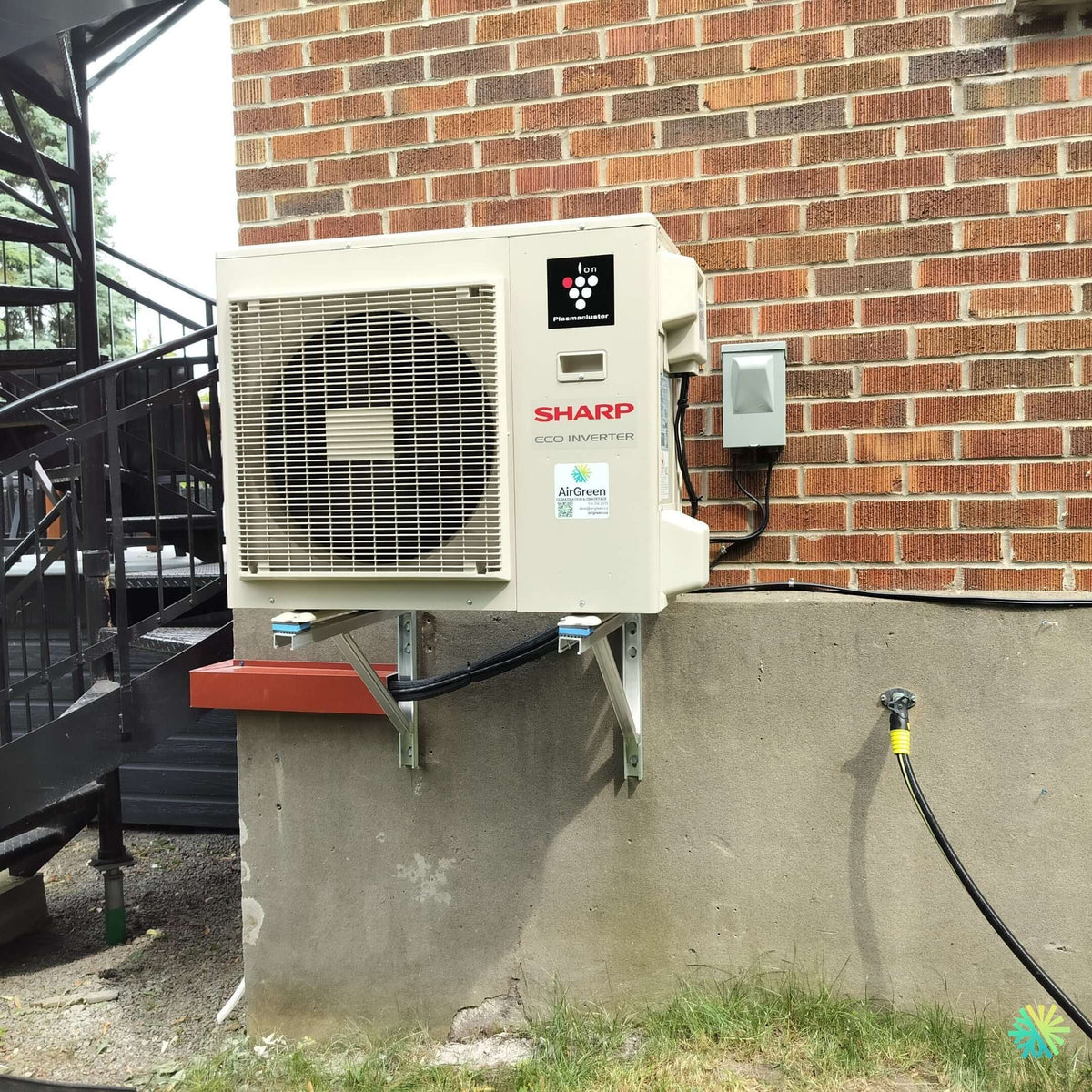

The outdoor condenser was installed on the brick side wall of the duplex, approximately 1.2 meters above the ground, on sturdy galvanized wall brackets designed to support the unit's weight while also resisting the elements. The position was carefully considered to ensure:
-
Natural gravity flow of condensates, without the need for a pump.
-
Adequate spacing from the neighboring metal staircase, ensuring optimal air circulation.
-
A minimum distance between the compressor and the indoor head, reducing efficiency losses.
The refrigeration ducts were protected by discreet grey capping , perfectly matching the facade, and connected to a waterproof electrical box located in the immediate vicinity of the unit.
Installation Steps
-
On-site assessment : analysis of the load-bearing wall, identification of electrical conduits and verification of the space available under the staircase.
-
Installation of the wall bracket : precise drilling and fixing of galvanized brackets with anchors suitable for masonry.
-
Sharp Condenser Installation : Careful positioning and leveling to ensure quiet and balanced operation.
-
Passage of refrigerant connections : drilling of the wall with insulated sleeve, installation of pipes and connection to the indoor unit.
-
Electrical connection and grounding : secure connection compliant with CSA and RBQ standards.
-
Commissioning and performance tests : pressure control, flow verification and thermostat calibration.
An aesthetic and functional result
The final result blends harmoniously into the building's façade. The installation, both compact and refined , preserves the aesthetics of the duplex while ensuring high-level energy performance.
Thanks to the quality of the materials and the expertise of our certified technicians, this HVAC installation in Montreal ensures:
-
A reduction in energy costs of up to 35% compared to a traditional electric heating system.
-
An exterior noise level below 52 dB(A) .
-
Extended service life thanks to stable and well-ventilated mounting.
The importance of a professional installation
Installing a Sharp wall-mounted heat pump requires more than just plumbing and electrical skills. Our AirGreen technicians are familiar with the structural features of Montreal buildings, including:
-
Old brick walls requiring specific anchors.
-
The confined spaces of stairs and side aisles.
-
Extreme climatic variations from −30°C to +30°C.
An improperly calibrated installation can compromise the overall performance of the system and reduce its lifespan. This is why each AirGreen intervention is based on a rigorous protocol validated by our HVAC engineers.
Maintenance and longevity: AirGreen insurance
To ensure the long-term performance of the heat pump, we offer our customers an annual maintenance program including:
-
Cleaning coils and filters.
-
Checking pressures and performance.
-
Checking the wiring and supports.
-
The complete test of the winter defrost cycle.
These regular maintenances help prevent efficiency losses , ensure healthier indoor air and extend the life of the compressor.
Customer Testimonial
The owner told us:
“I am impressed with the cleanliness of the work. The unit is quiet, efficient, and blends perfectly into the facade. The AirGreen team was punctual, professional, and very meticulous.”
This kind of feedback confirms our ongoing commitment to quality, precision and customer satisfaction .
Recognized expertise throughout Greater Montreal
AirGreen is proud to support hundreds of homes in the transition to energy-efficient HVAC solutions . Whether you are in Montreal, Laval, Longueuil, on the North Shore or the South Shore , we provide custom installations adapted to your building and your needs.
Our projects, like this one in Rosemont, demonstrate that local know-how and technical rigor can transform daily comfort while reducing environmental impact.
In summary
Installation type: Sharp Eco Inverter wall-mounted heat pump
Location: Rosemont–La Petite-Patrie (Montreal)
Special features: Wall installation on galvanized brackets, gravity drainage, limited space under the stairs, discreet gray capping.
Result: Four-season comfort, preserved aesthetics, optimized energy efficiency.
At AirGreen , we believe that a well-designed installation is the key to lasting comfort. Each project is an opportunity to prove that quality, precision, and performance can coexist while respecting Montreal's architecture.
