An outdoor installation on high brackets for stable and quiet performance, even in Montreal winters

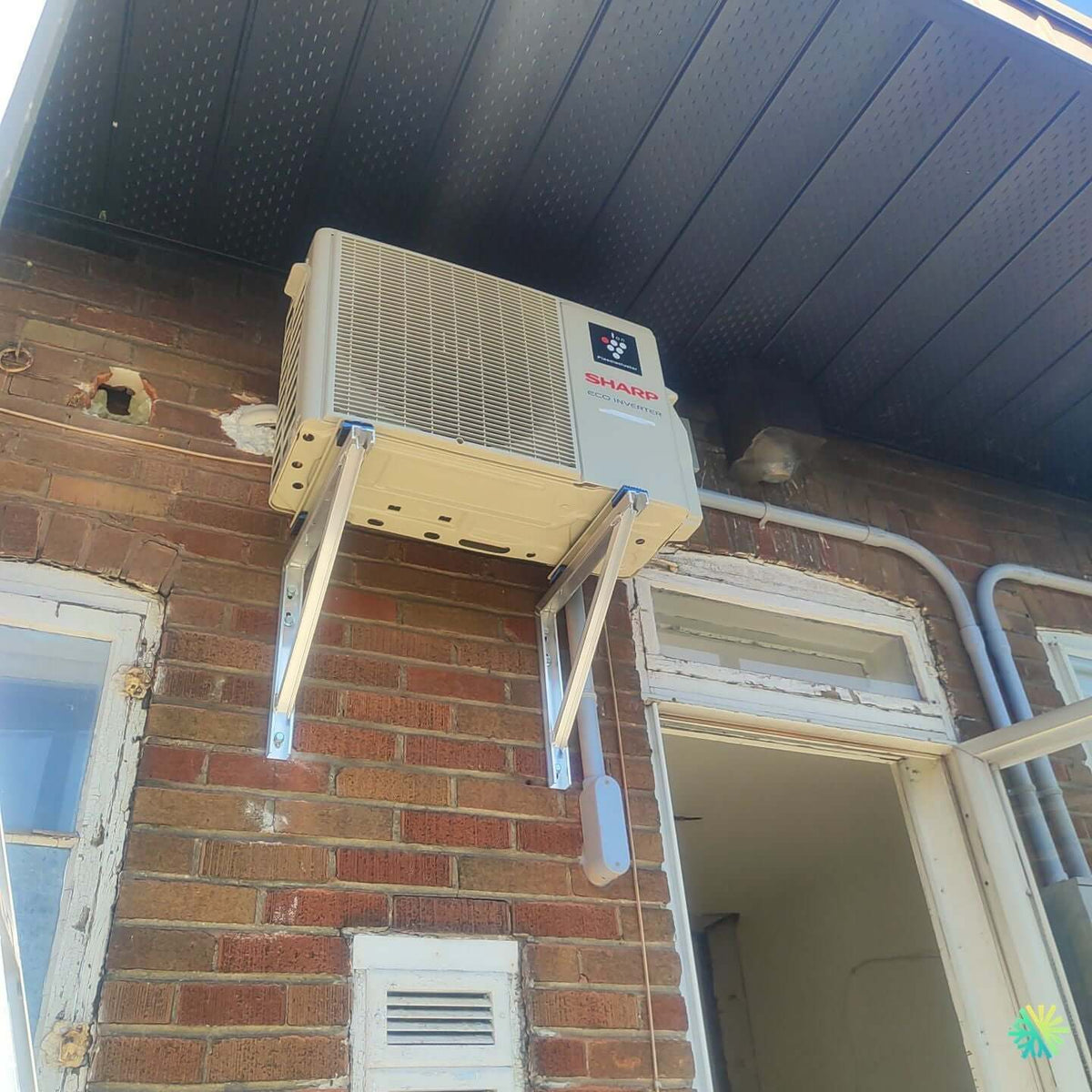

In a typical brick plex in Rosemont–La Petite-Patrie (Montreal) , our team installed a Sharp Inverter (R-32) wall-mounted heat pump . The condenser is mounted high on galvanized brackets , just under the soffit, to ensure proper clearances , excellent snow protection , and quiet operation on the backyard side. The client's goal was clear: efficiently cool the upper floor and reduce heating costs while preserving the aesthetics of the facade.
Project context and selection criteria
The accommodation has a row layout (aligned rooms), which is very common in this area. After a visit and measurements, we recommended a Sharp Inverter R-32 wall-mounted heat pump , a recent platform that is distinguished by:
-
High efficiency thanks to the inverter compressor modulating the power continuously;
-
R-32 refrigerant , lower GWP than R-410A, improving seasonal efficiency;
-
Low temperature heating mode , suitable for Greater Montreal winters;
-
Controlled acoustics , for discreet use by neighbors.
To size correctly, we took into account the orientation , the surface area served , the airtightness of the envelope and the internal gains (appliances, occupancy). The target capacity range corresponds to 9,000–12,000 BTU for the main zone, with heating reserve for the off-season.
Choosing an outdoor location: why use high wall brackets?
The condenser is fixed to the brick on heavy brackets with chemical anchors . This positioning offers several concrete benefits:
-
Snow clearances : more than 2 m from the ground, the unit remains free during periods of accumulation and during defrost cycles.
-
Free air circulation : rear and side clearance respected so as not to penalize heat exchange.
-
Less debris : leaves, dust and splashes are kept away.
-
Safety and durability : reduced risks of impact, premature oxidation and vandalism.
We added anti-vibration pads under the seat and checked the plumb line with a laser , limiting the transmission of vibrations to the masonry.
Refrigeration and electrical path: clean, short and protected
The connection set (insulated copper + communication wiring) is covered in gray to harmonize with the brick and the soffit. The route follows a vertical rise then a short penetration towards the interior, which:
-
reduces pressure losses ;
-
facilitates future diagnosis ;
-
improves the visual finish .
On the power side, the appliance is connected to a dedicated circuit with a nearby service switch , in accordance with the Electrical Code . The holes are sealed with polyurethane for air and water tightness.
Condensate and cold management: reliability in harsh weather
For worry-free heating service, we take care of three points:
-
Defrosting : the height and the absence of obstacles under the unit allow the free flow of defrost water.
-
Clearance under the soffit : respect a vertical space to avoid recycling of hot/cold air .
-
Winter protection : the location under a cornice limits burial and ice spray.
The indoor unit drain is installed by gravity when the configuration allows; otherwise, we provide a silent condensate pump with accessible maintenance. Here, the layout has been designed to preserve the slope while remaining discreet.
Interior: wall head and diffusion in the axis of circulation
The interior head (not visible here) was installed to blow in the axis of the corridor and the main rooms , which ensures:
-
even distribution of air conditioning;
-
smooth air returns without dead zones;
-
superior responsiveness during occupancy variations.
The calibration of the shutters and the fan speed were adjusted after measuring the blown temperatures and checking the differences (delta T) to optimize comfort and noise level.
Commissioning steps: AirGreen rigor
Our standardized procedures guarantee the announced performance:
-
Flares and brazing : checked with a reamer, tightened to the specified torque.
-
Nitrogen test and leak search (soap water/electronics).
-
Deep vacuum drawing down to ≤ 500 microns , stabilization and leak testing.
-
Opening of valves , switching on and controlling intensities .
-
Setting up modes, customer training (filter maintenance, seasonal instructions).
Performance & acoustics: comfort without compromise
Sharp Inverter R-32 platforms offer a low sound profile and fine modulation in mid-range. In daily use, the customer benefits from:
-
precise maintenance of the setpoint without jolts;
-
a reduction in energy bills compared to electric convectors;
-
of an efficient dehumidification mode during heat peaks.
The soffit position adds a natural barrier against direct rain, contributing to the longevity of the exchanger.
Aesthetics and durability of masonry
On a brick building, the quality of the anchors and the waterproofing make the difference. We use:
-
chemical anchors adapted to the support;
-
exterior grade sealing washers and sealants ;
-
cappings aligned with joints for a clean visual reading .
Result: a sober facade, without visible cables, and a reversible intervention in the event of future work.
Grants, efficiency and refrigerant: what you need to know
High-efficiency wall-mounted heat pumps using R-32 have excellent SEER/HSPF and a better environmental profile than older generations using R-410A. Depending on the exact capacity and the programs in effect , this type of equipment can open the door to financial assistance . We support our clients in Montreal, Laval, Longueuil, North Shore and South Shore in verifying eligibility and preparing files when applicable.
Maintenance tips to keep performance at peak performance
-
Cleaning the inner head filters every 1–2 months in summer.
-
Clearances around the condenser (40–60 cm free); avoid trays or objects under the unit.
-
Annual inspection by an AirGreen technician: pressures, temperatures, connections, drainage.
-
Natural de-icing : never obstruct the openings under the unit during winter.
Regular HVAC maintenance secures the warranty and preserves seasonal performance .
Common Pitfalls to Avoid (and How We Get Around Them)
-
Condenser too low : risk of burial; our high brackets avoid this problem.
-
Air recycling under the soffit: we respect vertical and lateral clearances .
-
Lines that are too long or unnecessarily bent: we optimize the route to limit losses.
-
Poorly sealed holes : we systematically seal to protect the masonry.
-
Vibrations : Pads and leveling reduce structure-borne noise.
Result: immediate comfort, clean facade, tamed winter
This AirGreen installation combines energy efficiency , silence and sustainability . The client benefits from efficient air conditioning in the summer and economical heating support in the spring and fall, without compromising the aesthetics of the building. A solution adapted to Montreal buildings , ready to operate for a long time.
