Installation of a Sharp (ZU1 series) wall-mounted heat pump in LaSalle
In LaSalle, we install a Sharp wall-mounted heat pump (ZU1 series) on a balcony: aluminum support, careful cladding, complete commissioning and HVAC maintenance. AirGreen intervention in Montreal, Laval, Longueuil, North Shore and South Shore .
Take a tour of the installation
Each number is a point we check on site. Switch between summer and winter to watch air and heat move.
In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.
A glass balcony, a condo facing the river, and a clear requirement: stable, quiet, and energy-efficient comfort twelve months a year. It is in this context that our team carried out the HVAC installation of a Sharp ZU1 series wall-mounted heat pump in LaSalle (Montreal) , equipped with Plasmacluster ionization technology. The result: a temperate living space without compromise, electricity bills under control, and careful integration compatible with the constraints of a condominium.
Why choose Sharp for a condo in LaSalle?
In the condominiums of southwest Montreal , space is limited, noise regulations are strict, and technical routes are often short and straight. The Sharp wall-mounted heat pump (ZU1 series) meets these criteria thanks to:
-
a finely modulated Eco Inverter compressor, ideal for maintaining the temperature without overconsumption;
-
Plasmacluster air quality , useful for limiting odors and particles in compact interior volumes;
-
a compact and quiet outdoor unit, suitable for balconies;
-
the use of new generation refrigerant (R-32 platform on the recent range), aligned with current environmental guidelines.
The client mandate and our approach
The owner wanted to cool the living room and adjoining bedroom while benefiting from efficient heating during the off-season and in cold weather . Our approach:
-
Technical visit and load calculation according to the building envelope (orientation, glazing, waterproofing, floors).
-
Capacity selection in the optimal range for a condo of this size (12,000 to 15,000 BTU, depending on the thermal balance and actual use of the rooms).
-
Implementation plan validated with the co-ownership syndicate: regulatory distances, property line, aesthetics of the hood and condensate management.
-
One-day installation with testing, flow balancing and usage instructions.
Technical integration on balcony: precision and cleanliness
Installation of the outdoor unit

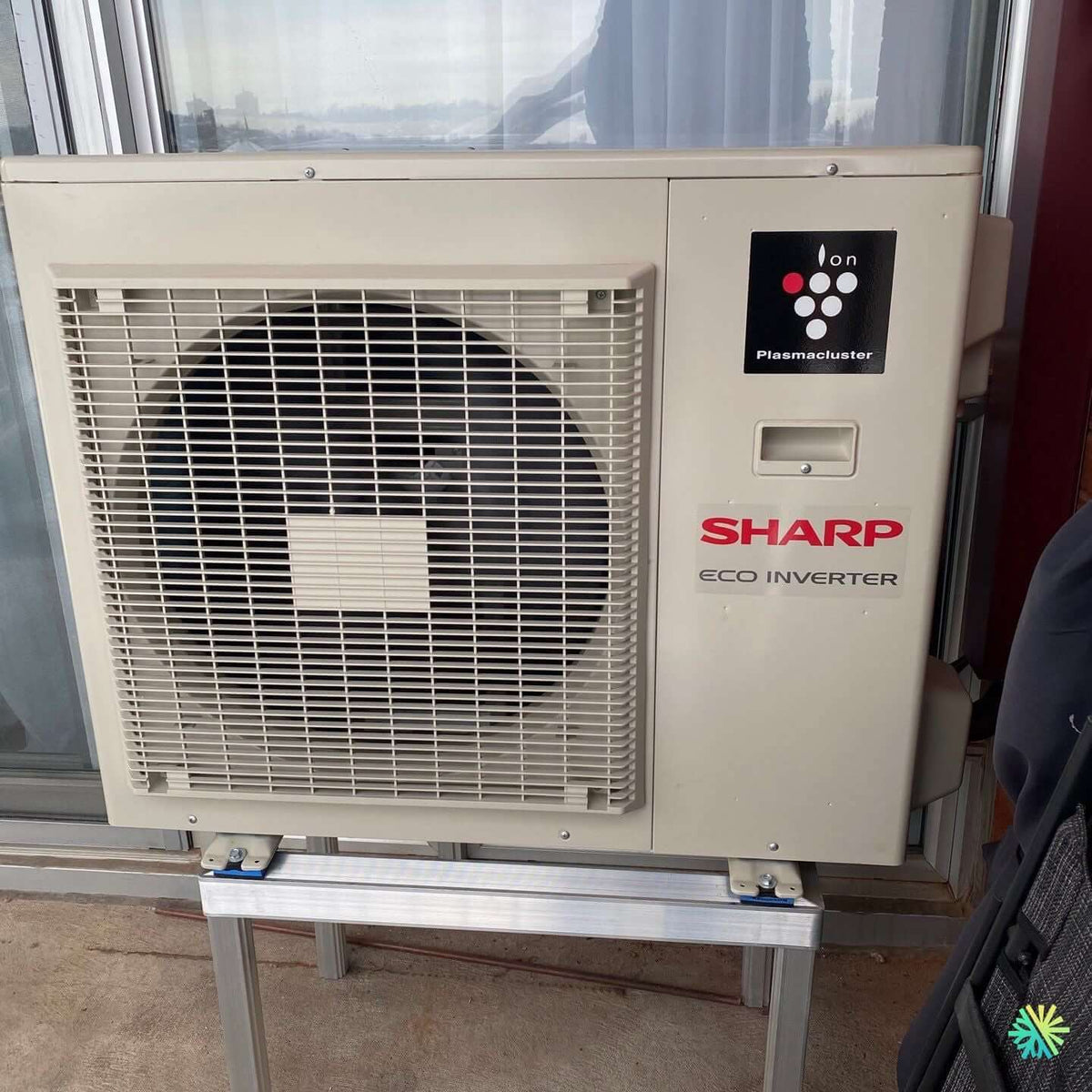

The Sharp outdoor unit is placed on an aluminum support at height, isolated by anti-vibration pads , in order to avoid any transmission of vibration to the balcony slab. This elevation:
-
promotes the flow of rainwater and condensates;
-
protects equipment from snow accumulation and debris;
-
facilitates HVAC maintenance and service access.
The glass facade and the guardrail required unobstructed air circulation : we respected the recommended side and rear clearances , and oriented the blowing so as not to create recirculation of hot air in heating mode or acoustic disturbance towards the neighbors.
Refrigeration and electricity route
-
Short refrigeration line (approximately 5–7 m typical for a condo), continuously insulated and covered with discreet cladding for a clean finish on the exterior side.
-
Communication and power wiring sized according to the nameplate, with adequate cross-section to limit voltage drops.
-
NEMA 3R disconnect box placed within easy reach, dedicated for safety and maintenance .
-
High vacuum compliant, pump draw up to the required threshold, leak test and weighing/load adjustment according to the actual length of the connections.
Condensate management
Inside, we have opted for gravity discharge where the layout allows, to eliminate the risk of noise and pump failure. Alternatively, we integrate compact lift pumps with silencers where slopes are not possible, particularly in central condo units.
Comfort obtained and performance observed
Thermal stability in all seasons
Inverter control limits temperature variations: the wall-mounted unit modulates its power to maintain the set point without frequent starts/stops. In summer cooling, the air is efficiently dehumidified; in heating, the machine provides gentle heat that advantageously replaces energy-consuming electric baseboards.
Urban air quality
Sharp's Plasmacluster technology diffuses positive and negative ions that help reduce certain household particles and odors. In a condo where cooking, proximity to LaSalle Boulevard, or humidity can affect comfort, this feature is appreciated by occupants.
Controlled noise
On a balcony, acoustics are crucial. The combination of an inverter fan/compressor and anti-vibration pads effectively limits the noise perceived inside and among immediate neighbors—a point often required by condominium regulations in Montreal , Laval , Longueuil , the North Shore and the South Shore .
Key steps in AirGreen installation
1) Pre-inspection and compliance
-
Validation of co-ownership regulations (appearance, cladding colors, openings).
-
Check mechanical clearances and routing without conflict with emergency evacuation or snow protection.
-
Review of the electrical panel for the addition of a dedicated circuit breaker .
2) Drilling and interior installation
-
Careful drilling with watertight bulkhead and vapor barrier .
-
Install the wall head at a height that optimizes air stratification and limits drafts in the seating area.
-
Securing furniture and site cleanliness until final sweeping.
3) Commissioning
-
High vacuum , nitrogen test/soap test if required, opening of valves, operational measurements (pressures, temperatures, intensities).
-
Setting of Auto/Hot/Cold modes , adjustment of the shutters for even diffusion in the room.
-
Transmission of an HVAC maintenance guide (filter cleaning, clearances, best practices).
What this achievement brings to the client
Tangible energy savings
By replacing or relieving the burden on electric baseboards, the heat pump typically provides 3 kWh of heat for every 1 kWh consumed when conditions are right. The customer benefits from smoothed bills and an accelerated return on investment through heating and cooling use from April to November, with continued service in winter.
Tailor-made comfort and simple maintenance
-
Remote control and application (depending on option) for programming and time slots .
-
Washable filters accessible; recommendation: light HVAC maintenance every 2–3 months during the season and annual professional visit to maintain performance.
Heritage value and architectural discretion
The matching cladding and clean anchoring on aluminum supports integrate into the balcony without harming the facade. This is a recurring requirement of condominiums in Greater Montreal that we include in our specifications.
AirGreen Tips for a Successful Wall Installation in a Condo
Correct sizing (avoid under- or over-powering)
A device that is too small will operate in forced mode and will wear out prematurely; too large, it will cycle and dehumidify poorly. We size based on load calculations and usage profile (teleworking, evening, night).
Air discharge management
On the balcony, the space is enclosed: we orient the unit to avoid recirculation and preserve the neighborhood . A simple difference of 10–15 cm or poor orientation can increase the perceived noise; this point is dealt with upstream .
Condensates: gravity first
As soon as a natural slope is possible, this is the most reliable choice. If a pump is required, we prefer quiet models, with anti-vibration tank and service access.
Preventive HVAC Maintenance
-
Clean filters regularly.
-
Clear the outdoor unit of leaves and dust.
-
Schedule an annual inspection (check pressures, connections, insulation, tightening of terminals, cleanliness of the exchanger).
Grants and Eligibility: What You Need to Know
Recent high-efficiency wall-mounted heat pumps with low GWP refrigerant are generally eligible for various energy efficiency programs when they meet seasonal performance and cold weather operating thresholds. We assist the customer in documenting the device , providing the supporting components (model, serial number, performance sheets) and securing the application with the applicable programs in Greater Montreal (Montreal, Laval, Longueuil, North Shore , South Shore ).
Deadlines and logistics
This typical condo installation is carried out within a day , including commissioning and testing . Coordination with the union (elevator slots, access to electrical rooms, noise) is managed in advance to reduce the impact on the condominium.
What makes AirGreen different on this project?
-
Urban environment specialists : narrow balconies, glass facades, co-ownership restrictions.
-
Finish : aligned covers, stainless steel screws, aluminum support with anti-vibration pads .
-
Measurements and evidence : installation photos, commissioning records, maintenance sheet given to the customer.
-
After-sales service : maintenance reminder, local availability in Montreal , Laval , Longueuil , North Shore and South Shore .
Frequently asked questions we address on similar projects
Can I install on an enclosed balcony?
Yes, if clearances and ventilation are ensured. We analyze the configuration to avoid hot air pockets .
And in winter?
The recent Sharp ZU1 range offers efficient heating at low temperatures with optimized defrost algorithms. We explain normal behavior (defrost cycles, occasional noise) to avoid concerns.
Will the neighborhood hear the device?
The combination of inverter + studs and our blowing orientation minimizes the acoustic impact. We respect local limits and, if necessary, offer additional solutions (screens, micro-relocation).
LaSalle Project Review
-
Controlled comfort in living areas, both during heatwaves and in the off-season.
-
Optimized consumption thanks to inverter modulation.
-
Neat finish : hooded lines, raised support, clear service access.
-
Simplified maintenance : accessible filters, compliant clearances.
For a comparable project in Montreal , Laval , Longueuil , on the North Shore or the South Shore , our team offers a rapid feasibility study and a detailed estimate including sizing, control options and support for efficiency programs .
What we always give to the customer
-
Commissioning report (operating measurements).
-
Personalized usage advice depending on the orientation of the indoor unit.
-
HVAC maintenance schedule and annual reminder.
Next step
Are you considering an HVAC installation in a condo, plex, or townhouse? Contact us for precise sizing and proper integration of your Sharp, Gree, Fujitsu, or Midea heat pump , anywhere in Greater Montreal .
The unit on this job, in figures
The range as published on airgreen.ca: pick a size to see its capacity in deep cold.
| Size | Heating at −8 °C | Heating at −15 °C | Coldest certified point | COP at −15 °C | SEER | HSPF | Indicative LogisVert aid |
|---|---|---|---|---|---|---|---|
| Sharp ZU1 12 000 | 14,500 | 12,000 | −27 °C: 7,200 | 2.11 | 22.0 | 11.0 | $1,740 |
| Sharp ZU1 15 000 | 18,100 | 15,300 | −27 °C: 10,100 | 2.1 | 24.0 | 11.0 | $2,172 |
| Sharp ZU1 18 000 | 22,000 | 18,000 | −27 °C: 11,500 | 2.2 | 24.0 | 11.0 | $2,640 |
| Sharp ZU1 24 000 | 22,400 | 19,000 | −27 °C: 12,300 | 2.2 | 22.0 | 11.0 | $2,688 |
According to NEEP, it delivers 14,500 BTU/h at −8 °C (17 °F), more than at 8 °C (14,000 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 7,200 BTU/h, 60% of its nominal 12,000 BTU size.
At 8 °C, its certified maximum capacity reaches 17,100 BTU/h, 42% more than its nominal 12,000 BTU size.
According to NEEP, it delivers 18,100 BTU/h at −8 °C (17 °F), more than at 8 °C (18,000 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 10,100 BTU/h, 67% of its nominal 15,000 BTU size.
At 8 °C, its certified maximum capacity reaches 21,800 BTU/h, 45% more than its nominal 15,000 BTU size.
According to NEEP, it delivers 22,000 BTU/h at −8 °C (17 °F), more than at 8 °C (21,600 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its COP at −27 °C is 1.88: the highest of the ZU1 line, which ranges from 1.79 to 1.82 at that temperature.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 11,500 BTU/h, 64% of its nominal 18,000 BTU size.
At −27 °C, its certified minimum capacity is 3,200 BTU/h (5,500 at 8 °C). It slows down instead of cycling on and off.
According to NEEP, its certified heating capacity at −15 °C (5 °F) is 19,000 BTU/h, 79% of its nominal 24,000 BTU size. Its COP there is 2.20.
Data read live from the airgreen.ca page of each size (NEEP / AHRI certified performance). When the title names the installed size, it is highlighted; otherwise the whole range is shown. The aid shown is today’s, using Hydro-Québec’s rule ($120 per 1,000 BTU/h at −8 °C); amounts quoted in the article date from its publication. Only Hydro-Québec confirms the assistance granted.
The big day, step by step
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
What would it look like at your place?
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Baseboards and electric furnaces turn 1 kWh of electricity into 1 kWh of heat. A heat pump delivers more: that is its COP. At Hydro-Québec’s rate D (11.142¢/kWh above 40 kWh a day, since 1 April 2026):
Hydro-Québec: a heat pump can be up to three times more efficient than baseboards for heating in the colder months.
Estimate per kWh of heat, at the chosen temperature, using the certified COP from the product page. Taxes, access charge and backup heat not included.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
Four mistakes we do not make
Flip each card to see what we do instead.
Your own project, step by step
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
Is your home ready?
Check what applies at your place. A "no" is not a refusal: it is what we sort out during the estimate.
Four statements: true or false?
It all comes down to details you have just seen.
1. In heating mode, the outdoor unit can produce water.
During defrost cycles. That water must drain away without forming ice.
2. You pick the capacity with a simple square-footage rule.
Windows, insulation, orientation and how the room is used all count. Capacity is chosen on site.
3. A multi-zone connects several indoor heads to a single condenser.
One head per room, all on the same condenser. Each room keeps its own temperature.
4. The disconnect can sit behind the patio furniture.
It must stay accessible: it is what shuts the unit off for service.
0 / 4 right answers
What people ask us about this kind of work
Does a wall-mounted heat pump heat in winter?
Wall-mounted or multi-zone: how do I choose?
Where does the outdoor unit go?
Are there grants?
Do I need a permit?
How cold can it heat?
How much can I save?
How is the LogisVert assistance calculated?
Is it noisy?
The outdoor unit is covered in ice: is that normal?
Does AirGreen hold the required licences?
Is the estimate free?
No question matches. Write to us: we answer.
More jobs to see, near you
By town, by equipment or by region: browse more than 4,700 published projects.
Each dot: a town where AirGreen has published projects. The glowing dot: this job.
Every house has its constraints. We see them before we install.
The on-site estimate is free and the quote follows within 24 hours.
Text and photo: a real AirGreen Climatisation & Chauffage job. The diagrams are generic illustrations of the type of installation, not a survey of this job site. Sources of the added figures: airgreen.ca product pages (NEEP / AHRI performance), Hydro-Québec (Heat pumps page, LogisVert, read on 13 October 2026), Régie de l’énergie (rate D as of 1 April 2026).
