Installation of a Sharp ZU1 series wall-mounted heat pump in Plateau-Mont-Royal
Installation of a Sharp ZU1 series wall-mounted heat pump in Plateau-Mont-Royal: discreet integration, stable comfort, and high efficiency. Neat finish, gravity drain, and short run. AirGreen, HVAC experts in Greater Montreal.
Take a tour of the installation
Each number is a point we check on site. Switch between summer and winter to watch air and heat move.
In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.
An elegant and efficient integration into a contemporary Montreal living room
At AirGreen , we work weekly in apartments and plexes in the Plateau-Mont-Royal region where space, aesthetics, and comfort must coexist without compromise. Here, we are installing a Sharp wall-mounted heat pump (ZU1 series, R-32 refrigerant) , a solution known for its reliable performance in cold climates and its quiet sound—essential assets in Montreal's urban housing.
Project context: a bright living room to be optimized in summer and winter

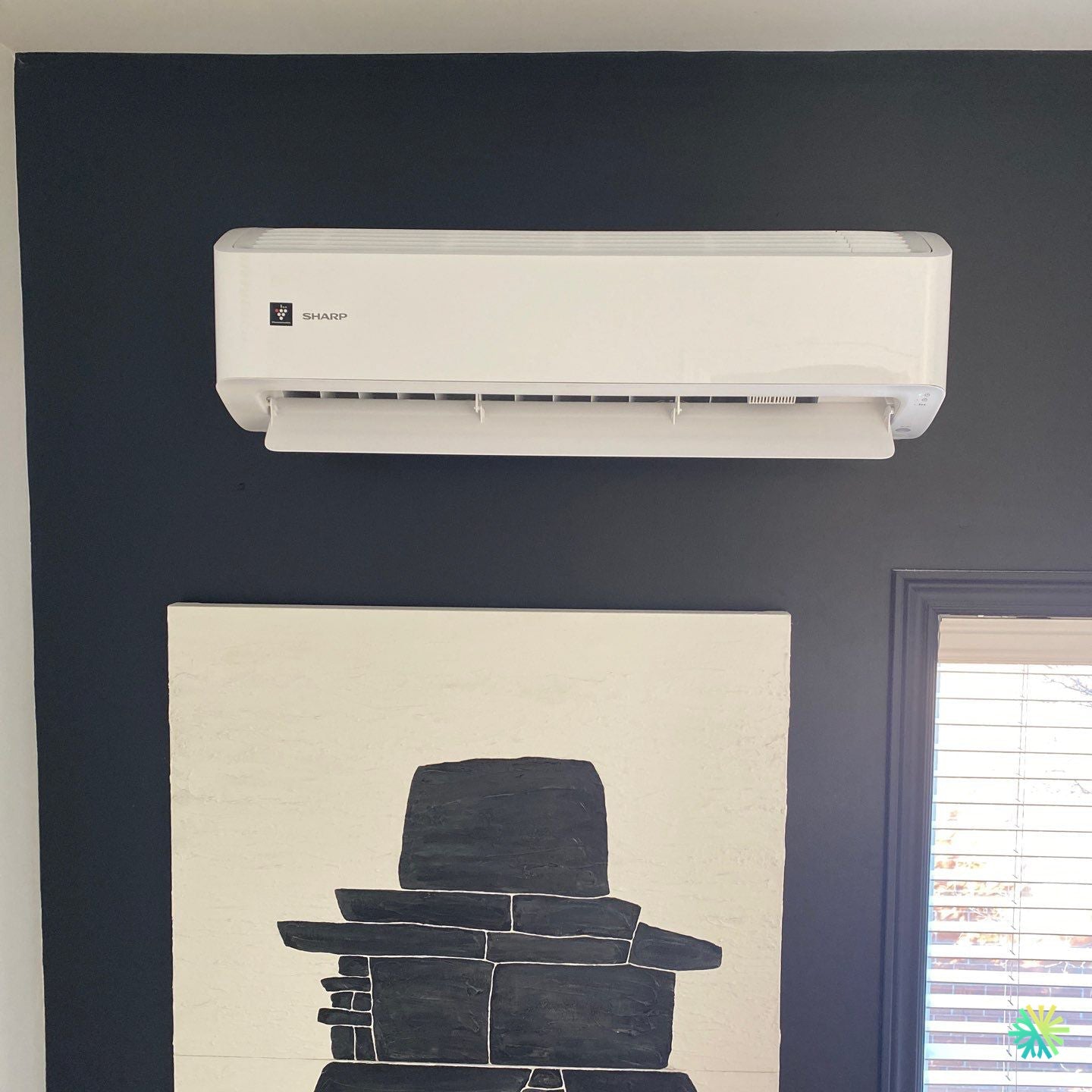

The home features a dark accent wall , a large painting, and a louvered window that lets in generous solar energy. The client's goal: to stabilize the temperature in summer during heat peaks, while benefiting from efficient and economical heating support in spring and fall. We selected a compact indoor unit positioned high on the wall , centered above the painting to preserve air circulation and visual symmetry.
Why the Sharp ZU1 Series is a Perfect Fit for the Plateau
The Sharp ZU1 series in R-32 meets the expectations of the Plateau co-owners for several reasons:
-
Inverter modulation ensuring controlled consumption and stable comfort, without temperature variations.
-
Quiet operation : ideal for open-plan living spaces, teleworkers and families.
-
Cold climate performance (extended heating range), suitable for freezing episodes in Montreal.
-
High energy efficiency (Energy Star standard), interesting for optimizing operating costs and eligibility for subsidies available in Montreal, Laval, Longueuil, North Shore and South Shore .
-
Discreet design blends naturally into contemporary interiors without dominating the space.
Interior layout: precision of heights and compliance with clearances
For optimal HVAC installation , our technicians:
-
Secure the mounting plate perfectly level , respecting the recommended top and side clearances for air intake.
-
Leave a guard above the shutter to prevent any recirculation of hot air to the ceiling in heating mode.
-
Check the tightness of the wall passage (closed cell foam/air barrier) to eliminate any air or moisture infiltration.
-
Ensure a gravity slope of the condensate drain , essential for evacuating air conditioning water without noise or risk of backflow.
The refrigeration path is short and direct —a back-to-back to the rear facade is preferred in this type of configuration. This strategy limits pressure losses, reduces drilling points, and improves aesthetics (no unnecessary interior chutes).
External connections: compactness, silence, longevity
On the exterior side, the Sharp condenser is installed on a raised support with anti-vibration pads to protect the slab/balcony and limit sound transmission. The power supply is connected to a dedicated service box , facilitating maintenance maneuvers and periodic checks. The communication/power wiring and the insulated refrigeration line are sheathed and capped for a clean and durable finish against bad weather.
Typical lengths on this project: approximately 2.5 to 3 m of connections, perfect for minimizing losses and simplifying maintenance.
Construction site challenges and AirGreen responses
-
Limited wall space above a painting: we precisely adjust the installation height to respect the decorative horizon line while ensuring the shutter can be lowered freely.
-
Direct window brightness : fine adjustment of auto mode and vane orientation to avoid blowing onto living areas while compensating for solar gain.
-
Acoustics : anti-vibration installation and tightening torque control on wall fixings to eliminate unwanted noise.
Result: consistent comfort, controlled consumption
The Inverter + R-32 combination offers high seasonal efficiency . In summer, the room quickly reaches the set temperature without drafts. In mid-season, the machine covers most of the living room's heating needs, reducing the load on the main system and energy costs .
AirGreen Best Practices for Wall-Mounted Heat Pumps in Plateau-Mont-Royal
-
Choose the right capacity (BTU) : sizing based on surface area, orientation, fenestration and insulation (avoid overcapacity which reduces dehumidification).
-
Respect the slope of the drain and provide antifreeze or a drain heater if the drain crosses a cold area.
-
Limit line lengths and tight elbows; prefer back-to-back when possible.
-
Seal the passage with an air/vapor barrier to prevent condensation and losses.
-
Install a dedicated circuit breaker and check load balancing at the electrical panel when the appliance is frequently used for heating.
HVAC Maintenance: The Recipe for a Long-Lasting Machine
Annual HVAC maintenance is recommended:
-
Cleaning the filters and the interior exchanger to maintain air flow.
-
Washing the outdoor condenser , checking the fins and clearing the grilles.
-
Check electrical connections , pressures and refrigerant charge.
-
Drain control (gravity/pump if present) to prevent overflows.
-
Update of comfort settings (programming, speeds, shutter orientation).
This maintenance extends the lifespan, stabilizes consumption and maintains perceived comfort - particularly useful in old buildings on the Plateau where insulation varies from one dwelling to another.
Grants and Eligibility
Thanks to its high efficiency and the use of R-32 , the Sharp wall-mounted heat pump (ZU1 series) is generally eligible for programs in effect in Greater Montreal. We support our clients to confirm eligibility and optimize the financial package for work in Montreal, Laval, Longueuil, on the North Shore and the South Shore .
Why entrust your project to AirGreen?
Our team understands the specifics of Montreal housing : brick walls, narrow balconies, limited technical spaces, and condominiums with strict rules. We plan each HVAC installation to combine performance, aesthetics, and compliance , and deliver a clean , no-surprises project with clear maintenance monitoring .
In conclusion , this Sharp wall-mounted heat pump (ZU1 series) installed in Plateau-Mont-Royal illustrates our expertise: discreet integration , immediate comfort in summer and mid-season, and energy efficiency tailored to the Montreal climate. For a similar project in your condo or plex, we offer complete support , from the choice of capacity to periodic maintenance.
The unit on this job, in figures
The range as published on airgreen.ca: pick a size to see its capacity in deep cold.
| Size | Heating at −8 °C | Heating at −15 °C | Coldest certified point | COP at −15 °C | SEER | HSPF | Indicative LogisVert aid |
|---|---|---|---|---|---|---|---|
| Sharp ZU1 12 000 | 14,500 | 12,000 | −27 °C: 7,200 | 2.11 | 22.0 | 11.0 | $1,740 |
| Sharp ZU1 15 000 | 18,100 | 15,300 | −27 °C: 10,100 | 2.1 | 24.0 | 11.0 | $2,172 |
| Sharp ZU1 18 000 | 22,000 | 18,000 | −27 °C: 11,500 | 2.2 | 24.0 | 11.0 | $2,640 |
| Sharp ZU1 24 000 | 22,400 | 19,000 | −27 °C: 12,300 | 2.2 | 22.0 | 11.0 | $2,688 |
According to NEEP, it delivers 14,500 BTU/h at −8 °C (17 °F), more than at 8 °C (14,000 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 7,200 BTU/h, 60% of its nominal 12,000 BTU size.
At 8 °C, its certified maximum capacity reaches 17,100 BTU/h, 42% more than its nominal 12,000 BTU size.
According to NEEP, it delivers 18,100 BTU/h at −8 °C (17 °F), more than at 8 °C (18,000 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 10,100 BTU/h, 67% of its nominal 15,000 BTU size.
At 8 °C, its certified maximum capacity reaches 21,800 BTU/h, 45% more than its nominal 15,000 BTU size.
According to NEEP, it delivers 22,000 BTU/h at −8 °C (17 °F), more than at 8 °C (21,600 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its COP at −27 °C is 1.88: the highest of the ZU1 line, which ranges from 1.79 to 1.82 at that temperature.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 11,500 BTU/h, 64% of its nominal 18,000 BTU size.
At −27 °C, its certified minimum capacity is 3,200 BTU/h (5,500 at 8 °C). It slows down instead of cycling on and off.
According to NEEP, its certified heating capacity at −15 °C (5 °F) is 19,000 BTU/h, 79% of its nominal 24,000 BTU size. Its COP there is 2.20.
Data read live from the airgreen.ca page of each size (NEEP / AHRI certified performance). When the title names the installed size, it is highlighted; otherwise the whole range is shown. The aid shown is today’s, using Hydro-Québec’s rule ($120 per 1,000 BTU/h at −8 °C); amounts quoted in the article date from its publication. Only Hydro-Québec confirms the assistance granted.
The big day, step by step
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
What would it look like at your place?
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Baseboards and electric furnaces turn 1 kWh of electricity into 1 kWh of heat. A heat pump delivers more: that is its COP. At Hydro-Québec’s rate D (11.142¢/kWh above 40 kWh a day, since 1 April 2026):
Hydro-Québec: a heat pump can be up to three times more efficient than baseboards for heating in the colder months.
Estimate per kWh of heat, at the chosen temperature, using the certified COP from the product page. Taxes, access charge and backup heat not included.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
Four mistakes we do not make
Flip each card to see what we do instead.
Your own project, step by step
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
Is your home ready?
Check what applies at your place. A "no" is not a refusal: it is what we sort out during the estimate.
Four statements: true or false?
It all comes down to details you have just seen.
1. In heating mode, the outdoor unit can produce water.
During defrost cycles. That water must drain away without forming ice.
2. You pick the capacity with a simple square-footage rule.
Windows, insulation, orientation and how the room is used all count. Capacity is chosen on site.
3. A multi-zone connects several indoor heads to a single condenser.
One head per room, all on the same condenser. Each room keeps its own temperature.
4. The disconnect can sit behind the patio furniture.
It must stay accessible: it is what shuts the unit off for service.
0 / 4 right answers
What people ask us about this kind of work
Does a wall-mounted heat pump heat in winter?
Wall-mounted or multi-zone: how do I choose?
Where does the outdoor unit go?
Are there grants?
Do I need a permit?
How cold can it heat?
How much can I save?
How is the LogisVert assistance calculated?
Is it noisy?
The outdoor unit is covered in ice: is that normal?
Does AirGreen hold the required licences?
Is the estimate free?
