Installation of a Sharp wall-mounted heat pump in Rosemont–La Petite-Patrie

Four-season comfort, impeccable installation and careful finishing on a brick facade

At AirGreen , we are signing here a complete and careful HVAC installation of a Sharp wall-mounted heat pump on a typical brick facade of Rosemont–La Petite-Patrie . The client's objective: to stabilize the temperature of a Montreal home in mid-season, reduce electricity costs in winter and gain quiet cooling in summer, without cluttering the yard or balcony. Our answer: a Sharp outdoor unit with Eco Inverter and Plasmacluster technology, paired with a discreet indoor wall head, all optimized for our urban climate and our Quebec winters.

Context and customer expectations
The building, a brick plex with a narrow courtyard, imposes constraints: limited traffic, close neighbors, and the need to preserve the aesthetics of the masonry. The owner wanted:

• quiet operation so as not to disturb neighbors;

• controlled consumption with an inverter compressor;

• a wall installation to clear the ground of snow accumulations;

• simple HVAC maintenance and secure service access.

Why Sharp brand for this project?
Sharp stands out for its precise inverter management, robust electronics, and Plasmacluster air treatment that improves indoor air quality. The key strengths of this project include:

• precise power modulation: better comfort and savings;

• reliable performance in cold weather;

• defrosting reliability and component durability;

• compatibility with R-32 refrigerant on recent generations, with lower GWP than R-410A.

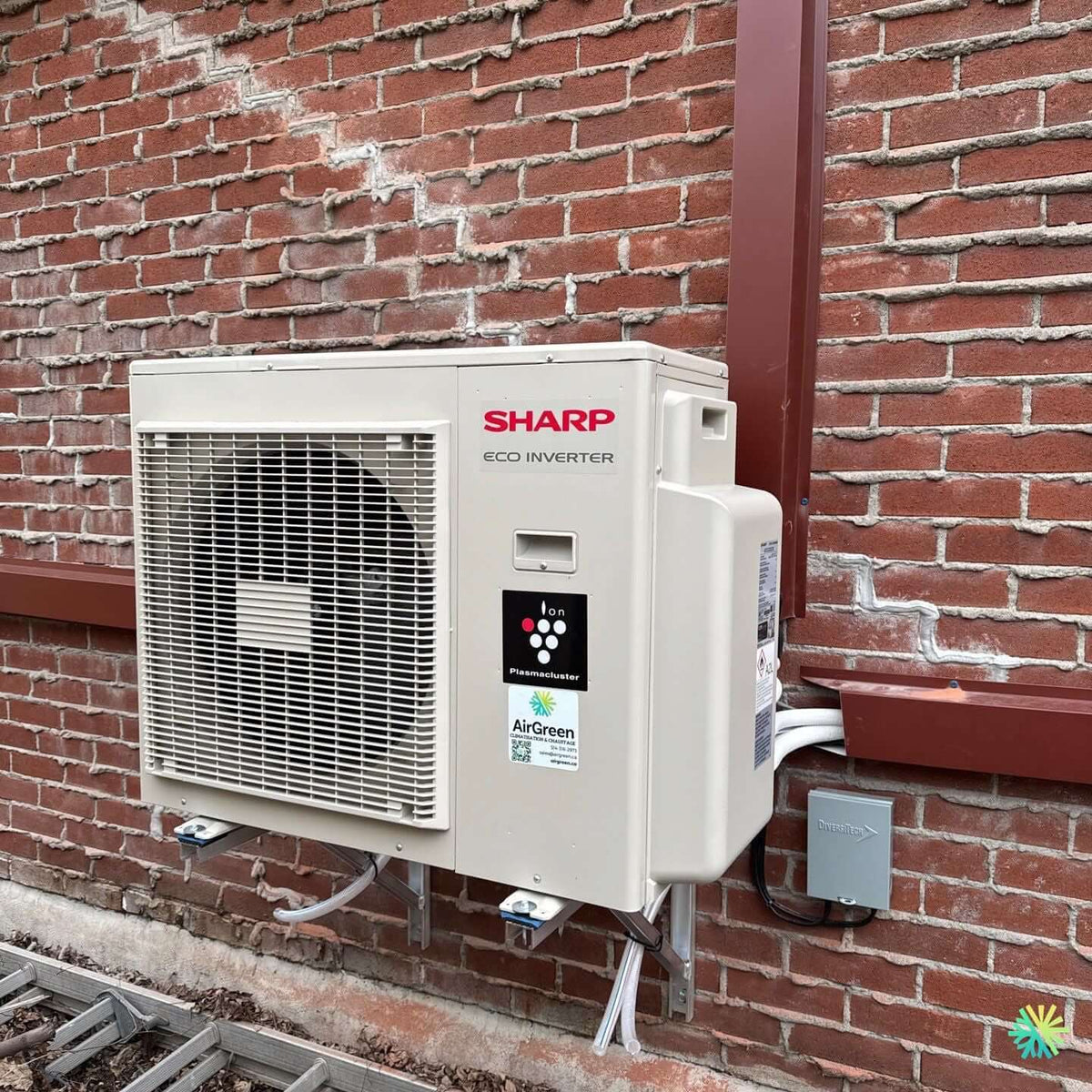

Details of installation on brick facade
We choose to install it on galvanized wall brackets with silent blocks, approximately 45–50 cm above the finished floor level. This height protects the unit from blown snow and facilitates service operations. The unit is free by at least 30 cm at the rear and largely at the front to ensure optimal air circulation .
The anchors are made by mechanical dowels adapted to the solid brick; each anchor point is sealed and caulked to prevent any infiltration. The feet of the unit rest on plates with anti-vibration pads , reducing structural noise towards the masonry and the interior.

Refrigerated route and connection management
The wiring and refrigeration lines use vertical and then horizontal brown capping to match the lines of the building and blend in with the color of the existing metal elements.

• Estimated length : 2.5 to 3.5 m between condenser and indoor head, ideal for limiting pressure losses.

• Drilling : a single drilling through the brick, with a slight outward slope for the flow of condensate.

• High density insulation and UV barrier tape on the exterior insulation to prevent cracking in the sun.

• Service loop left behind the unit for future maintenance, with no stress on the tappings.

Condensate drainage and winter preparation
The condensate drain is gravity-fed to the outside, protected and secured in the capping to prevent freezing due to stagnation. The slope is checked at the level—an essential detail to prevent backflows and icicles near the foundation. For winter, the free space under the unit prevents ice accumulation; if a snow guard is required depending on the exposure, we provide one to protect the exchanger.

Power supply and safety
In the immediate vicinity of the equipment, we install an outdoor disconnect switch within easy reach, essential for the safety of technicians. The dedicated circuit starts from the indoor panel, with a circuit breaker sized according to the compressor's nominal current and cable length. Grounding continuity is verified and the connections are protected against moisture. This assembly complies with applicable standards and best practices for residential HVAC installations in Montreal.

Air Quality: Plasmacluster Daily
Sharp's Plasmacluster technology releases positive and negative ions that help reduce certain particles and odors. This provides the customer with a feeling of fresher air, useful during pollen seasons or when windows are closed for extended periods in winter. Combined with regular filtration on the interior head, it maintains consistent comfort throughout the area served.

Performance and energy efficiency
Thanks to the inverter compressor , the machine automatically modulates to maintain the setpoint smoothly; in mid-season, the compressor runs at low speed and consumes little. In summer, the well-cleared outdoor exchanger guarantees stable condensation pressures even during heat peaks. In winter, the defrost logic limits unnecessary cycles and the raised installation accelerates dripping. Result: a favorable COP for a large part of the year and a lower electricity bill compared to conventional convectors.

Aesthetics and integration
On a facade visible from the courtyard, discretion is key. We match the color of the capping and metal elements, align the horizontal and vertical axes, and ensure regular radii of curvature on the connections. The result is clean, straight, and facilitates any masonry maintenance—a point appreciated by condominiums and owners concerned about property value.

Construction progress — fast and controlled

1. Validation of the location with the client (acoustics, snow clearance, access).

2. Identifying routes and taking measurements .

3. Installation of supports, level control and tie rods.

4. Drilling, passing connections, brazing under nitrogen and deep vacuum.

5. Leak tests, charging, start-up and verification of refrigeration parameters .

6. Finishing (capping, sealing, labeling, site cleaning).
   The intervention is carried out during the day, without interrupting the home's activities.

Instructions for use and maintenance

• Keep the setpoint stable; avoid frequent variations of ±3°C which affect performance.

• Clean the inner head filters every 4 to 8 weeks depending on usage.

• Maintain 1 m clear in front of the outdoor unit's blowing face.

• Plan annual maintenance (pressure/saturation temperature control, exchanger cleaning, electrical testing, probe calibration).

• In winter, never block the bottom of the unit with snow — this ensures efficient and quiet defrosting.

Common Pitfalls to Avoid (and How We Eliminate Them)

• Height too low : risk of ice and noise - we install raised, with margin for winter accumulations.

• Tight elbows on refrigeration lines: pressure losses — we respect large radii and an optimized total length.

• Absence of disconnector : non-compliance — always present, within reach.

• Neglected caulking : infiltrations - clean, durable and reversible sealing for masonry.

• Vibrations in brick : structural noise — silent blocks and controlled tightening torque.

What the customer gains, concretely

• Responsive cooling in summer, even during Montreal heat waves.

• An efficient heating supplement during the off-seasons, reducing the use of electric baseboards.

• Improved air quality thanks to the Plasmacluster.

• A clear exterior, without slabs on the ground, and a controlled aesthetic.

• A system ready for many years with local and fast AirGreen service (Montreal, Laval , Longueuil , North Shore , South Shore ).

Express FAQ
Is a wall-mounted heat pump enough for the entire winter?
In a well-insulated home, it covers a large part of the needs. During prolonged periods of extreme cold, an electrical backup is often kept on.

Can the inner head be moved or replaced later?
Yes, our courses are designed to remain accessible. A move to a multi-zone course is possible depending on the configuration.

Are there any financial aid programs?
Certain energy-efficient models may be eligible under current programs. We will work with you to verify compliance (performance, technical specifications) and prepare the necessary documents.

Why choose AirGreen for your project in Montreal?
We install heat pumps and wall-mounted air conditioners every day in Greater Montreal. Our strengths: honest diagnosis, clean and durable installation, and maintenance support to maintain initial performance. Each project is documented, each customer receives clear instructions and easy access to after-sales service. Whether you are in Rosemont, Laval , Longueuil , on the North Shore or the South Shore , our team plans a clean, safe and aesthetic installation—at the right price and on time.

Conclusion
This Sharp wall-mounted heat pump installation in Rosemont–La Petite-Patrie exemplifies our approach: technical rigor, meticulous finishing, and thoughtful integration with the local architecture. The result is four-season comfort, controlled energy costs, and a unit ready to last in Montreal conditions. For a similar project, contact us: we offer the right power, the right location, and impeccable HVAC installation throughout Montreal , Laval , Longueuil , the North Shore , and the South Shore .
